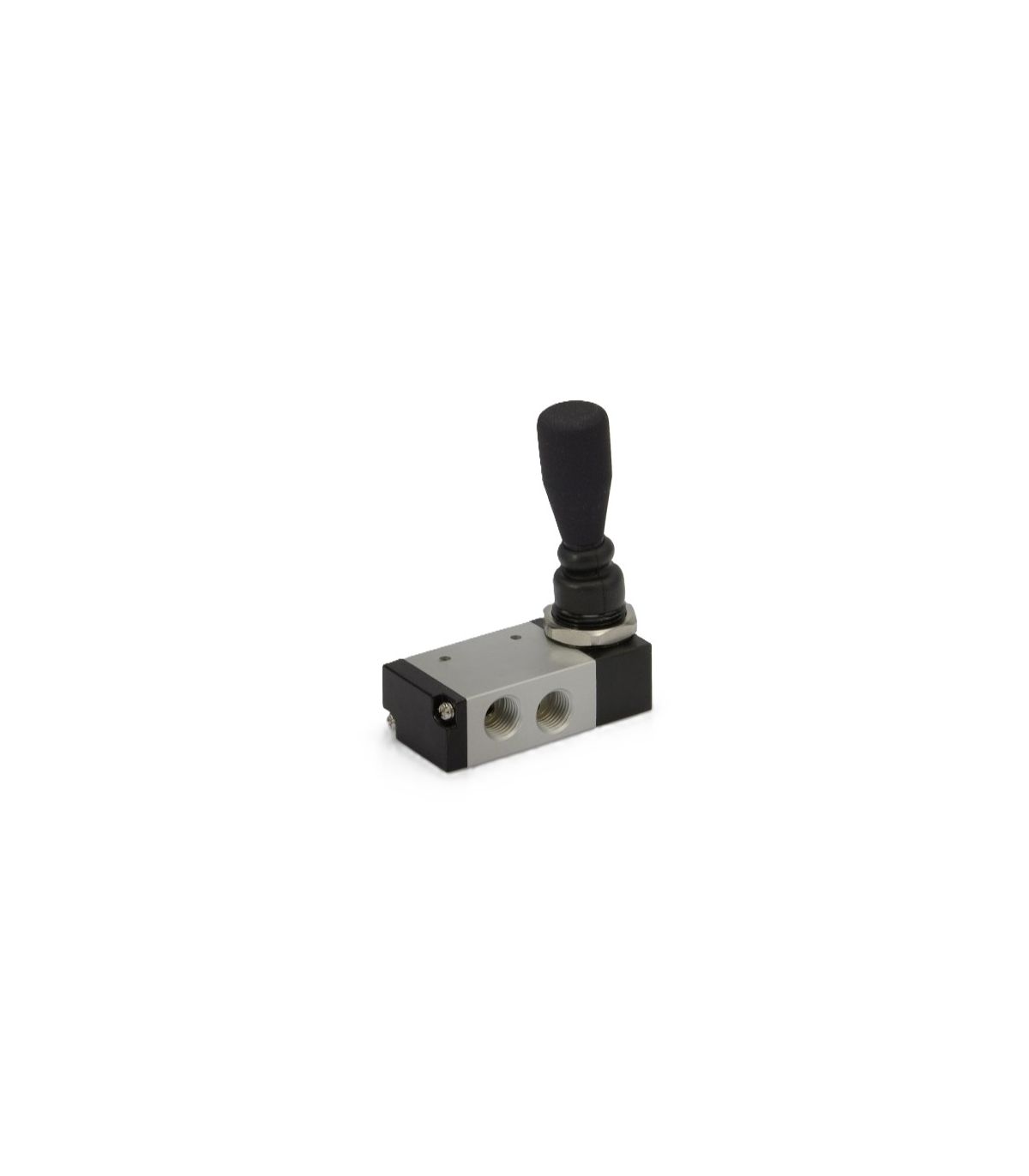

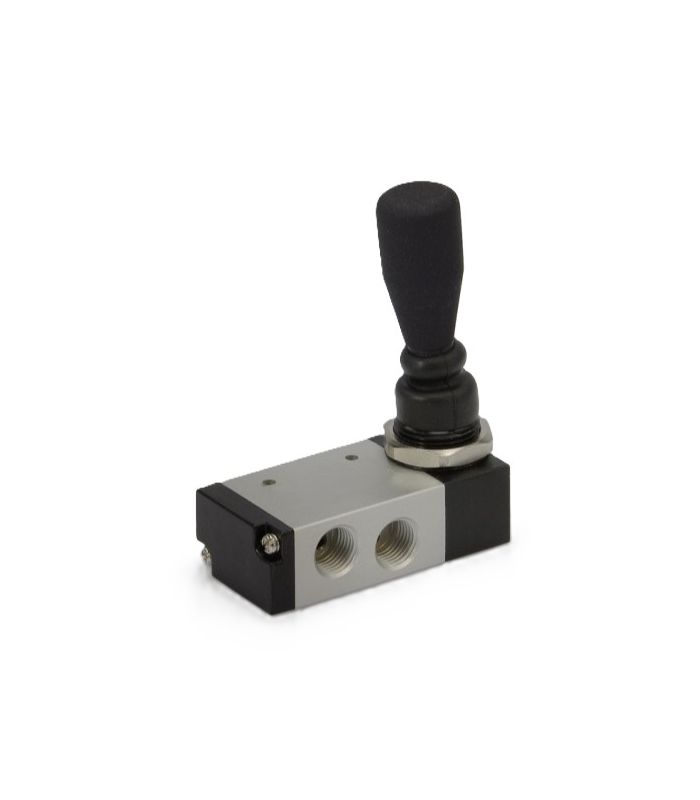

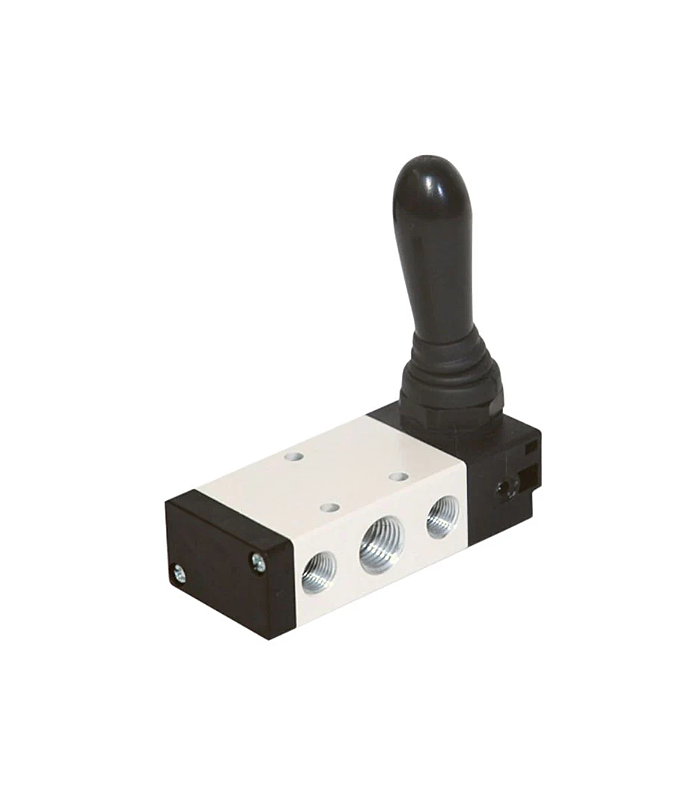

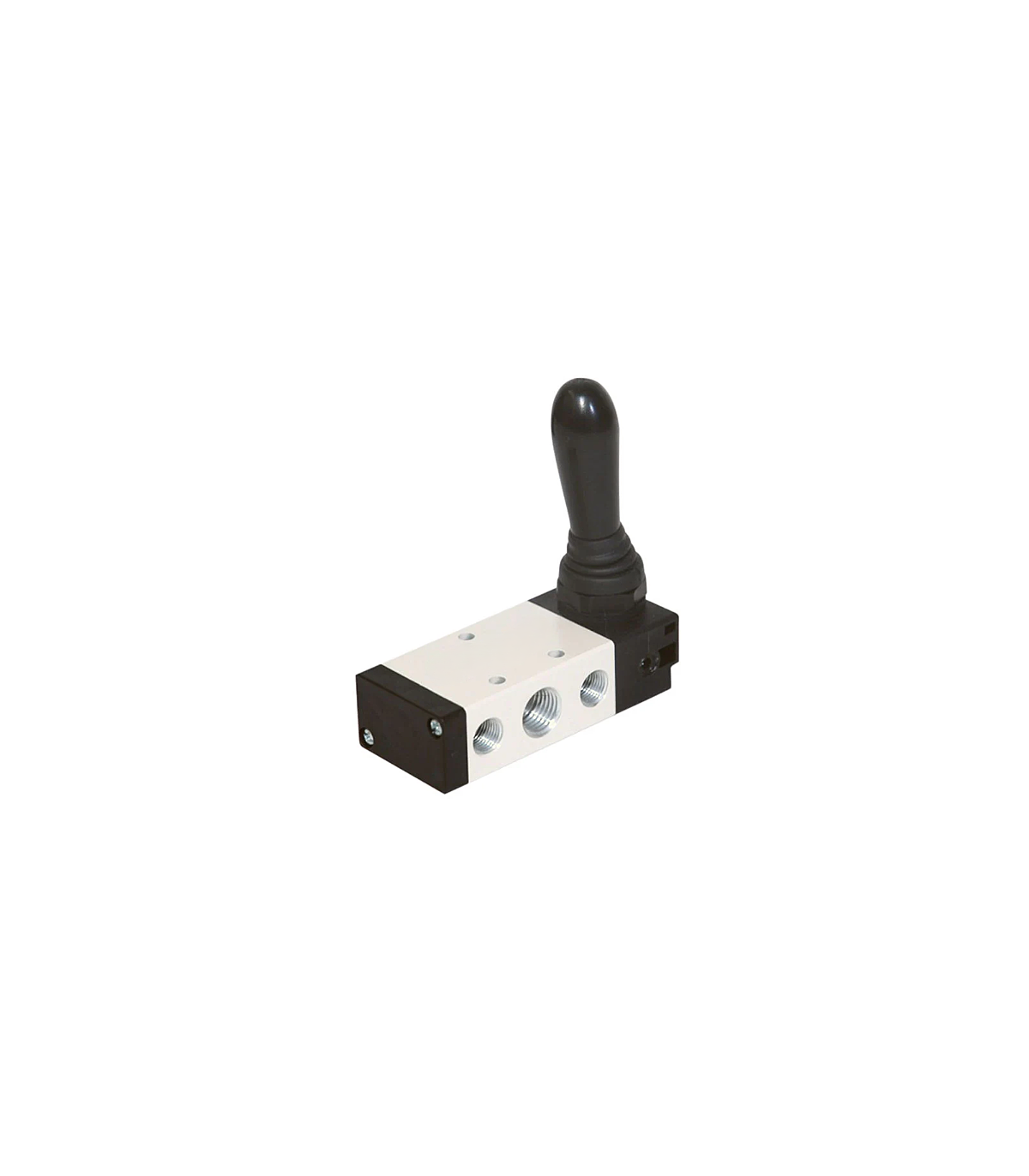

1/8" VALVE 90º LEVER
1/8" VALVE 90º LEVER
1/8" VALVE 90º LEVER
1/8" VALVE 90º LEVER

1/8" VALVE 90º LEVER

The 1/8" 90º lever valve is designed to control the flow of compressed air manually using a 90º rotating lever.

Applications: Industrial automation, Medical equipment, Robotics and Instrumentation.

Technical data sheet:

  • 1/8 valve manually operated by 90º lever, in 3/2, 5/2 mono or bistable version, and 5/3 closed, open or pressure centres.
  • Made entirely of technopolymer, with a reduced size (22 mm wide)
  • Provides a flow rate of 490 l/min. at 6 bar.
  • Pressure 0 -10 bar.
  • Flow rate 490 Nl/min. at 6 bar.
  • Temperature -5 / 50ºC.
€27.95 (tax included)
€23.10 (tax excl.)
SELECT TYPE
  • 3/2 N.. CLOSED
  • 3/2 FLIP-UP
  • 5/2 MONOSTABLE
  • 5/2 BISTABLE
  • 5/3 CENTER TO LOCKABLE EXHAUST
  • 5/3 LOCKING CLOSED CENTER
  • 5/3 LOCKING PRESSURE CENTER
  • 5/3 CLOSED DOCK CENTER
  • 5/3 CENTER TO DOCK EXHAUST
  • 5/3 SPRING PRESSURE CENTER
Reference:
21120001
Description

1/8" valve 90º lever

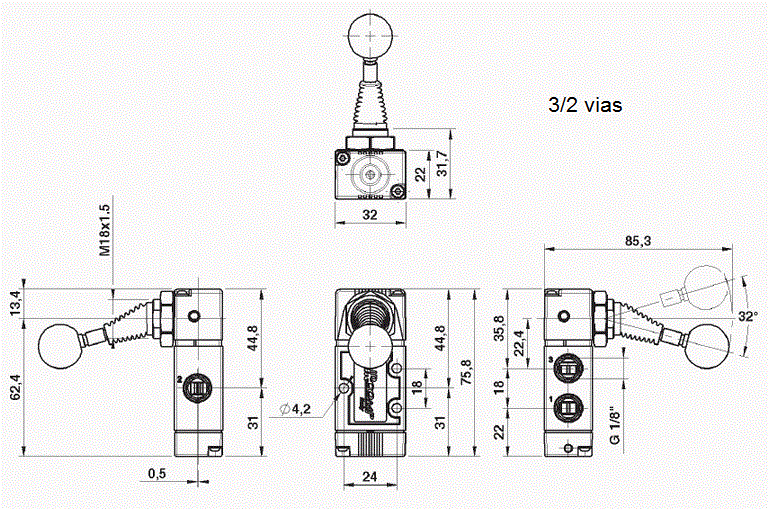

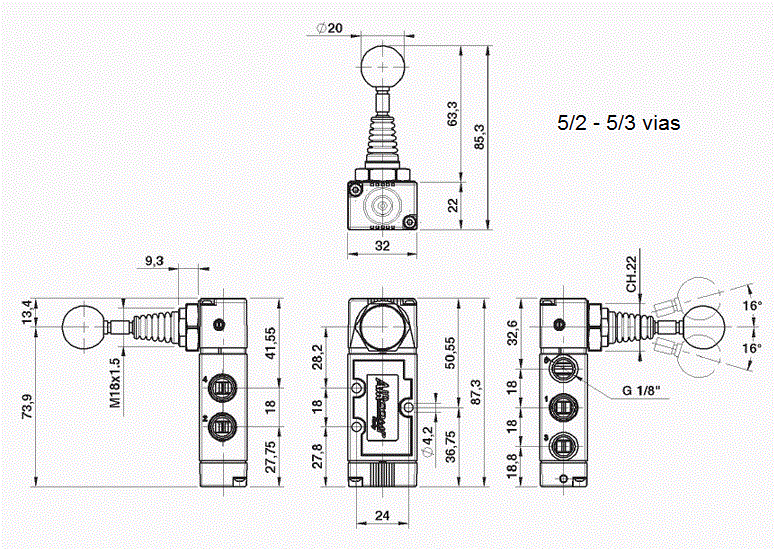

VALVULA PALANCA 18 90VALVULA PALANCA 18 90

Product Details
21120001
