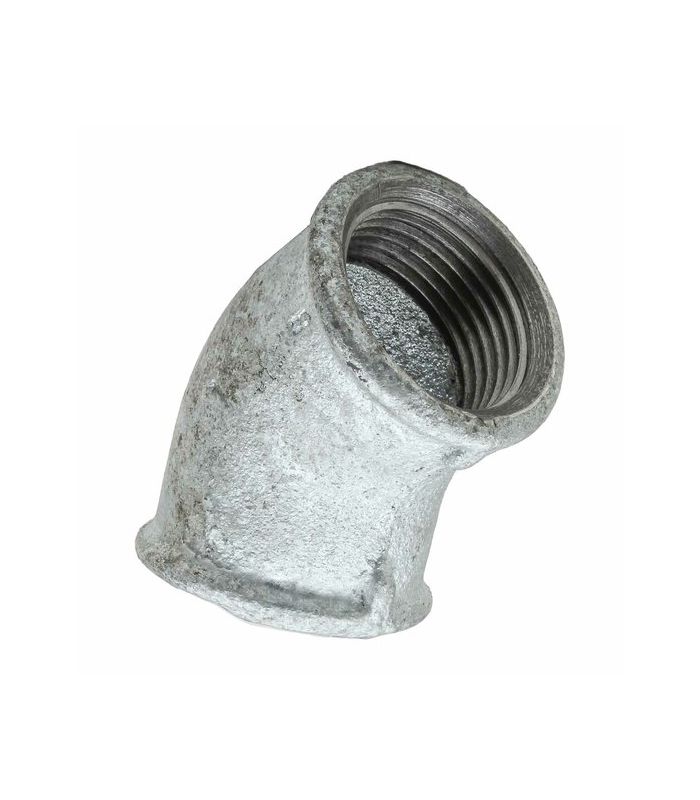

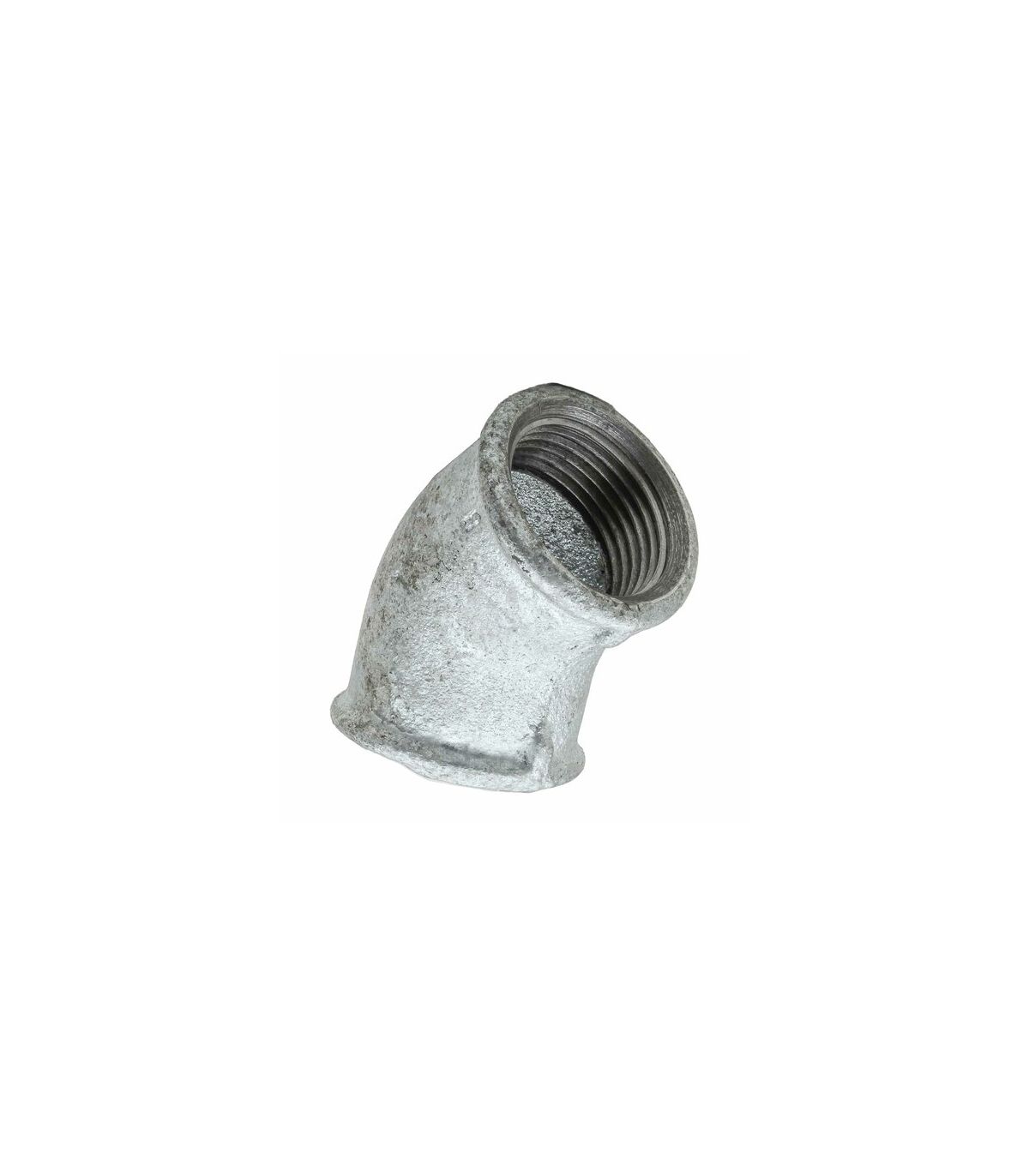

FIG.120 GALVANIZED 45º FEMALE ELBOW

Fig. 120 Galvanized 45º female elbow is used to change the direction of fluid flow at a 45º angle in pipes.

It incorporates a female thread type in both mouths.

Common applications include pipe direction changes, branch connections, angle valve and faucet installations, or pipe repairs.

Technical data sheet:

Connection threads according to ISO 7/1 (DIN 2999 / BS 21)
Fastening threads according to ISO 228/1
Nominal diameter dn under ISO 6708
Dimensions according to ISO 49 & DIN 2950
Manufactured under UNE standard en 10242
Working pressure:
Nominal pressure: PN-16 / PN-25 (300 lbs)
Working ambient temperature range: -20/+300ºC

€4.09 (tax included)

€3.38 (tax excl.)

SELECT THE THREAD

Reference:

12610016

Description
Comments

Description

Fig. 120 galvanized 45º female elbow

Product Details

Reference 12610016

Comments
