FIG. 1 90° MALE-FEMALE GALVANIZED BEND | Buy online. Best price

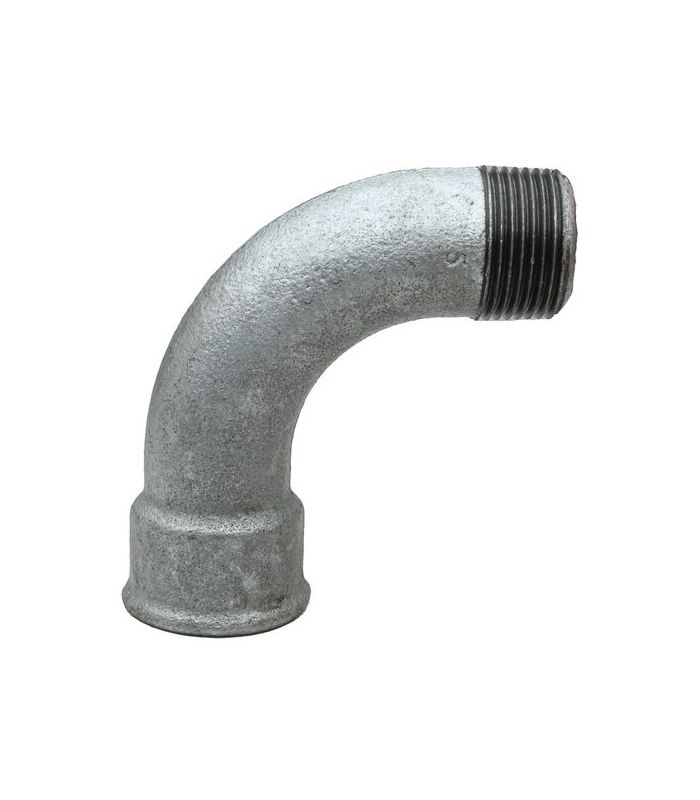

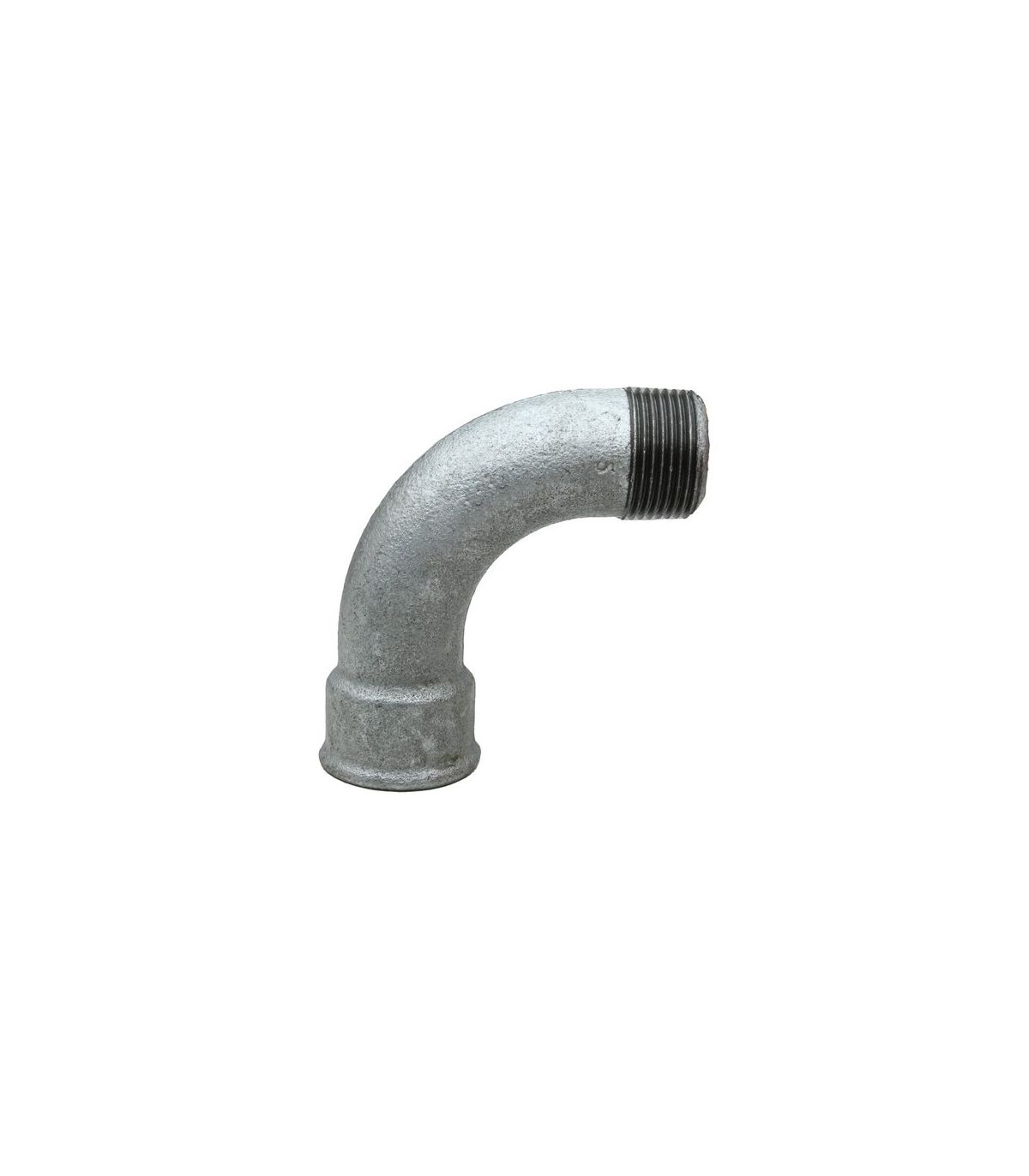

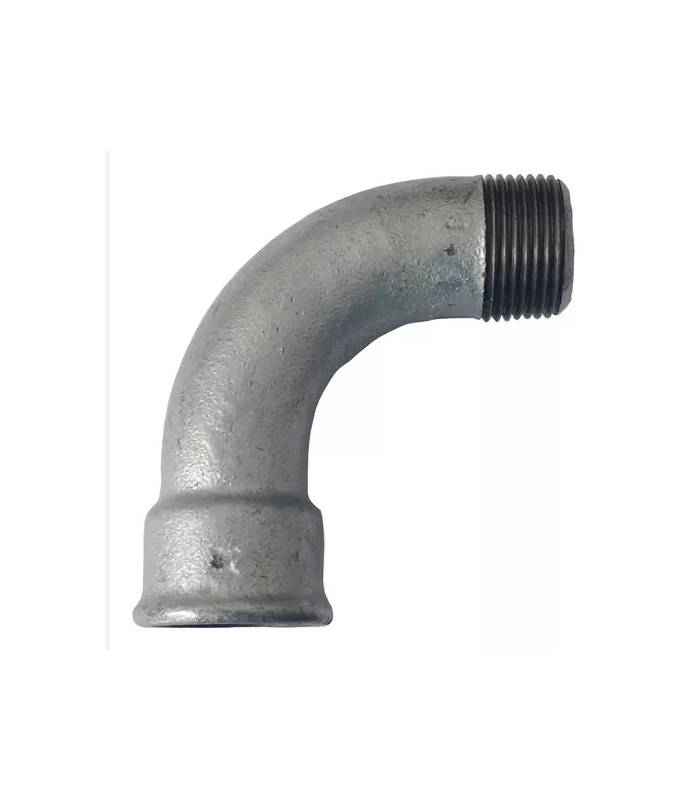

FIG.1 GALVANIZED MALE-FEMALE 90º CURVE

Figure 1 shows a galvanized 90° male-female elbow that allows you to change the direction of a fluid (water, gas, etc.) at a 90° angle. It is made of galvanized iron, which gives it high corrosion resistance and a long service life.

The most common applications are plumbing installations, heating systems, gas installations and the industrial sector.

Technical specifications:

Threaded connections according to ISO 7/1 (DIN 2999 / BS 21)
Fastening threads in accordance with ISO 228/1
Low nominal diameter DN ISO 6708
Dimensions according to ISO 49 & DIN 2950
Manufactured according to UNE EN 10242 standard
Working pressure:
Nominal pressure: PN-16 / PN-25 (300 lbs)
Ambient operating temperature range: -20/+300ºC

FIG.321 FLANGE WITH GALVANIZED DRILLS

€10.14 (tax excl.)

€12.27 (tax incl.)

Union threads according to ISO 7/1 (DIN 2999 / BS 21) Clamping threads according to ISO 228/1 Nominal diameter dn under ISO 6708 Dimensions according to ISO 49 & DIN 2950 Manufactured under UNE EN 10242 standard...

FIG. 40 45º MALE-FEMALE GALVANIZED BEND | Online purchase available.

FIG. 40 CURVE 45º GALVANIZED MALE-FEMALE

€2.65 (tax excl.)

€3.21 (tax incl.)

The Fig. 40 45º male-female galvanized bend is a plumbing and piping system fitting designed to change the direction of a fluid at a 45º angle. It has a male thread on one end and a female thread on the other. Common...

FIG. 300 GALVANIZED HEXAGONAL FEMALE PLUG

€1.10 (tax excl.)

€1.33 (tax incl.)

EXPANSION SLEEVE WITH GALVANIZED FLANGES

€20.97 (tax excl.)

€25.37 (tax incl.)

Anti-vibration sleeve, serves as an expansion joint. They absorb and dampen vibrations. Reduce alignment problems. Flange made of galvanized steel. EPDM elastometer and nylon reinforcement. Pressure PN-16 Vacuum 400...

FIG.90R GALVANIZED REDUCED FEMALE ELBOW

€1.50 (tax excl.)

€1.82 (tax incl.)

FIG. 85 GALVANIZED BRIDGE

€3.89 (tax excl.)

€4.71 (tax incl.)

Fig. 85 galvanized bridge is an accessory for plumbing and pipe installations. Its function is to connect two sections of pipe that are at different heights, allowing the fluid to circulate without interruptions. It...

GALVANIZED ANTI-VIBRATION ELASTIC SLEEVE

€21.17 (tax excl.)

€25.62 (tax incl.)

Anti-vibration sleeve. They absorb and dampen vibrations. Reduce alignment problems. Union nut made of galvanized steel. Elastometer in EPDM and nylon reinforcement. Pressure PN-16. Vacuum 400 mm Hg Temperature -10 /...

FIG. 2 90º FEMALE BEND GALVANIZED | Buy online at the best price

FIG. 2 GALVANIZED FEMALE 90º CURVE

€2.60 (tax excl.)

€3.15 (tax incl.)

Fig. 2 galvanized female 90º bend It is a plumbing and piping system accessory used to change the direction of a fluid at a 90º angle. Both ends have female threads. Requires male thread fittings to make the...

FIG.1 GALVANIZED MALE-FEMALE 90º CURVE

€3.40 (tax incl.)

€2.81 (tax excl.)

Figure 1 shows a galvanized 90° male-female elbow that allows you to change the direction of a fluid (water, gas, etc.) at a 90° angle. It is made of galvanized iron, which gives it high corrosion resistance and a...

AMG MACHO CHAPE for hydraulic cylinder | Buy online

CHAPE MACHO AMG

An AMG male cap is a component specifically used in hydraulic cylinders. It is a threaded metal part that attaches to the end of the cylinder rod to allow connection to other components, such as ball joints, bearings,...

3/4" IMPACT WRENCH AR-2018

€316.97 (tax excl.)

€383.53 (tax incl.)

A 3/4" AR-2018 impact wrench is a compact and durable pneumatic tool designed to easily loosen and tighten medium-sized nuts and bolts. Technical specifications: Square drive size: 3/4" (19 mm) Maximum torque: 1084 Nm...

MECHANICAL COUNTER 3 DIGITS 23193

€216.00 (tax excl.)

€261.36 (tax incl.)

Technical data Flange inlet/outlet distance (mm): 175 Dual connection: G 1'' i Fluid measurement: self-lubrication through narrow conduits Minimum flow rate (l/min): 20 Max. flow rate (l/min): 120 Material temperature...

ROTARY LEVER VALVE

€39.90 (tax excl.)

€48.28 (tax incl.)

A rotary lever valve is used to manually control the flow of compressed air. It is operated by a lever that rotates to open or close the air passage. Applications: Industrial automation, Medical equipment, Robotics...
