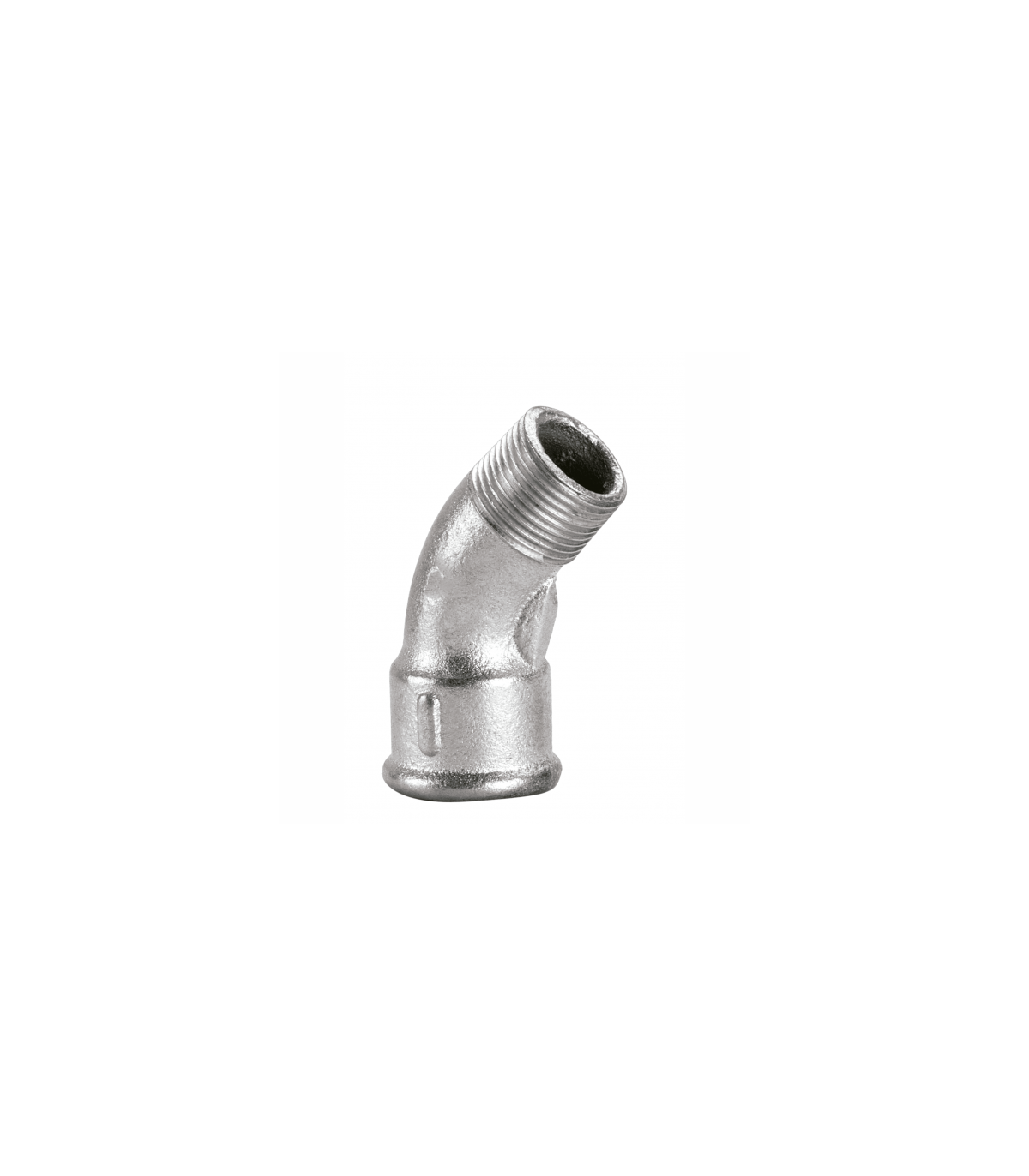

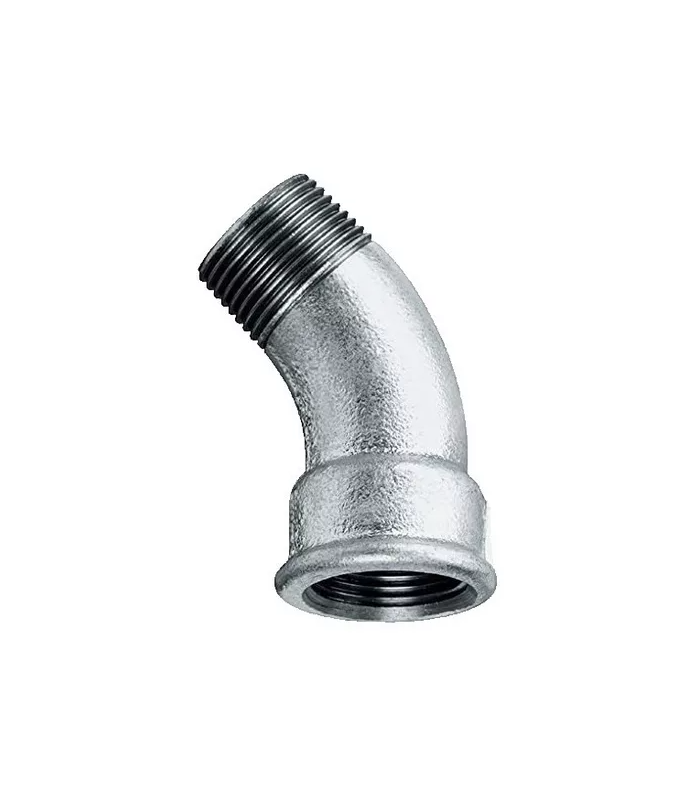

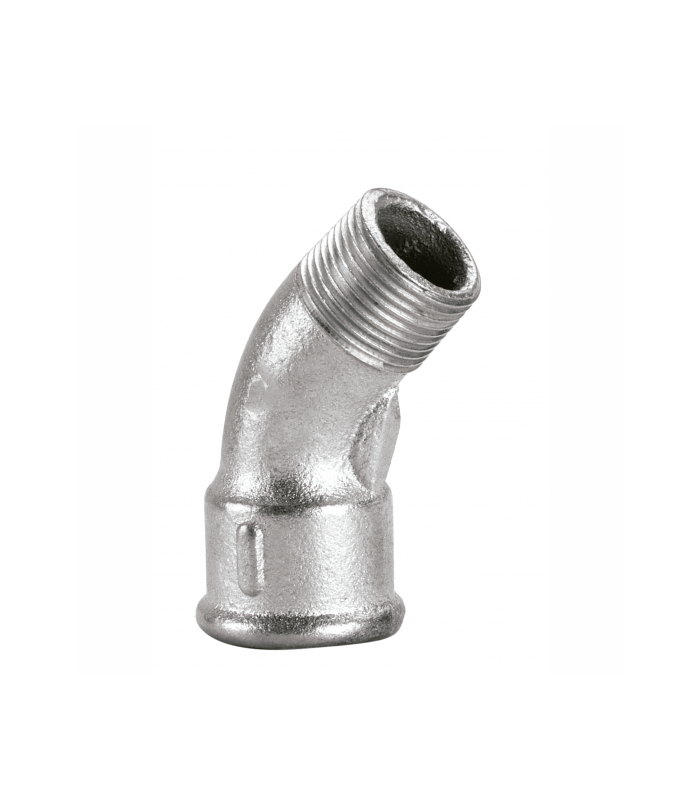

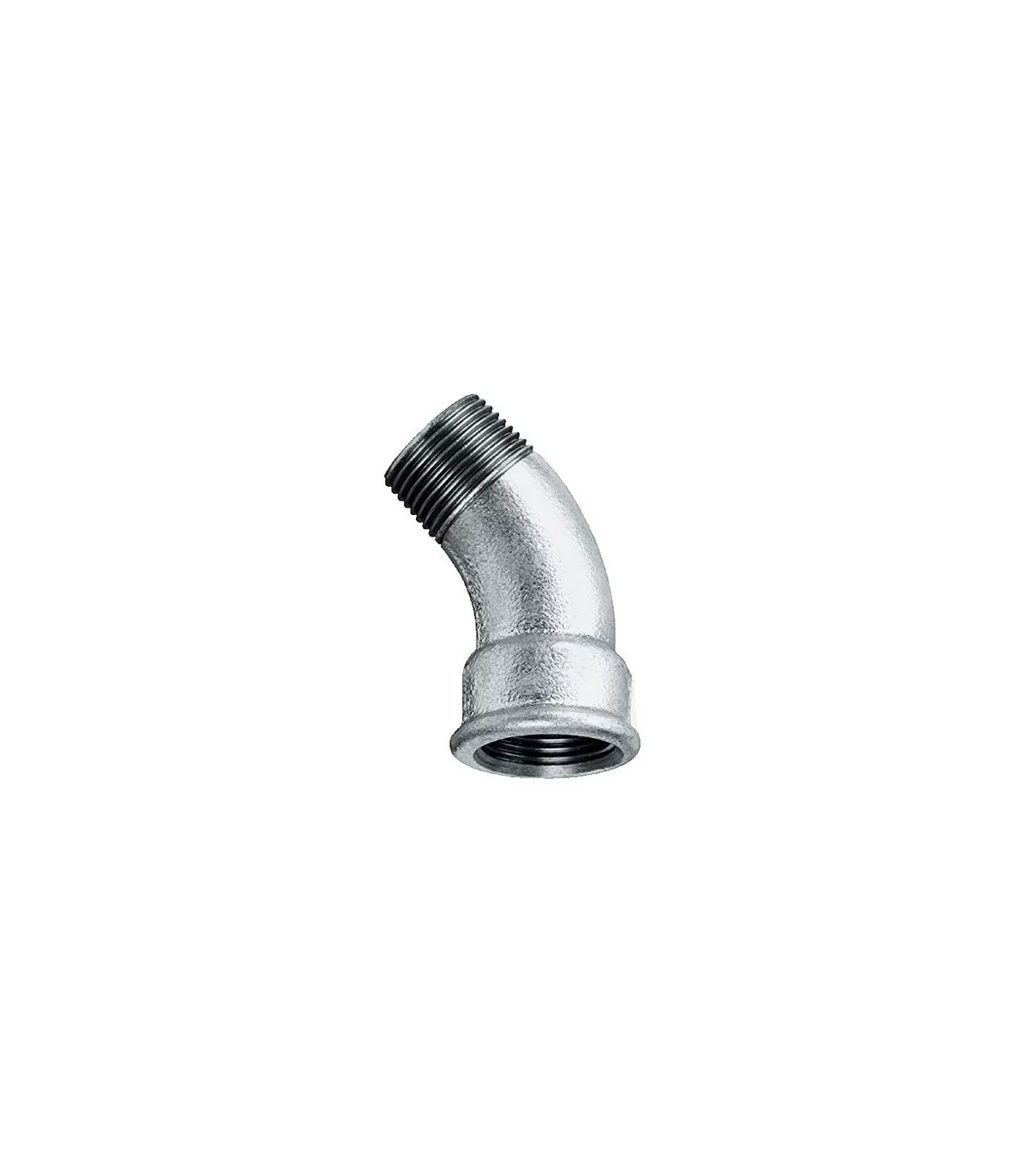

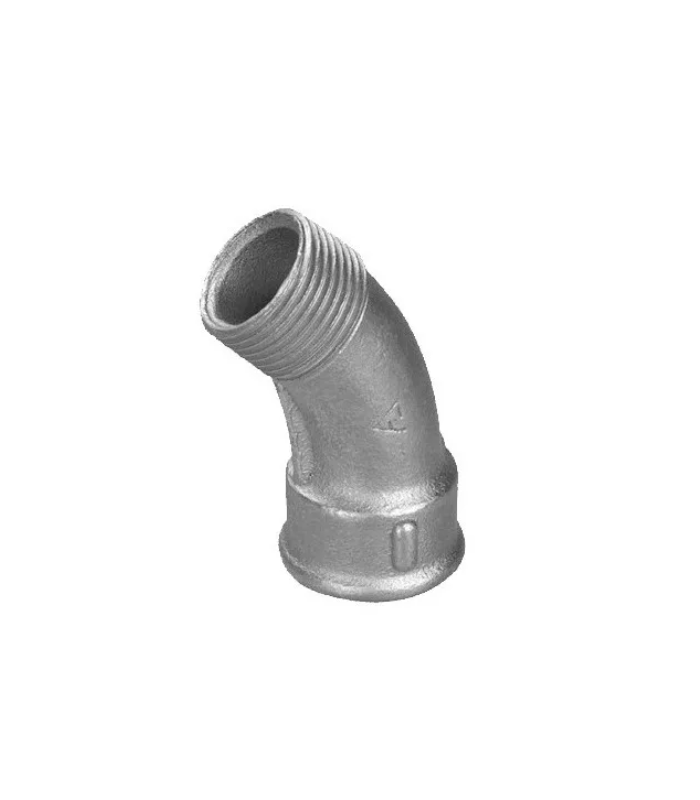

FIG. 40 CURVE 45º GALVANIZED MALE-FEMALE

FIG. 40 CURVE 45º GALVANIZED MALE-FEMALE

The Fig. 40 45º male-female galvanized bend is a plumbing and piping system fitting designed to change the direction of a fluid at a 45º angle.

It has a male thread on one end and a female thread on the other.

Common uses are varied, such as plumbing installations, heating systems, gas installations or industry.

Technical data sheet:

Connection threads according to ISO 7/1 (DIN 2999 / BS 21)
Fastening threads according to ISO 228/1
Nominal diameter dn under ISO 6708
Dimensions according to ISO 49 & DIN 2950
Manufactured under UNE standard en 10242
Working pressure:
Nominal pressure: PN-16 / PN-25 (300 lbs)
Working ambient temperature range: -20/+300ºC

€3.21 (tax included)

€2.65 (tax excl.)

SELECT THE THREAD

Reference:

12530016

Description
Comments

Description

Fig. 40 galvanized male-female 45º curve

Product Details

Reference 12530016

Comments
