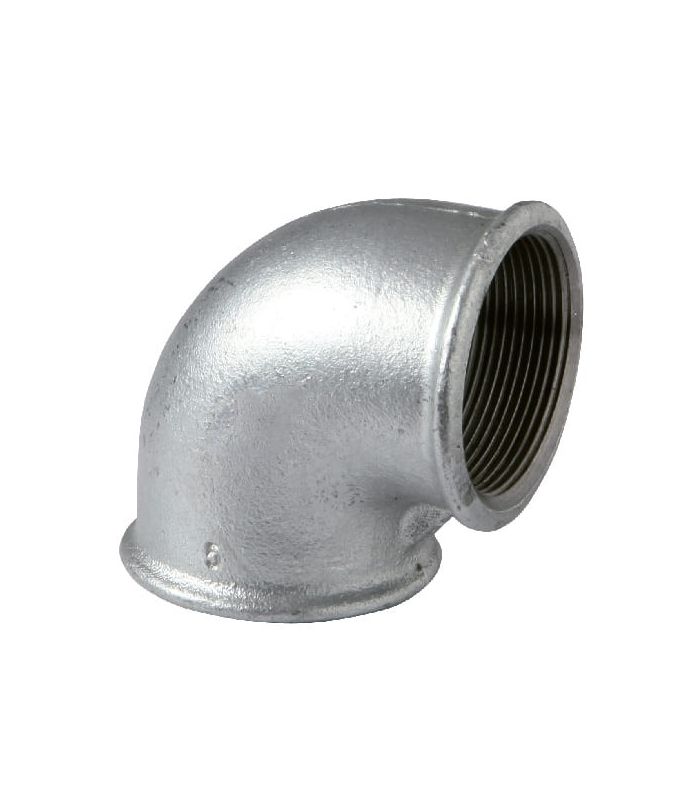

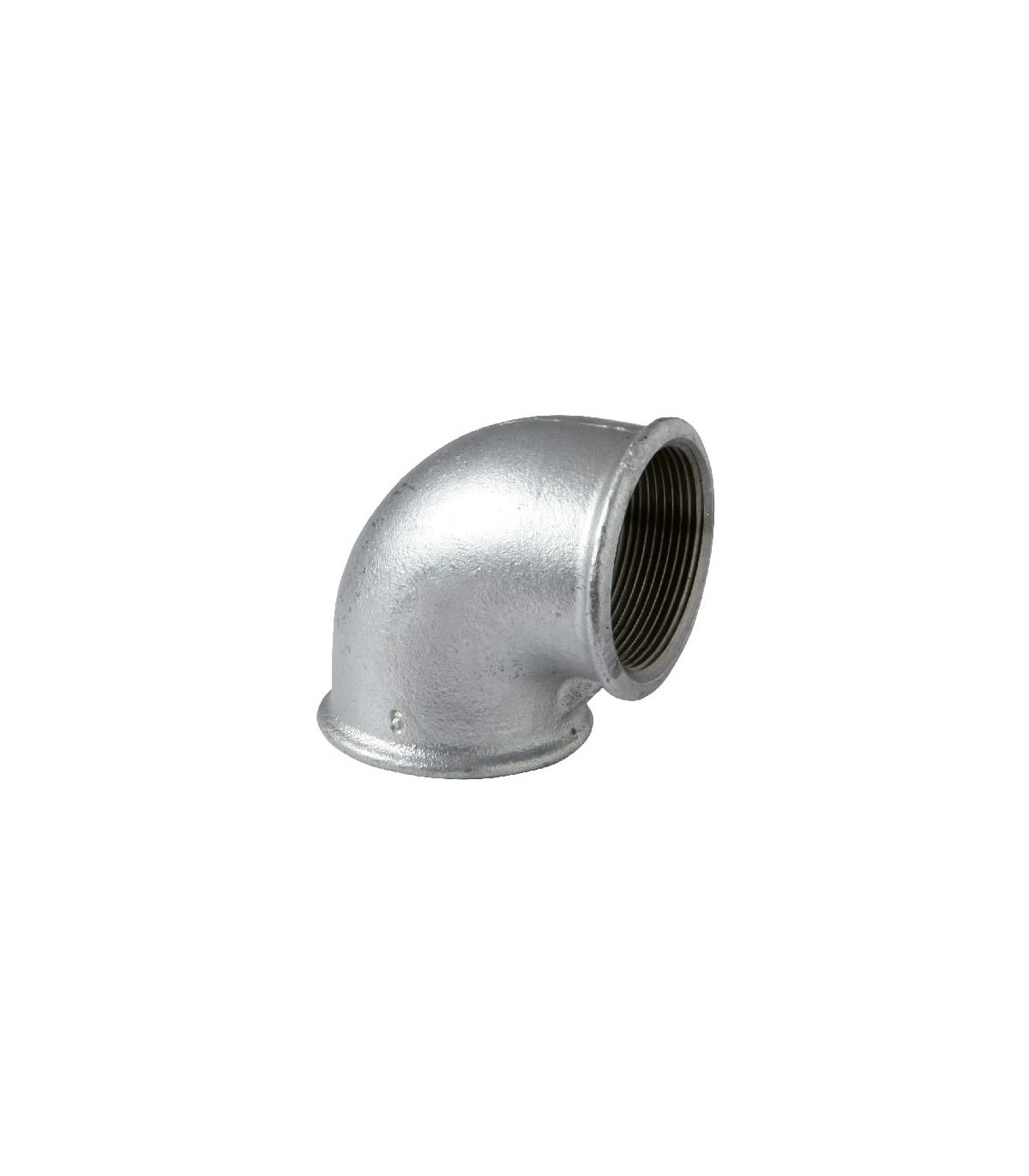

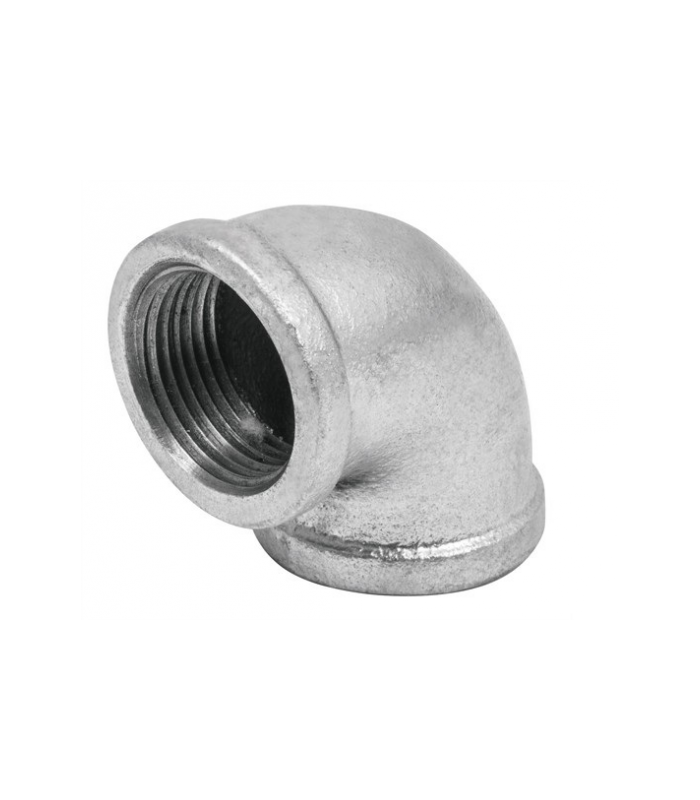

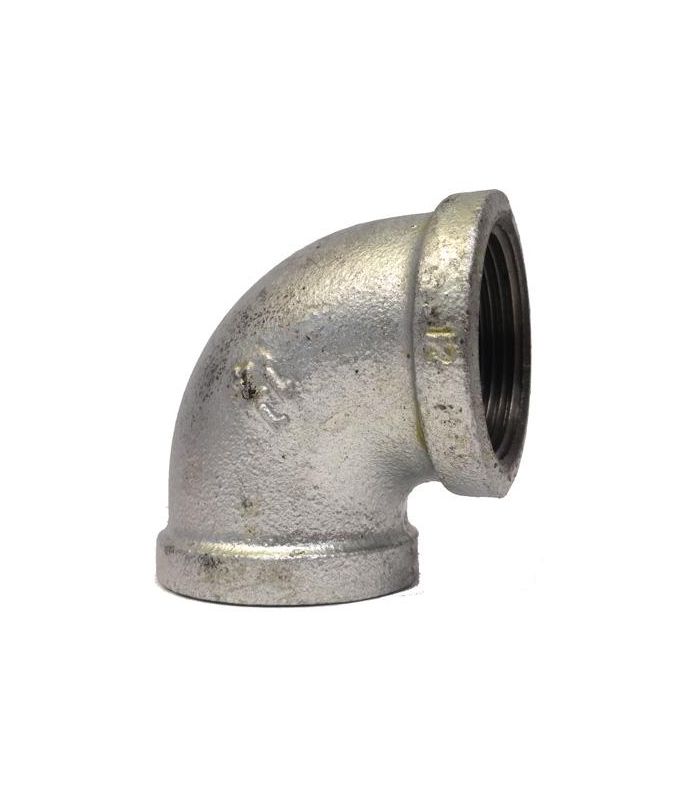

FIG. 90 GALVANIZED 90º FEMALE ELBOW

The Fig. 90 galvanized 90º female elbow is an element of plumbing and piping systems for changing the direction of flow of a fluid (water, gas, etc.) at a 90º angle. This form of elbow allows for sudden changes in direction.

It is commonly used in sectors such as plumbing, heating systems and industry.

Technical data sheet:

Connection threads according to ISO 7/1 (DIN 2999 / BS 21)
Fastening threads according to ISO 228/1
Nominal diameter dn under ISO 6708
Dimensions according to ISO 49 & DIN 2950
Manufactured under UNE standard en 10242
Working pressure:
Nominal pressure: PN-16 / PN-25 (300 lbs)
Working ambient temperature range: -20/+300ºC

€1.08 (tax included)

€0.89 (tax excl.)

SELECT THE THREAD

Reference:

12560016

Description
Comments

Description

Fig. 90 galvanized 90º female elbow

Product Details

Reference 12560016

Comments
