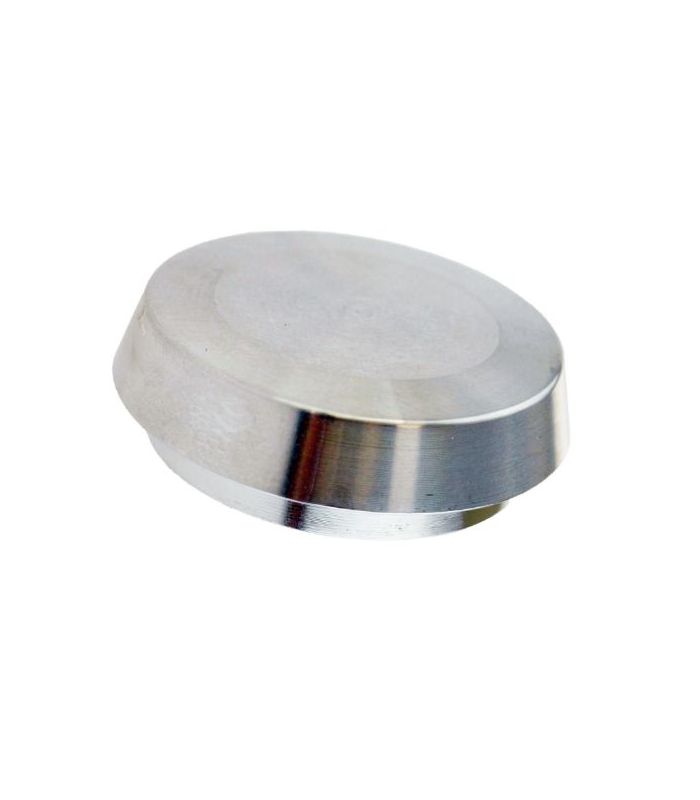

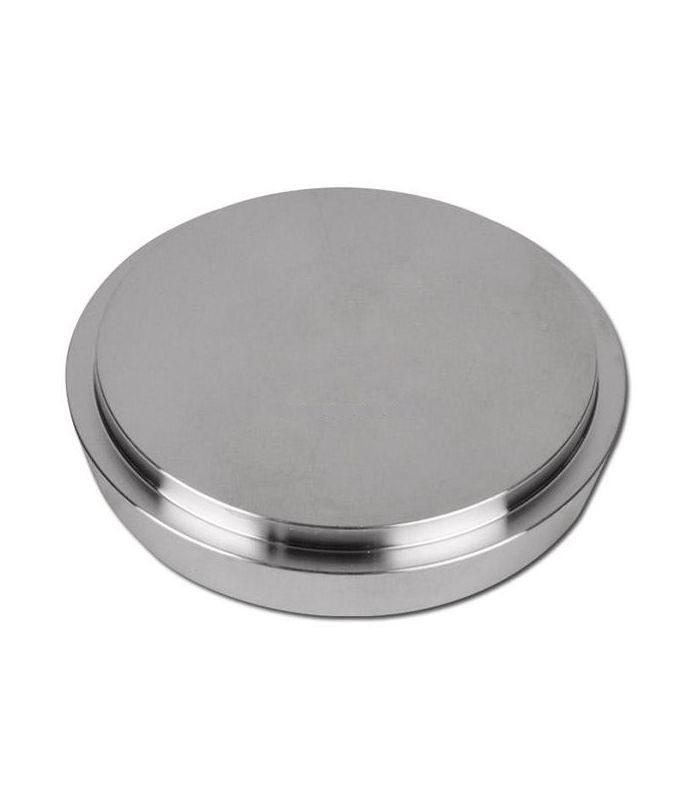

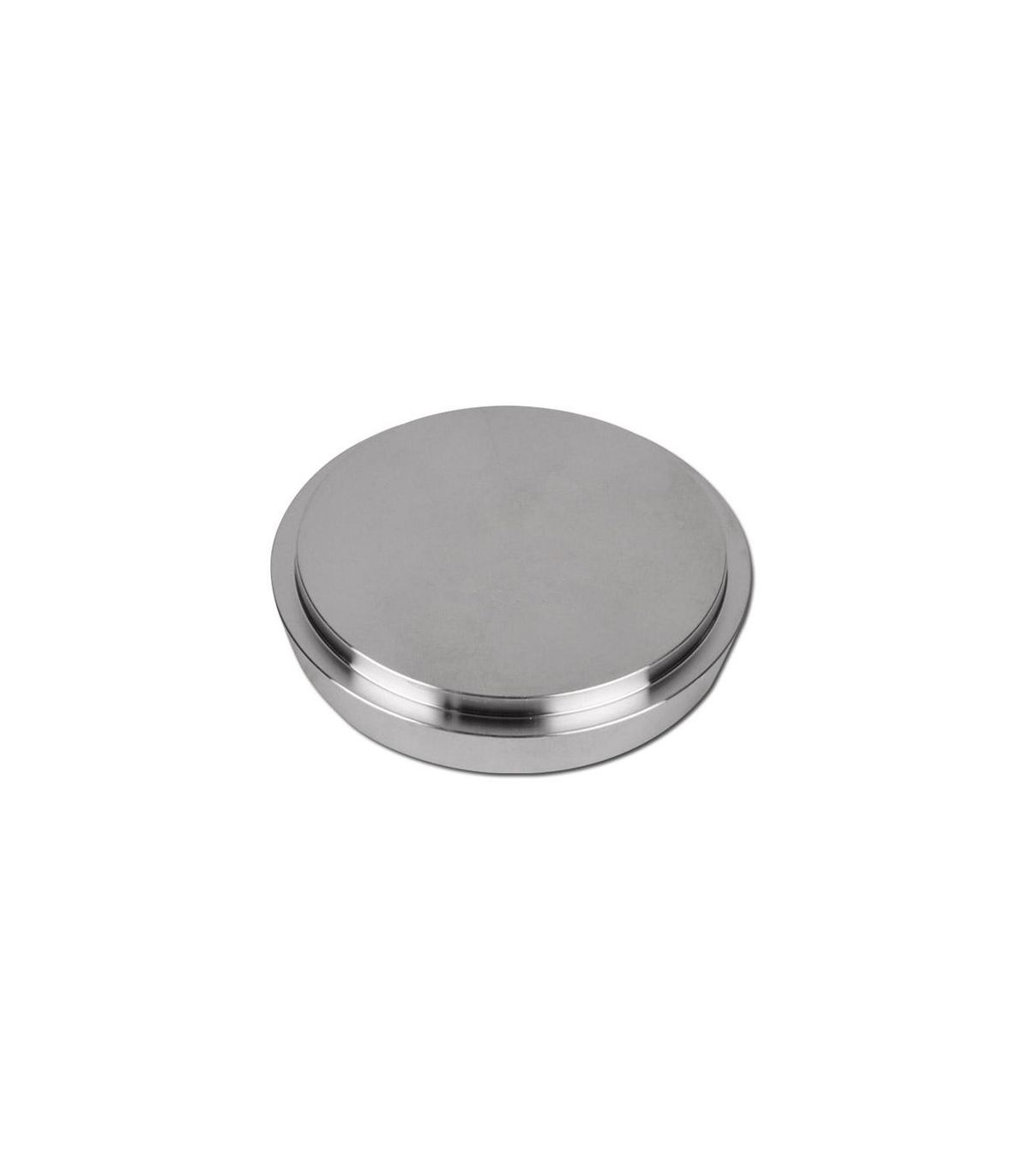

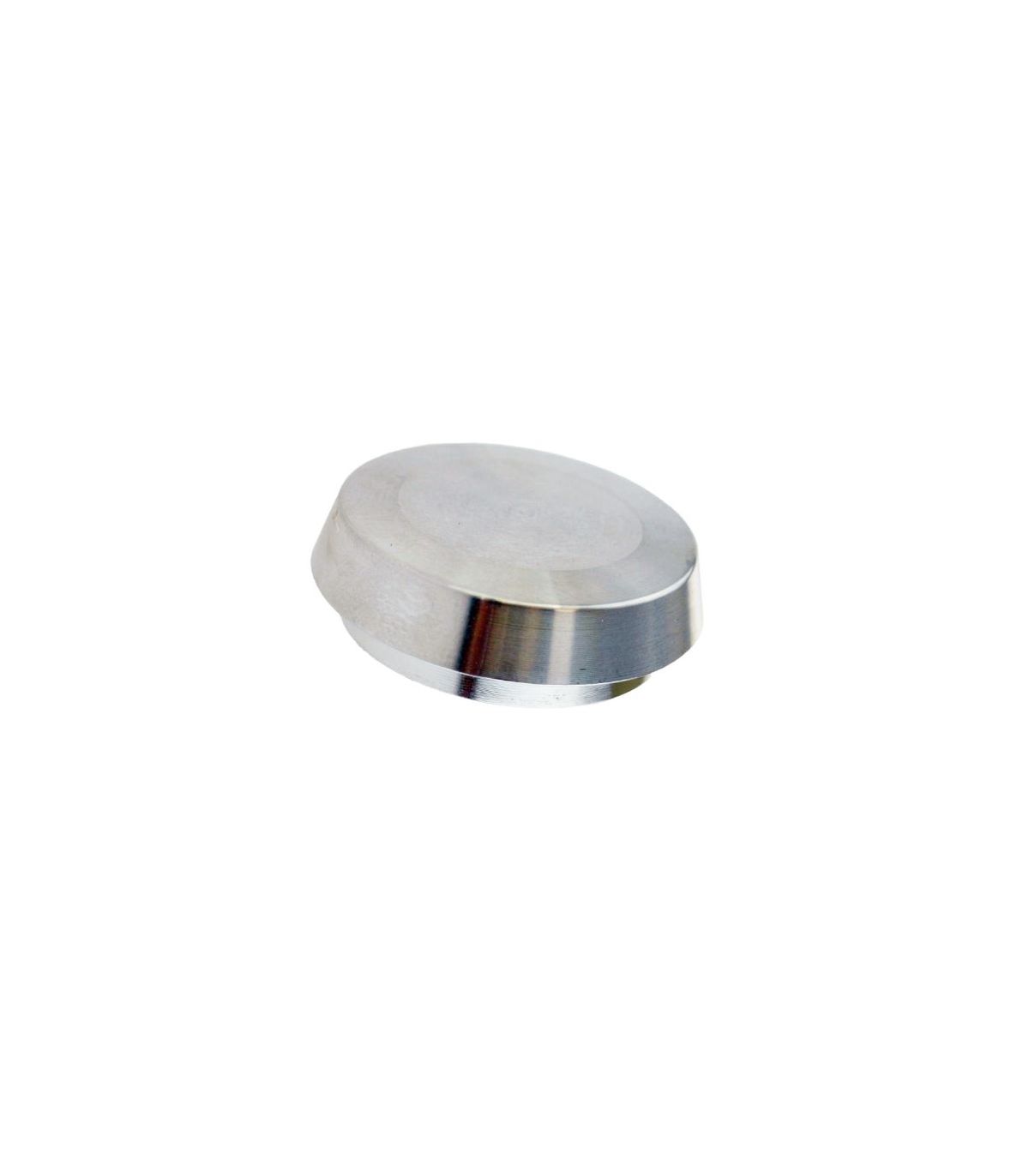

A DIN-11851 stainless-304 blanking plug is used to hermetically seal, temporarily or permanently, a DIN-11851 connection that is not in use or needs to be isolated, ensuring cleanliness and preventing leaks or the entry of contaminants.
Applications: Production and Packaging Lines, Tanks and Vessels, CIP/SIP Cleaning Systems, Test Benches, Storage
Technical specifications:
The DIN-11851 stainless-304 blanking plug is a sanitary sealing element designed to securely and leak-proofly seal male or female connections in hygienic piping systems. Its design allows for the complete closure of process lines, preventing the entry of contaminants and permitting the temporary disconnection of equipment or branch lines.
It is especially suitable for applications in the food, dairy, pharmaceutical and beverage industries, where high hygiene standards and ease of disassembly are required.
Technical data sheet for a DIN-11851 stainless-304 blanking plug:
| Code | DN | A (mm) | B (mm) | H (mm) | Weight (kg) |
| 64610001 | 15 | 24 | 28.5 | 9 | 0.04 |
| 64610002 | 20 | 30 | 36.5 | 11 | 0.09 |
| 64610003 | 25 | 35 | 44 | 13 | 0.14 |
| 64610004 | 32 | 41 | 50 | 13 | 0.18 |
| 64610005 | 40 | 48 | 56 | 13 | 0.23 |
| 64610006 | 50 | 61 | 68.5 | 14 | 0.38 |
| 64610007 | 65 | 79 | 86 | 16 | 0.70 |
| 64610008 | 80 | 93 | 100 | 16 | 0.97 |
| 64610009 | 100 | 114 | 121 | 20 | 1.80 |
| 64610010 | 125 | 137 | 150 | 22 | 2.30 |
