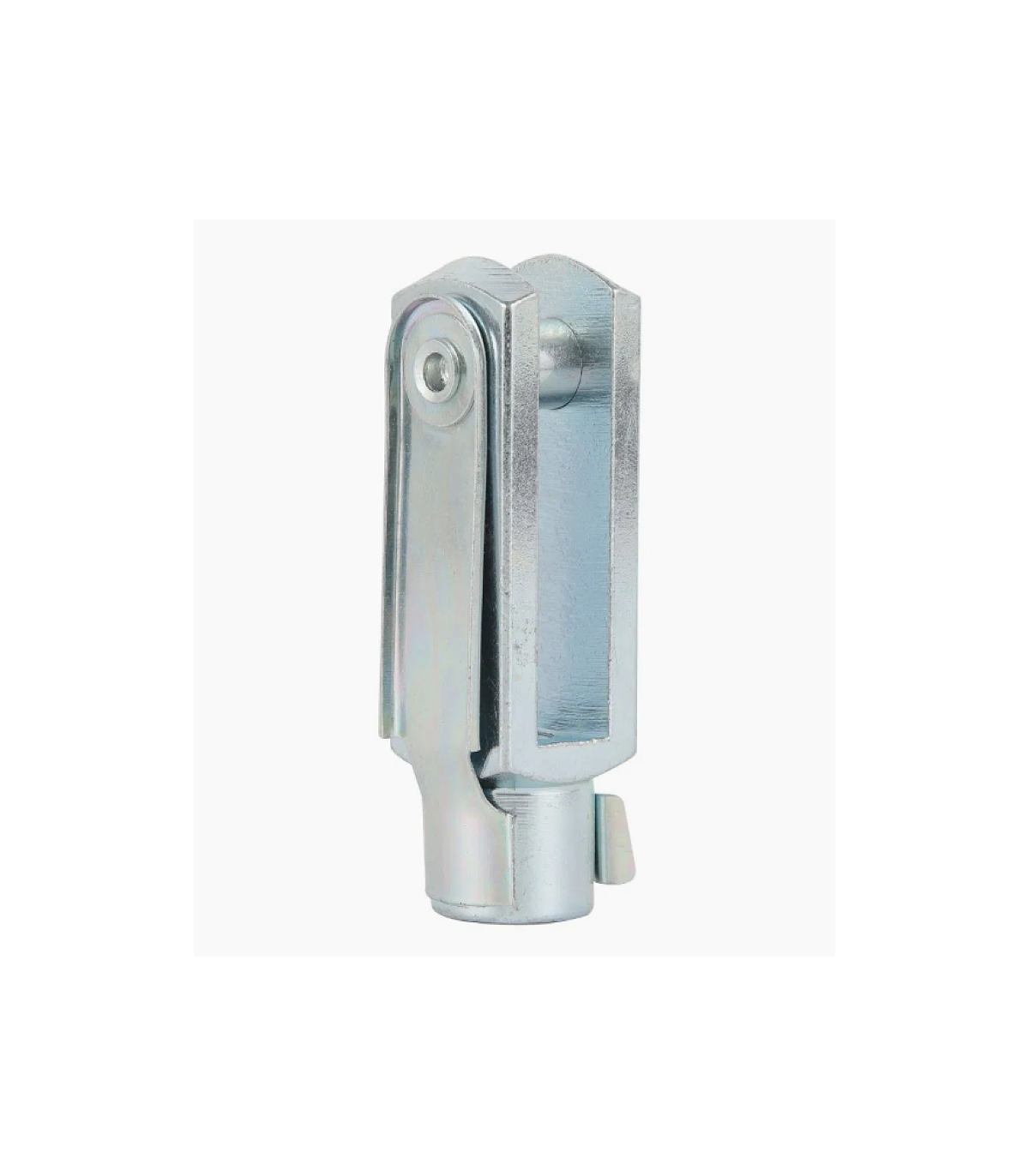

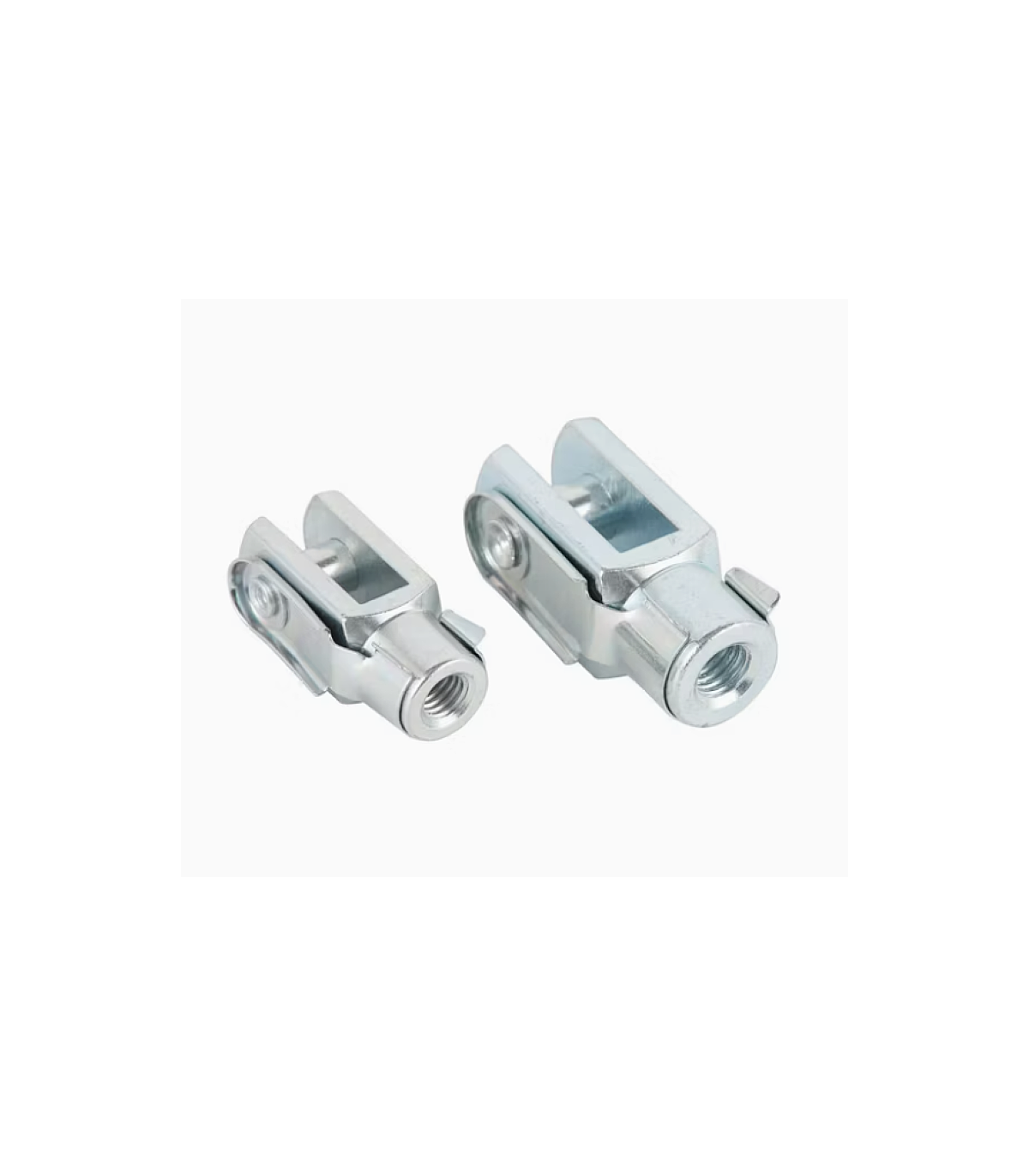

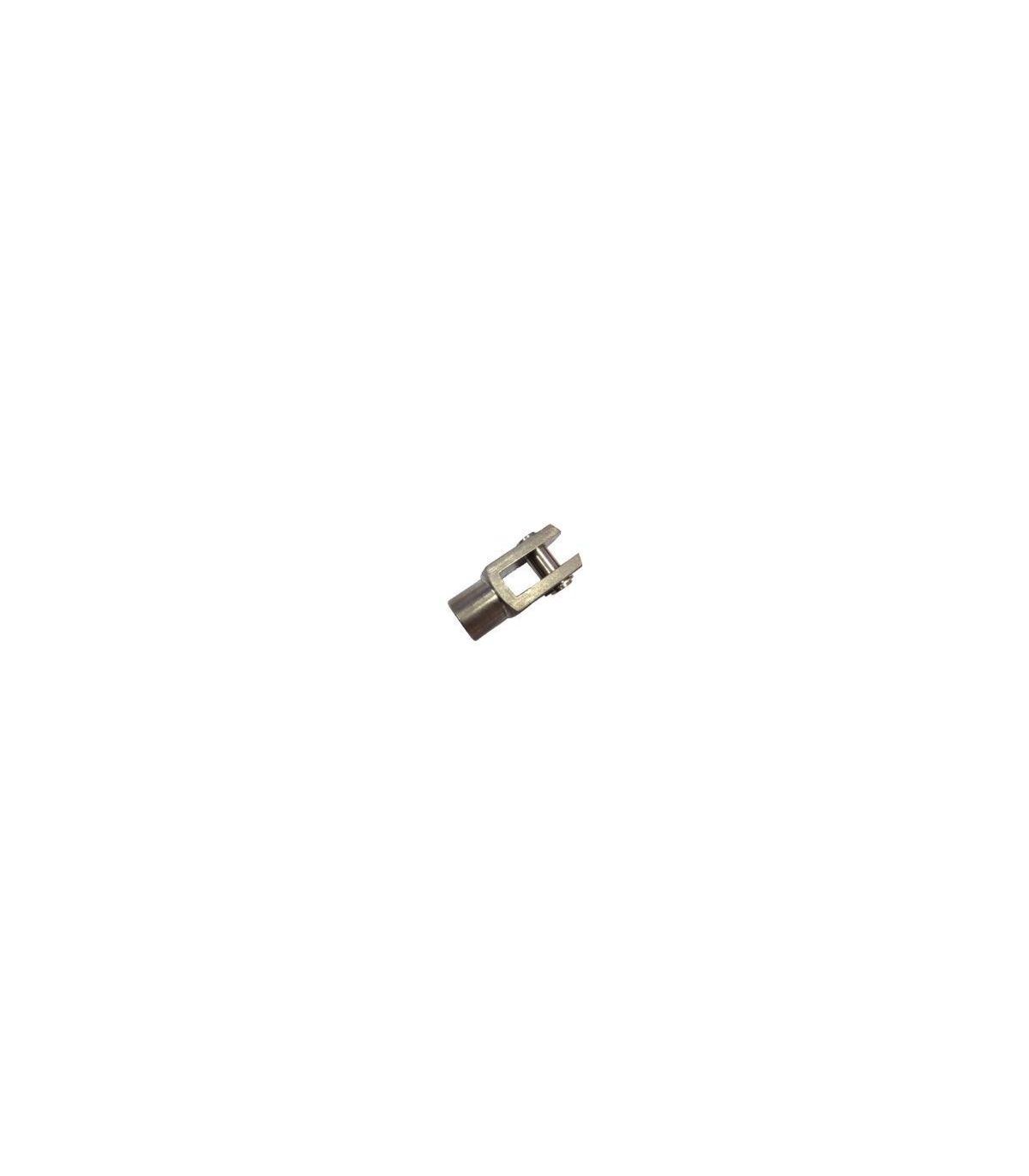

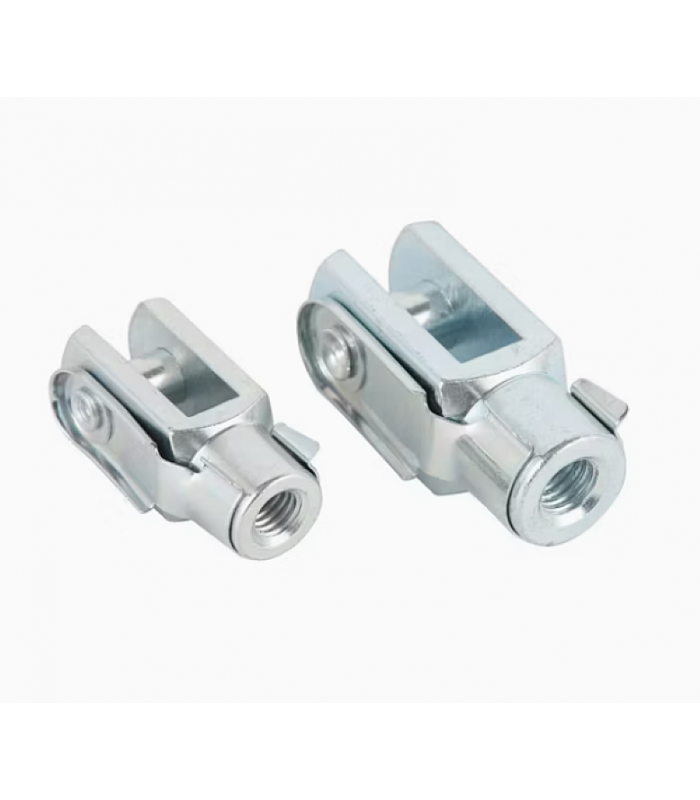

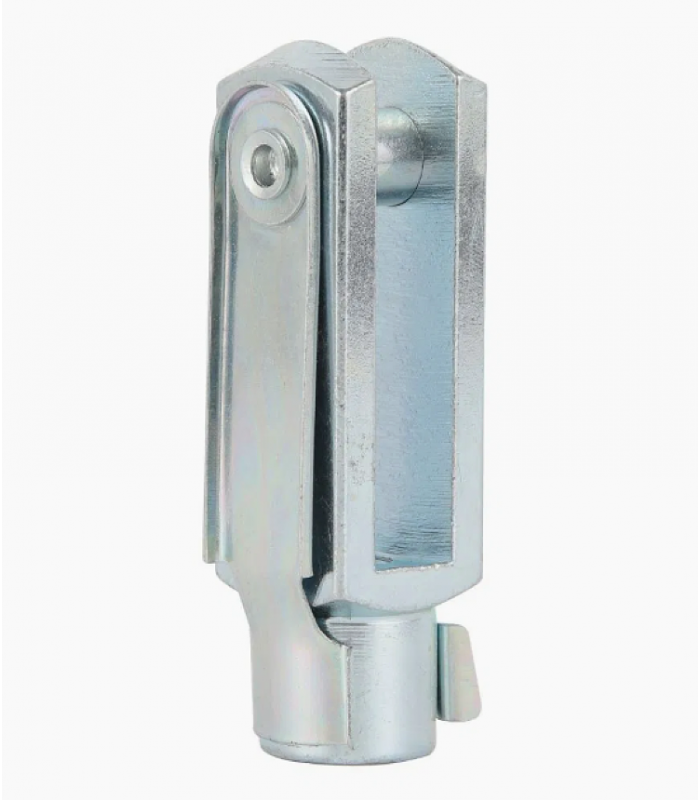

ISO-6432 STAINLESS STEEL FORK STEM
ISO-6432 STAINLESS STEEL FORK STEM
ISO-6432 STAINLESS STEEL FORK STEM
ISO-6432 STAINLESS STEEL FORK STEM
ISO-6432 STAINLESS STEEL FORK STEM
ISO-6432 STAINLESS STEEL FORK STEM

ISO-6432 STAINLESS STEEL FORK STEM

An ISO-6432 stainless steel fork stem is a mechanical component used primarily in pneumatic or hydraulic automation systems to allow articulated connection with other mechanical elements.

Applications: Small pneumatic cylinders (ISO 6432), industrial automation, robots, transport systems or food processing machinery

Main features:

  • Based on ISO 6432, UNI 10290
  • Ambient temperature -40 / 200 °C
  • Made of Inox-304
€12.71 (tax included)
€10.50 (tax excl.)
DIAMETERS
  • Ø 12
  • Ø 16
  • Ø 20
  • Ø 25
Reference:
530000071
Description

Fork stem ISO-6432 stainless steel

The ISO-6432 stainless steel rod fork facilitates the transmission of linear motion from the cylinder rod to another component by means of a pivot point on the fork, thus allowing articulation or translation movements.

Made of stainless steel, ideal for applications in humid, corrosive environments or where high durability and resistance to oxidation are required.

Benefits

  • Excellent resistance to corrosive environments
  • Facilitates quick assembly and disassembly of the cylinder
  • Compliant with international industry standards
  • Long service life thanks to high-quality stainless steel

Common uses

  • Industrial automation
  • Food and pharmaceutical equipment
  • Pneumatic machines and transport systems
  • Marine applications or humid environments

Technical specifications of an ISO-6432 stainless steel stem fork:

HORQUILLA VASTAGO M-4x0.7

Product Details
530000071
