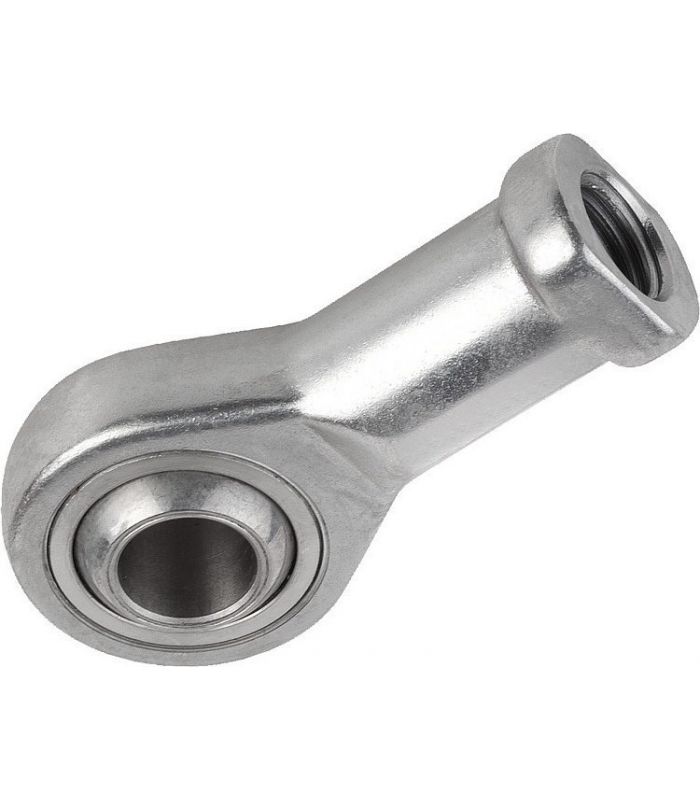

STAINLESS STEEL ISO-6432 SHAFT BALL

STAINLESS STEEL ISO-6432 SHAFT BALL

An ISO-6432 stainless steel rod end is used to connect the rod end of a pneumatic cylinder to a moving component of a machine. Its main advantage is its ability to compensate for angular misalignments between the cylinder and the point of force application.

Applications: Food and beverage processing machinery, Pharmaceutical and chemical industry, Packaging and automation machinery, Marine equipment, Clamping and positioning systems.

Technical sheet:

  • Manufactured according to DIN ISO 12240-4 SERIES K (DIN 648-K) Stainless Steel 304
  • Self-locking, maintenance-free.
  • Reduced increase in clearance during operation.
  • Possibility of operation in contact or immersed in oil.
  • Operating temperature -30ºC / 150ºC

The selection of the ball joint is by cylinder diameter.

€21.18 (tax included)
€17.50 (tax excl.)
DIAMETERS
  • Ø 12
  • Ø 16
  • Ø 20
  • Ø 25
Reference:
530100071
Description

ISO-6432 stainless steel stem ball joint

Product Details
530100071
