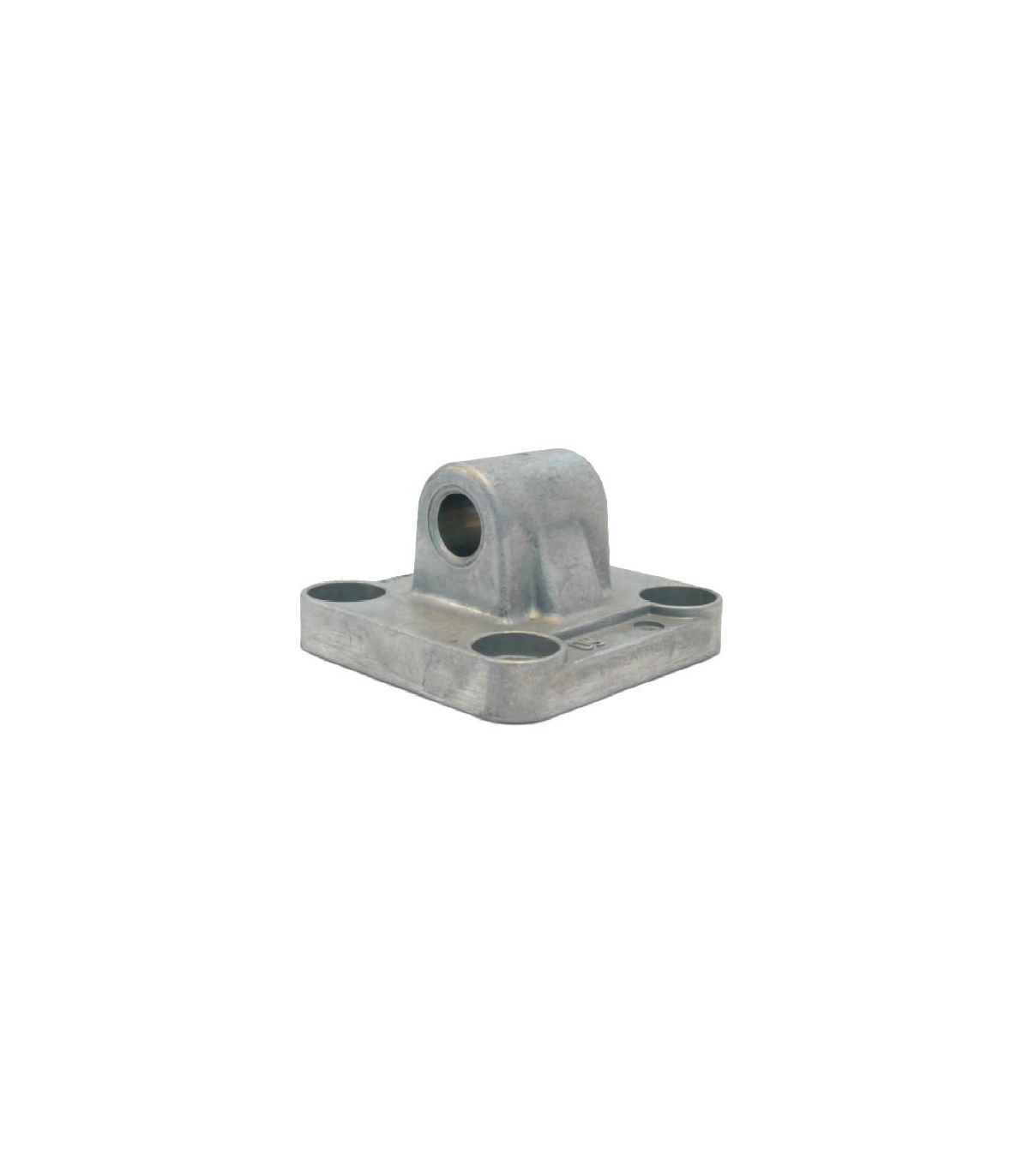

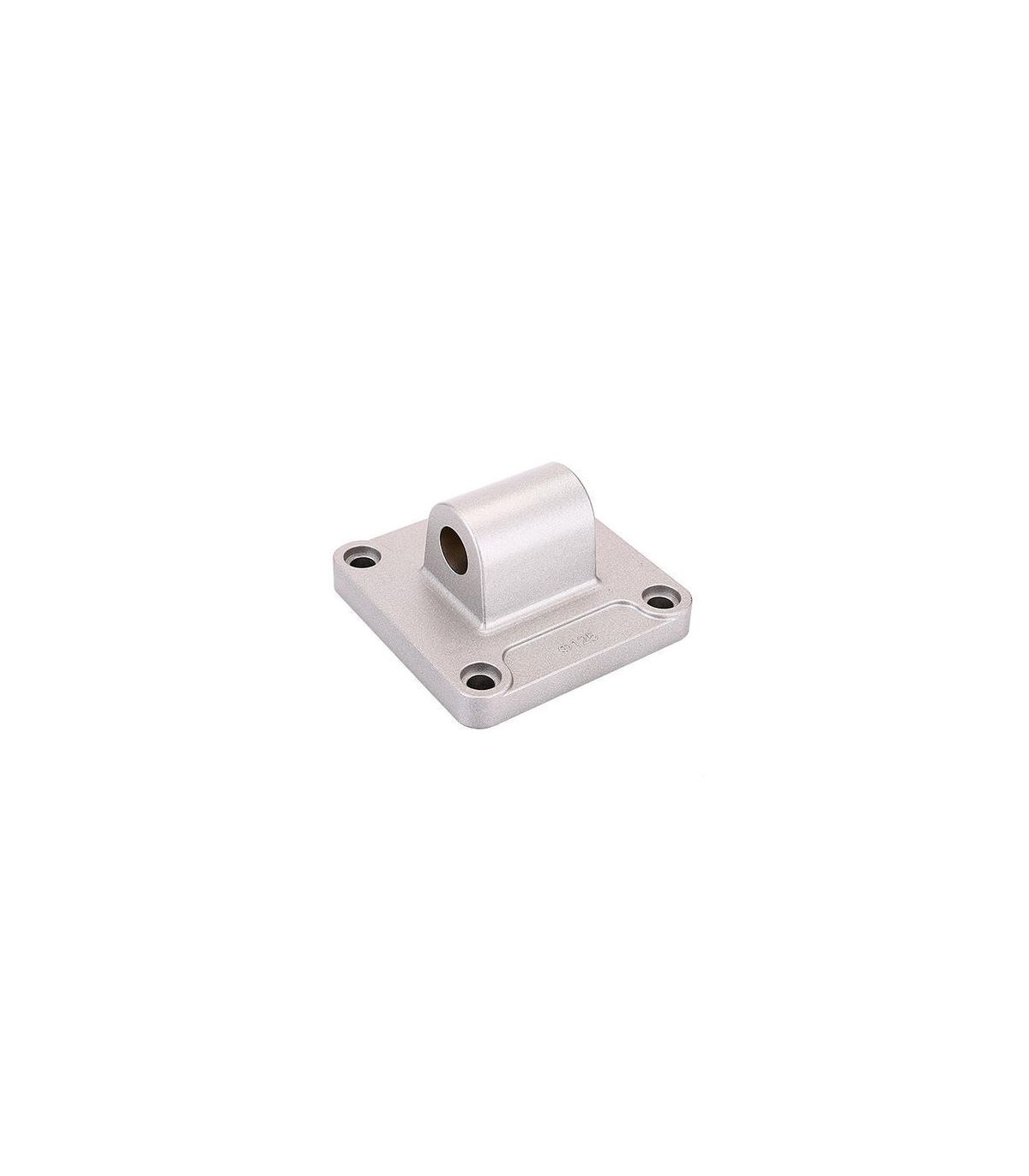

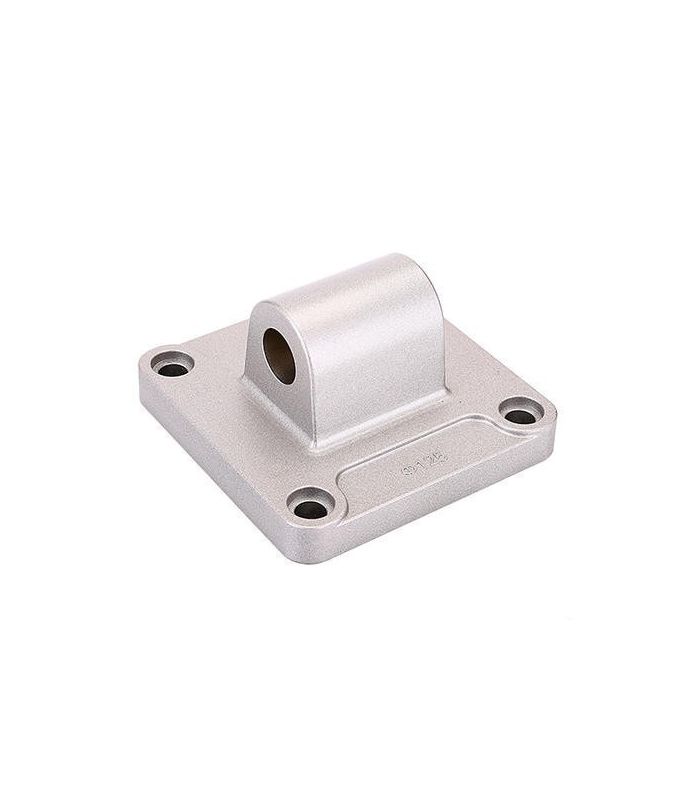

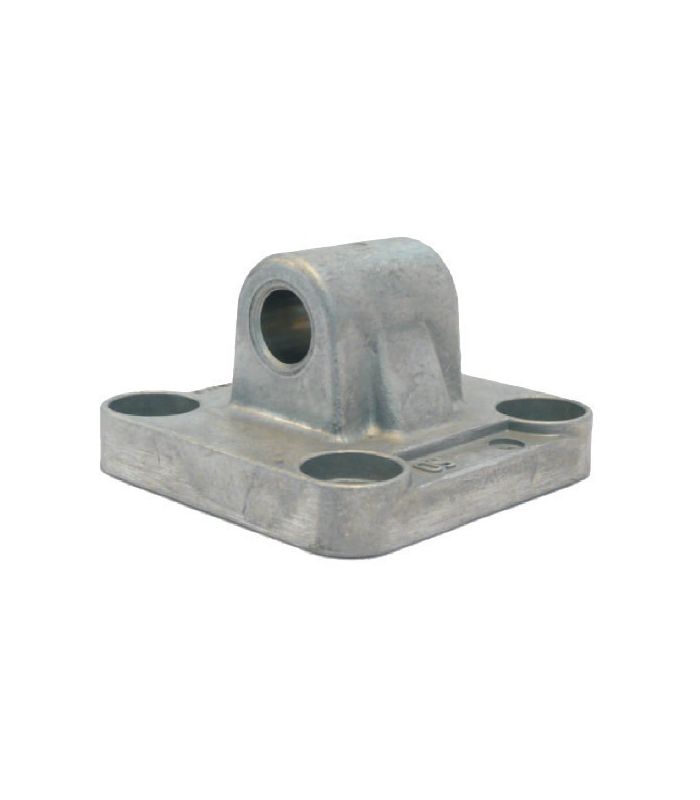

MP4 STAINLESS STEEL SWING FIXING
MP4 STAINLESS STEEL SWING FIXING
MP4 STAINLESS STEEL SWING FIXING
MP4 STAINLESS STEEL SWING FIXING

MP4 STAINLESS STEEL SWING FIXING

An MP4 stainless steel swivel fitting is used to connect a pneumatic or hydraulic cylinder to a structure or machine so that the cylinder can oscillate around a central fixing point.

Applications: Food and beverage industry, Pharmaceutical and chemical industry, Industrial machinery, Automotive, Marine environments, Industrial laundries

Technical sheet:

  • Based on ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290)
  • Ambient temperature -40/200 °C
  • Made of 304 stainless steel. 316 stainless steel available.
€58.24 (tax included)
€48.13 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
Reference:
530300181
Description

MP4 stainless steel oscillating fixing

FIJACION OSCILANTE MP4 INOX

Product Details
530300181
