STAINLESS STEEL FLAT FLANGE
STAINLESS STEEL FLAT FLANGE
STAINLESS STEEL FLAT FLANGE
STAINLESS STEEL FLAT FLANGE
STAINLESS STEEL FLAT FLANGE
STAINLESS STEEL FLAT FLANGE

STAINLESS STEEL FLAT FLANGE

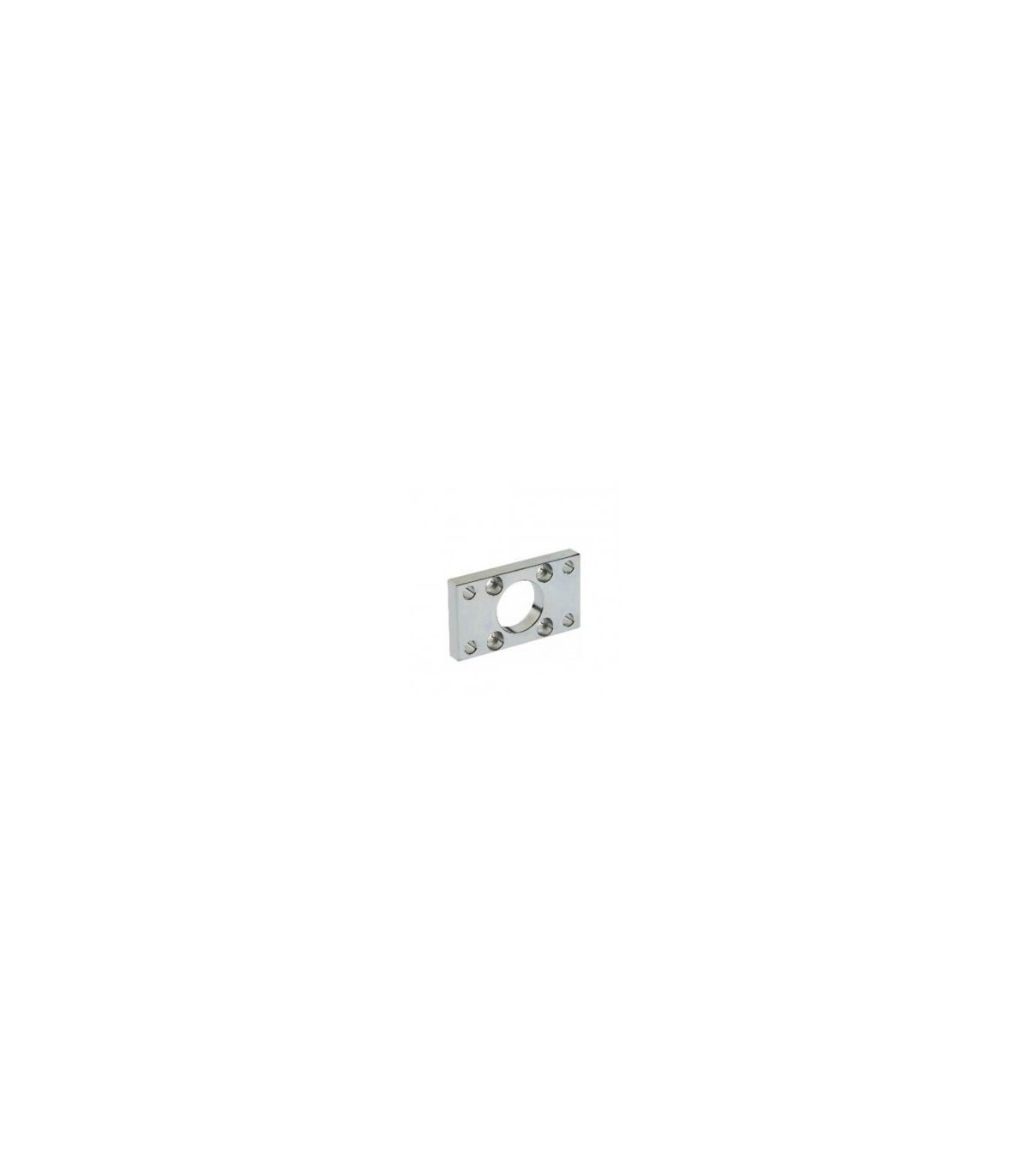

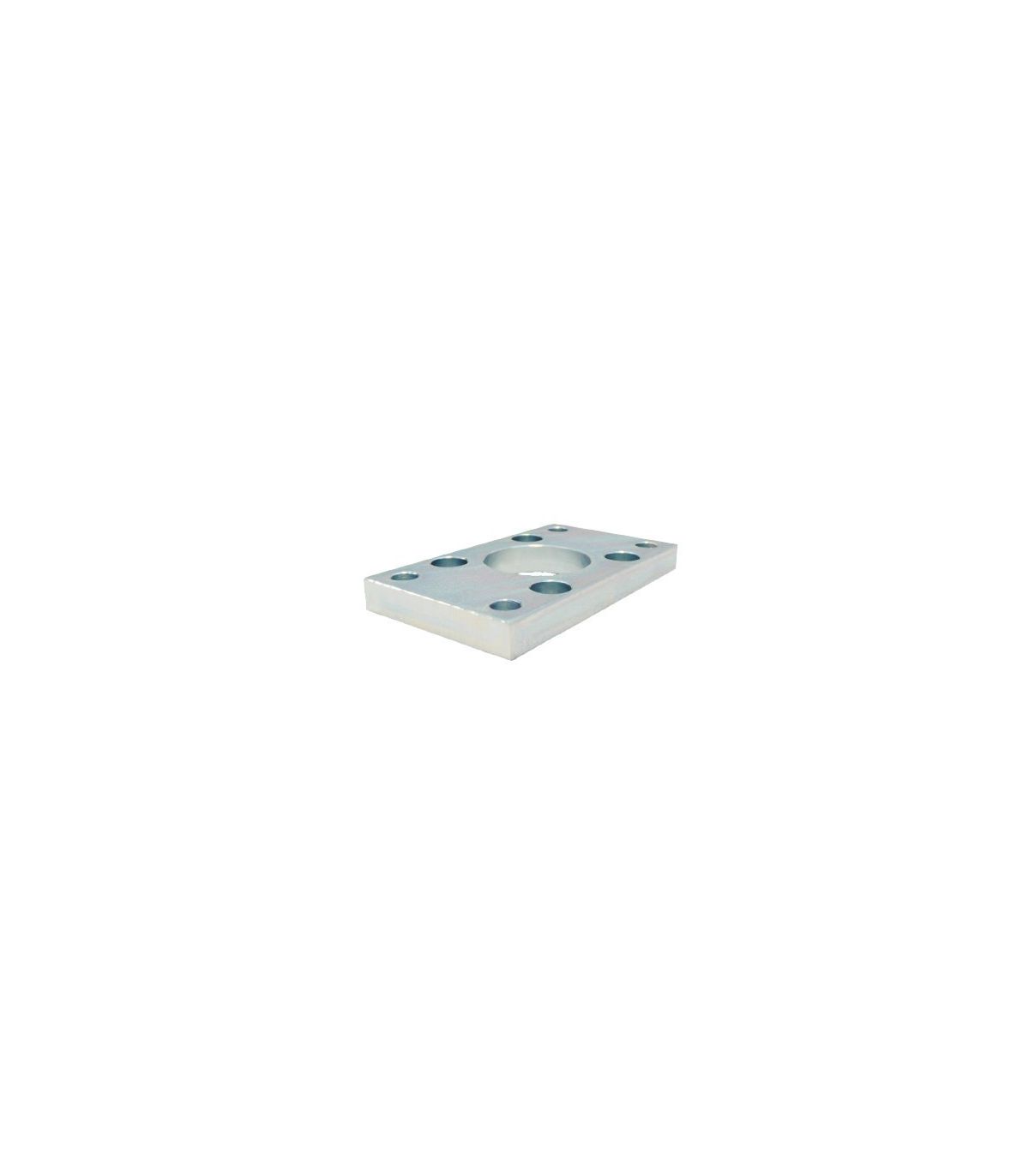

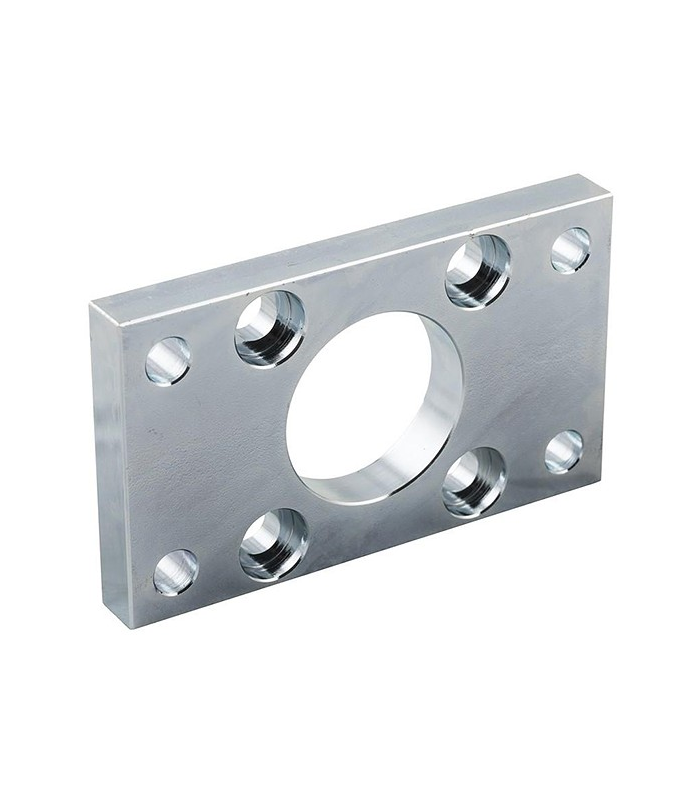

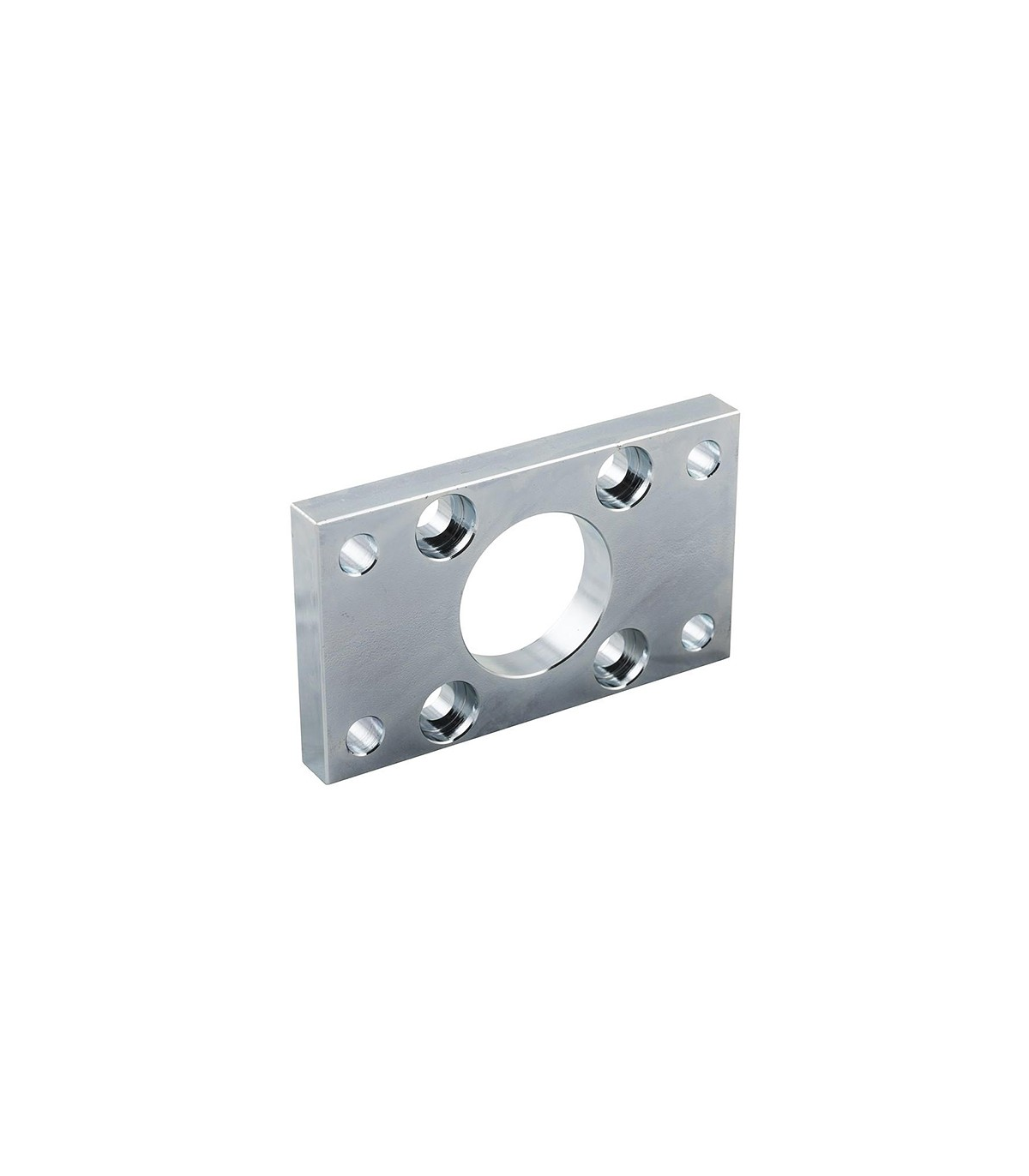

A stainless steel flat flange is a fixing accessory designed for the safe and stable mounting of pneumatic cylinders in industrial applications.

Applications: food, pharmaceutical, and chemical industries.

Main features:

  • Based on ISO 15552 (and so far also VDMA-24652, ISO-6431, NF-E49.003.1 , UNI-10290)
  • Temperature -40 / 200ºC
  • Made of Inox-304, also available in Inox-316
€95.94 (tax included)
€79.29 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
Reference:
530600181
Description

Flat stainless steel flange

The stainless steel flat flange provides a robust and reliable mounting for pneumatic cylinders, ensuring a stable installation even in applications with high duty cycles. Its AISI 304 stainless steel construction guarantees excellent corrosion resistance and a long service life, making it the ideal choice for demanding industrial environments.

Applications

  • Industrial automation.
  • Food and beverage industry.
  • Pharmaceutical industry.
  • Chemical industry.
  • Packaging equipment.
  • Production machinery.
  • Industrial pneumatic systems.

Technical specifications of a stainless steel flat flange:

Product Details
530600181
