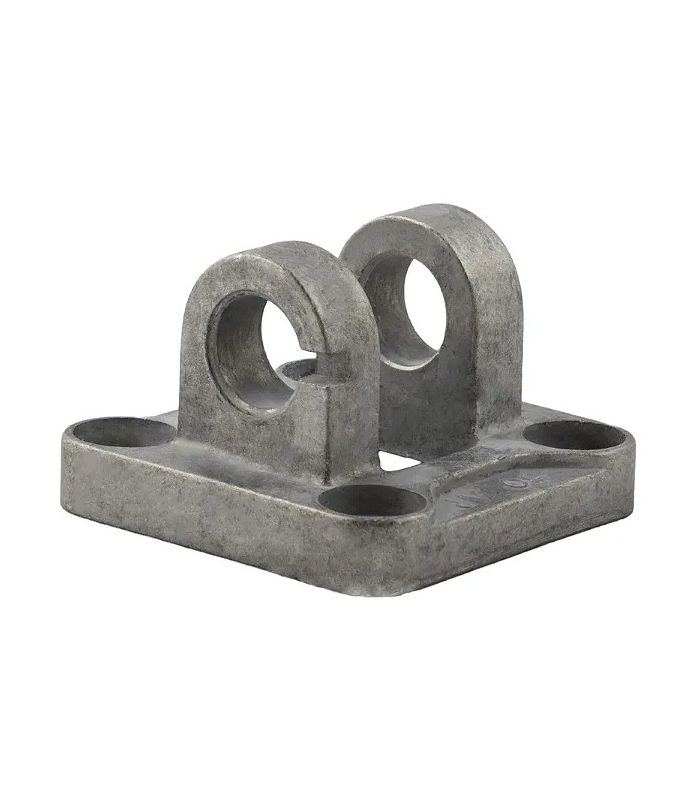

SHORT SWINGING FIXING INOX

SHORT SWINGING FIXING INOX

A short stainless steel swivel fitting is a mounting accessory that allows a pneumatic cylinder to tilt angularly around a fixed point, but with a reduced (short) design.

Applications: Food and beverage processing machinery, Pharmaceutical and medical equipment, Automation and robotics, Chemical industry, Marine applications

Technical sheet:

  • Based on ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290)
  • Ambient temperature -40 / 200 °C
  • Made of 304 stainless steel. 316 stainless steel available.
  • Supplied without pin
€144.06 (tax included)
€119.06 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
Reference:
531100181
Description

short stainless steel oscillating bracket

FIJACION OSCILANTE CORTA INOX

Product Details
531100181
