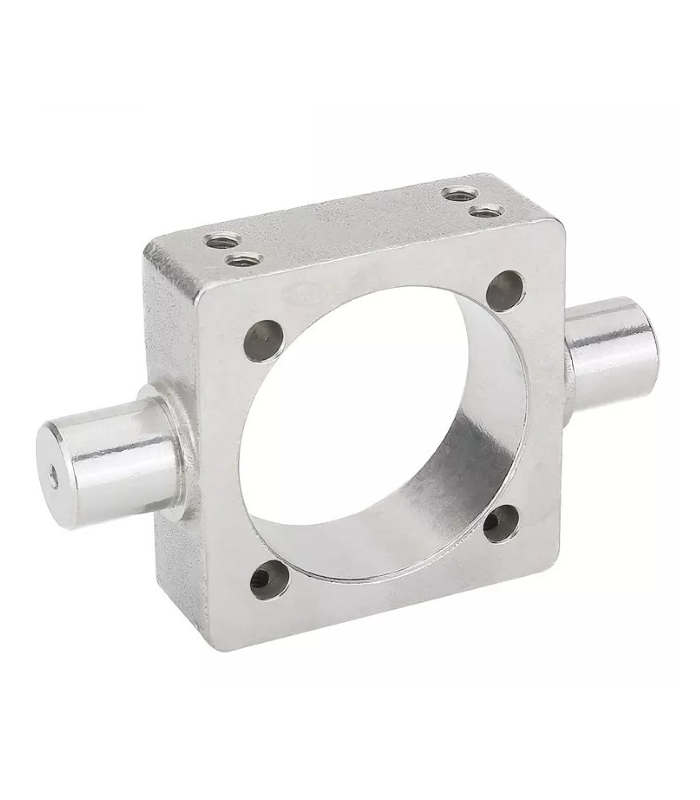

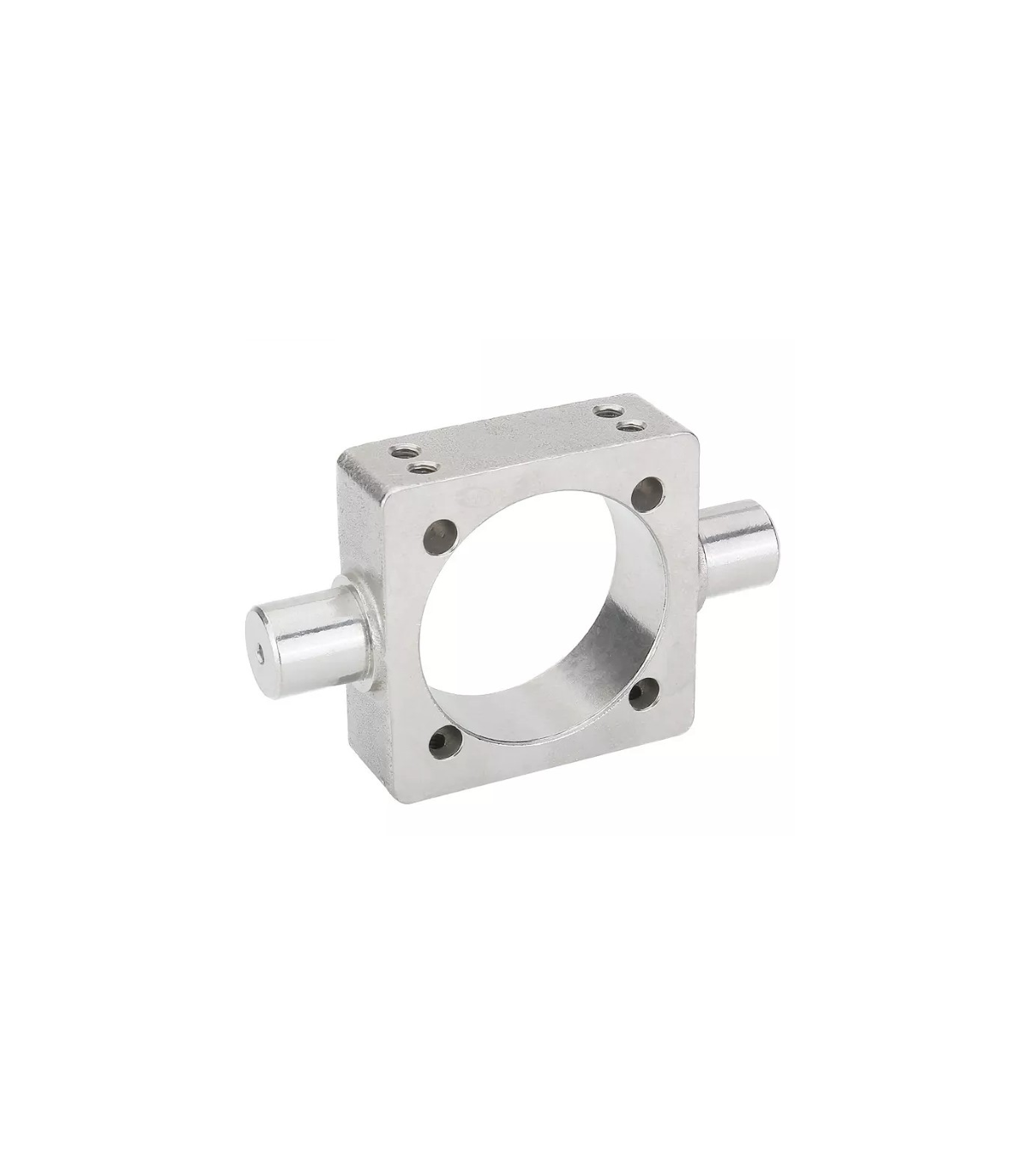

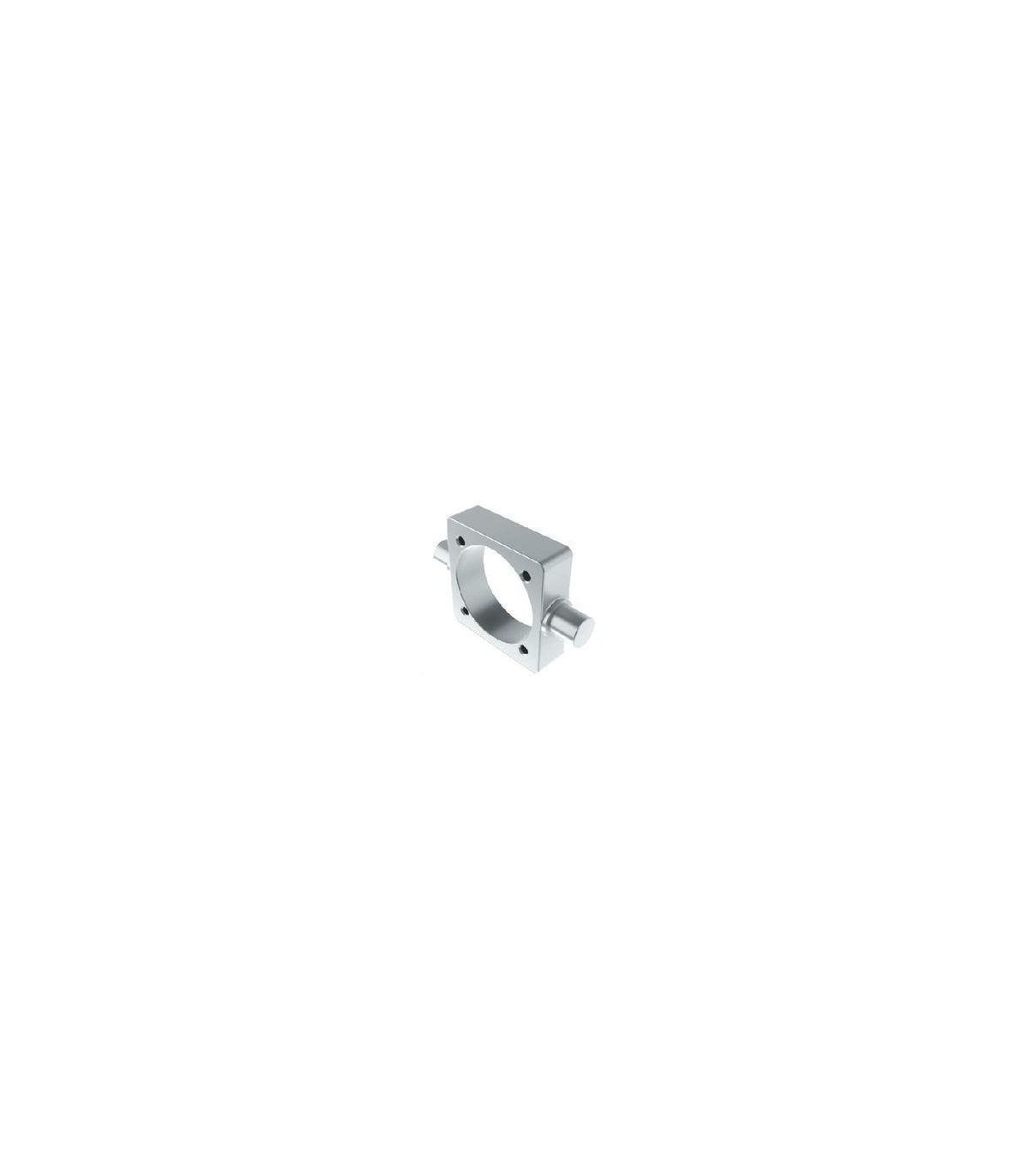

CENTRAL OSCILLATING STAINLESS STEEL MOUNTING
CENTRAL OSCILLATING STAINLESS STEEL MOUNTING
CENTRAL OSCILLATING STAINLESS STEEL MOUNTING
CENTRAL OSCILLATING STAINLESS STEEL MOUNTING

CENTRAL OSCILLATING STAINLESS STEEL MOUNTING

A stainless steel oscillating center mount is an accessory designed for the safe and flexible mounting of pneumatic cylinders. It allows controlled angular movement, absorbing misalignments and reducing stress on the piston rod and cylinder structure.

Applications: Industrial automation, food and pharmaceutical industries.

Main features:

  • Based on the standard -ISO 15552 (so far also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290)
  • Temperature -40 / 200 °C
  • Made of Inox-304. Option of stainless steel-316.
€107.99 (tax included)
€89.25 (tax excl.)
DIAMETERS
  • Ø 32
  • Ø 40
  • Ø 50
  • Ø 63
  • Ø 80
  • Ø 100
Reference:
531200191
Description

Central oscillating stainless steel fixing

The stainless steel oscillating center mount is an accessory designed for the safe and flexible mounting of pneumatic cylinders. It allows controlled angular movement , absorbing misalignments during operation and reducing stress on the cylinder rod and structure.

Made of stainless steel , it is ideal for applications in demanding environments where corrosion resistance, durability and high performance are required.

Technical advantages

  • Reduces premature cylinder wear
  • Minimizes vibrations and lateral forces
  • It increases the reliability of the system
  • Ideal for healthcare or outdoor environments

Applications

  • Industrial automation
  • Food and pharmaceutical industry
  • Humid or corrosive environments

Technical specifications of a stainless steel oscillating central fixing:

FIJACION CENTRAL OSCILANTE INOX

Product Details
531200191
