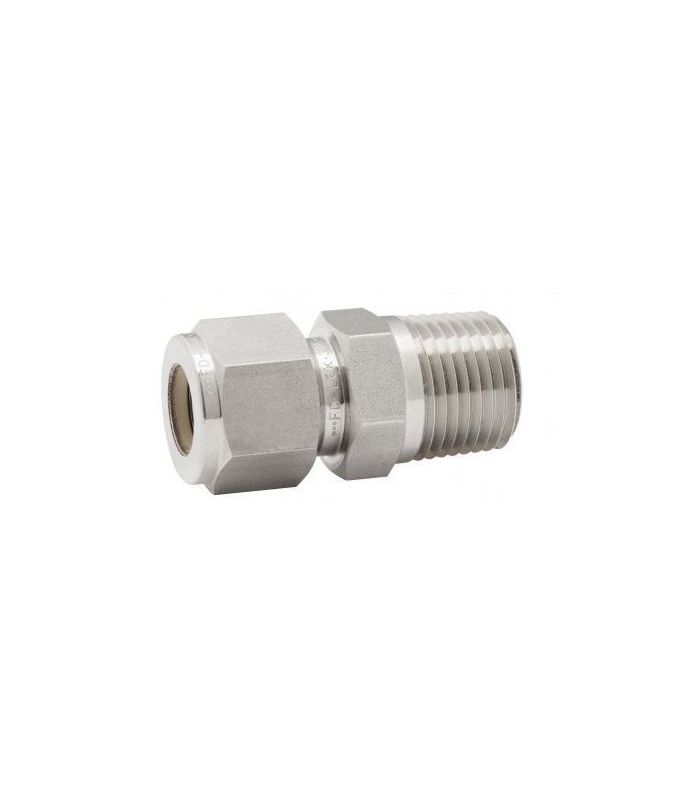

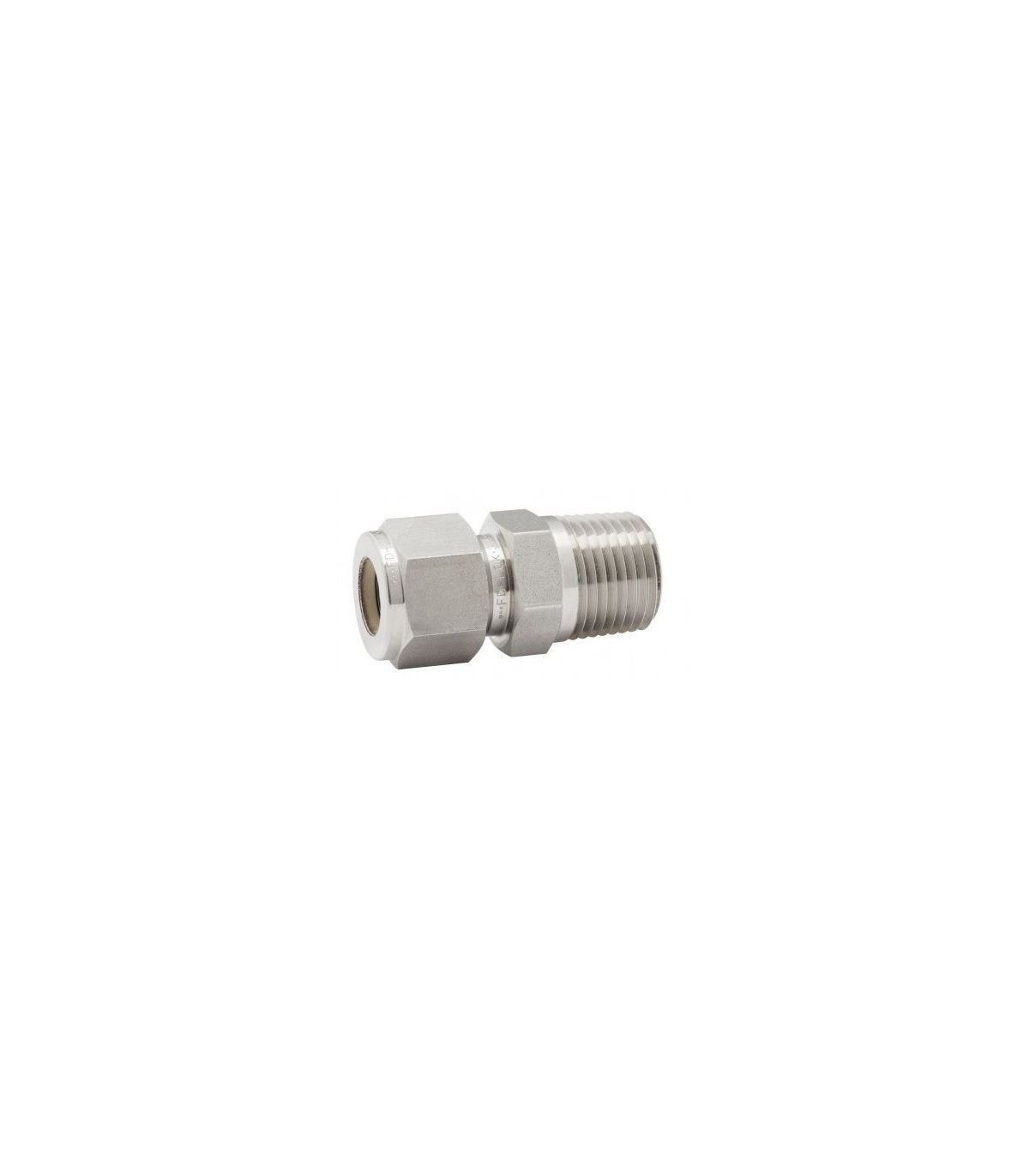

Male threaded tube connection for instrumentation
An instrumentation male threaded tube coupling is designed to connect a tube to a female threaded port using a male thread. It incorporates a compression system that ensures a leak-proof, secure, and vibration-resistant connection without the need for welding.
Applications for measuring, controlling and guiding fluids in pneumatic, hydraulic and process systems.
Main features:
SEE OTHER DIAMETERS AND MODELS
A male threaded tubing union for instrumentation is a fitting designed to connect tubing to a female threaded port using a male thread. It incorporates a compression system that ensures a leak-proof, secure, and vibration-resistant connection without the need for welding. It is manufactured for measurement, control, and fluid handling applications in pneumatic, hydraulic, and process systems.
Technical data sheet for a male threaded tube instrumentation fitting:
| Code | Thread (P) | Tube (T) | L (mm) | B (mm) | C (mm) | ØE (mm) | G (mm) | F (mm) | Weight (kg) |
| 59030020 | 1/4" | 6 | 37.9 | 14.2 | 15.3 | 4.8 | 14 | 14 | 0.034 |
| 59030022 | 1/2" | 6 | 44.7 | 19.1 | 15.3 | 4.8 | 14 | 22 | 0.066 |
| 59030025 | 3/8" | 8 | 39.2 | 14.2 | 16.2 | 6.4 | 16 | 18 | 0.045 |
| 59030026 | 1/2" | 8 | 45.6 | 19.1 | 16.2 | 6.4 | 16 | 22 | 0.076 |
| 59030034 | 1/2" | 12 | 49 | 19.1 | 22.8 | 9.5 | 22 | 22 | 0.099 |
