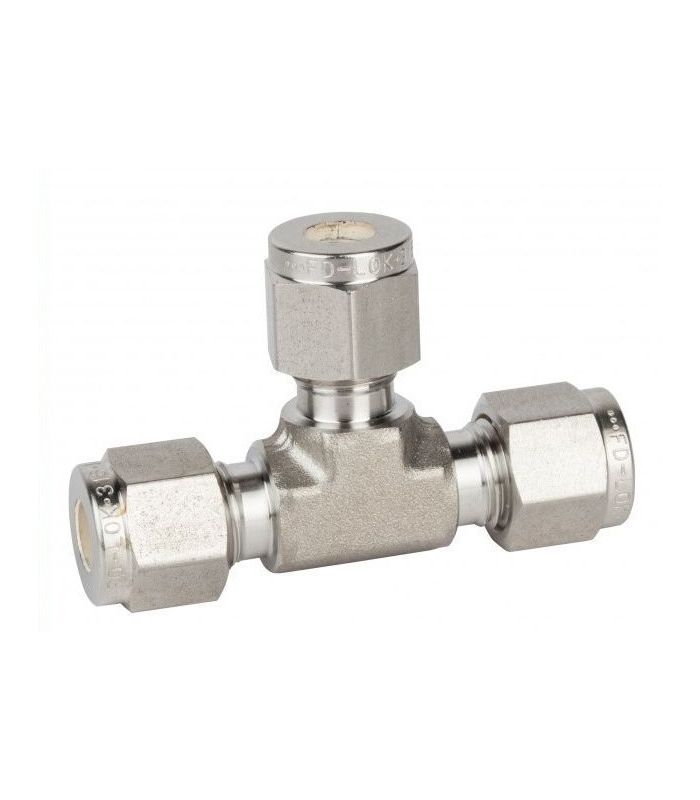

UNION TUBE TEE INSTRUMENTATION

UNION TUBE TEE INSTRUMENTATION

An instrumentation tube union is a connection component used in instrumentation systems to join three sections of tubing in a "T" shape. It allows fluid flow to branch or merge in measurement and control systems.

Common applications: Measurement and control systems, Laboratories, Chemical and petrochemical industry, Food industry,

Technical sheet:

  • Construction in stainless steel ASTM A479 Inox-316
  • Double-cone design; low tightening torque and axial transmission of closing pressure, preventing tube twisting.
  • Front cone heat treated by nitriding.
  • Ideal applications for pneumatic, hydraulic and gas systems.
  • Easy disassembly and retightening (silver coated nut threads to prevent seizure)
  • Maximum working pressure 410 bar.
  • Working temperature -54°C / 425°C

CONSULT OTHER DIAMETERS AND MODELS

Read moreShow less
€35.16 (tax incl.)
€29.06 (tax excl.)
DIAMETERS
  • Ø 1/4
  • Ø 3/8
  • Ø 6
  • Ø8
  • Ø 12
Reference:
59020008
Description

instrumentation tube union

Read moreShow less
Product Details
59020008
