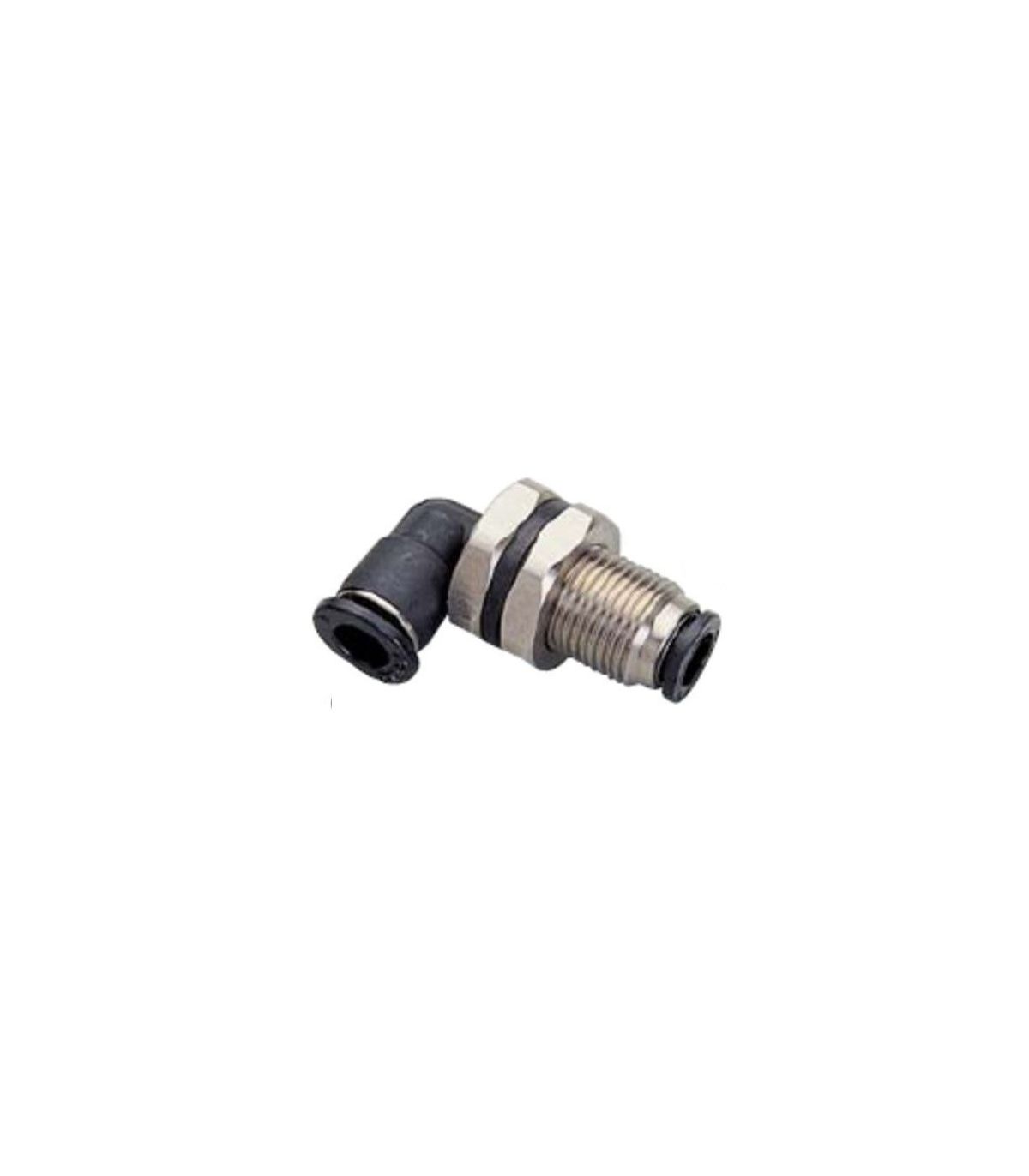

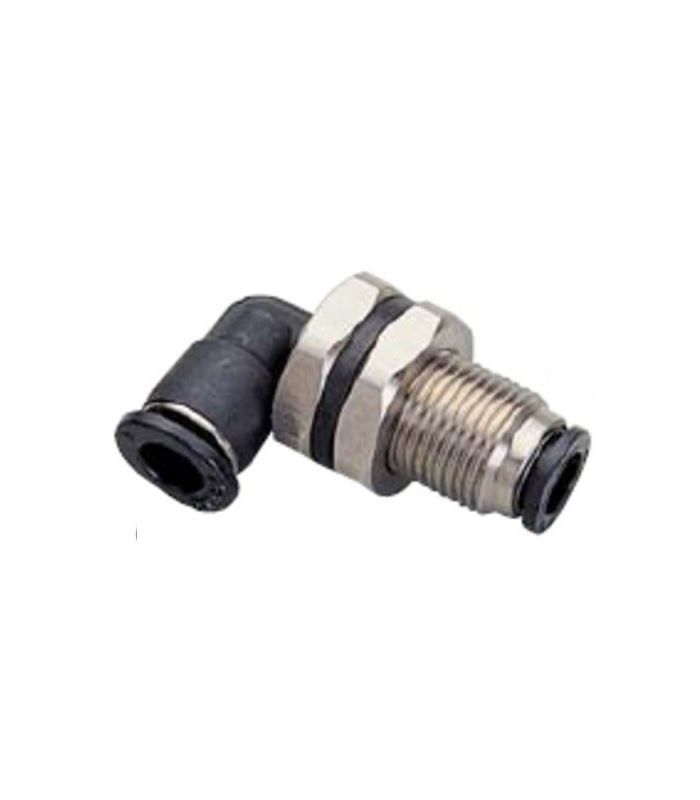

UNION TUBE BULKHEAD MINIATURE ELBOW

A miniature elbow bulkhead union is a pneumatic or fluid fitting for connecting flexible or semi-rigid tubing through the wall of a panel or enclosure, while simultaneously changing the flow direction by 90°.

Applications: Compact robotics, Medical and laboratory equipment, Instrumentation and automation, Electronic machines and equipment with limited space, 3D printing systems.

Technical sheet:

• Acetyl resin body. Nickel-plated brass metal parts.
• Ideal for micro pneumatic assemblies.
• 40% reduction compared to a conventional fitting.
• Elliptical push button: Easy disassembly without tools.
• Maximum working pressure 16 bar.
• Vacuum pressure: -760 mm Hg (10 Torr).
• Temperature -15 / 70ºC
