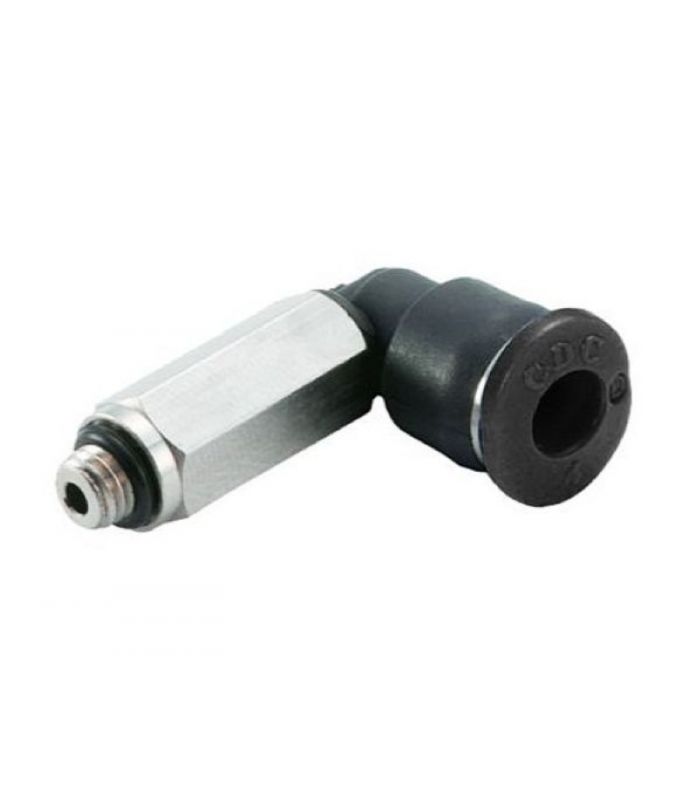

UNION ELBOW LONG TUBE MINIATURE

UNION ELBOW LONG TUBE MINIATURE

A miniature long tube elbow is a small connector for low-pressure fluid or pneumatic systems that allows two tubes of the same diameter to be joined with a 90° change in direction. It features an extended length at one end.

Applications: Miniaturized pneumatic systems, Miniature low-pressure fluid systems, Small-scale automation, Model making and prototyping

Technical sheet:

  • Acetal resin body. Nickel-plated brass metal parts.
  • Ideal for micropneumatic assemblies.
  • Reduced by 40% compared to a conventional fitting.
  • Elliptical push button: Easy disassembly without tools.
  • Maximum working pressure: 16 bar.
  • Vacuum pressure: -750 mm Hg (10 Torr.).
  • Temperature: -15ºC to +70ºC.
€3.40 (tax included)
€2.81 (tax excl.)
Tube diameter - Thread
  • Ø 3-M5
  • Ø 4-M3
  • Ø 4-M5
  • Ø 4-M6
  • Ø 3-M3
Reference:
37020001
Description

miniature long tube elbow union

UNION CODO TUBO LARGO

Product Details
37020001
