ISO-5599-1 BISTABLE ELECTRIC PILOT DISTRIBUTOR | Buy online

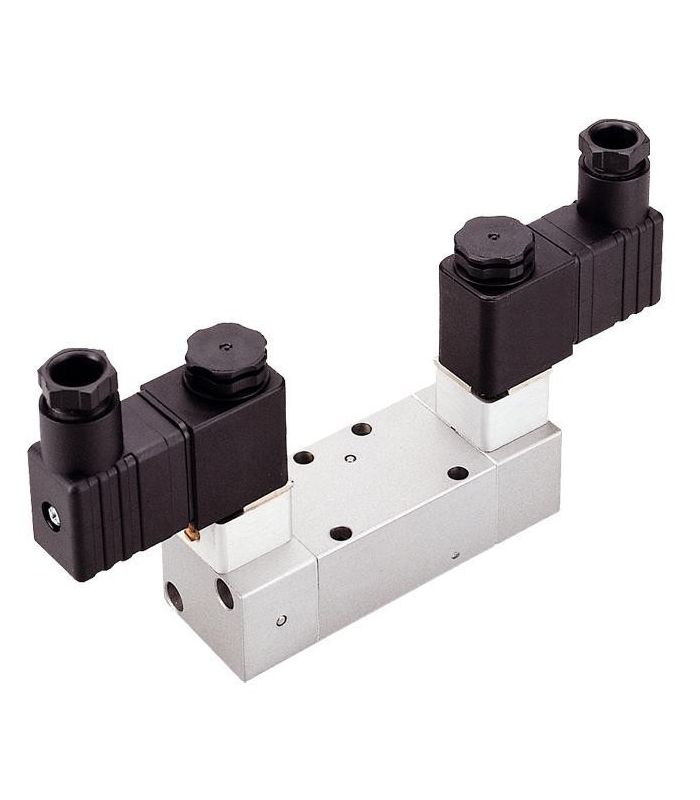

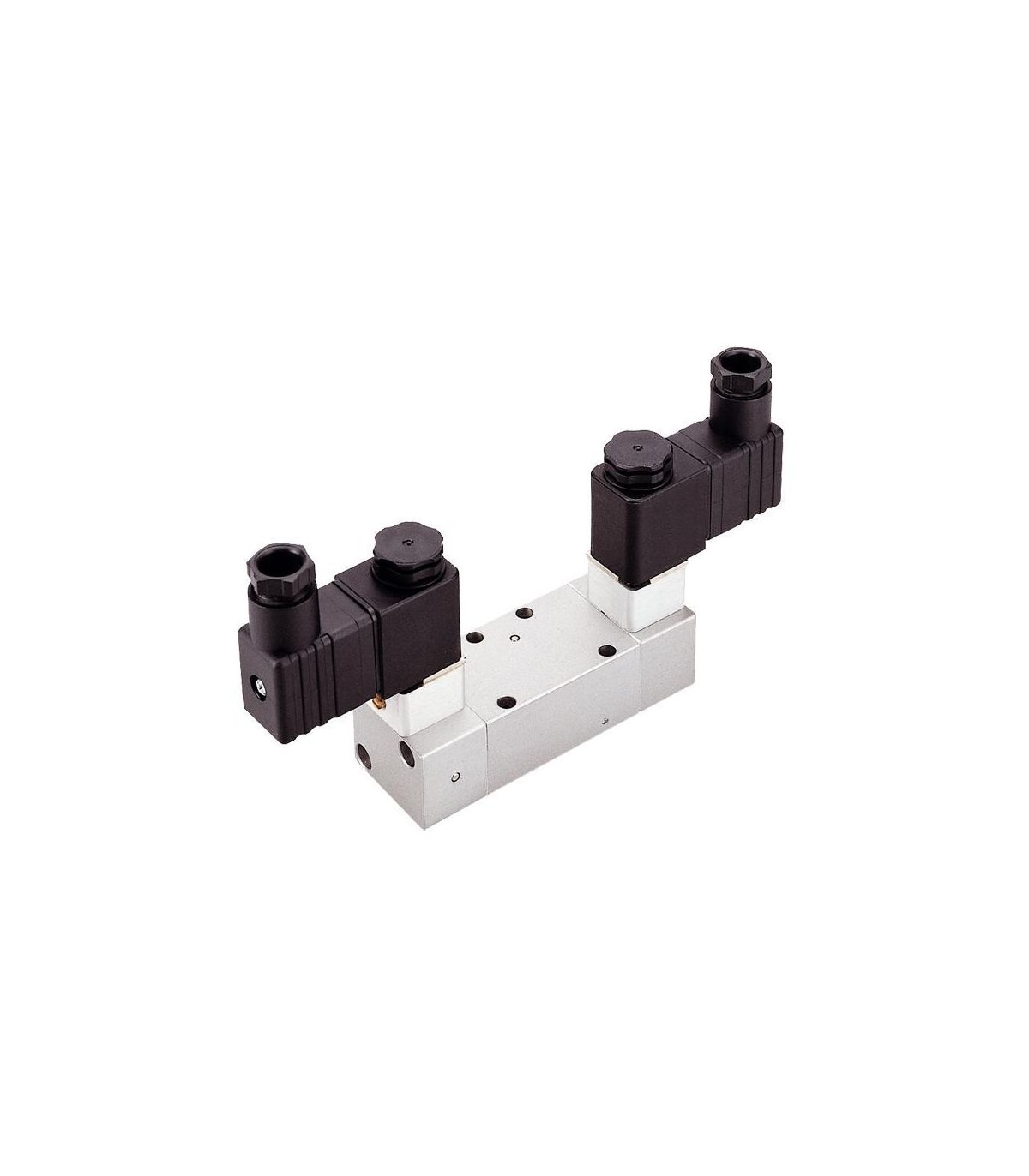

ISO-5599-1 BISTABLE ELECTRIC PILOT DISTRIBUTOR

An ISO-5599-1 electric pilot bistable distributor is a bidirectional valve that maintains its last position without requiring a continuous electrical signal. The primary actuation is achieved by fluid pressure controlled by pilot solenoid valves.

Application in pneumatic systems to control the flow of air to actuators such as cylinders or pneumatic motors.

Technical specifications:

  • ISO 5599/1 Connection
  • Flow rate 1300 l/min. at 6 bar.
  • Working pressure 2-10 bar.
  • Temperature -5ºC / 50ºC
  • It is supplied with the electric pilot.
  • Coil and connector not included.
Read moreShow less
€91.66 (tax incl.)
€75.75 (tax excl.)
Reference:
5178
Description

ISO-5599-1 bistable electric pilot distributor

DISTRIBUIDOR ISO-5599-1 BIESTABLE PILOTO ELEC.

Read moreShow less
Product Details
5178
Comments (0)
You may also like
T-22 COIL CONNECTOR DIN-43650-B | Buy online T-22 COIL CONNECTOR DIN-43650-B | Buy online

€1.00 (tax excl.)
€1.21 (tax incl.)
A DIN-43650-B T-22 coil connector is an industrial electrical connector, primarily designed to securely and reliably connect a power or control source to a coil of an electromechanical device. The T-22 designation...
T22 SOLENOID VALVE COIL | Buy Online at the Best Price T22 SOLENOID VALVE COIL | Buy Online at the Best Price

€5.60 (tax excl.)
€6.78 (tax incl.)
The T22 coil is installed in 1/4" and 1/2" solenoid valves. It is a fundamental component in the operation of a solenoid valve. It is responsible for transforming electrical energy into magnetic energy, generating a...
7 other products in the same category:
ISO-5599-1 5/3 WAY ELECTRIC PILOT DISTRIBUTOR | Buy ISO-5599-1 5/3 WAY ELECTRIC PILOT DISTRIBUTOR | Buy

€127.50 (tax excl.)
€154.28 (tax incl.)
An ISO-5599-1 5/3 way electric pilot distributor is a pneumatic directional valve designed to control the direction of compressed air flow in double-acting cylinders and actuators. Automation and process control...

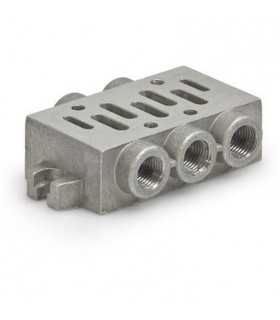

ISO I SIMPLE MOTHERBOARD | Buy online at Disumtec ISO I SIMPLE MOTHERBOARD | Buy online at Disumtec

€18.75 (tax excl.)
€22.69 (tax incl.)
A simple ISO I base plate is a fundamental component in pneumatic systems, specifically designed to serve as the foundation for building more complex pneumatic circuits. It acts as a support where various elements...
ISO I PNEUMATIC PILOT DISTRIBUTOR | Buy online ISO I PNEUMATIC PILOT DISTRIBUTOR | Buy online

€77.35 (tax excl.)
€93.59 (tax incl.)
An ISO I pneumatic pilot distributor is used to control the flow and direction of compressed air in pneumatic systems, allowing the operation of cylinders and other actuators. Applications: Industrial automation,...

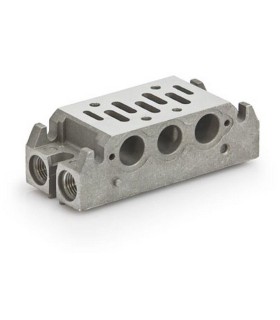

ISO I MOTHERBOARD | Buy online at Disumtec ISO I MOTHERBOARD | Buy online at Disumtec

€22.50 (tax excl.)
€27.23 (tax incl.)
The ISO I bondable base plate is used in pneumatic systems to build more complex and customized circuits. Bondable boards offer greater flexibility in configuring and connecting pneumatic components. Applications:...
BASE PLATE GASKET ISO-I 5599/1 | Buy online BASE PLATE GASKET ISO-I 5599/1 | Buy online

€3.75 (tax excl.)
€4.54 (tax incl.)
An ISO-I 5599/1 motherboard gasket is a sealing element designed for use between a distributor that complies with the ISO 5599-1 mounting interface standard and its motherboard. Its function is to ensure a tight seal...

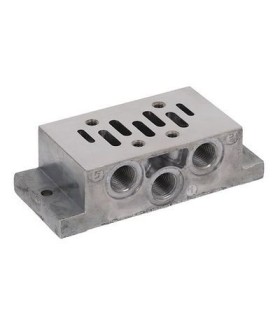

ISO MOTHERBOARD I BOTTOM OUTLET | Buy online ISO MOTHERBOARD I BOTTOM OUTLET | Buy online
