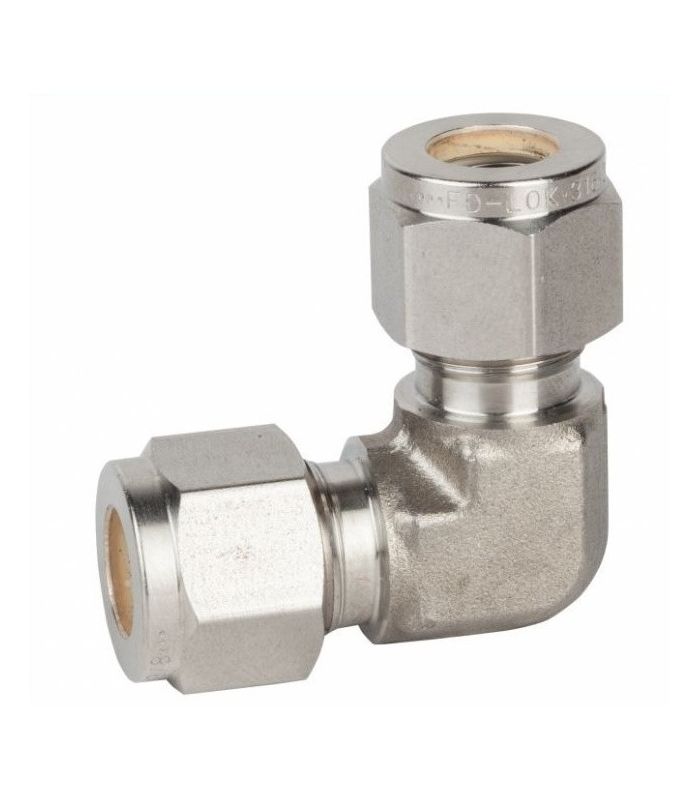

INSTRUMENTATION TUBE ELBOW UNION

Tube union for double cone rigid pipe for instrumentation

ASTM A479 Inox-316 stainless steel construction
Double cone design; low tightening torque and axial transmission of closing pressure avoiding twisting in the tube.
Front cone heat treated by nitriding.
Ideal applications for pneumatic, hydraulic and gas systems.
Easy disassembly and retightening (silver coated on the nut thread to prevent seizure)
Maximum working pressure 410 bar.
Working temperature -54°C / 425°C

CONSULT US FOR OTHER DIAMETERS AND MODELS

€21.50 (tax included)

€17.77 (tax excl.)

DIAMETERS

Ø 1/4
Ø 3/8
Ø 6
Ø8
Ø 12

Reference:

59010008

Description
Comments

Description

Product Details

Reference 59010008

Comments
