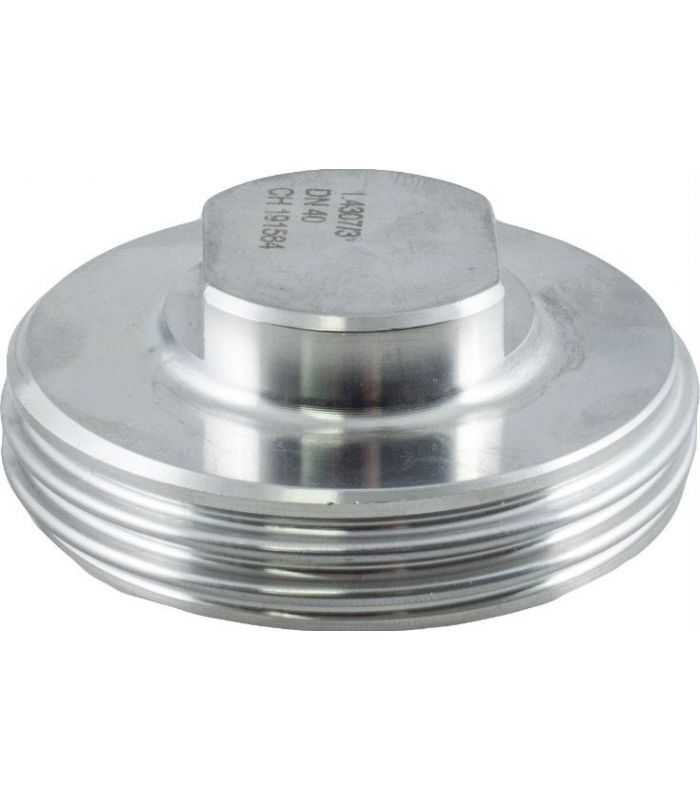

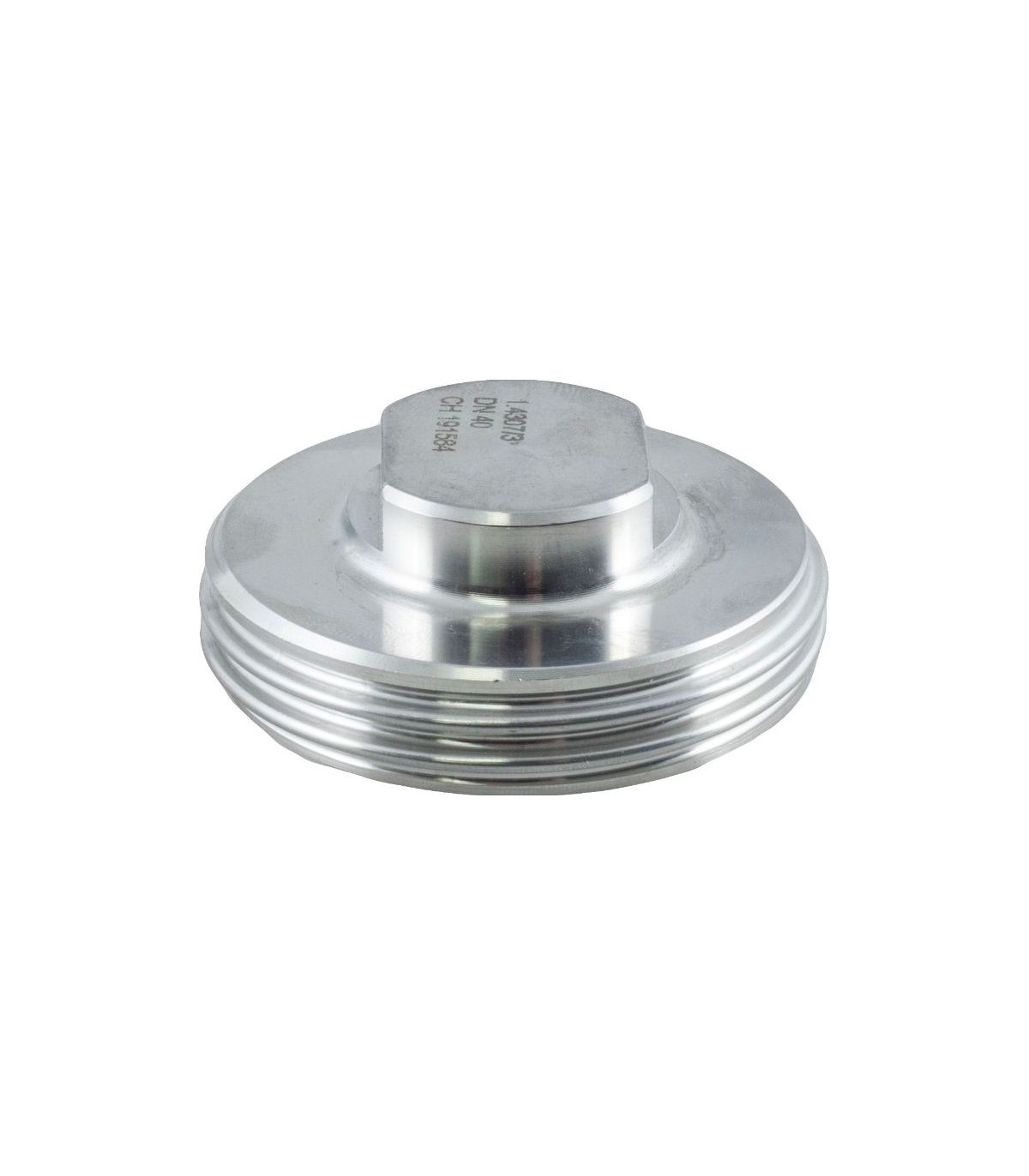

A DIN-11851 stainless-304 male plug is a closing component designed to seal or terminate a female connection in a piping system that complies with the DIN 11851 standard.
Applications: Food and beverage industry, Pharmaceutical industry, Cosmetics industry, Biofuels and fine chemicals.
Technical specifications:
The DIN-11851 stainless-304 male plug is a sanitary fitting designed for the secure closure of female connections in hygienic piping systems. Its function is to seal unused lines, equipment, or installation points, ensuring a watertight seal through a sanitary gasket and DIN round thread system.
It is widely used in industries where strict hygienic conditions and frequent disassembly are required, such as the food, dairy, pharmaceutical and beverage industries.
Technical data sheet for a DIN-11851 stainless-304 male plug:
| Code | DN | D | AND | L |
| 64619001 | 15 | 25 | 34x1/8" | 22 |
| 64619002 | 20 | 25 | 44x1/6" | 24 |
| 64619003 | 25 | 34 | 52x1/6" | 24 |
| 64619004 | 32 | 34 | 58x1/6" | 24 |
| 64619005 | 40 | 34 | 65x1/6" | 24 |
| 64619006 | 50 | 34 | 78x1/6" | 24 |
| 64619007 | 65 | 34 | 95x1/6" | 26 |
| 64619008 | 80 | 34 | 110x1/4" | 30 |
| 64619009 | 100 | 34 | 130x1/4" | 30 |
