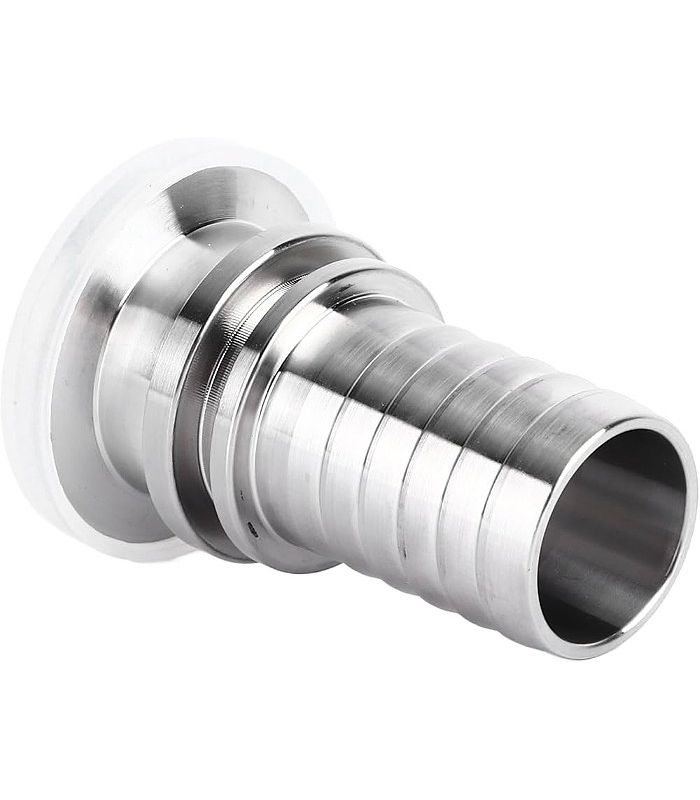

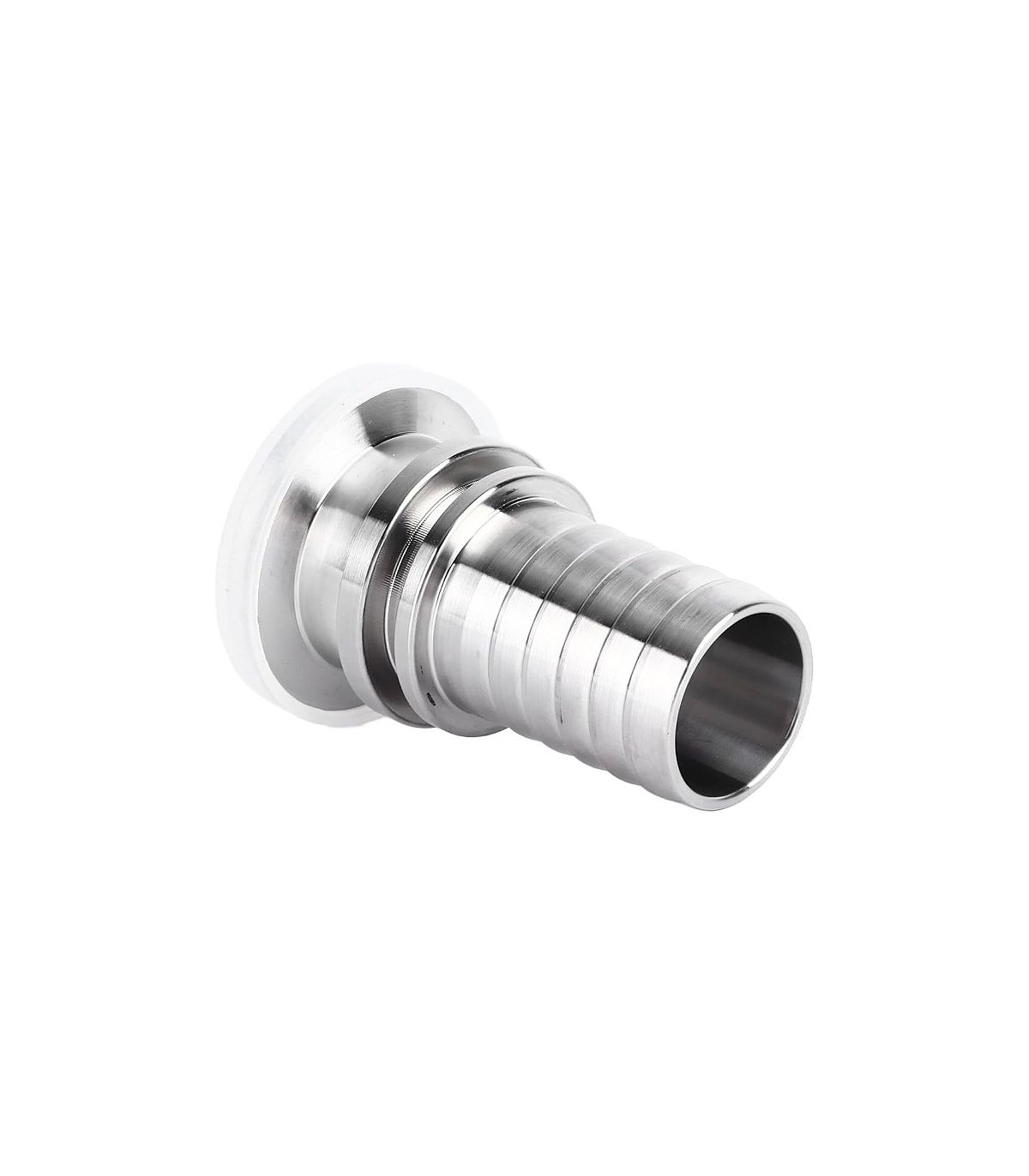

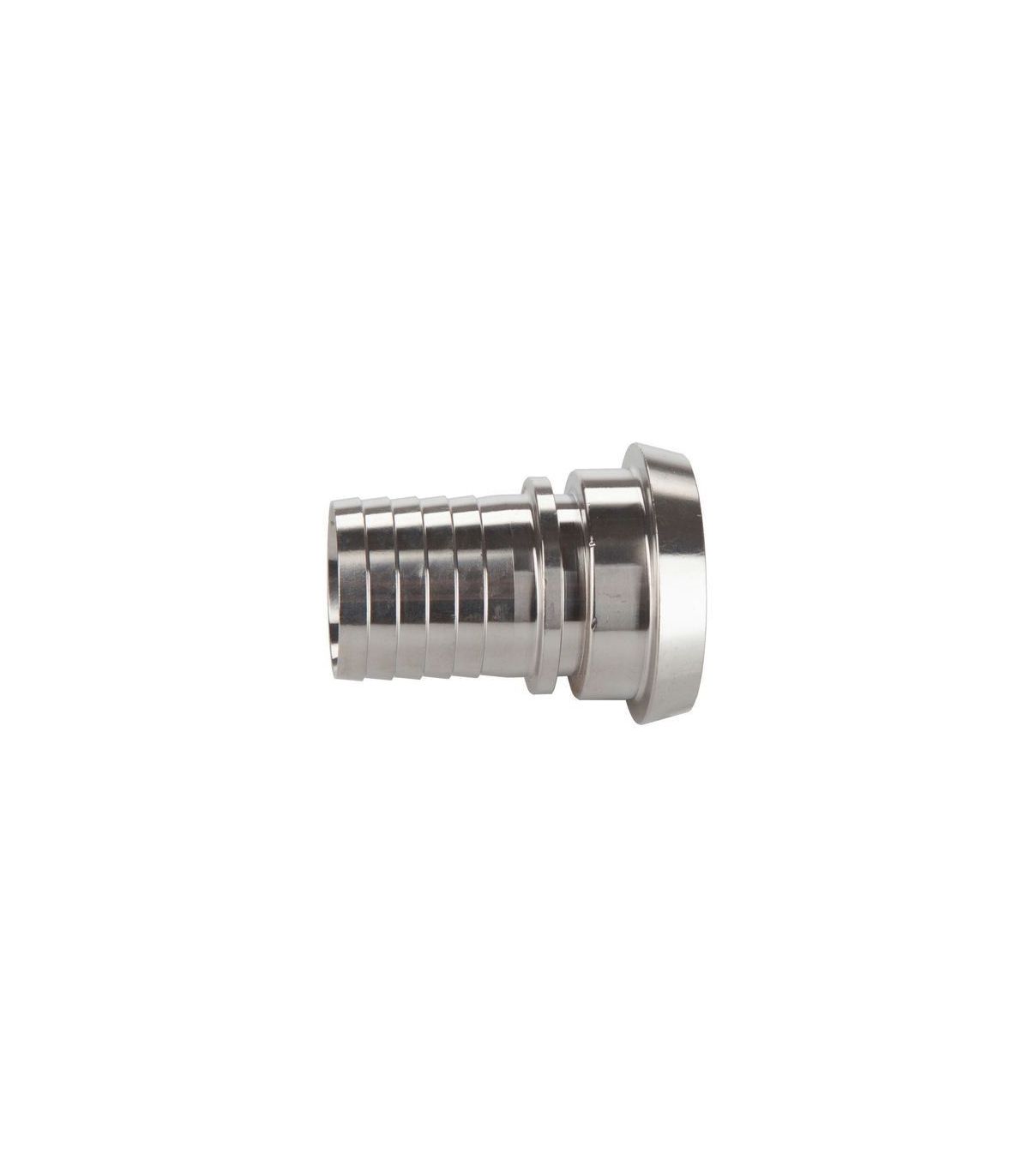

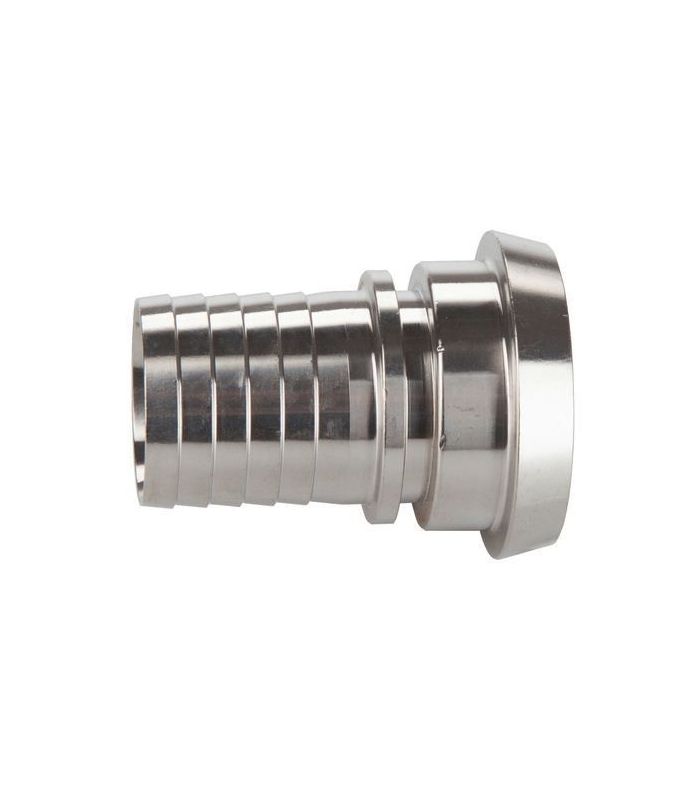

DIN 11851 hose ferrule
The DIN 11851 hose fitting is a type of connector used to join hoses to other system components, such as pipes or valves. It consists of a threaded part and a part that is inserted into the hose. It is suitable for applications in humid environments or with chemicals.
Applications: food, pharmaceutical and chemical industries, and in general, anywhere a safe and hygienic hose connection is required.
Technical specifications:
A DIN 11851 hose fitting is a sanitary connection component used to couple flexible hoses to piping systems that employ the DIN 11851 standard , very common in the food, pharmaceutical and chemical industries.
This is a sleeve designed to clamp or crimp a hose and allow it to be connected to a DIN 11851 fitting using a nut and gasket. This system guarantees a hygienic, watertight, and detachable connection.
Technical data sheet for DIN 11851 hose ferrule:
| Code | DN | Extent | Ø Hose | Thread | Weight (kg) |
| 646500 | 15 | 1/2" | 13 | 34x1/8" | 0.11 |
| 646501 | 20 | 3/4" | 19 | 44x1/6" | 0.19 |
| 646502 | 25 | 1" | 25 | 52x1/6" | 0.23 |
| 646503 | 32 | 1-1/4" | 32 | 58x1/6" | 0.28 |
| 646504 | 40 | 1-1/2" | 38 | 65x1/6" | 0.36 |
| 646505 | 50 | 2" | 50 | 78x1/6" | 0.51 |
| 646506 | 65 | 2-1/2" | 65 | 95x1/6" | 1.15 |
| 646507 | 80 | 3" | 80 | 110x1/4" | 1.35 |
| 646508 | 100 | 4" | 100 | 130x1/4" | 1.84 |
