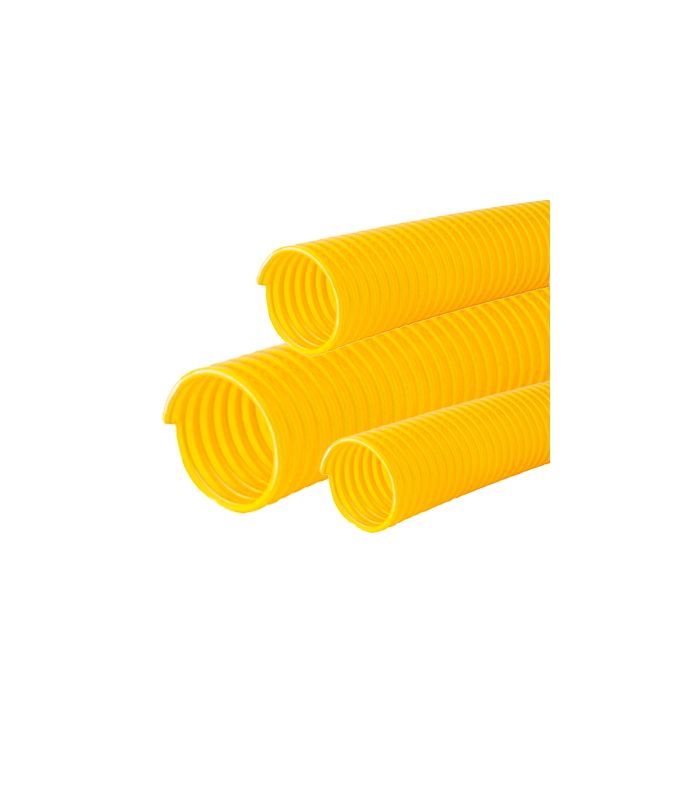

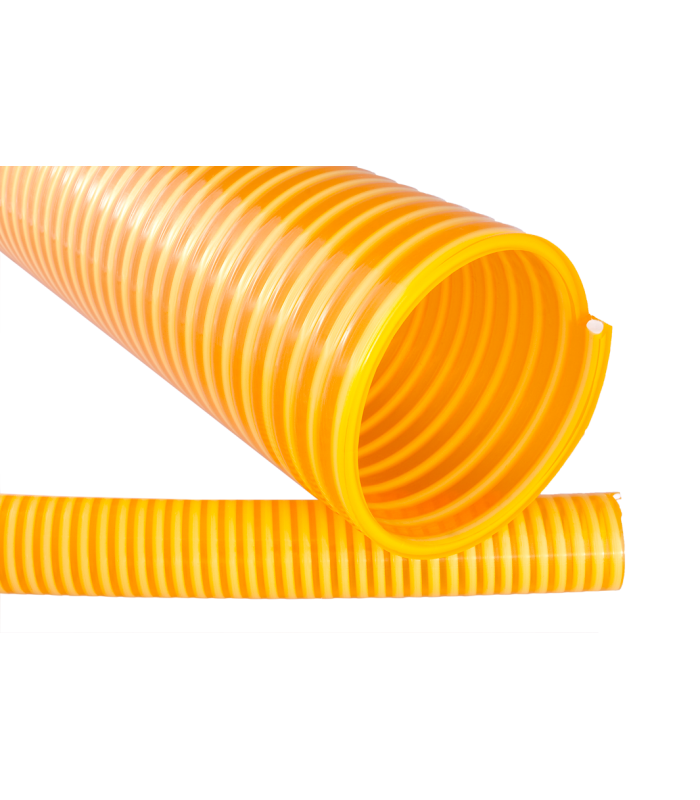

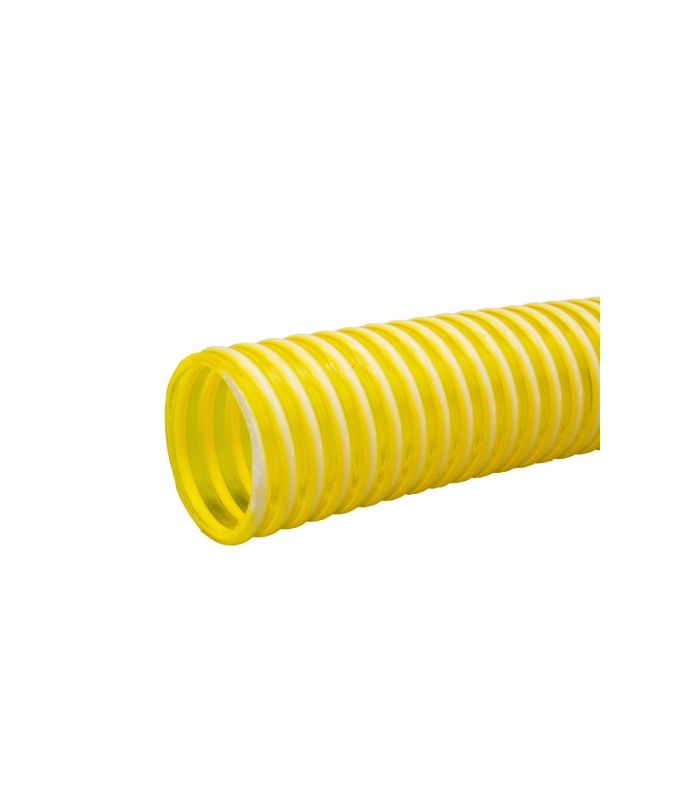

PVC liquid hose with PVC spiral

The PVC liquid hose with a PVC spiral is characterized by the inclusion of an internal spiral, also made of PVC, which provides rigidity and resistance to crushing. Despite the spiral, it retains some flexibility. It is ideal for handling chemicals. It is compatible with the following models: Agrotrans, Selman 100, Troy LD, Transliquid, Rylaspir, Saturno, and Louisiana.

Among the most common application sectors are agriculture, food, construction, chemicals, and gardening.

Main features:

  • Smooth interior wall.
  • Temperature -10 / 60ºC.
  • Food use.
  • Applications: Pumping and suction of water, liquids and other derivatives.

The selection is by inner diameter.

* Choose full rolls or linear meters, according to your needs *

€1.64 (tax included)
€1.36 (tax excl.)
DIAMETERS
  • Ø 20
  • Ø 25
  • Ø 30
  • Ø 32
  • Ø 35
  • Ø 40
  • Ø 45
  • Ø 50
  • Ø 55
  • Ø 60
  • Ø 63
  • Ø 65
  • Ø 70
  • Ø 75
  • Ø 80
  • Ø 90
  • Ø 100
  • Ø 110
  • Ø 120
  • Ø 125
  • Ø 140
  • Ø 150
  • Ø 200
DIAMETERS:
metros
metros
Reference:
20590023
Description

PVC liquid hose with PVC spiral

The PVC liquid hose with PVC spiral is a flexible conduit made of PVC and reinforced with a rigid PVC spiral , which provides it with great crush resistance and good structural stability without losing flexibility.

It is designed for the suction and discharge of liquids in industrial, agricultural, and general-purpose applications. Its smooth inner surface promotes a constant flow and prevents deposits, while the outer spiral provides mechanical protection against impacts and twisting.

Main features

  • Made of flexible PVC with a built-in rigid PVC spiral .
  • Suitable for suction and delivery of liquids.
  • Good resistance to crushing, abrasion and bending.
  • Lightweight, flexible and easy to handle.
  • Smooth interior to improve flow.
  • Resistant to atmospheric agents and moderate chemicals.
  • Available in various diameters and thicknesses depending on the required pressure.

Applications

  • Handling of water and non-corrosive liquids.
  • Agriculture: irrigation, water transfer, purification.
  • Industry: pumping equipment, drainage and general services.
  • Construction: evacuation, supply and temporary drainage.
  • Systems for filling and emptying tanks or containers.

Technical data sheet for PVC liquid hose with PVC spiral

Code Inner diameter (mm) Outer diameter (mm) Weight (g/m) Working pressure (bar) Roll length (m)
20590023 20 27 292 10 50
20590027 25 33 388 9.5 50
20590030 30 38 396 9 50
20590031 32 40 486 8.5 50
205900330 35 43 534 8 50
20590036 40 48 582 7.5 50
20590039 45 53 680 7 50
20590041 50 59 824 6.5 50
20590043 55 64 874 6 50
20590044 60 69 970 6 50
20590046 63 72 1,028 6 50
20590055 65 74 1,068 6 50
20590047 70 80 1,212 5.5 50
20590048 75 85 1,358 5 50
20590049 80 91 1,552 5 50
20590050 90 101 1,794 4.5 30
20590052 100 112 2,134 4 30
20590056 110 123 2,522 4 30
20590054 120 133 2,716 3.5 30
20590053 125 138 2,814 3.5 30
20590057 140 155 3,628 3 30
20590058 150 166 4,172 3 30
20590059 160 176 4,600 2.5 20
20590060 200 218 6,206 2 20

Product Details
20590023

Specific References

upc
1
