10 BAR FOOD SUPPLY HOSE
10 BAR FOOD SUPPLY HOSE
10 BAR FOOD SUPPLY HOSE
10 BAR FOOD SUPPLY HOSE

10 BAR FOOD SUPPLY HOSE

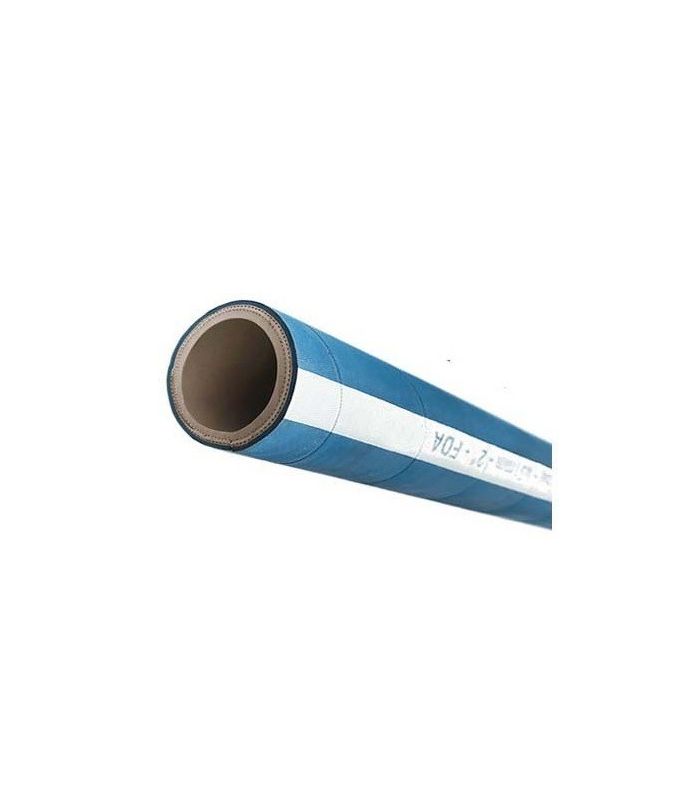

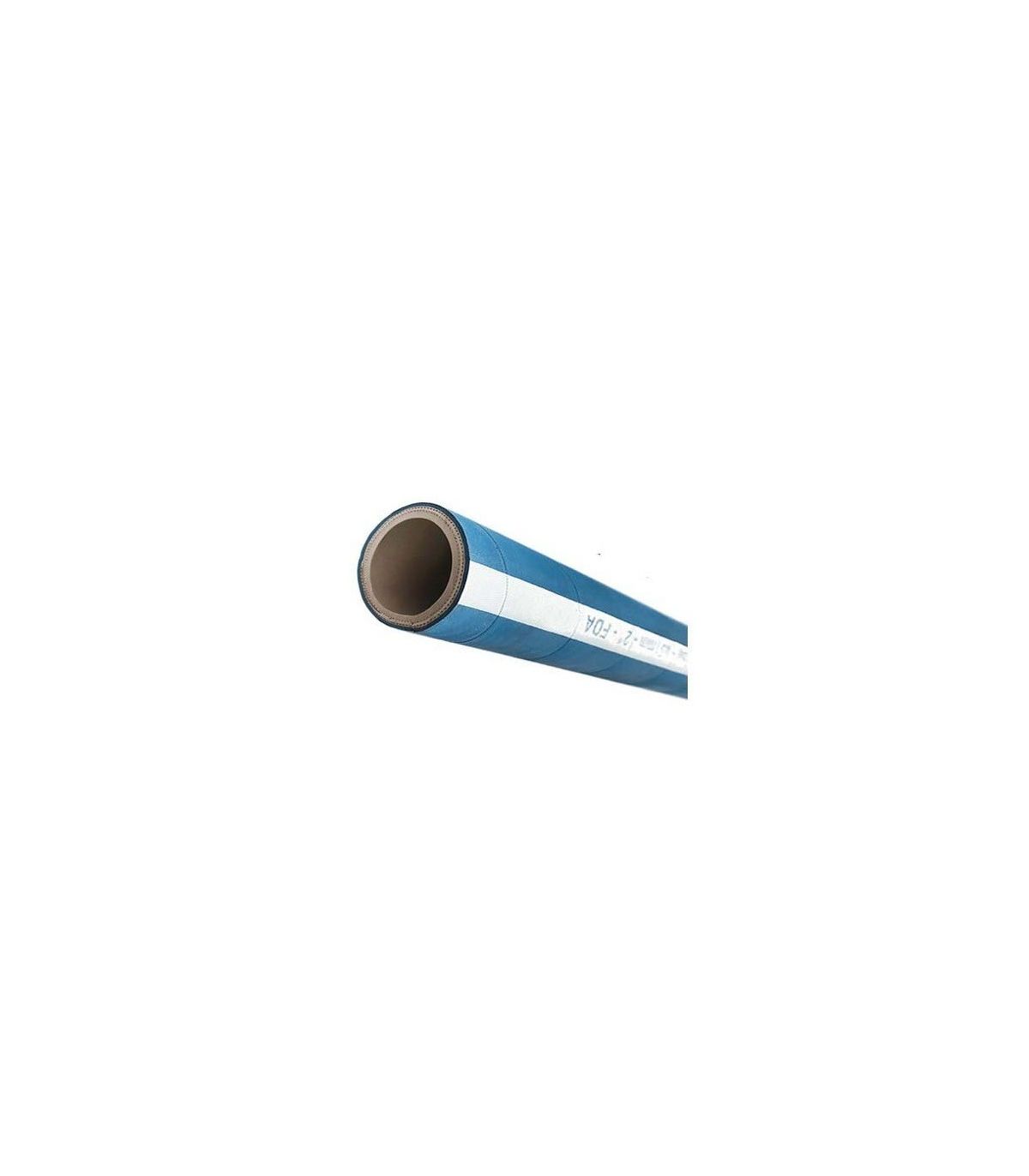

A 10 bar food pressure hose is a non-toxic tube constructed with a mandrel for pumping food liquids, such as milk, oil, wine, juice and beer.

Main features:

  • Internal sterilization with soda (5%) and steam up to 120ºC (for a maximum of 30 minutes).
  • Phthalate-free hose.
  • Temperature -30ºC / +80ºC
  • FDA Food Standard 177/2600
  • Inner tube: White, harmless NBR synthetic rubber.
  • Reinforcement: High-tenacity synthetic braiding.
  • Outer cover: Blue NBR synthetic rubber, resistant to abrasion and weathering. Surface with a fine fabric print.

The selection is by inner diameter.

Choose full rolls or linear meters, according to your needs.

€10.84 (tax included)
€8.96 (tax excl.)
DIAMETERS
  • Ø 13
  • Ø 16
  • Ø 19
  • Ø 25
  • Ø 32
  • Ø 38
  • Ø 40
  • Ø 45
  • Ø 50
DIAMETERS:
metros
metros
Reference:
207601
Description

Food grade 10 bar delivery hose

A 10 bar food-grade pressure hose is a flexible conduit designed to deliver, transfer, or pump liquid, semi-liquid, or beverage products under positive pressure . It is made from food-grade materials (such as EPDM or NBR) and complies with health regulations such as FDA standards.

Advantages

  • Hygienic and compatible with sensitive foods.
  • Resistant to pressure and continuous work.
  • Non-porous and easy-to-clean interior.
  • Durable in demanding industrial environments.

Main uses

  • Dairy industry: milk, whey, cream.
  • Drinks: juices, beer, wines, soft drinks.
  • Food in general: oils, sauces, syrups, viscous products.
  • Pumping and driving equipment in processing plants.

Technical data sheet for the food-grade delivery hose

Code Inner diameter (mm) Outer diameter (mm) Thickness (mm) Weight kg/m Working pressure (bar) Roll length (m)
207601 13 22 4.50 0.460 10 40
207602 16 26 5.00 0.530 10 40
207603 19 30 5.50 0.730 10 40
207604 25 36 5.50 0.890 10 40
207605 32 44 6.00 1,090 10 40
207606 38 50 6.00 1,200 10 40
207607 40 52 6.00 1,530 10 40
207608 45 57 6.00 1,760 10 40
207609 50 64 6.50 1,940 10 40

Product Details
207601

Specific References

upc
1
