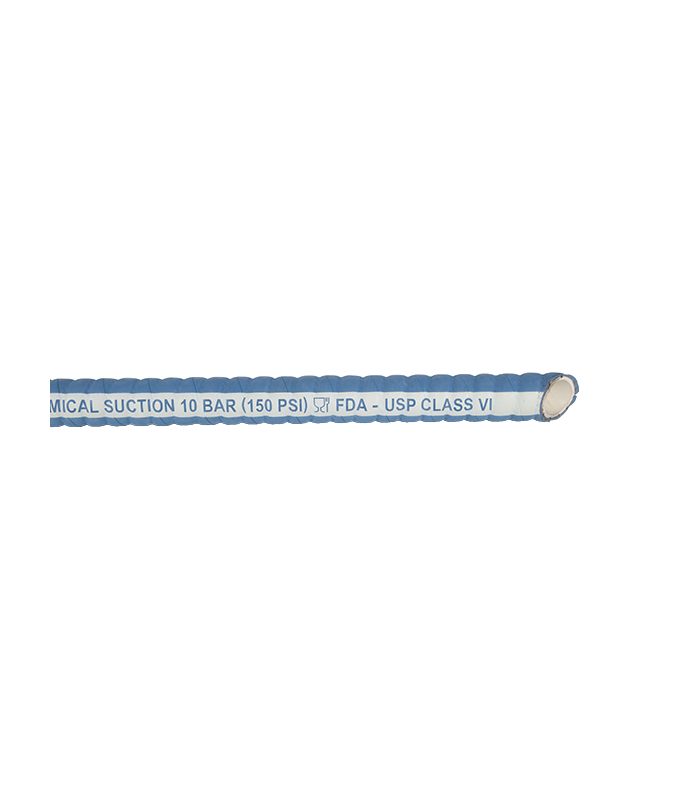

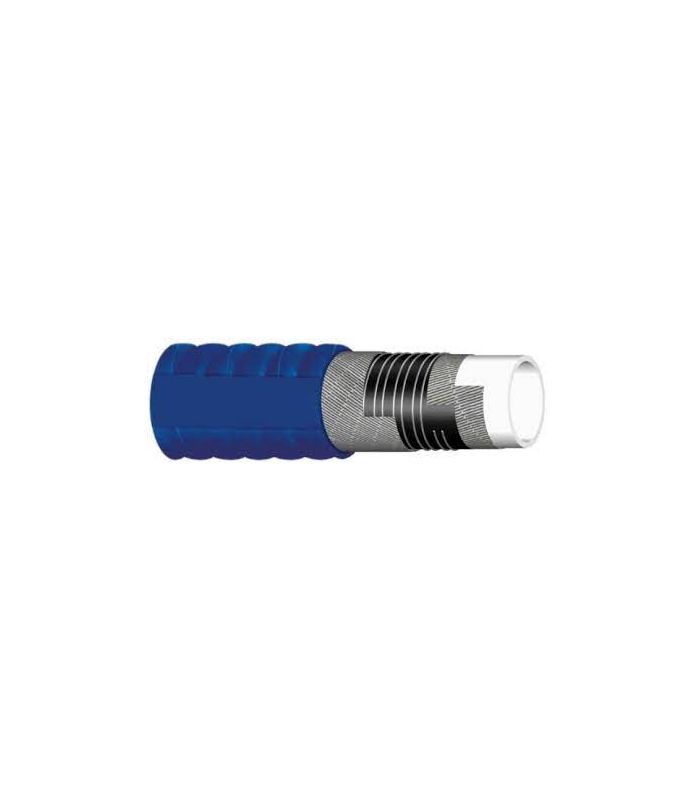

FLEXIBLE FOOD GRADE HOSE 10 BAR
FLEXIBLE FOOD GRADE HOSE 10 BAR
FLEXIBLE FOOD GRADE HOSE 10 BAR
FLEXIBLE FOOD GRADE HOSE 10 BAR

FLEXIBLE FOOD GRADE HOSE 10 BAR

The 10 bar flexible food-grade hose is used for food-grade pumping and suction applications. It is a non-toxic, food-grade hose for pumping and suction of food-grade beverages and chemicals with up to 99% alcohol.

Applications: transport of various food products (water, milk, beers, wines, oils, juices, etc.), as well as detergents and CIP cleaning systems.

Main features:

  • Non-toxic tube constructed from mandrel
  • Sterilized interior with lye (5%) and steam up to 120ºC
  • Great flexibility due to its corrugated cover.
  • Inner tube: White rubber with UHMW-PE inner lining.
  • Reinforcement: Textile braiding and double spiral of metal wire. Copper wire for discharge.
  • Outer cover: Blue EPDM rubber. Corrugated finish.
  • Phthalate-free hose.
  • Working pressure 10 bar.
  • Temperature -20ºC / 80ºC
  • Standard: FDA 177-2600 and USP VI Pharma

The selection is by inner diameter.

Choose full rolls or linear meters, according to your needs.

€32.13 (tax included)
€26.55 (tax excl.)
DIAMETERS
  • Ø 25
  • Ø 32
  • Ø 38
  • Ø 50
  • Ø 63
  • Ø 75
DIAMETERS:
metros
metros
Reference:
146025
Description

Flexible food-grade hose 10 bar

A 10 bar flexible food hose is a conduit designed to transport liquid or semi-liquid food products, made of food-grade materials and constructed to maintain high flexibility for easy handling in industrial processes.

Common applications

  • Dairy industry
  • Breweries and wineries
  • Non-alcoholic beverages
  • Edible oils and fats
  • Loading and unloading processes in production plants
  • Mobile connections in processing equipment

Technical specifications for the flexible food-grade hose:

Code Inner diameter (mm) Outer diameter (mm) Weight kg/m Thickness (mm) Working pressure (bar) Curve radius (mm) Roll length (m)
146025 25 36 0.890 5.50 10 90 40
146032 32 44 1,090 6.00 10 100 40
146038 38 50 1,200 6.00 10 120 40
146050 50 64 1,940 6.50 10 150 40
146063 63 76 2,340 6.50 10 165 40
146075 75 90 2,650 7.00 10 230 40
