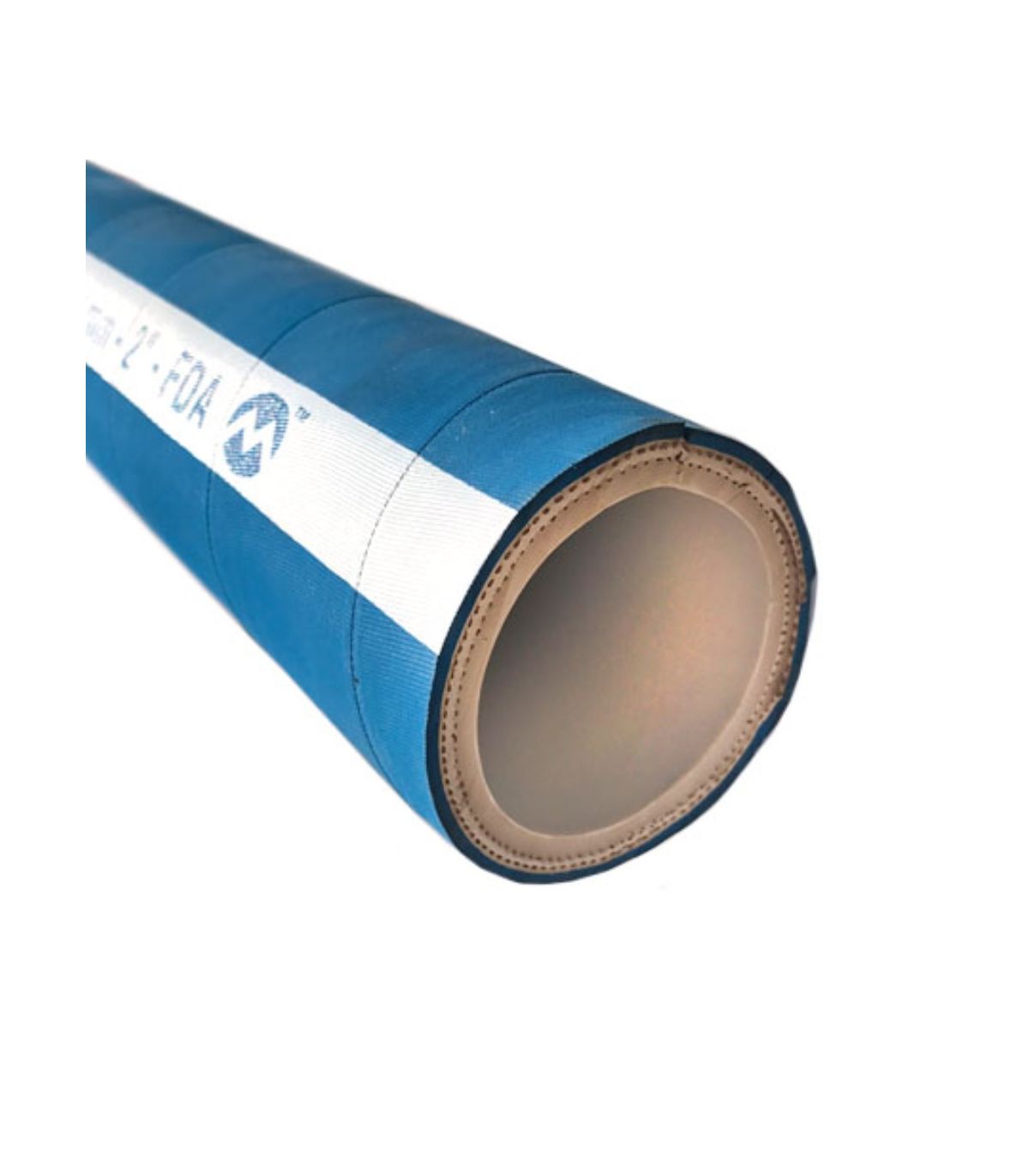

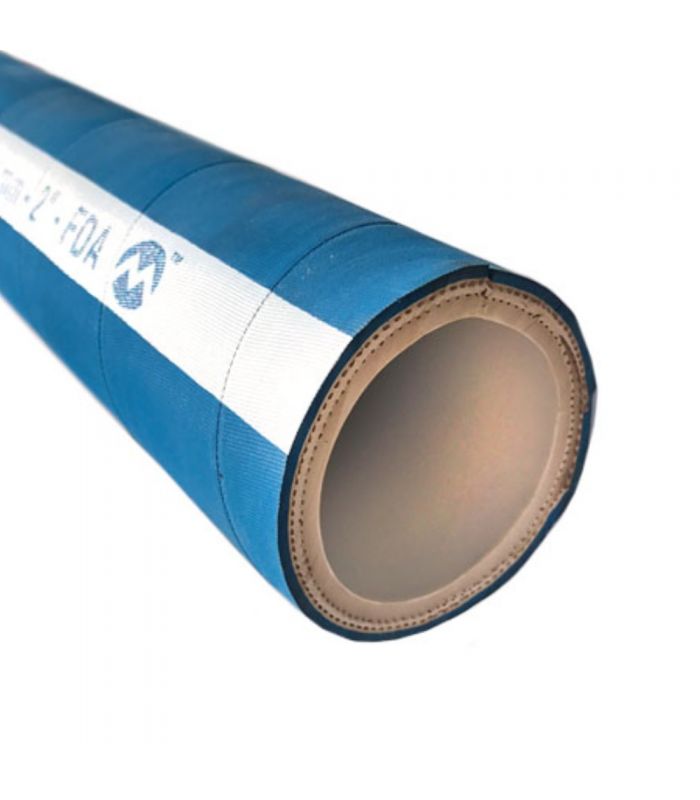

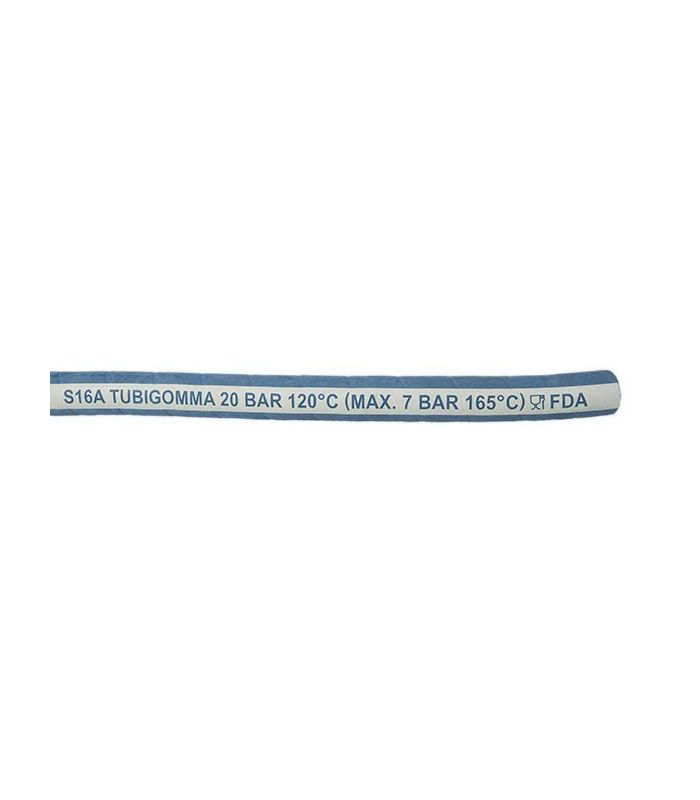

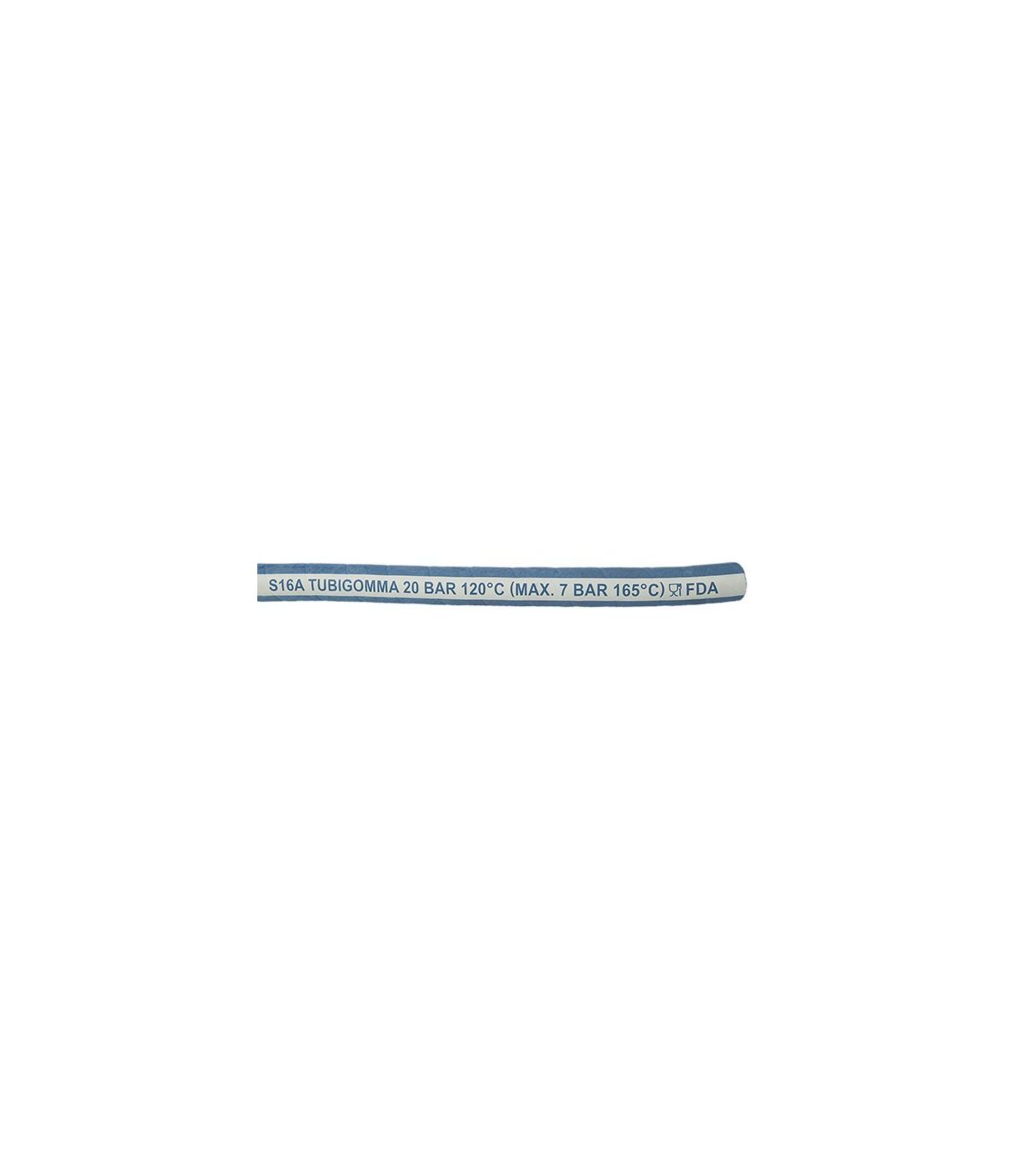

The 20 bar food-grade steam hose is used for all types of cleaning, especially in the food industry. It is resistant to heat, pressure, and chemicals used in the food industry.
It is mainly used in the food and pharmaceutical industries.
Main features:
Choose full rolls or linear meters, according to your needs.
A 20 bar food-grade steam hose is a flexible conduit designed to transport high-temperature, high-pressure steam within food industry processes. It is manufactured with FDA-certified food-grade materials , ensuring that it does not release contaminants during use.
Technical data sheet for 20 bar food-grade steam hose
| Code | Inner diameter (mm) | Outer diameter (mm) | Thickness (mm) | Weight kg/m | Working pressure (bar) | Roll length (m) |
| 207502 | 16 | 26 | 5.00 | 0.600 | 20 | 40 |
| 207503 | 19 | 31 | 6.00 | 0.800 | 20 | 40 |
| 207504 | 25 | 37 | 6.00 | 0.980 | 20 | 40 |
| 207505 | 32 | 44 | 6.00 | 1,200 | 20 | 40 |
| 207506 | 38 | 50 | 6.00 | 1,400 | 20 | 40 |
| 207507 | 50 | 66 | 7.50 | 2,000 | 20 | 40 |
