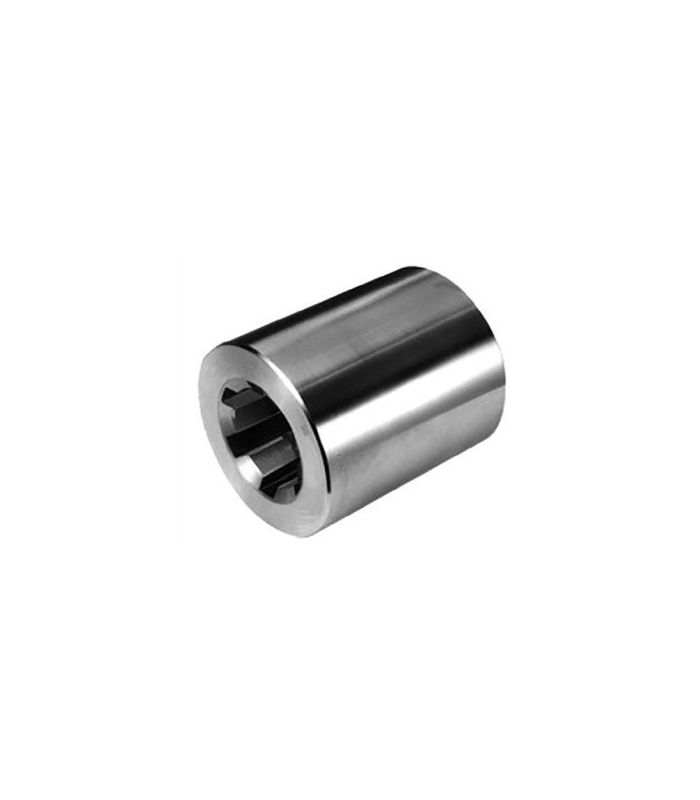

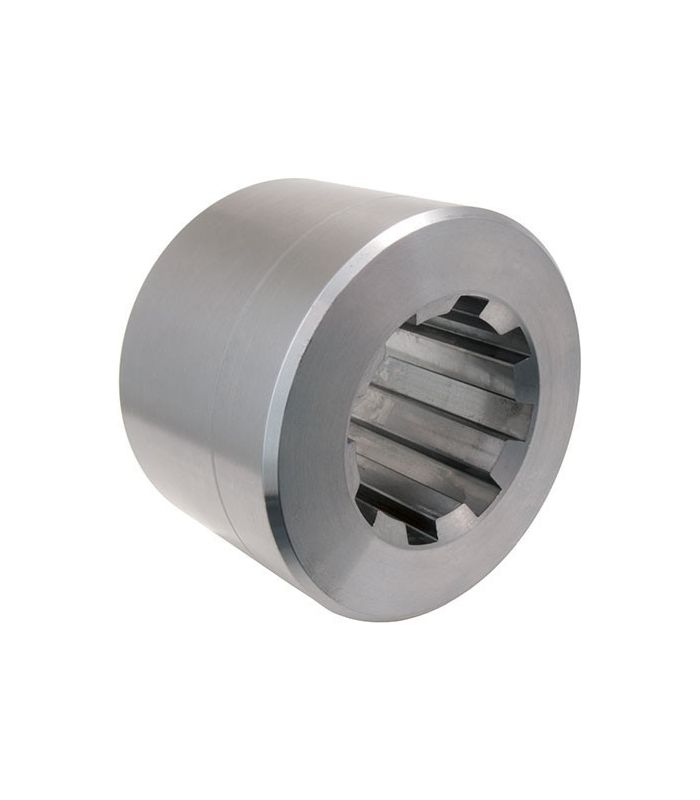

SMOOTH GROOVED BUSHING DIN-5463 STAINLESS STEEL
SMOOTH GROOVED BUSHING DIN-5463 STAINLESS STEEL
SMOOTH GROOVED BUSHING DIN-5463 STAINLESS STEEL
SMOOTH GROOVED BUSHING DIN-5463 STAINLESS STEEL
SMOOTH GROOVED BUSHING DIN-5463 STAINLESS STEEL
SMOOTH GROOVED BUSHING DIN-5463 STAINLESS STEEL

SMOOTH GROOVED BUSHING DIN-5463 STAINLESS STEEL

A DIN-5463 stainless steel plain splined bushing is a mechanical power transmission component designed to create a robust and precise connection between a shaft and a component that transmits rotary motion. Its main feature is the combination of a smooth outer surface with a splined inner bore.

Applications: Power transmission, Food and beverage industry, Chemical and pharmaceutical machinery, Agitation and mixing systems, Pumps and fans, Packaging machinery, Industrial automation.

Main features:

  • Made of INOX-303 steel
  • Axial displacement.
  • High torque.
€158.06 (tax included)
€130.63 (tax excl.)
DIAMETERS
  • Ø 20
  • Ø 22
  • Ø 25
  • Ø 28
Reference:
551300141
Description

Plain grooved bushing DIN-5463 Stainless Steel

A DIN-5463 stainless steel grooved bushing is a cylindrical mechanical element with internal grooves, designed to transmit torque between shafts and coupled components. Its stainless steel construction makes it suitable for corrosive environments or those with strict hygiene requirements.

Technical properties

  • Machined cylindrical element
  • Standard straight splines DIN 5463
  • High resistance to wear and torsion
  • Good corrosion resistance
  • Precise fit with compatible splined shafts

Applications

  • Mechanical and power transmission industry
  • Industrial machinery
  • Automotive
  • Agricultural equipment
  • Gear and reducer systems
  • Corrosive or food environments

Technical data sheet for a DIN-5463 stainless steel grooved plain bushing:

Code Ød ØD c Z Oh L
551300141 16 20 4 6 33 35
551300161 18 22 5 6 33 40
551300171 21 25 5 6 40 40
551300191 23 28 6 6 41 48

Product Details
551300141
