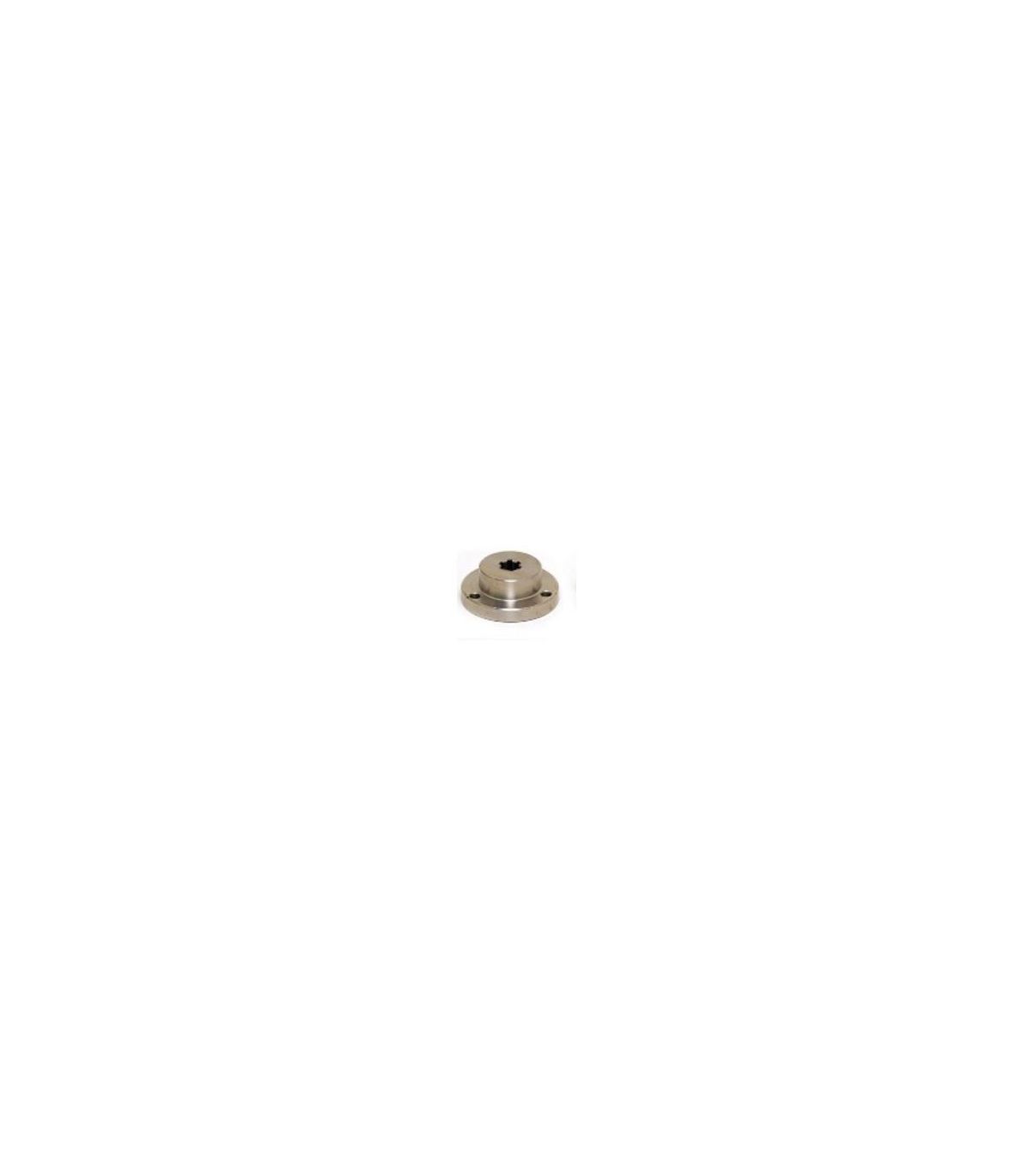

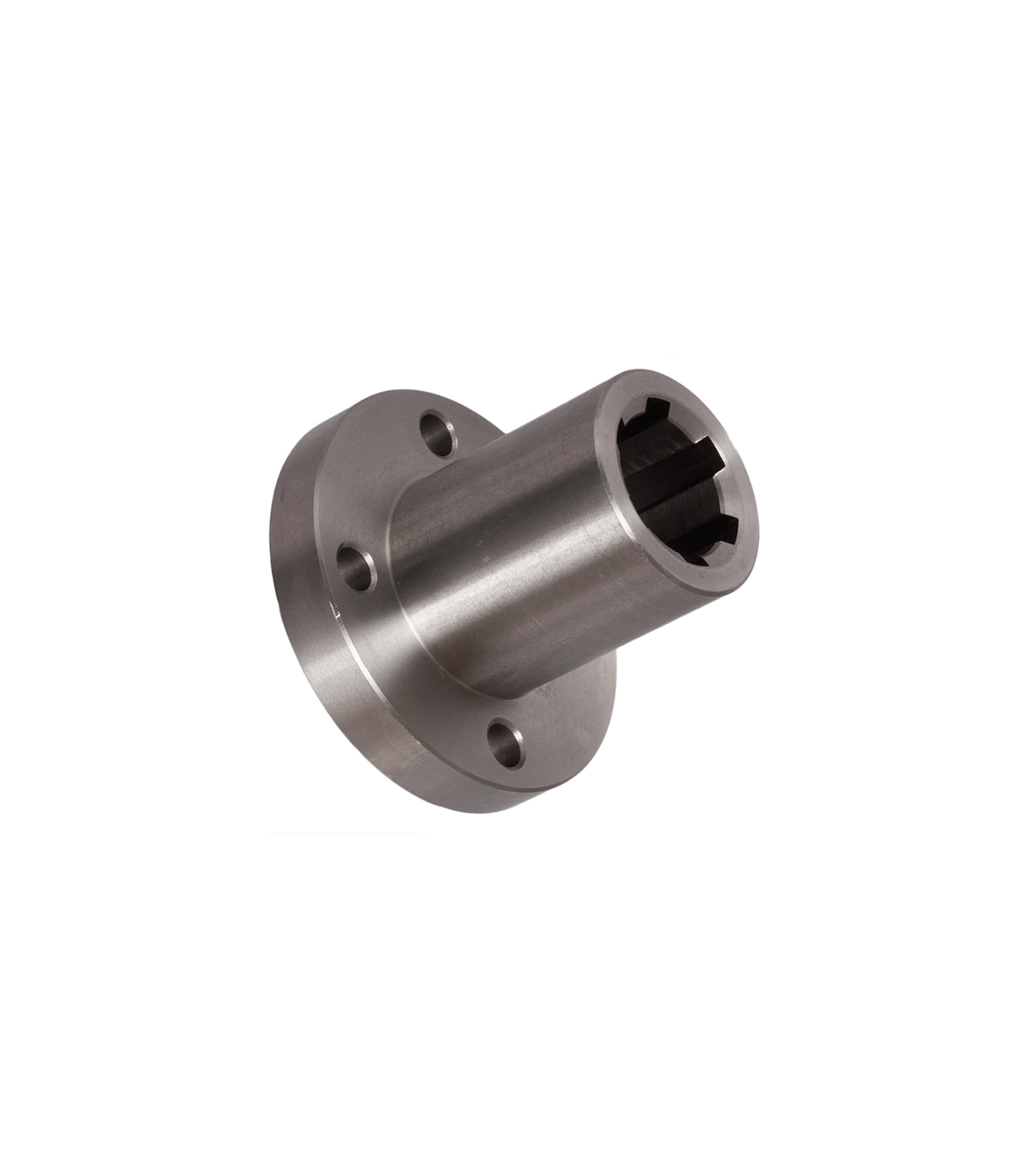

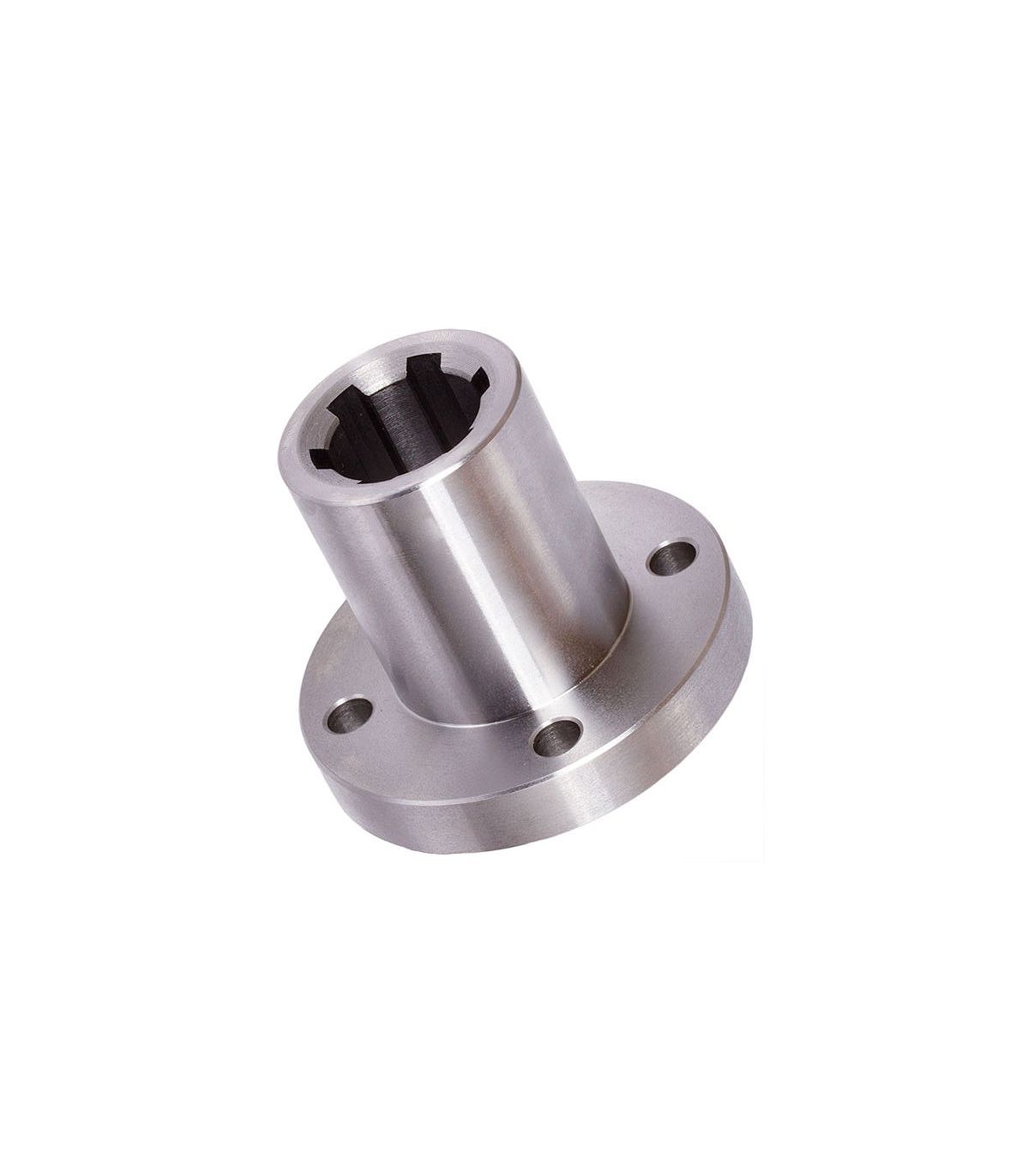

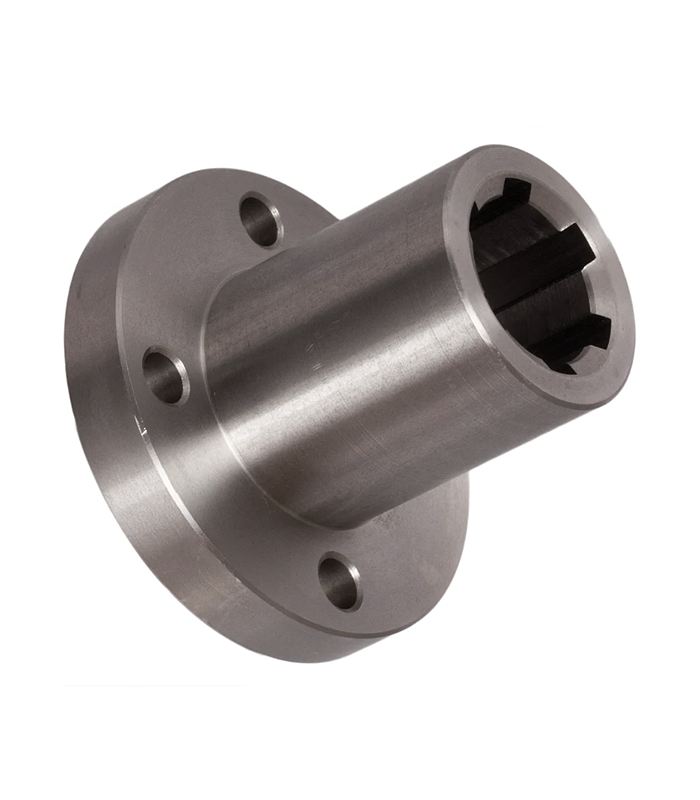

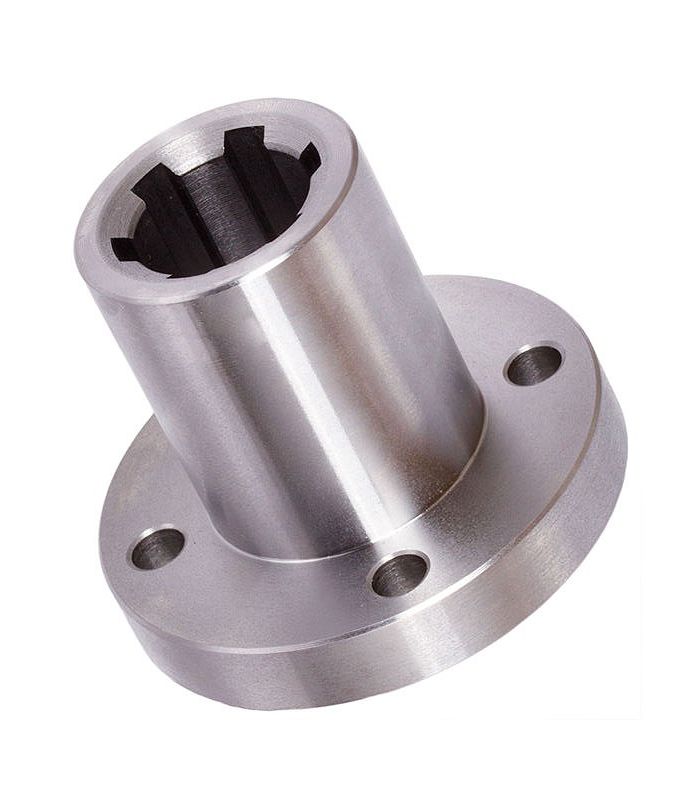

FIXING HUB FOR SPLINED SHAFT DIN-5463
FIXING HUB FOR SPLINED SHAFT DIN-5463
FIXING HUB FOR SPLINED SHAFT DIN-5463
FIXING HUB FOR SPLINED SHAFT DIN-5463
FIXING HUB FOR SPLINED SHAFT DIN-5463
FIXING HUB FOR SPLINED SHAFT DIN-5463

FIXING HUB FOR SPLINED SHAFT DIN-5463

The DIN-5463 splined shaft fixing hub is a mechanical component designed to ensure a secure and precise connection between splined shafts and transmission elements.

Applications: industrial machinery, mechanical transmission systems, reducers, automation and drive equipment.

Main features:

  • Constructed of F-114 steel.
  • Axial displacement.
  • High torque.
  • It is selected by the outer diameter of the bushing
  • See other measurements and configurations.
€44.93 (tax included)
€37.13 (tax excl.)
DIAMETERS
  • Ø 14
  • Ø 16
  • Ø 20
  • Ø 22
  • Ø 25
  • Ø 28
  • Ø 32
Reference:
55120009
Description

Fixing hub for splined shaft DIN-5463

The DIN-5463 splined shaft clamping hub is a mechanical component designed to ensure a secure and precise connection between splined shafts and transmission elements. Manufactured in accordance with DIN-5463, it enables excellent torque transmission and reliable coupling in industrial applications.

Its grooved design facilitates a precise fit, minimizes slippage, and improves the distribution of mechanical loads during operation.

Technical specifications

  • Manufactured according to DIN-5463 standard.
  • High dimensional accuracy.
  • Excellent torque and motion transmission.
  • Secure and robust coupling.
  • High resistance to wear and mechanical stress.
  • Available in different sizes.

Common applications

The DIN-5463 splined shaft clamping hub is used in industrial machinery, mechanical transmission systems, reducers, automation and drive equipment that require precise and reliable coupling.

Technical data sheet for a DIN-5463 splined shaft fixing hub:

Product Details
55120009
