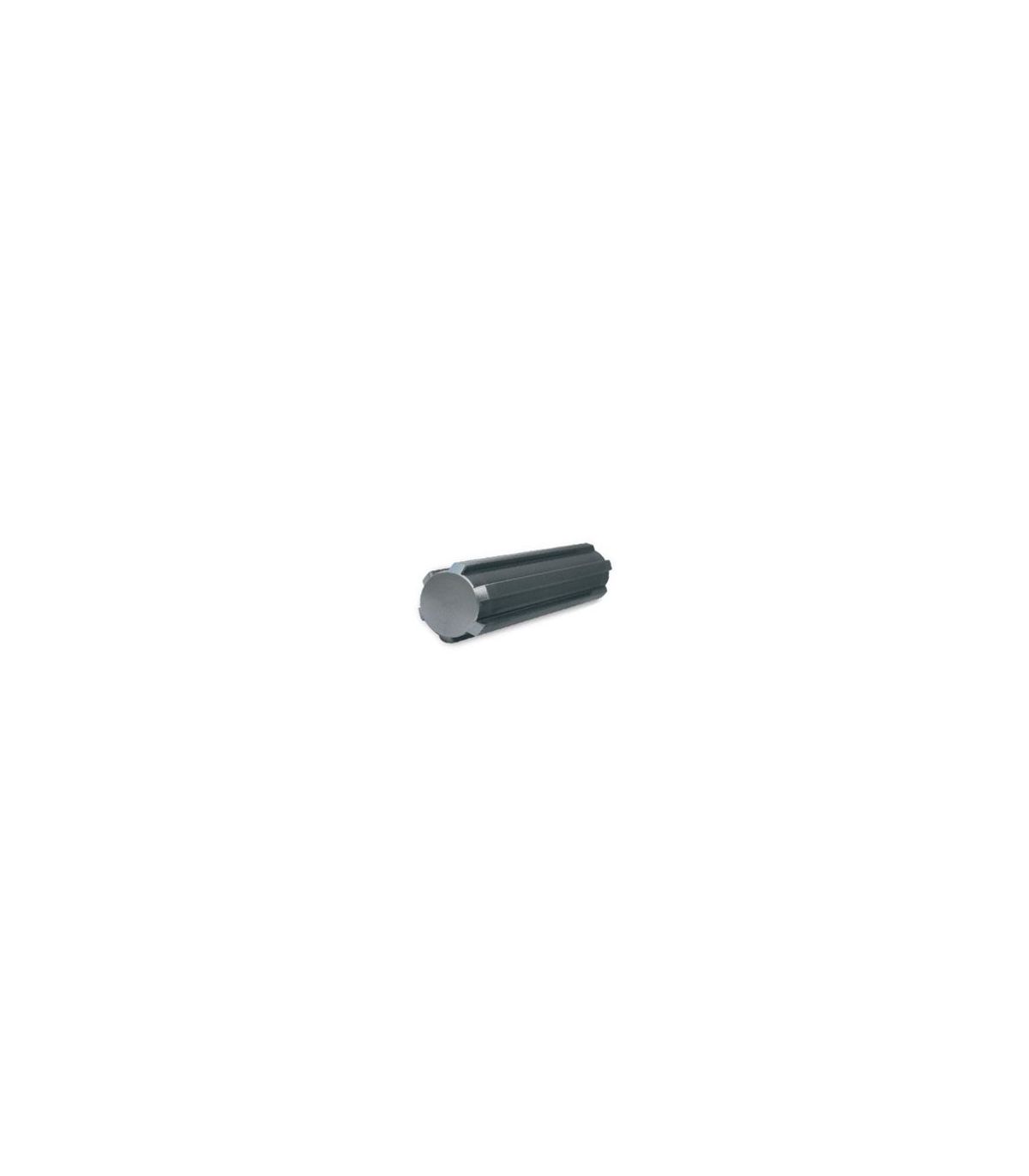

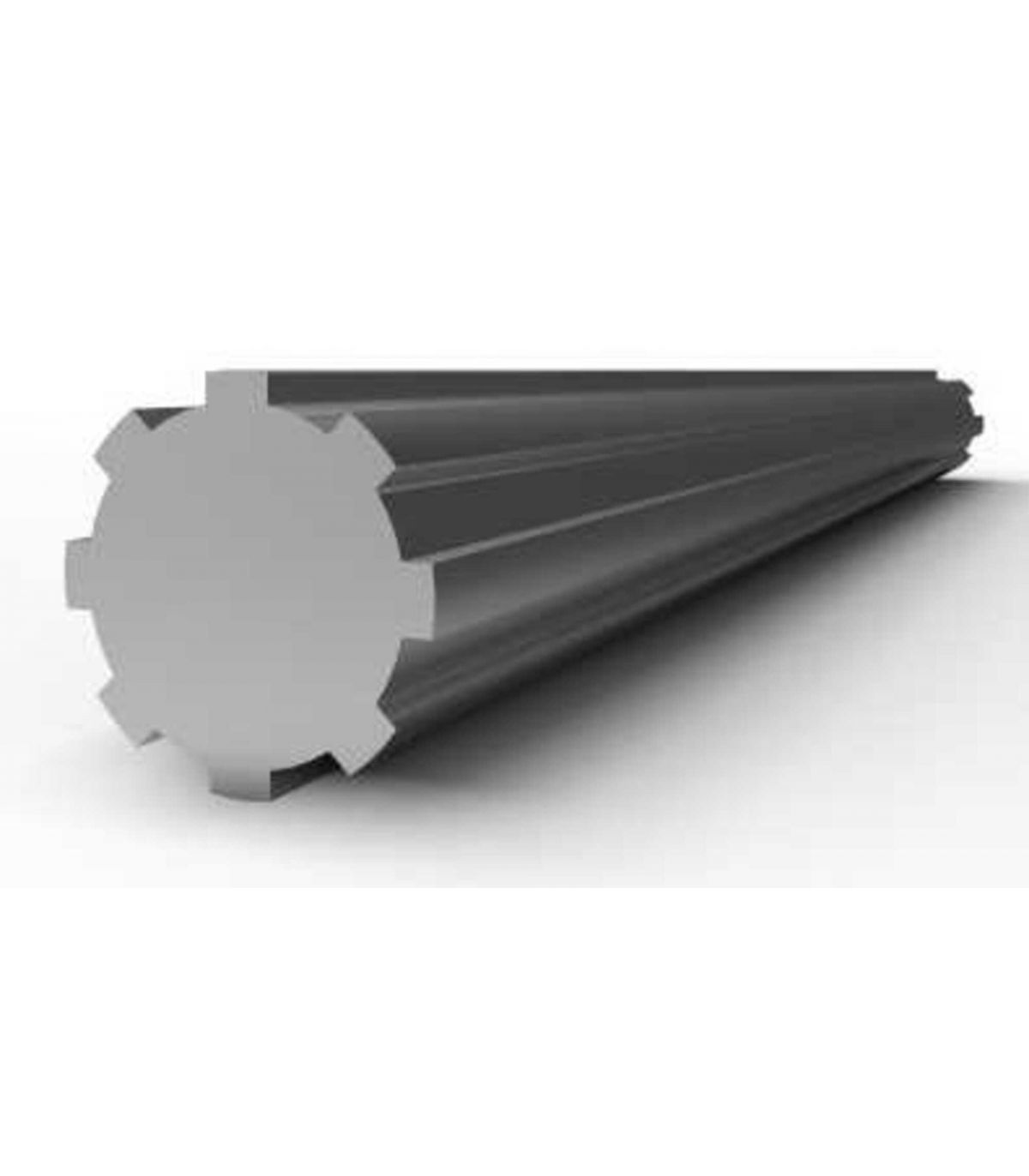

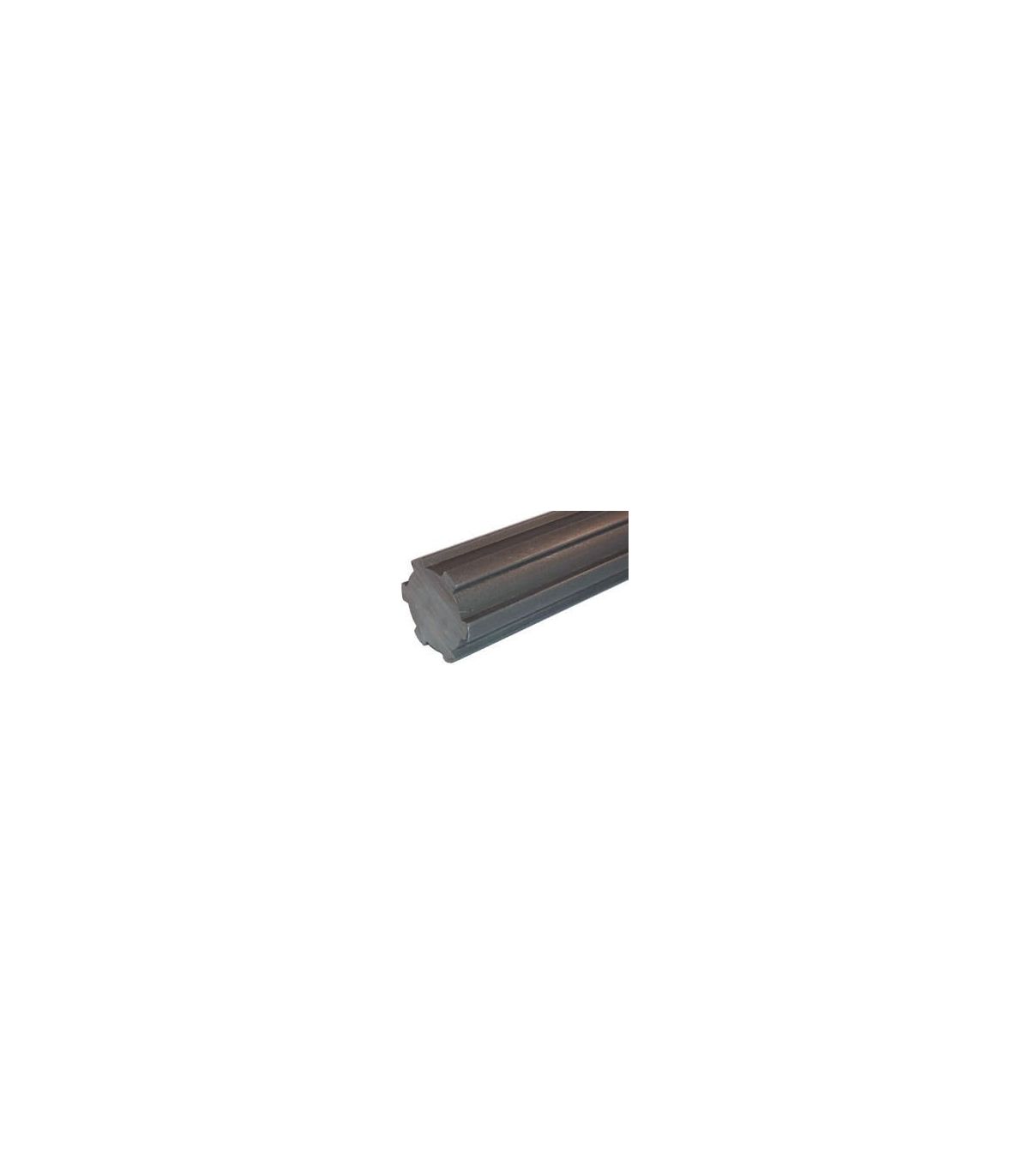

SPLINED SHAFT DIN-5463
SPLINED SHAFT DIN-5463
SPLINED SHAFT DIN-5463
SPLINED SHAFT DIN-5463
SPLINED SHAFT DIN-5463
SPLINED SHAFT DIN-5463

SPLINED SHAFT DIN-5463

The DIN-5463 splined shaft is used for transmitting high torques and axial displacements. They are manufactured according to DIN-5463 standards using C-40 steel.

Applications: industrial machinery, automation, drive systems and high-performance equipment.

Main features:

  • Constructed of C-40 steel
  • Axial displacement.
  • High torque.
  • With 6 or 8 teeth, depending on the diameter.
  • Max. length 3/5 meters.
  • It can be cut to the desired length (please inquire)

Price per linear meter.

€29.42 (tax included)
€24.31 (tax excl.)
DIAMETERS
  • Ø 14
  • Ø 16
  • Ø 20
  • Ø 22
  • Ø 25
  • Ø 28
  • Ø 32
  • Ø 38
  • Ø 42
  • Ø 48
  • Ø 54
Reference:
55110009
Description

Splined shaft DIN-5463

A DIN-5463 splined shaft is a mechanical transmission component designed with a series of longitudinal grooves standardized according to the DIN-5463 standard.

Its function is to transmit torque and motion between different mechanical elements in a precise and safe manner.

This type of shaft allows for efficient coupling with hubs, gears, pulleys, or splined sleeves, guaranteeing excellent power transmission and uniform distribution of mechanical stress.

Technical specifications

DIN-5463 splined shafts are characterized by:

  • High dimensional accuracy.
  • High torque transmission capacity.
  • Excellent wear resistance.
  • Safe and reliable coupling.
  • Compatibility with demanding industrial applications.

Common applications

They are widely used in industrial machinery, gearboxes, automation, hydraulic systems, mechanical transmission and high-performance equipment where precision and durability are required.

Technical data sheet for a splined shaft DIN-5463:

Product Details
55110009
