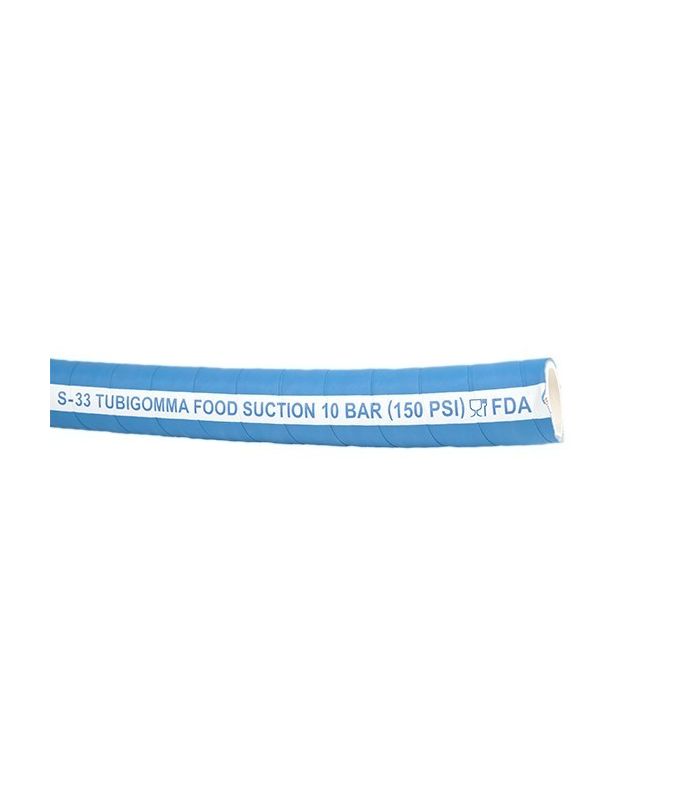

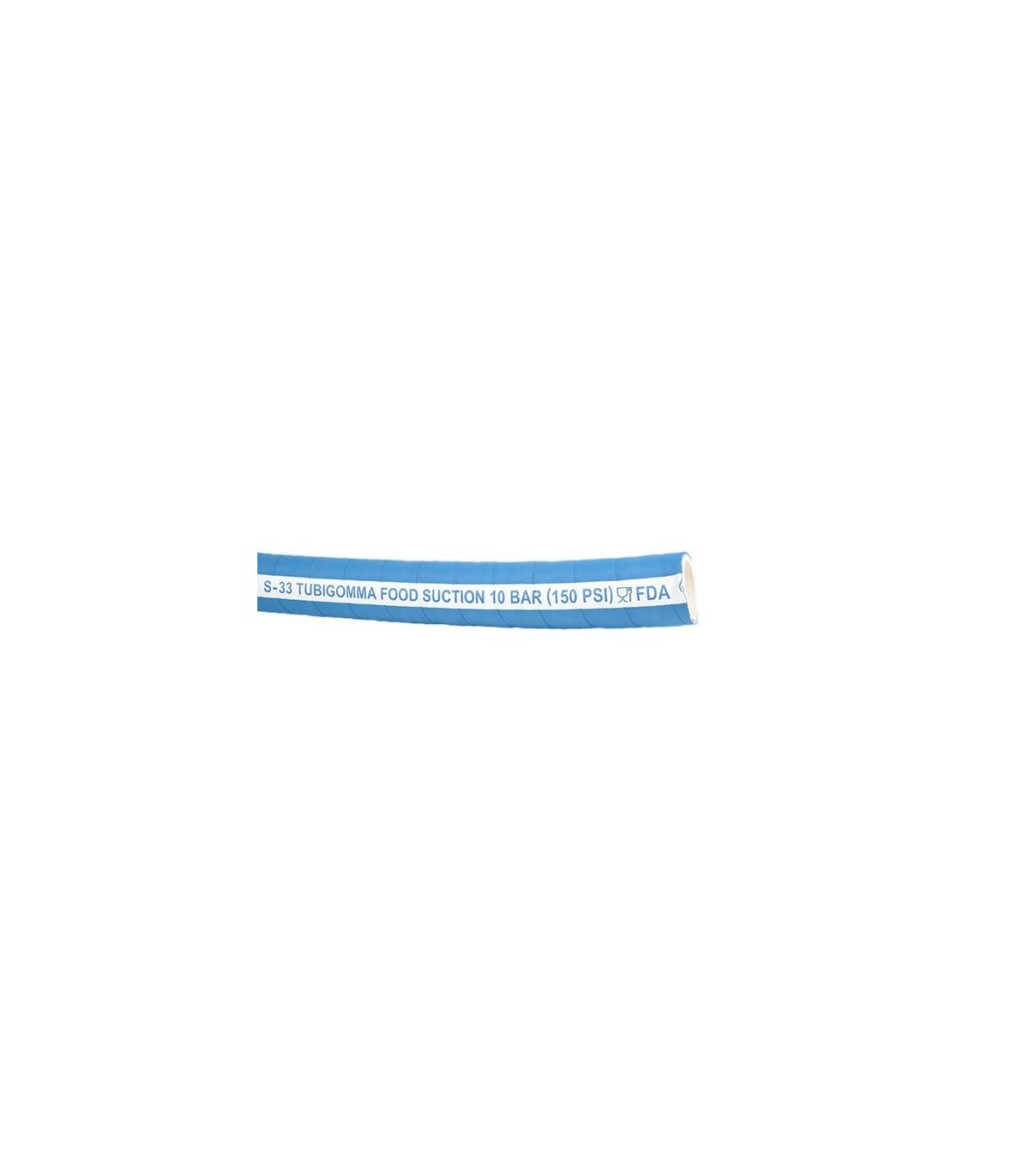

Food grade suction hose 10 bar

A 10 bar food-grade suction hose is defined as a non-toxic, mandrel-shaped tube for the suction and discharge of food-grade liquids, such as milk, oil, wine, juice, and beer. Maximum suction: 90%.

Main features:

  • Internal sterilization with soda (5%) and steam up to 120ºC (for a maximum of 30 minutes).
  • Phthalate-free hose.
  • Temperature -30ºC / 80ºC.
  • Working pressure: 10 bar.

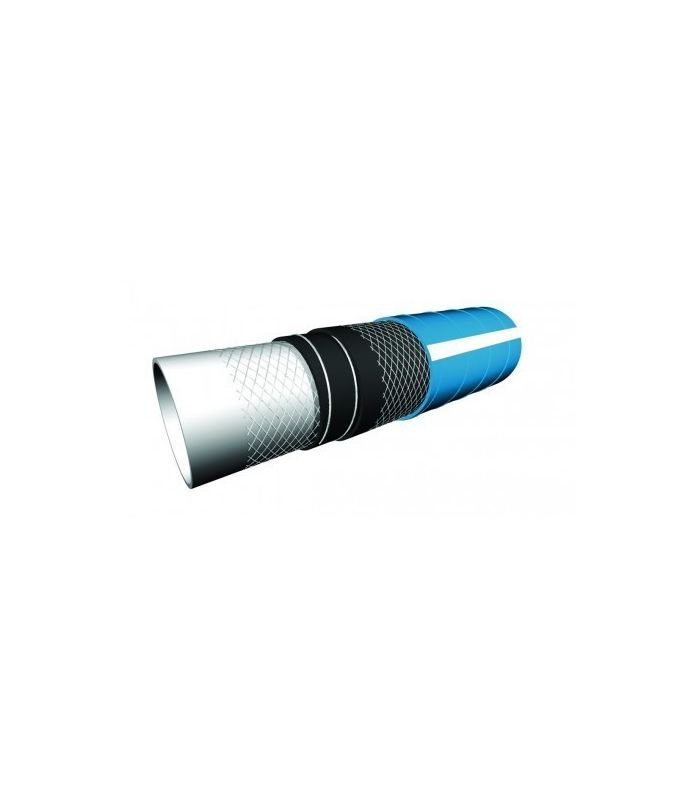

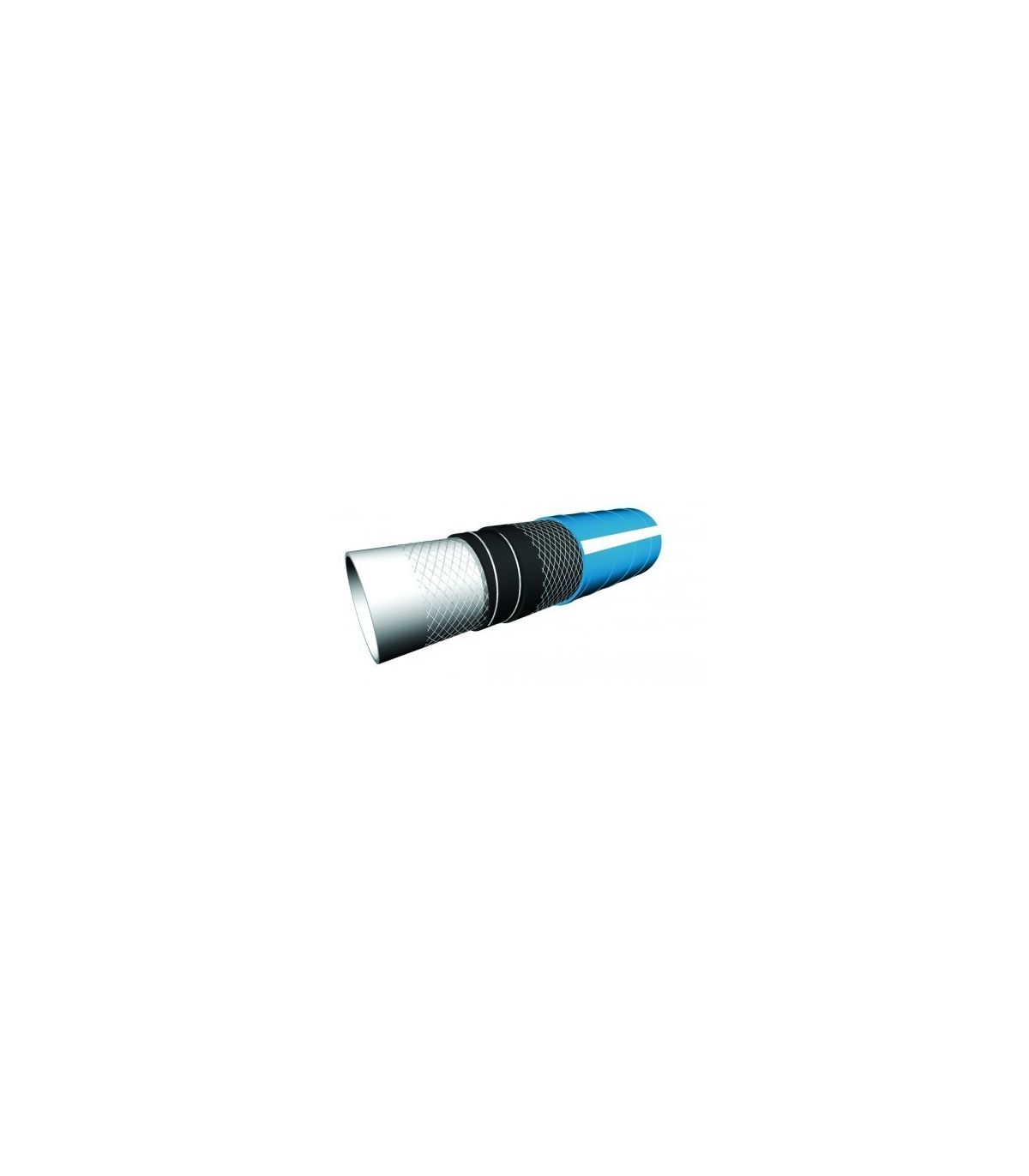

  • Inner tube: White, harmless NBR synthetic rubber.
  • Reinforcement: High-tenacity synthetic braid. Steel spiral.
  • Outer cover: Blue NBR synthetic rubber, resistant to abrasion and weathering. Surface with a fine fabric print.

The selection is by inner diameter.

Choose full rolls or linear meters, according to your needs.

€18.24 (tax included)
€15.07 (tax excl.)
DIAMETERS
  • Ø 19
  • Ø 25
  • Ø 32
  • Ø 38
  • Ø 40
  • Ø 45
  • Ø 50
  • Ø 63
  • Ø 75
  • Ø 80
  • Ø 90
  • Ø 100
DIAMETERS:
metros
metros
Reference:
207701
Description

Food grade suction hose 10 bar

A 10 bar food suction hose is a flexible pipe designed to suction and transport liquid, semi-liquid or light solid food products (water, drinks, dairy products, juices, flours, granules, etc.).

It is made with materials approved for food contact (such as food-grade PVC, PU, NBR rubber or EPDM), and usually incorporates a rigid reinforcement.

This hose guarantees hygiene, abrasion resistance, good stability under vacuum and safe handling in food and processing industries.

Main features

  • Materials certified for food use .
  • Reinforced with an internal spiral to prevent deformation.
  • Suitable for suction and return in food transport processes.
  • Smooth interior to facilitate flow and prevent accumulation.
  • Resistant to vacuum, bending, grease and detergents depending on the model.
  • Easy to clean and maintain.

Applications

  • Suction in the food industry.
  • Transfer of beverages, water, milk and processed liquids.
  • Suction of granulated or powdered products.
  • Tanker truck loading/unloading equipment.
  • Bottling processes, dairy products and food processing.
Code Inner diameter (mm) Outer diameter (mm) Thickness (mm) Weight kg/m Working pressure (bar) Roll length (m)
207701 19 30 5.50 0.740 10 40
207702 25 36 5.50 0.890 10 40
207703 32 44 6.00 1,260 10 40
207704 38 50 6.00 1,430 10 40
207705 40 52 6.00 1,550 10 40
207706 45 57 6.00 1,800 10 40
207707 50 64 6.50 2,140 10 40
207708 63 76 6.50 2,440 10 40
207709 75 90 7.00 3,410 10 40
207710 80 96 8.00 3,800 10 40
207711 90 106 8.00 4,200 10 40
207712 100 118 8.00 5,250 10 40

Product Details
207701

Specific References

upc
1
Comments
