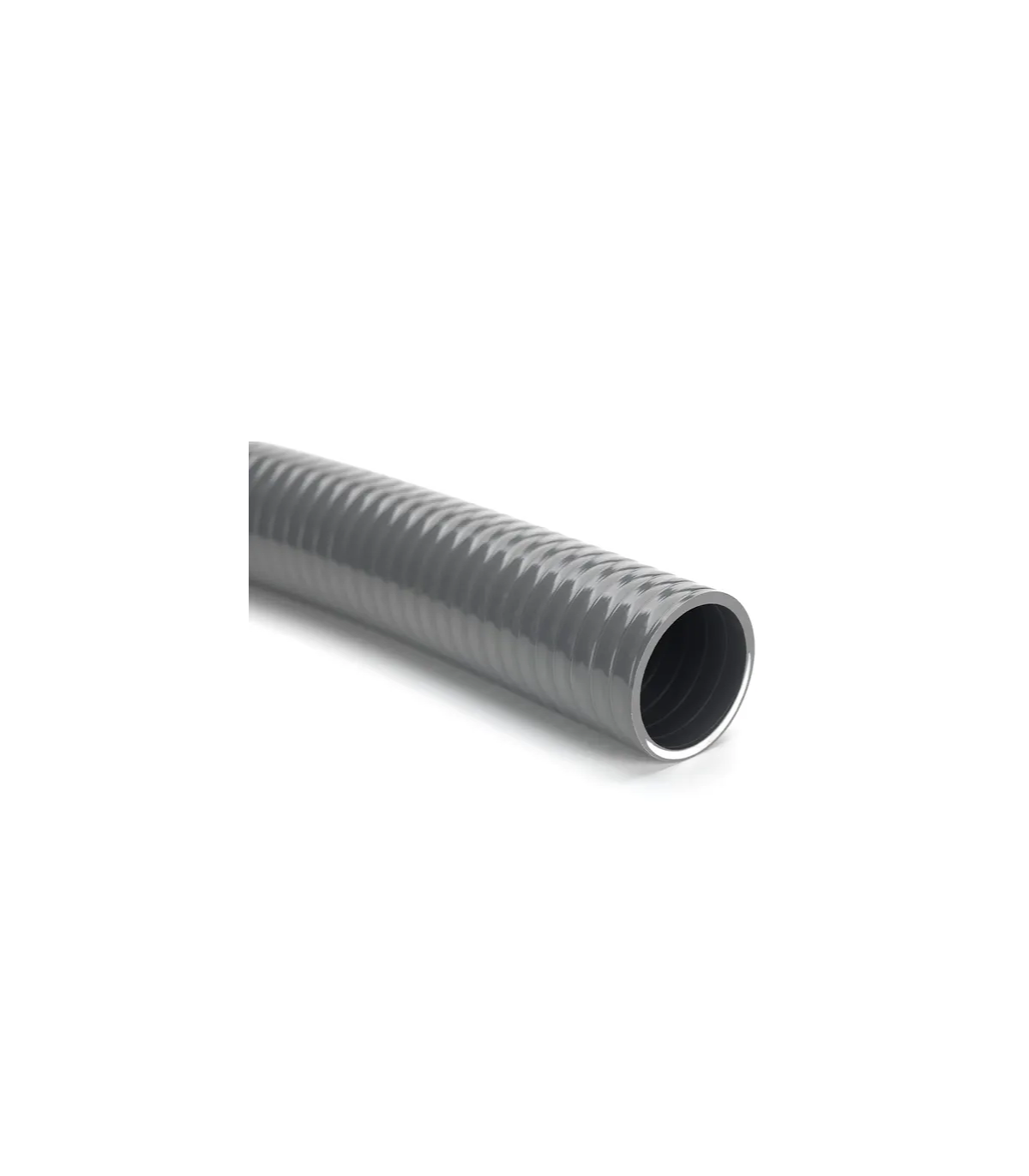

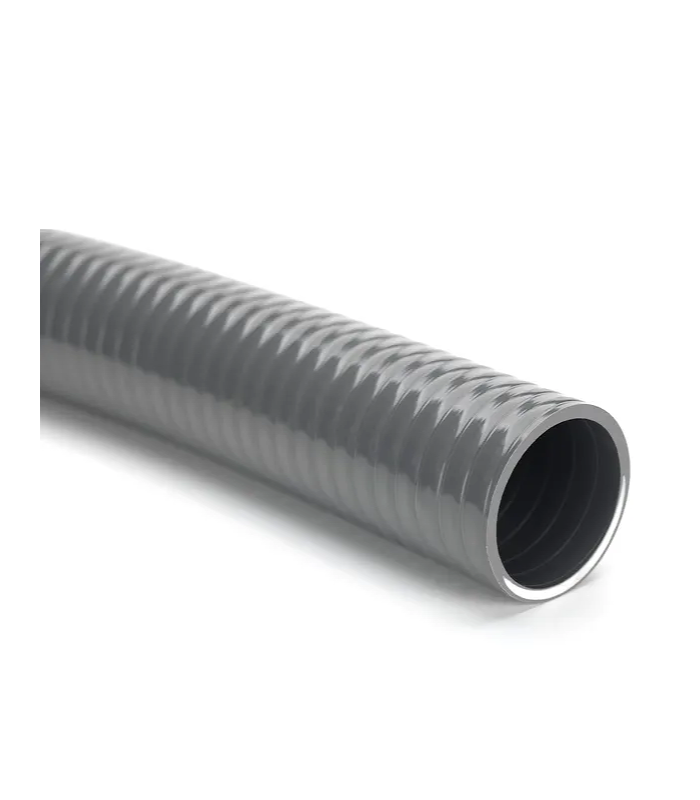

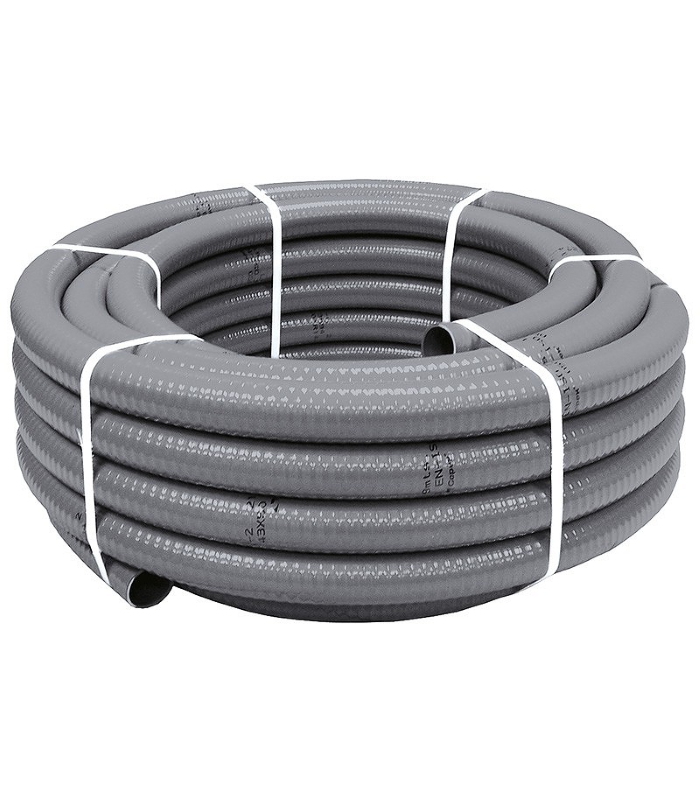

HYDROTUBE HOSE (50 m)
The Hidrotubo hose (50 mt) is a pipe specially designed for industrial and sanitary use, characterized by a smooth inner and outer surface, which gives it great flexibility and lightness.
Applications: For industrial, sanitary and special use for swimming pools.
Main features :

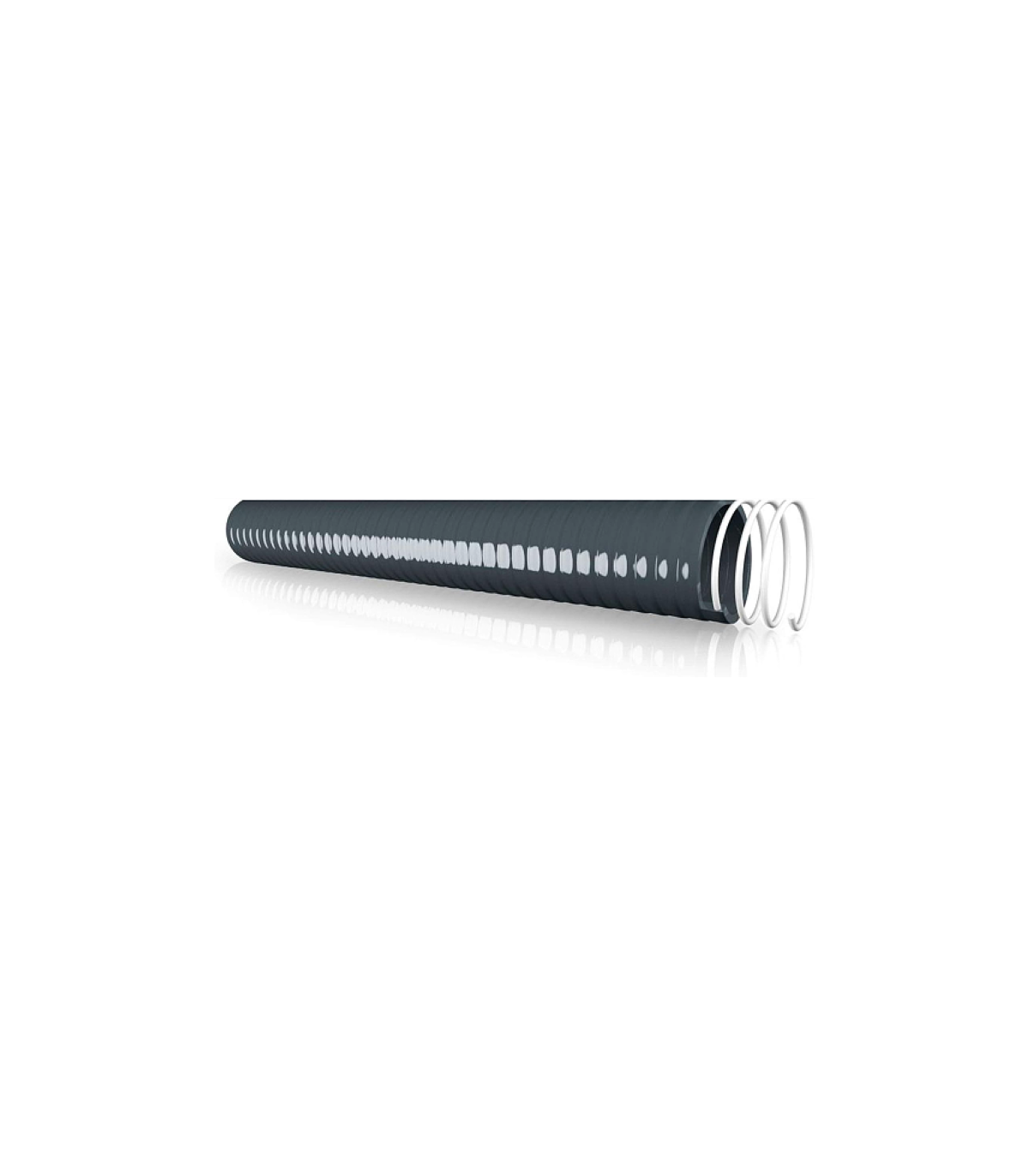

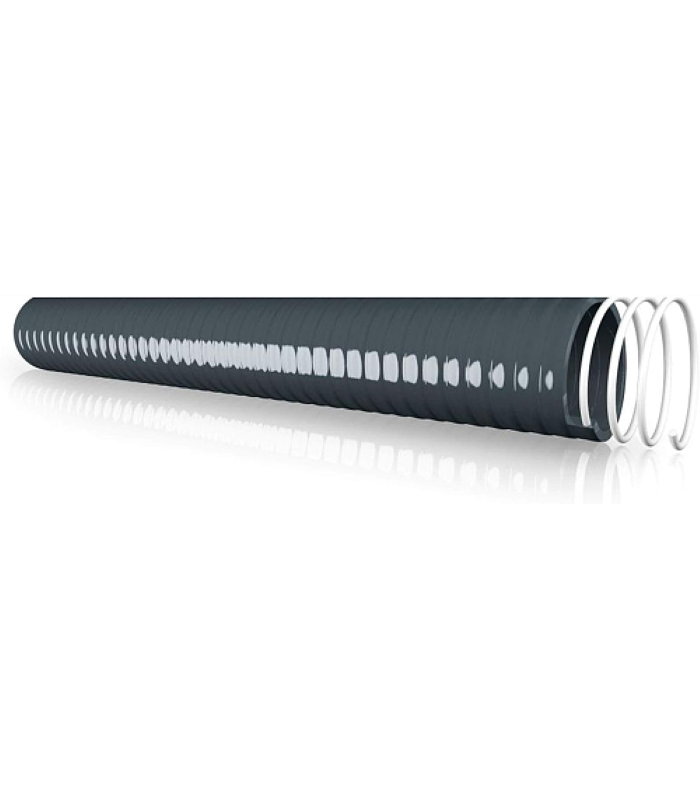

- Flexible PVC pipe reinforced with rigid anti-shock PVC spiral.
- Gray.

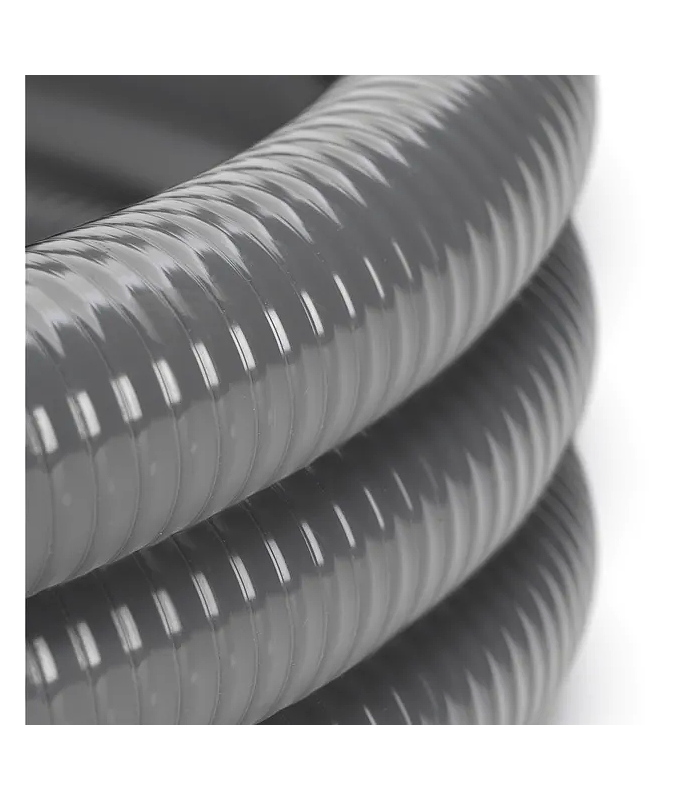

- Completely smooth interior and exterior surface.
- Airtight and resistant bonding at the joint at 30 bar pressure.
- High resistance to wastewater and chlorinated pool circuit water.
- It withstands temperatures between -10 °C / +60 °C.
- Manufactured according to UNE EN ISO 3994 standard.
- Pipe with product certificate MARCA N AENOR complying with the UNE EN ISO 3994 standard, category T2.

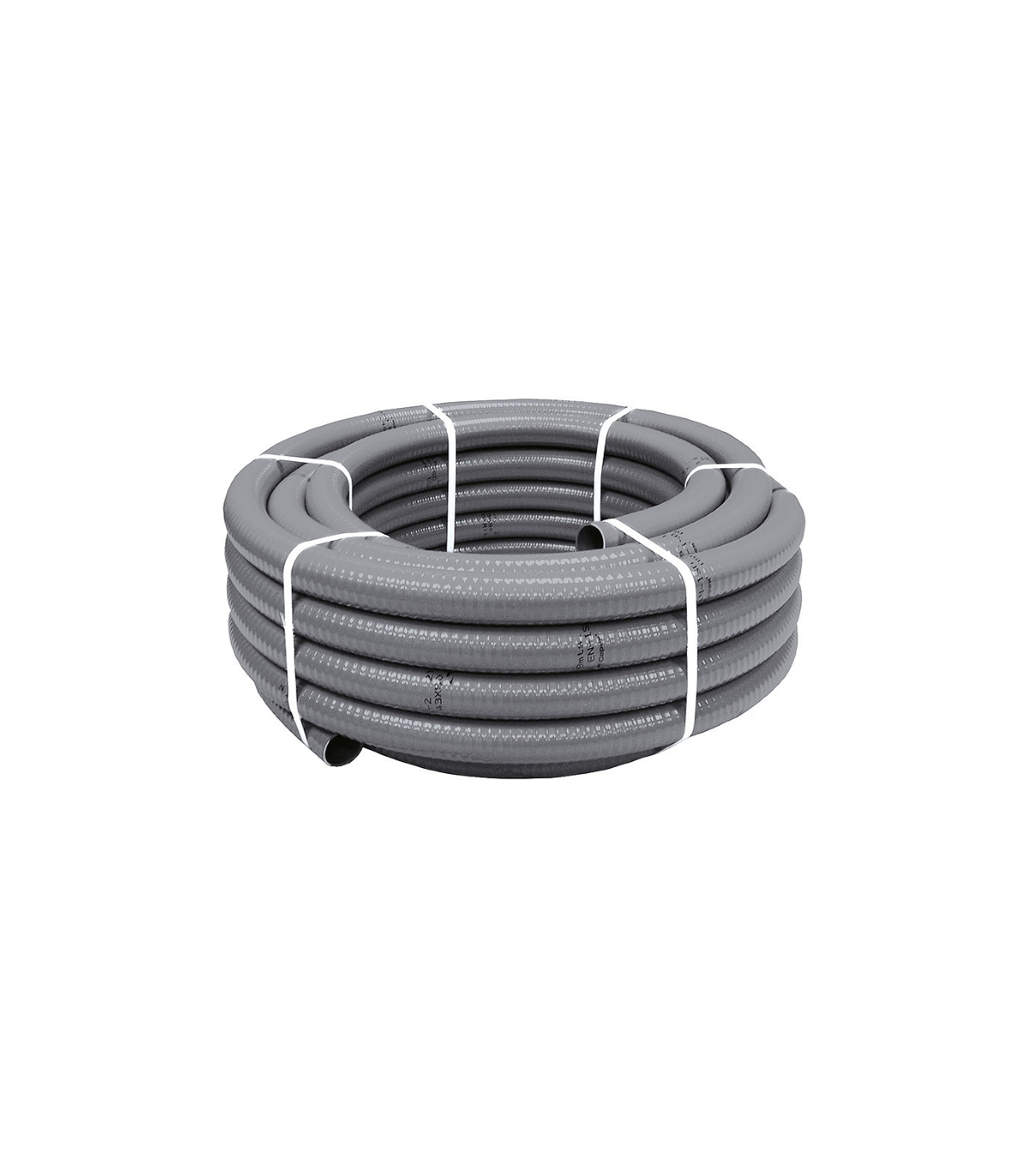

It is supplied only in 50m rolls. The price is for one 50m roll.
€0.91
(tax incl.)
€0.75
(tax excl.)
Reference:
100013
Hydrotube Hose (50 m)
The Hidrotubo hose is a pipe for industrial and sanitary use, especially suitable for swimming pools . It features a smooth inner and outer surface, which provides great flexibility and lightness , facilitating handling and installation. Its precise outer diameters allow for easy and secure assembly with adhesive-backed PVC fittings, PVC fittings with elastic gaskets, and polypropylene (PP) fittings, guaranteeing a watertight and highly resistant seal capable of withstanding pressures up to 30 bar at the joint. It offers excellent chemical resistance, according to the PVC resistance chart, as well as high durability against wastewater and chlorinated pool water, operating reliably in a temperature range of -10°C to 60°C . Furthermore, it is a certified pipe with the AENOR N Mark, complying with the UNE EN ISO 3994 standard, category T2.
Applications
- Evacuations
- Water and sanitary pipes
- Purification circuits for swimming pools, whirlpool baths, drains.
- Condensation and air conditioning installations.
Hydrotube hose technical data sheet:
| Code | Inner diameter (mm) | Outer diameter (mm) | Weight (g/m) | Operating pressure (bar) | Minimum burst pressure (bar) | Radius of curvature (mm) | Vacuum mH2O |
| 100013 | 13 | 16 | 100 | 7 | 22 | 39 | 9 |
| 100016 | 16 | 20 | 155 | 7 | 22 | 48 | 9 |
| 100020 | 20 | 25 | 240 | 7 | 22 | 60 | 9 |
| 100026 | 26 | 32 | 370 | 5 | 15 | 78 | 9 |
| 100027 | 27 | 32 | 334 | 5 | 15 | 81 | 9 |
| 100034 | 34 | 40 | 480 | 5 | 15 | 102 | 9 |
| 100035 | 35 | 40 | 400 | 5 | 15 | 105 | 9 |
| 100043 | 43 | 50 | 685 | 5 | 15 | 129 | 9 |
| 100055 | 55 | 63 | 1000 | 5 | 15 | 165 | 9 |
| 100065 | 65 | 75 | 1400 | 4 | 12 | 195 | 9 |
| 100080 | 80 | 90 | 1800 | 4 | 12 | 240 | 9 |
| 1000100 | 100 | 110 | 2200 | 3 | 9 | 300 | 9 |
