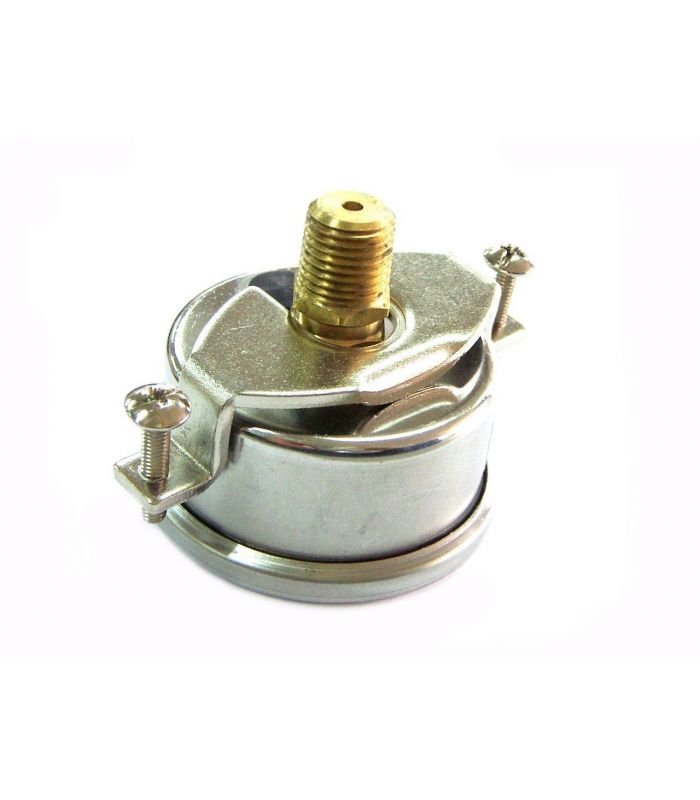

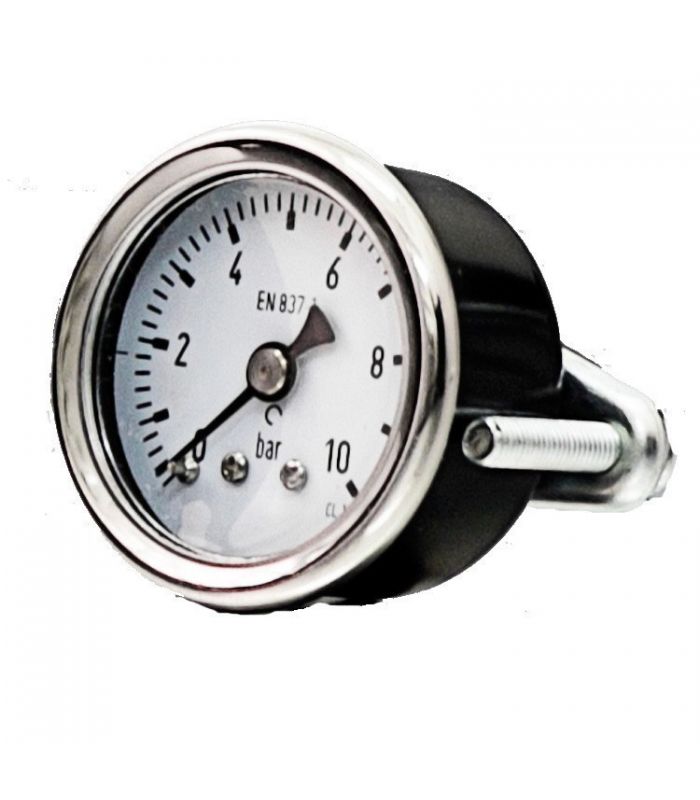

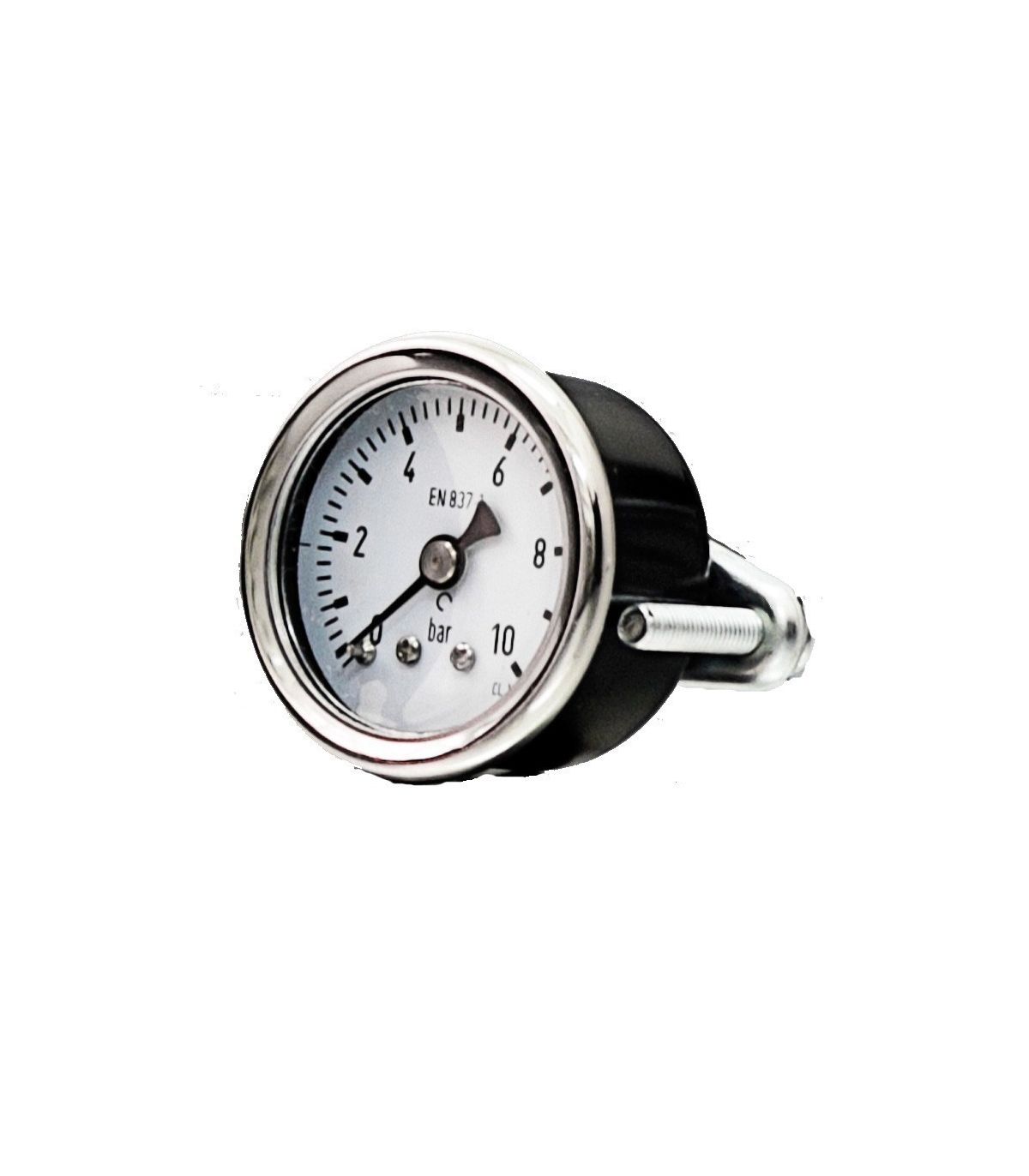

PRESSURE GAUGE Ø40 CENTRAL THREAD 1/8" WITH FLANGE

Pressure gauge Ø40 central thread with fixing flange

The Ø40 center thread pressure gauge with mounting flange is designed for pressure measurement in pneumatic and hydraulic systems. It features a Ø40 mm dial, a center threaded connection, and a mounting flange, allowing for secure mounting on panels or control boxes.

Applications: Control panels and displays, Pneumatic systems, Pressure regulators, Industrial machinery.

Main features:

  • Case and rim in painted carbon steel.
  • 1/8" tapered brass rear fitting.
  • Internal transmission made of copper alloy.
  • Needle in black.
  • Inner sphere in black lacquered aluminum.
  • Transparent polycarbonate screen.
  • Tolerance +/- 1.7%
  • Max. temperature 70ºC
  • IP43 protection rating
Read moreShow less
€11.81 (tax incl.)
€9.76 (tax excl.)
PRESSURE
  • 1.6 Bar
  • 2.5 Bar
  • 4 Bar
  • 6 Bar
  • 10 Bar
  • 12 Bar
Reference:
41030003
Description

Pressure gauge Ø40 central thread with fixing flange

A Ø40 mm diameter, 1/8" center threaded pressure gauge with flange is a compact analog device designed for measuring pressure in pneumatic and hydraulic systems. It features a Ø40 mm dial , a center threaded connection , and a mounting flange , allowing for secure mounting on panels or control boxes, ensuring stability and easy reading.

Its robust and functional design makes it ideal for industrial applications where precise visual pressure control is required in confined spaces.

Main features

  • Sphere diameter: Ø40 mm
  • Connection: Center thread
  • Mounting type: Panel mounting flange
  • Reading type: Analog
  • Industrial use
  • Compatible with air and non-corrosive fluids

Applications

  • Control panels and dashboards
  • Pneumatic systems
  • Pressure regulators
  • Industrial machinery

Technical specifications of a Ø40 pressure gauge with central thread and fixing flange:

MANOMETRO 40 ROSCA CENTRAL 18 CON BRIDA

Read moreShow less
Product Details
41030003
