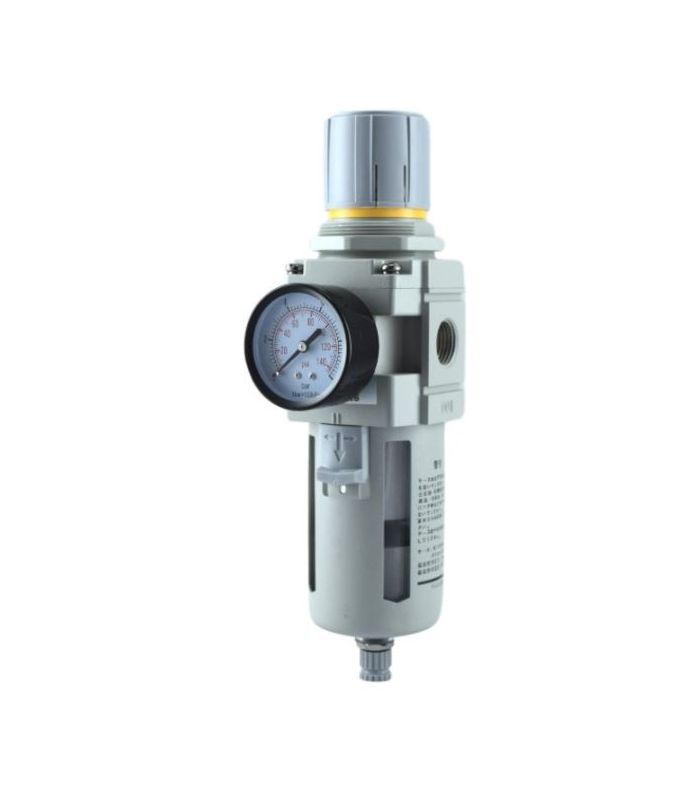

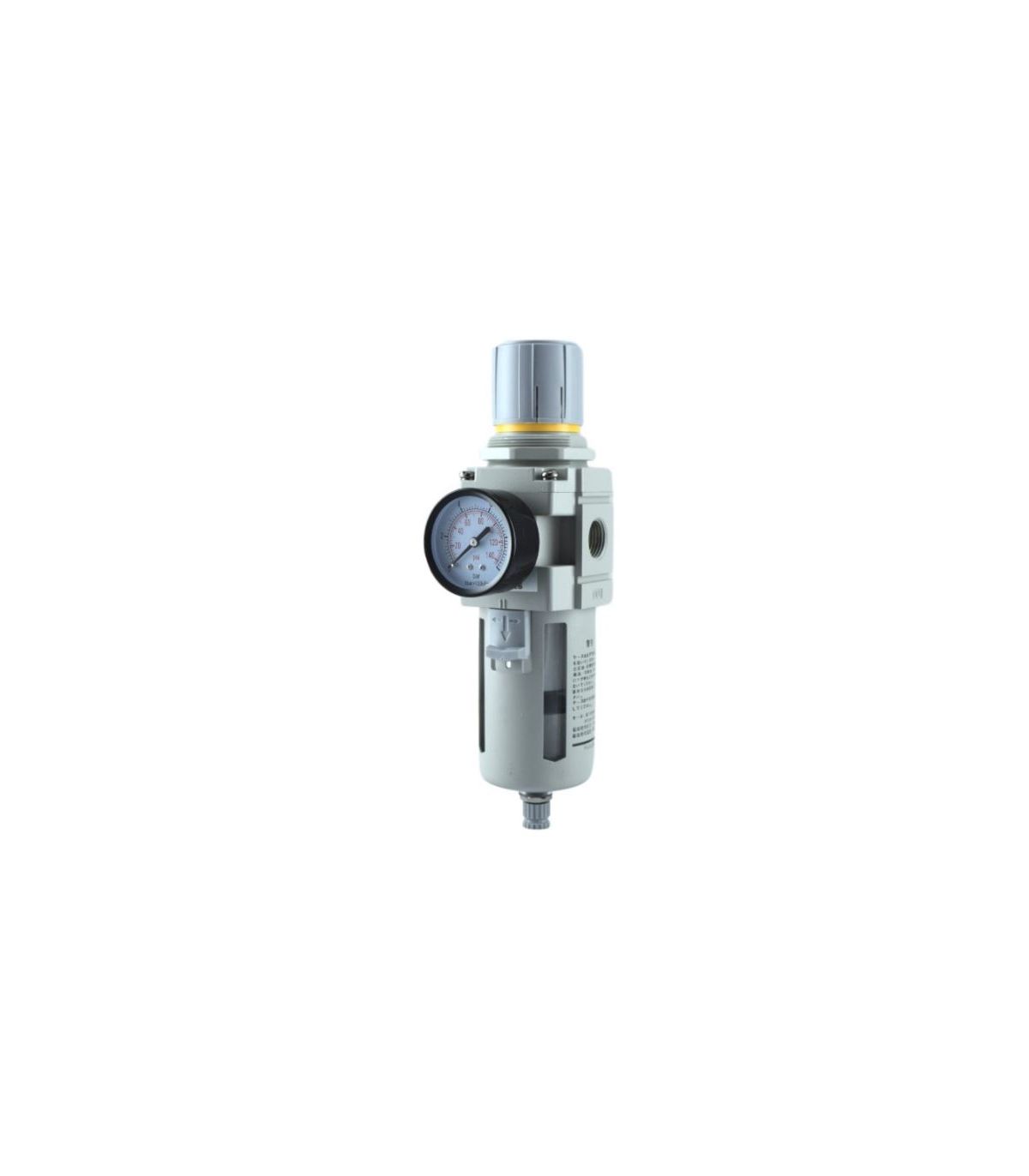

COMPRESSED AIR FILTER/REGULATOR

A compressed air filter/regulator is used to clean compressed air of impurities and control its outlet pressure. It is a compact device that combines these two functions in a single unit.

Applications: pneumatic tools, industrial automation, manufacturing processes, food and pharmaceutical industries.

Technical specifications:

• Special preformed membrane.
• Stability of the regulated pressure regardless of variations in the inlet.
• Built-in overpressure relief.
• Knob with regulation locking device.
• High level of condensate separation.
• Possibility of fixing to the wall, using the corresponding clamps.
• Pressure fields: Filtration grade: 5 microns and 20 microns (standard).
• Maximum inlet pressure: 16 bar
• Flow rate: 1200 Nl/min.
• Manual or semi-automatic condensate drainage device in standard version or with automatic discharge (PA).
• Reinforced polyamide cup with external protection, equipped with a quick connection and anti-expulsion mechanism.
• It comes with a pressure gauge and fixing bracket.
