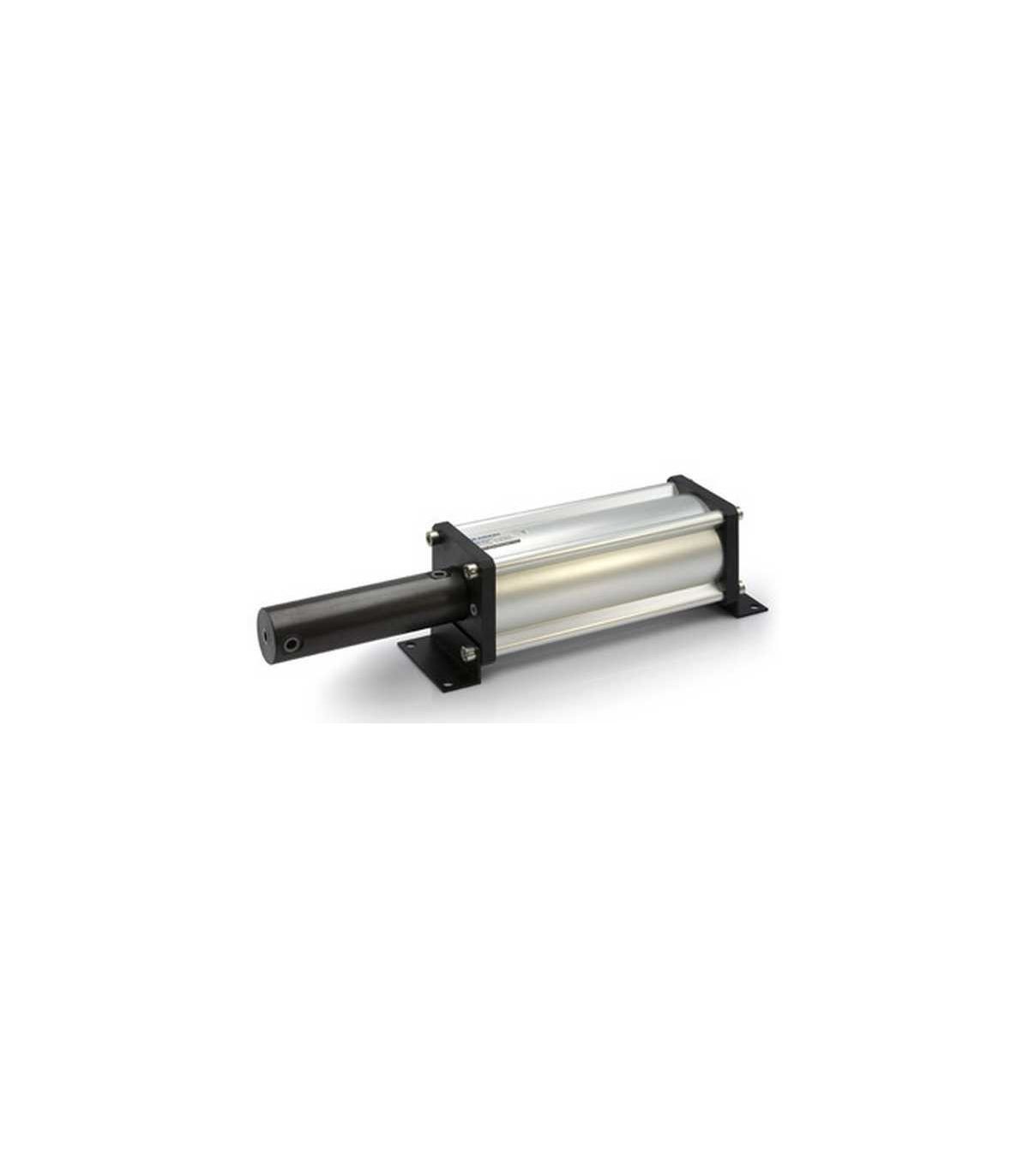

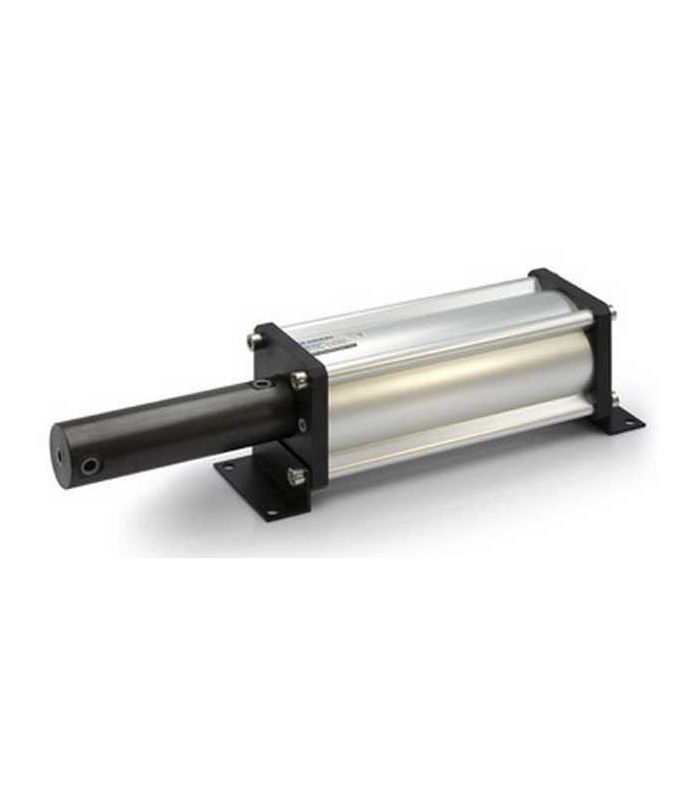

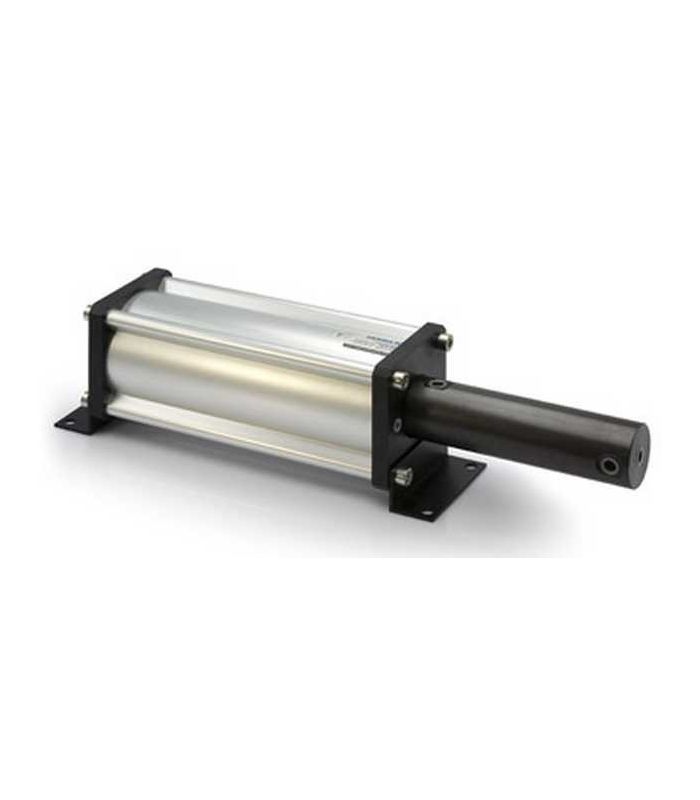

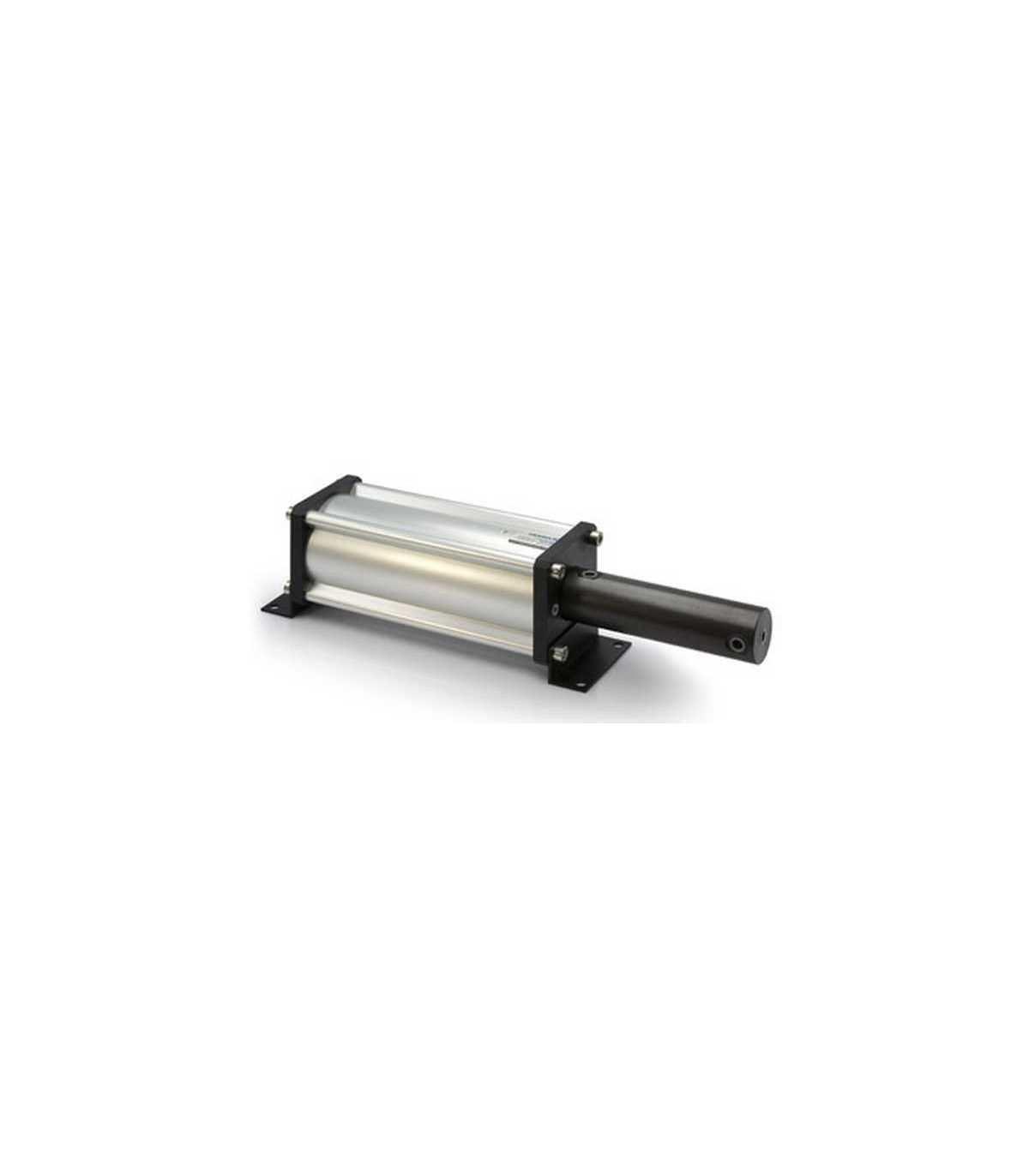

AIR-OIL PRESSURE MULTIPLIER MPO30
AIR-OIL PRESSURE MULTIPLIER MPO30
AIR-OIL PRESSURE MULTIPLIER MPO30
AIR-OIL PRESSURE MULTIPLIER MPO30

AIR-OIL PRESSURE MULTIPLIER MPO30

The MPO30 air-oil pressure multiplier is a device consisting of a cylinder whose rod acts directly on the oil in the chamber by increasing the high pressure value to 200 bar.

Common applications: Industrial machinery, Automotive, Construction, Aeronautics.

Technical sheet:

  • In the single-acting version we pressurize a volume of 25 cc with a compression ratio of 1:30
  • In the double-acting version we pressurize a volume of 50 cc with a compression ratio of 1:25
  • For different volumes or compression ratios, please contact us .
  • It is recommended at the entrance, air filtered to 40 microns.
  • Working temperature -10ºC / 70ºC
  • Max inlet pressure 7 bar.
  • Recommended oil: for oil hydraulic circuits.
€692.12 (tax included)
€572.00 (tax excl.)
SELECT TYPE
  • SINGLE EFFECT
  • DOUBLE EFFECT
Reference:
540300411
Description

MPO30 air-oil pressure multiplier

EXAMPLE OF MULTIPLIER ASSEMBLY:

  1. Air treatment group 3206
  2. Non-return valve 1501
  3. Distributor 3/2 3" Distributor 5/2 2146
  4. Quick exhaust valve 1505
  5. Pressure Multiplier 5403
  6. Oil tank
  7. Pressure switch 4302
  8. Single-acting cylinder
Product Details
540300411
