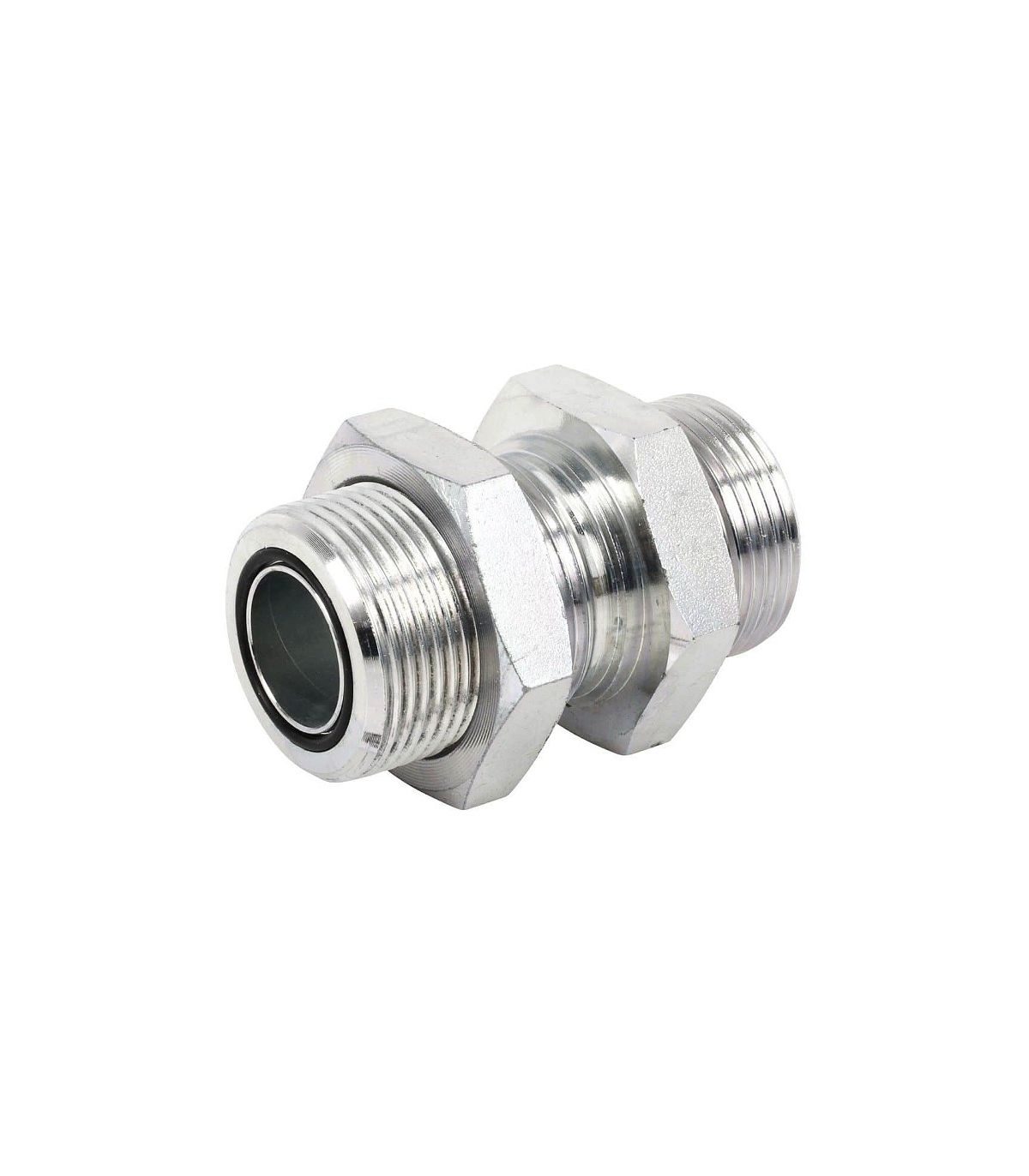

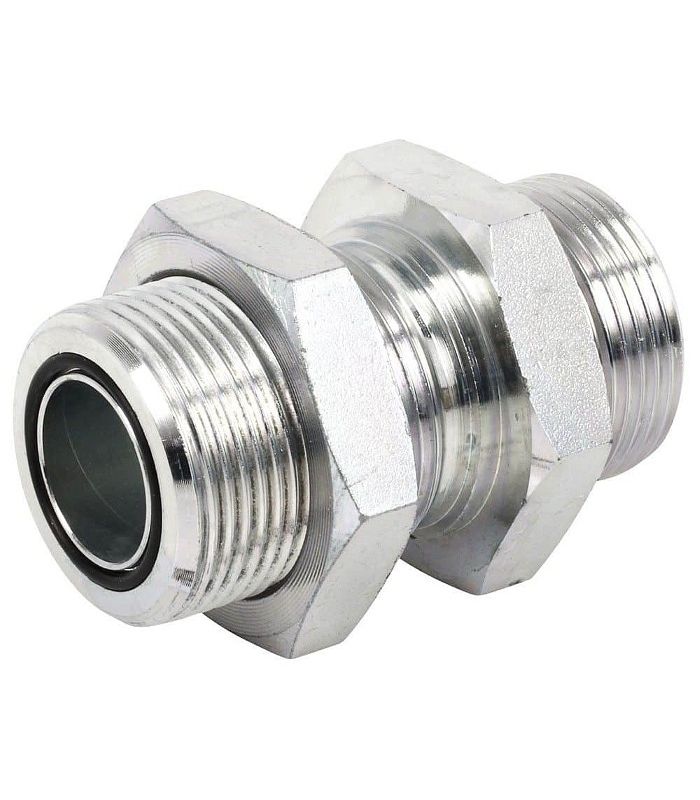

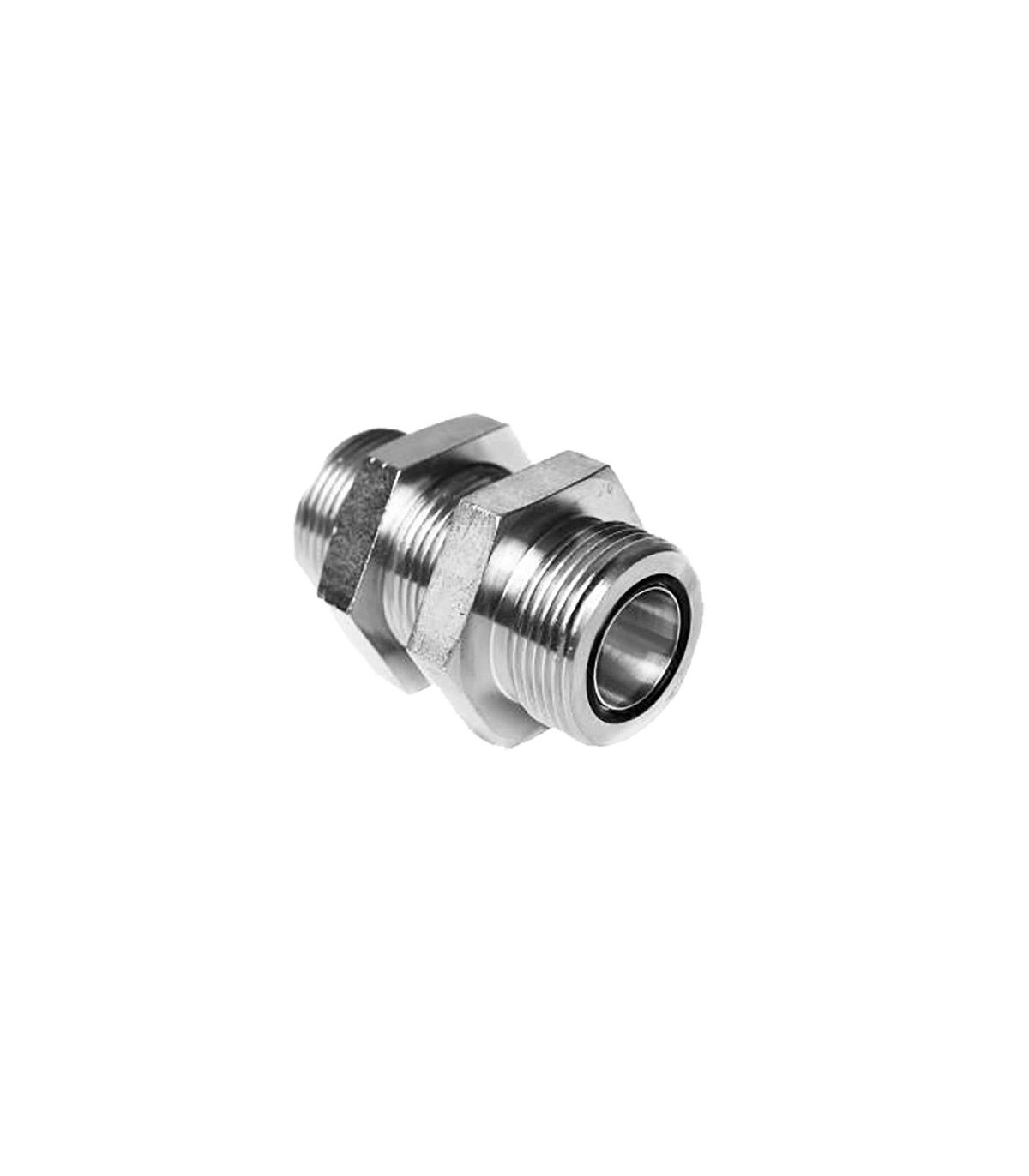

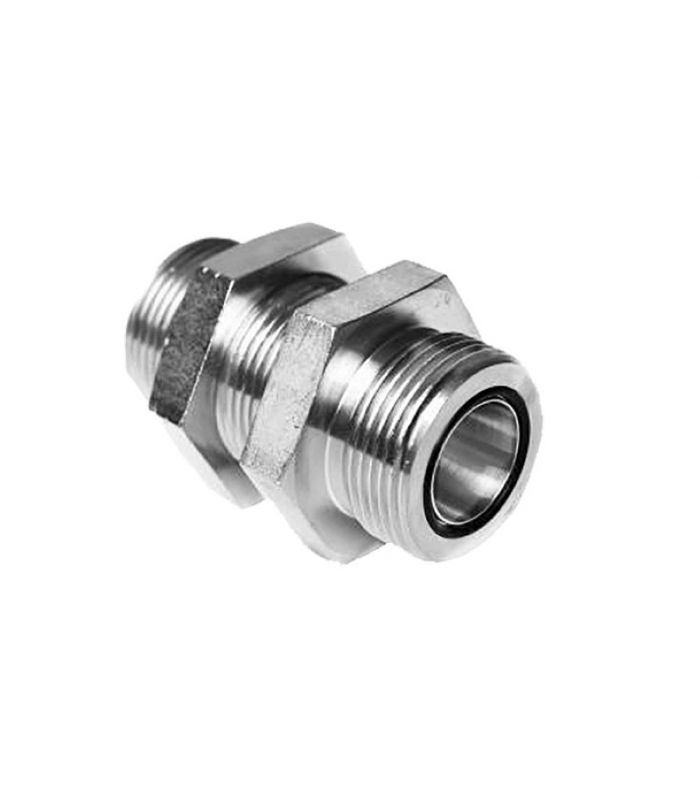

ORFS STRAIGHT WALL GATEWAYS

An ORFS straight bulkhead is a hydraulic fitting designed to pass a pipe connection through a panel or wall straight, using an ORFS connection to ensure a watertight seal.

Technical sheet:

ORFS fitting in carbon steel.
SAE J1453 standard
Temperature -20/120ºC.
No leaks.
Pressures:
- Up to 8,630 bar
- Up to 20,420 bar
- Up to 24,350 bar
- Up to 32,210 bar

€6.53 (tax included)

€5.40 (tax excl.)

THREAD TYPE

Reference:

46550050

Description
Comments

Description

ORFS straight grommet

PASAMUROS RECTO ORFS

Product Details

Reference 46550050

Comments
