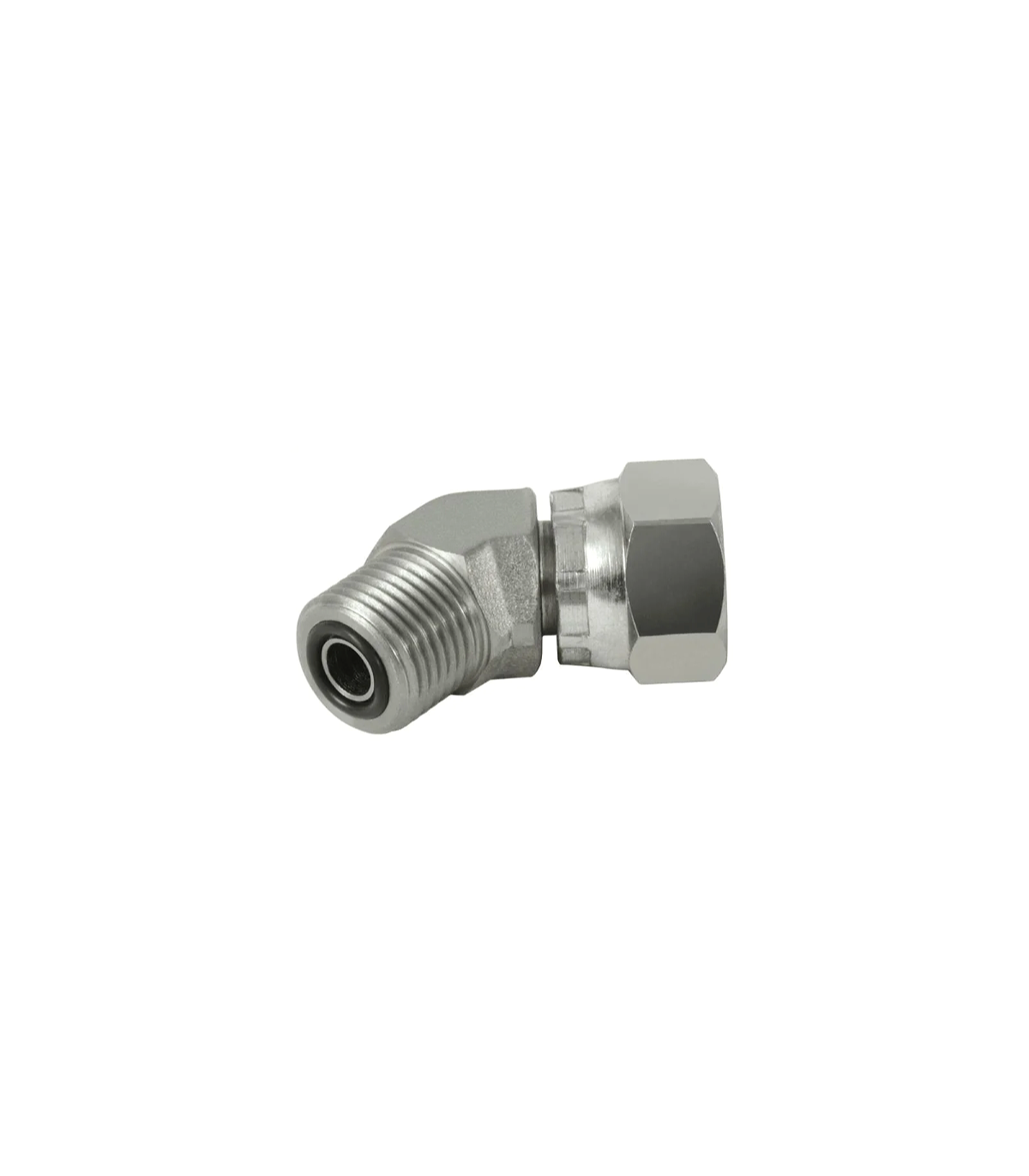

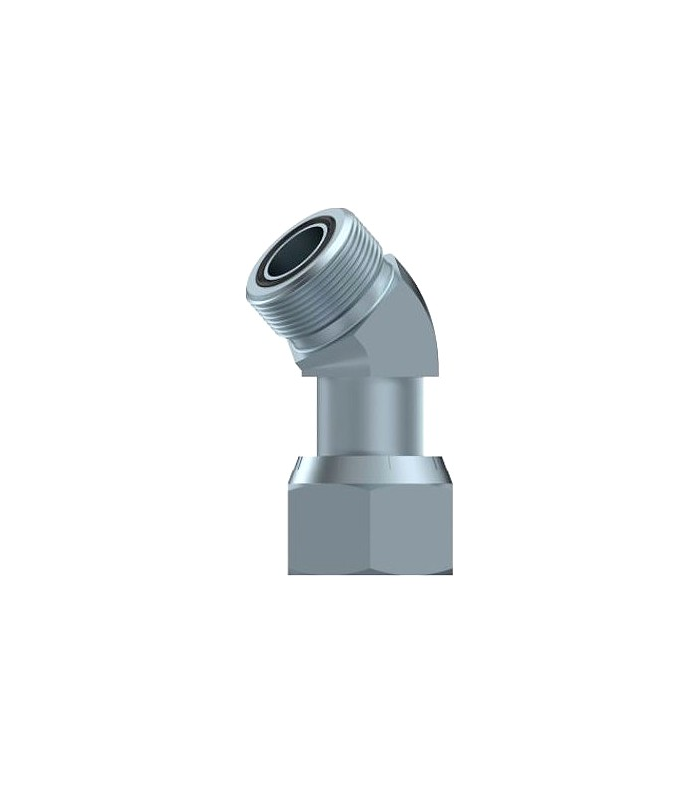

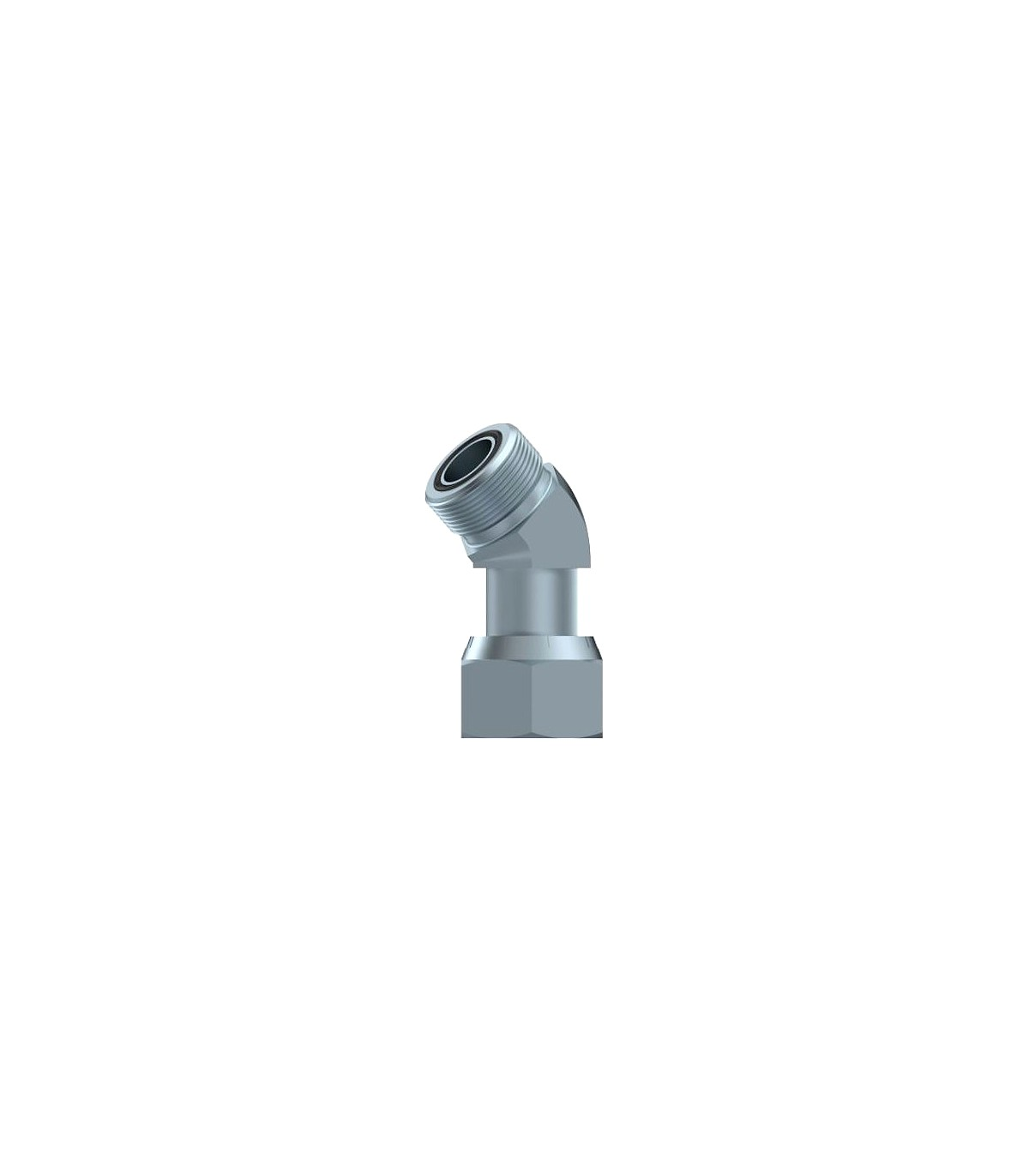

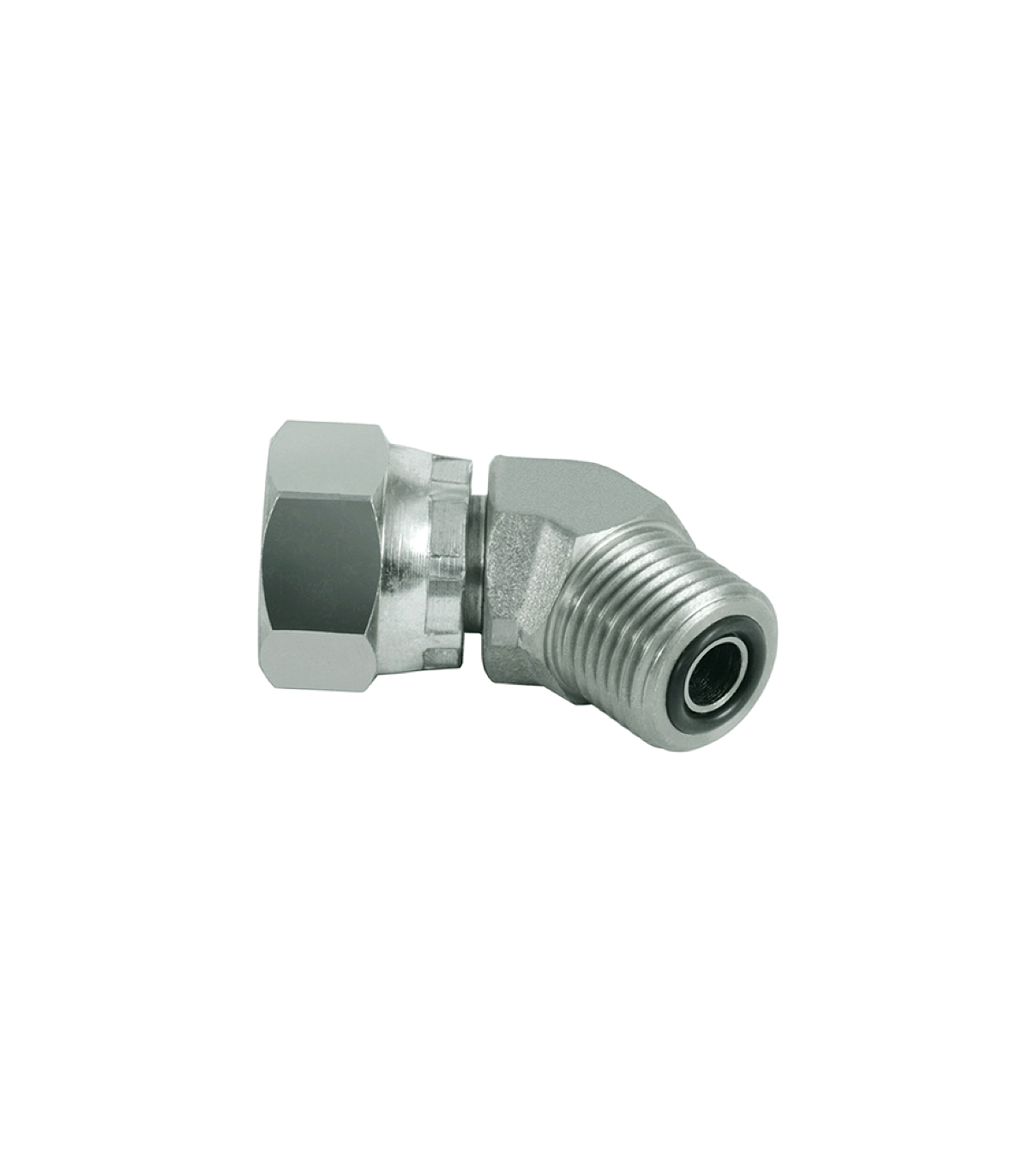

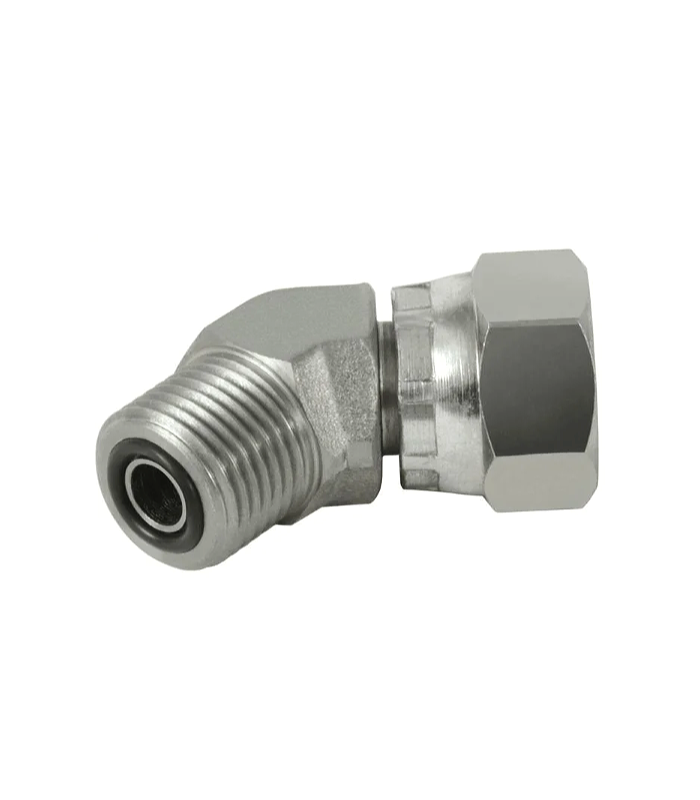

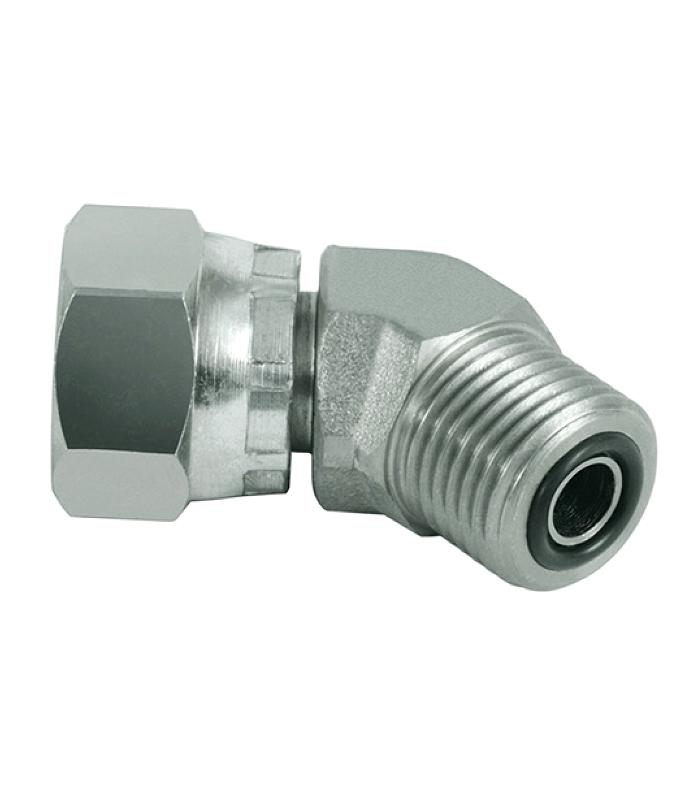

The ORFS 45° male-female swivel elbow is used to make 45° changes of direction in high-pressure circuits, providing a secure and highly leak-proof connection.
Application: Medium and high pressure hydraulic circuits.
Main features:
The ORFS 45° male-female swivel elbow offers a reliable solution for redirecting flow in hydraulic installations without compromising circuit integrity. Its swivel connection design facilitates installation in confined spaces and prevents strain on hoses, while the ORFS system provides high-performance sealing even in the most demanding applications.
The ORFS sealing system , using an O-ring on a flat face, guarantees a leak-free joint even in applications subjected to high pressures, vibrations and pulsations.
Technical specifications of an ORFS 45º male-female swivel elbow:
| Tube diameter (mm) | Tube diameter (in) | Thread (UN/UNF) | Tightening torque +10% -0% Nm |
| 6 | 1/4" | 9/16-18 | 23 |
| 8 | 5/16" | 11/16-16 | 33 |
| 10 | 3/8" | 11/16-16 | 33 |
| 12 | 1/2" | 13/16-16 | 50 |
| 14 | 1-14 | 80 | |
| 15 | 1-14 | 80 | |
| 16 | 5/8" | 1-14 | 80 |
| 18 | 1 3/16-12 | 115 | |
| 20 | 3/4" | 1 3/16-12 | 115 |
| 22 | 1 7/16-12 | 150 | |
| 25 | 1" | 1 7/16-12 | 150 |
| 28 | 1 11/16-12 | 190 | |
| 30 | 1 11/16-12 | 190 | |
| 32 | 1 1/4" | 1 11/16-12 | 190 |
| 35 | 2-12 | 245 | |
| 38 | 1 1/2" | 2-12 | 245 |
