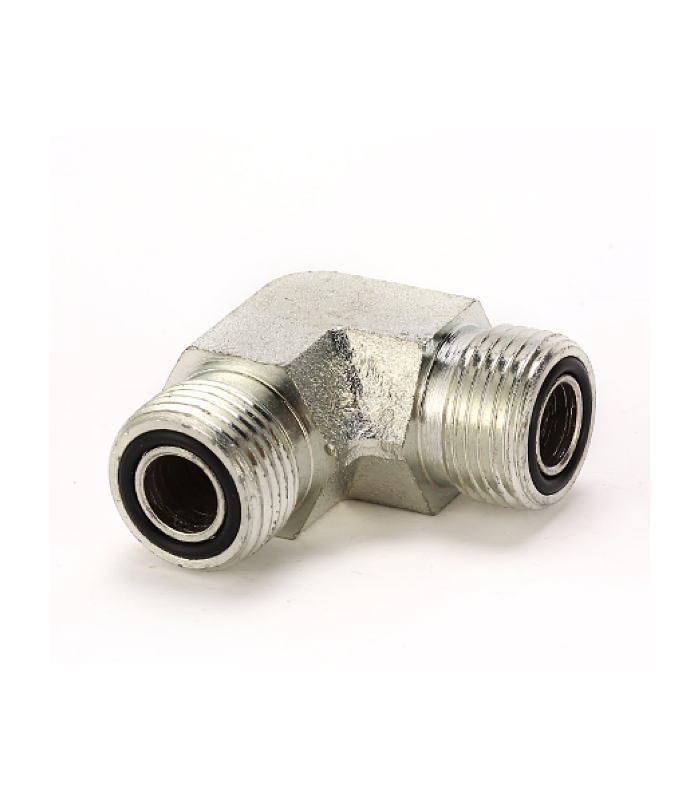

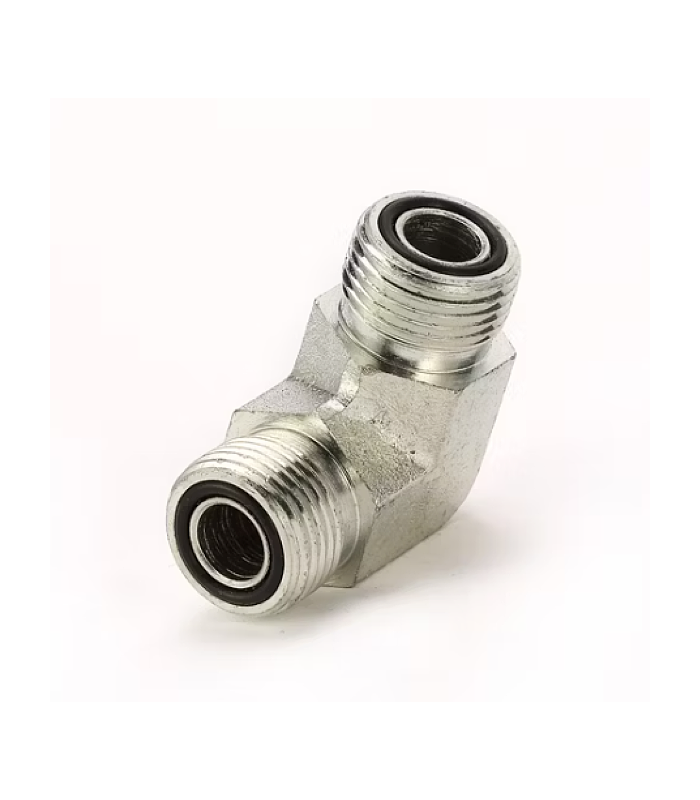

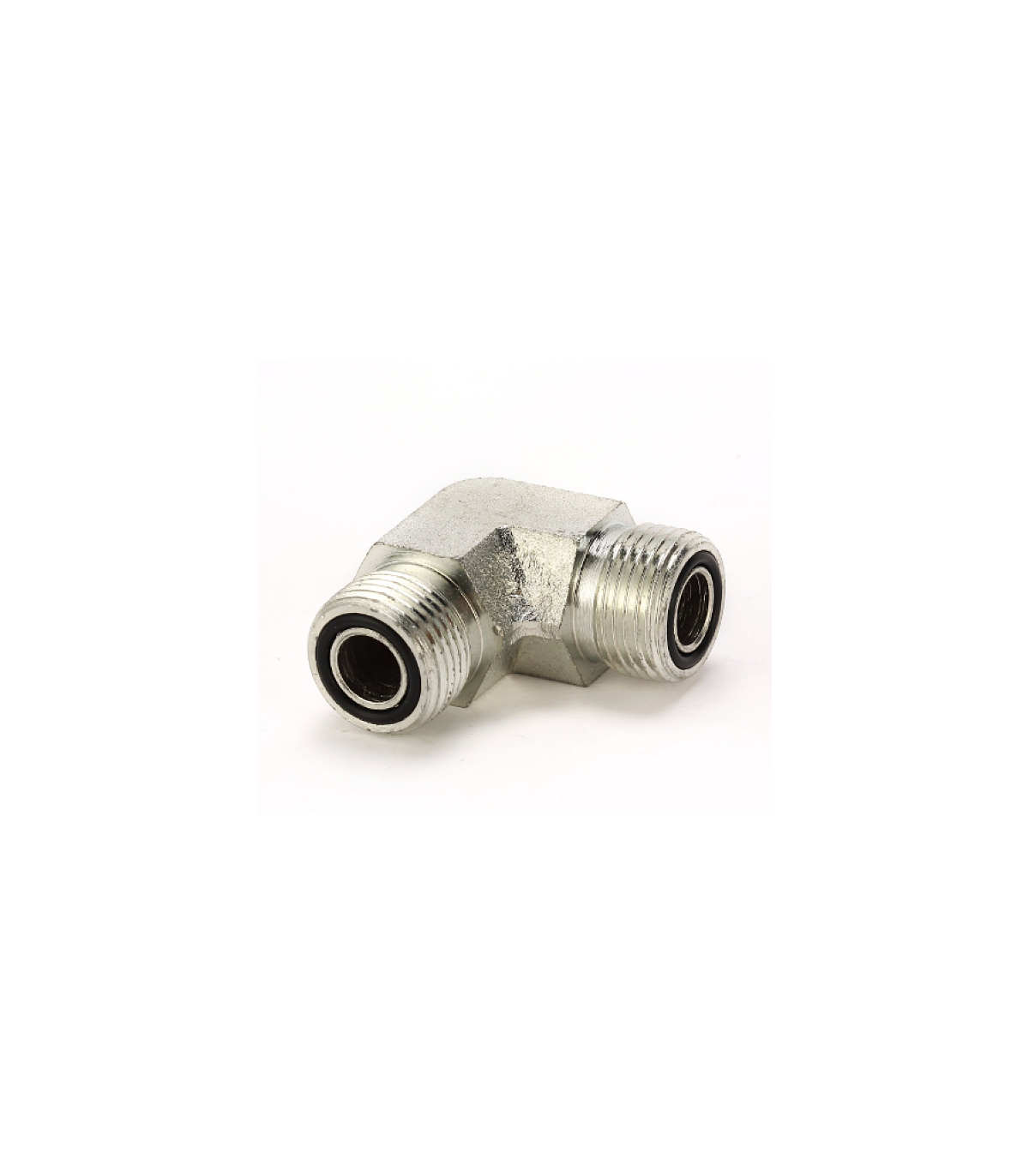

90º MALE ORFS ELBOW
90º MALE ORFS ELBOW
90º MALE ORFS ELBOW
90º MALE ORFS ELBOW

90º MALE ORFS ELBOW

An ORFS male 90º elbow is a type of hydraulic connection that seals by compressing an O-ring located on the flat face of one connector against the flat face of the other.

Technical sheet:

  • ORFS fitting in carbon steel.
  • SAE J1453 standard
  • Temperature -20 / 120ºC.
  • No leaks.
  • Pressures:

- Up to 8,630 bar

- Up to 20,420 bar

- Up to 24,350 bar

- Up to 32,210 bar

See other configurations.

€5.78 (tax included)
€4.78 (tax excl.)
THREAD TYPE
Reference:
46580050
Description

90º male ORFS elbow

CODO 90 MACHO ORFS

Product Details
46580050
Comments
