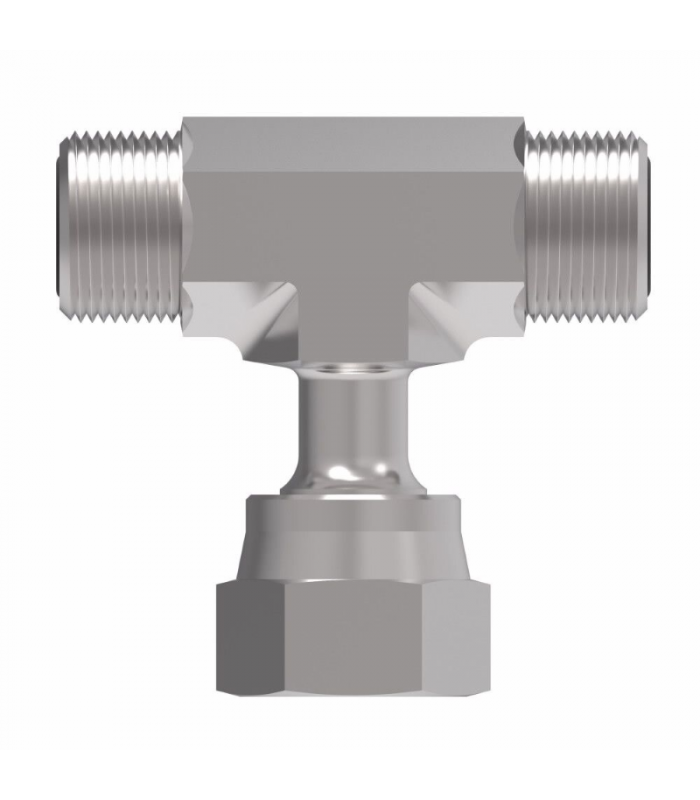

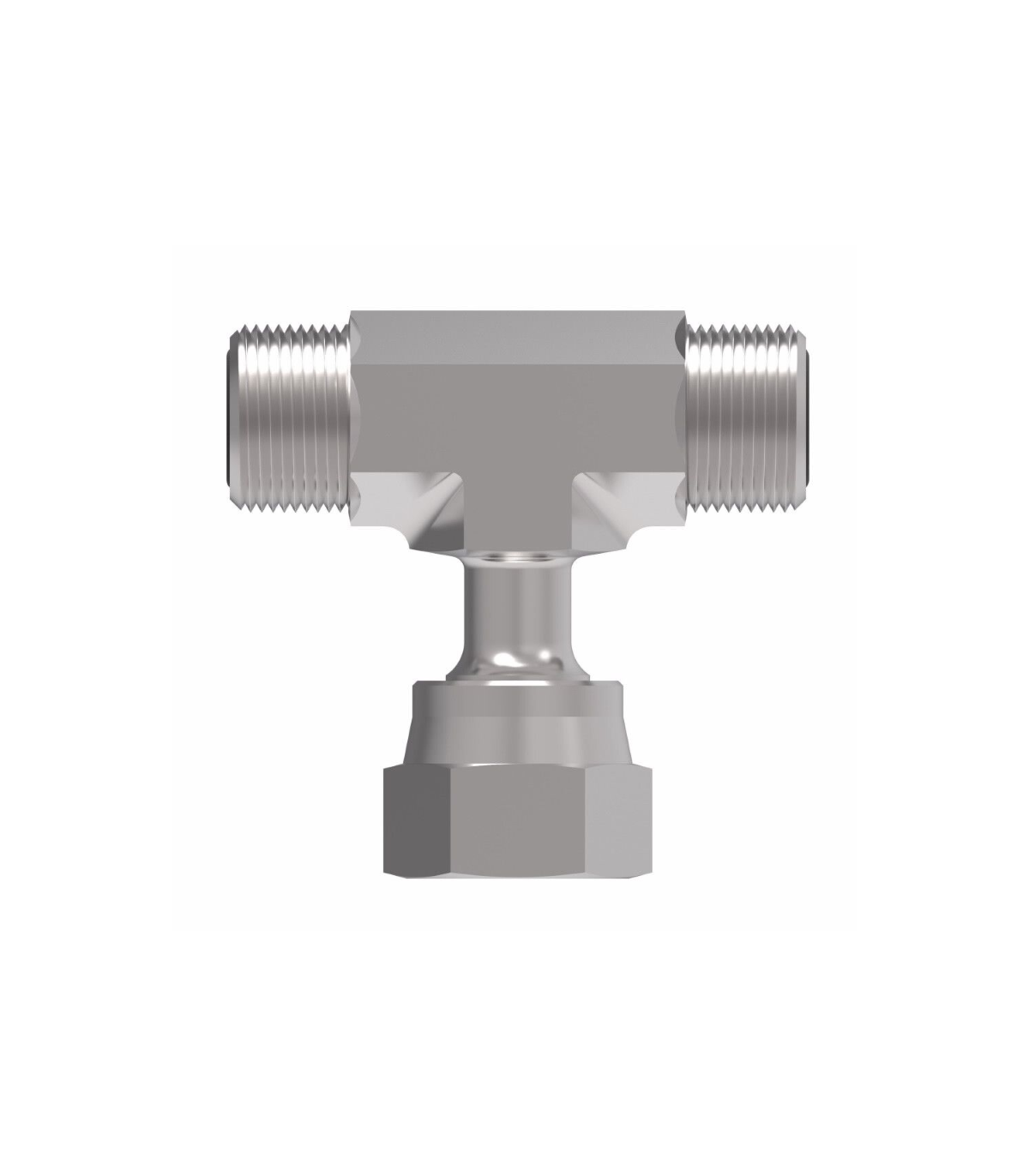

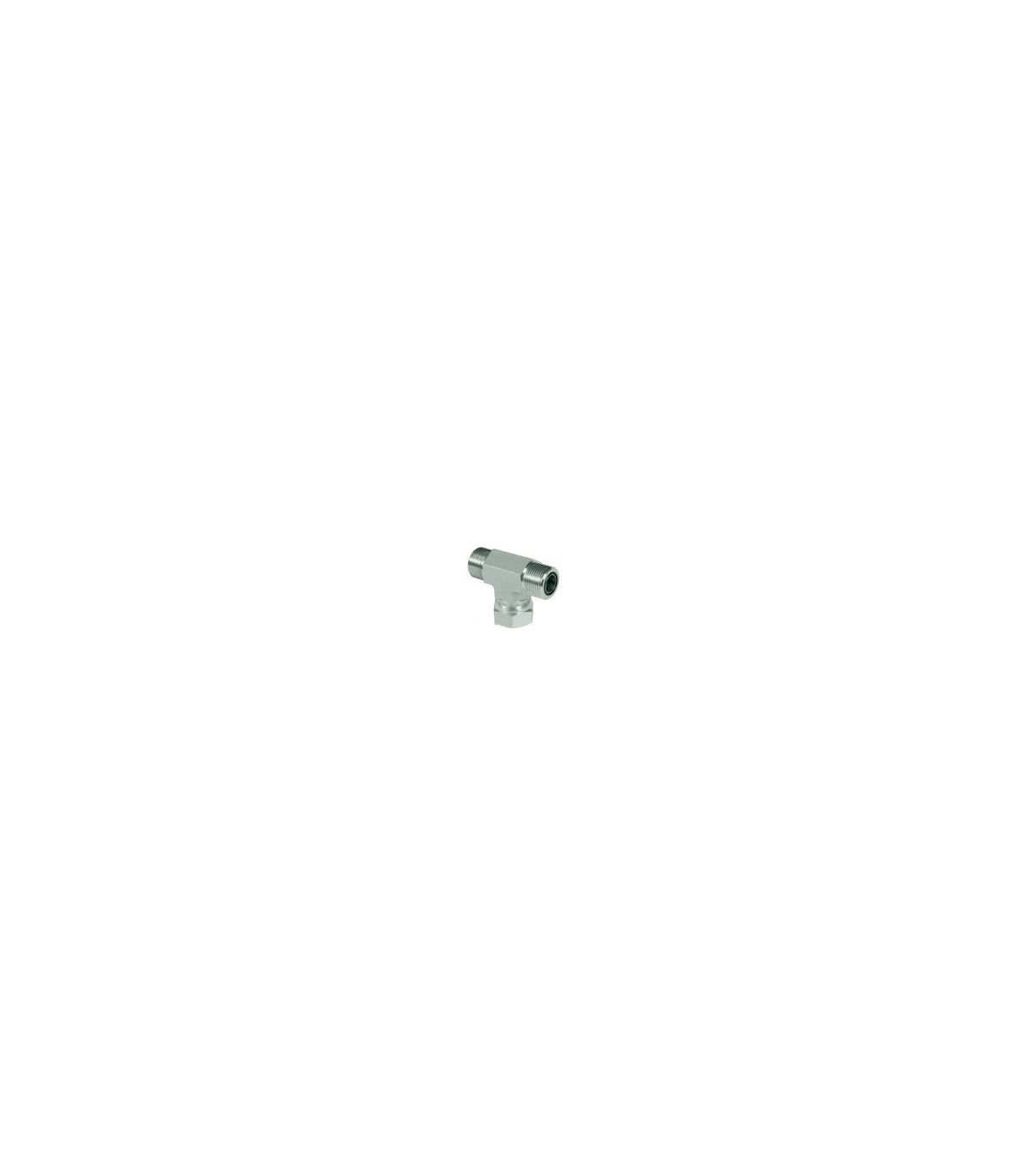

ORFS CENTRAL ROTATING MALE FEMALE
ORFS CENTRAL ROTATING MALE FEMALE
ORFS CENTRAL ROTATING MALE FEMALE
ORFS CENTRAL ROTATING MALE FEMALE

ORFS CENTRAL ROTATING MALE FEMALE

The ORFS central swivel male-female tee is a hydraulic fitting designed to make 90° branches in high-pressure circuits with ORFS connections.

Application: High-pressure hydraulic circuits.

Main features:

  • ORFS fitting in carbon steel.
  • SAE Standard J1453
  • Temperature -20 / 120ºC.
  • No leaks.
  • See other settings.
  • Pressures:
    • Up to 8,630 bar
    • Up to 20,420 bar
    • Up to 24,350 bar
    • Up to 32,210 bar
€12.46 (tax included)
€10.30 (tax excl.)
THREAD TYPE
Reference:
46630050
Description

ORFS central rotating male female tee

The ORFS central swivel male-female tee is a hydraulic fitting designed to create 90° branches in high-pressure circuits with ORFS connections. Its configuration incorporates two ORFS male connections and a central swivel female connection , facilitating installation and ensuring correct positioning of the fitting without transmitting torsional stress to the rest of the circuit.

The ORFS sealing system, using an O-ring housed on the fitting face, guarantees superior leak-proof performance, even in applications subjected to high pressure, vibration, and pulsation. Made of carbon steel , it offers high mechanical strength and a long service life.

Applications

  • Industrial hydraulic systems.
  • Agricultural machinery.
  • Public works teams.
  • Construction machinery.
  • Mobile hydraulic systems.
  • Lifting equipment.
  • Mining industry.
  • High-pressure hydraulic circuits.

Technical specifications of an ORFS central rotating male-female tee:

Product Details
46630050
