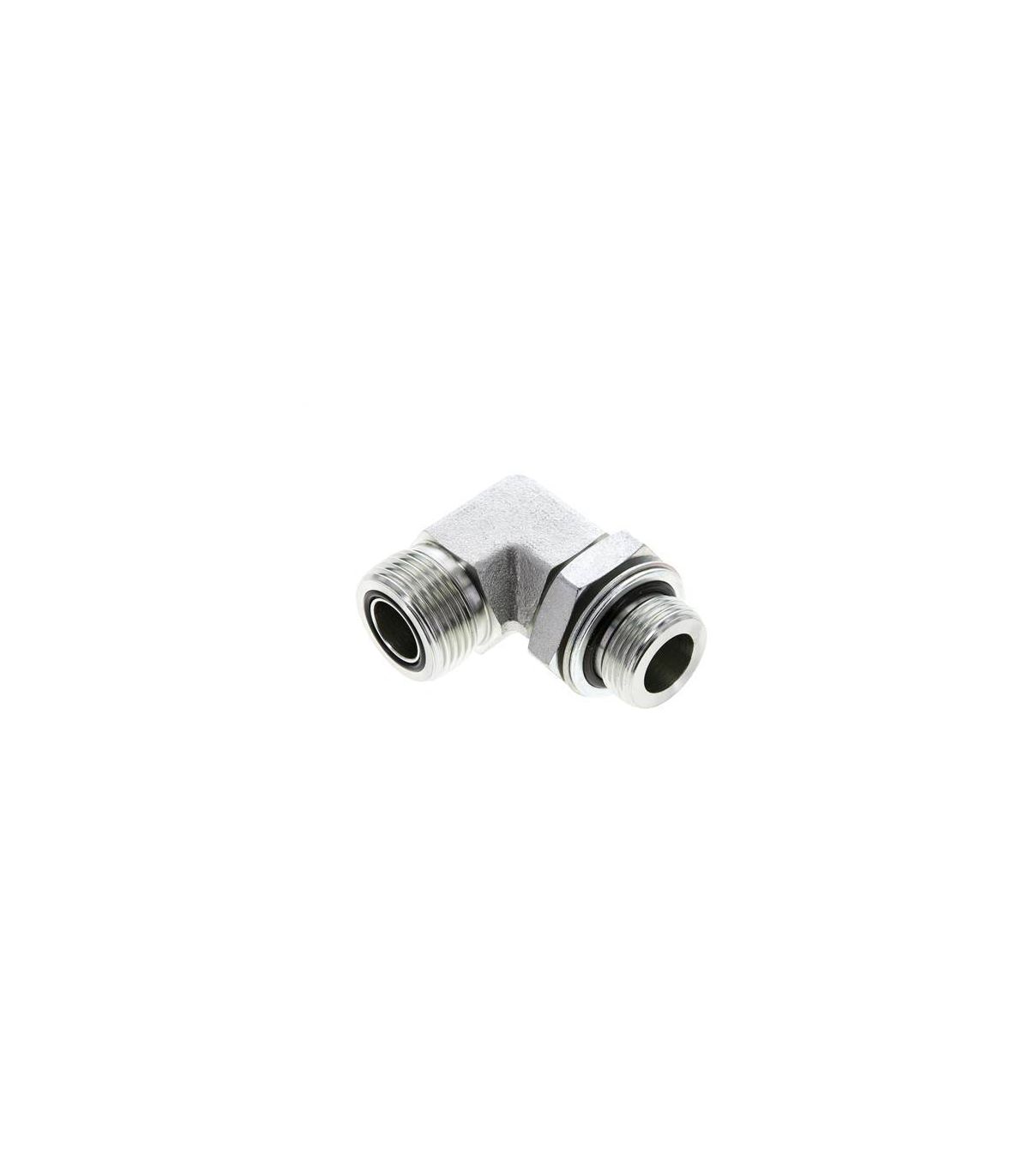

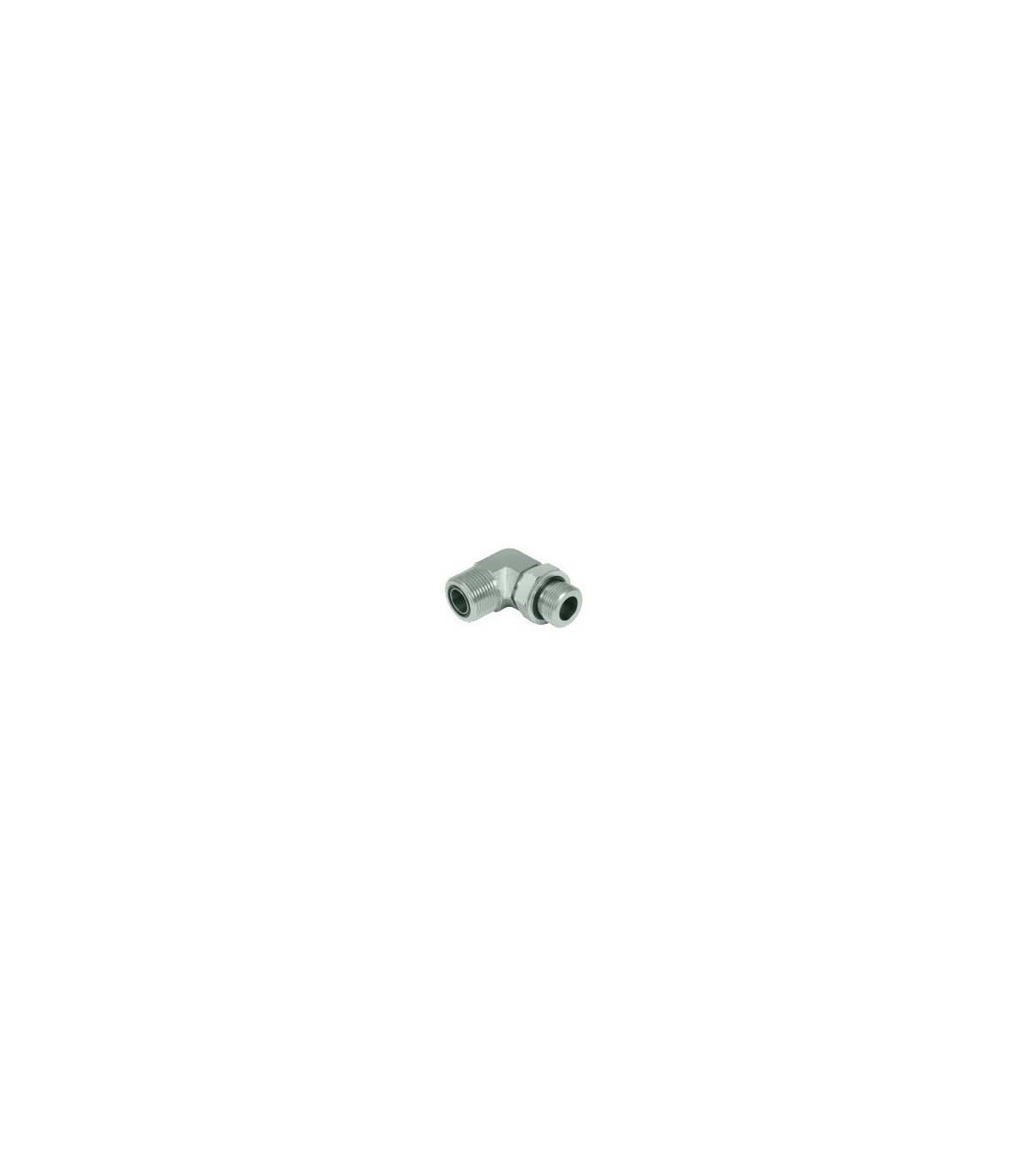

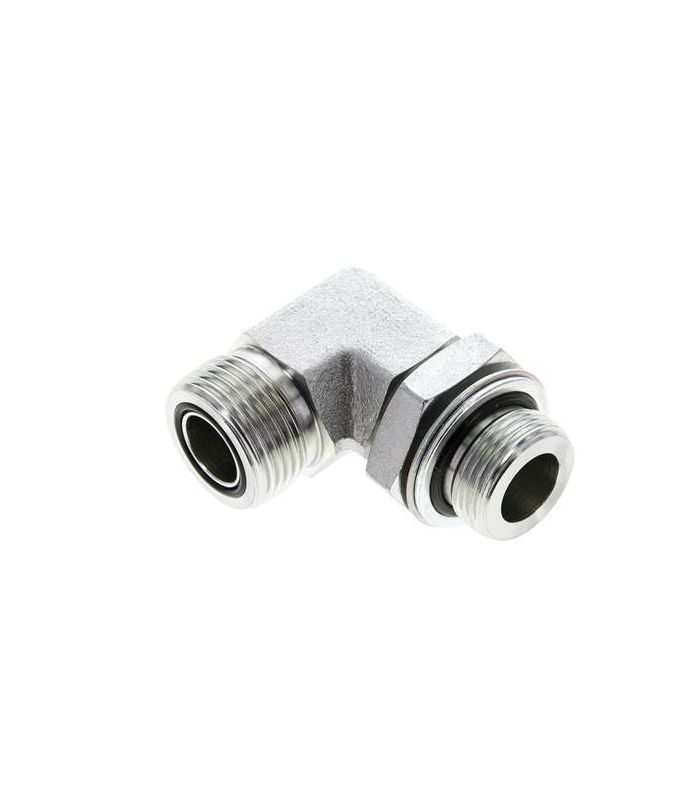

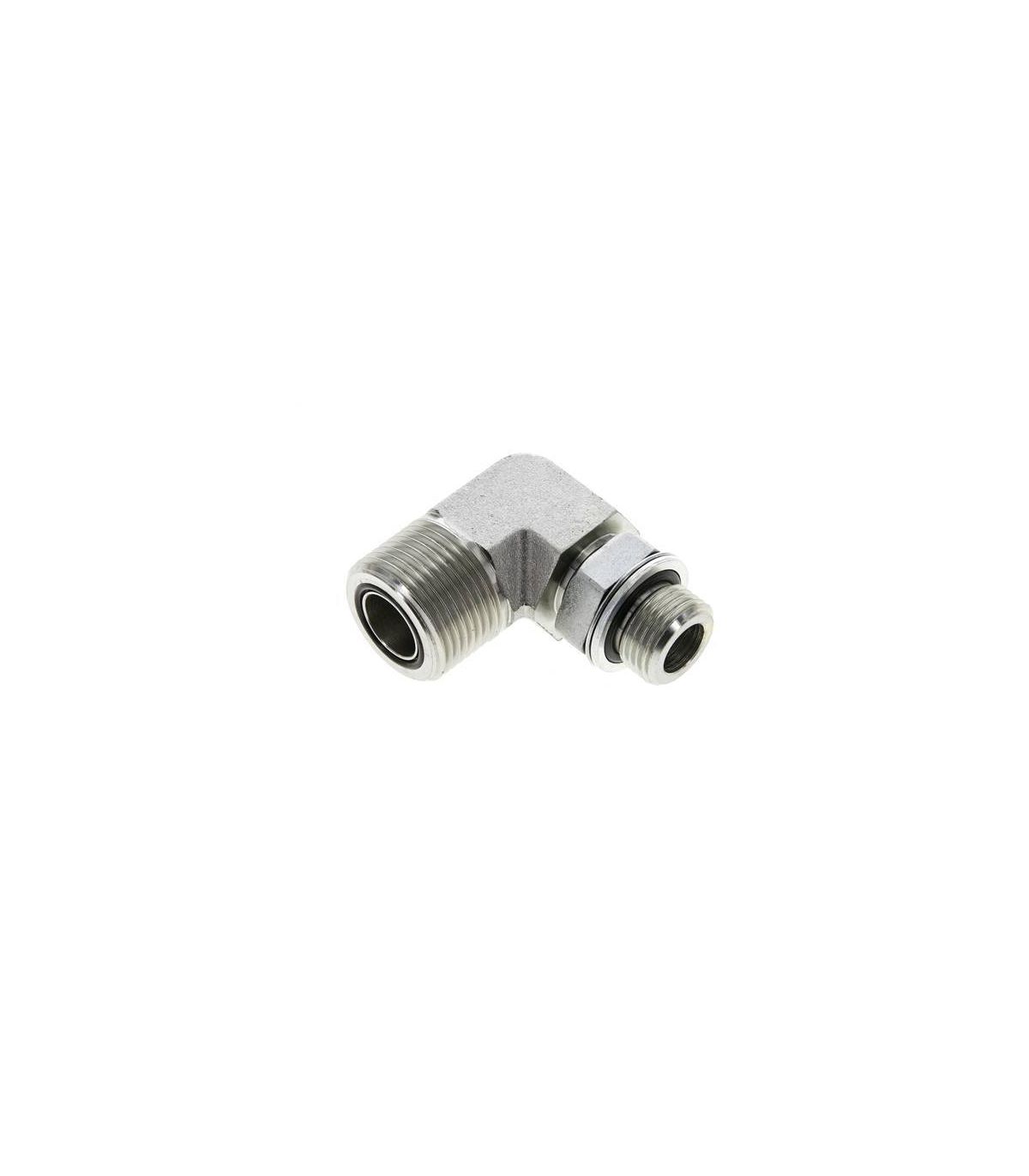

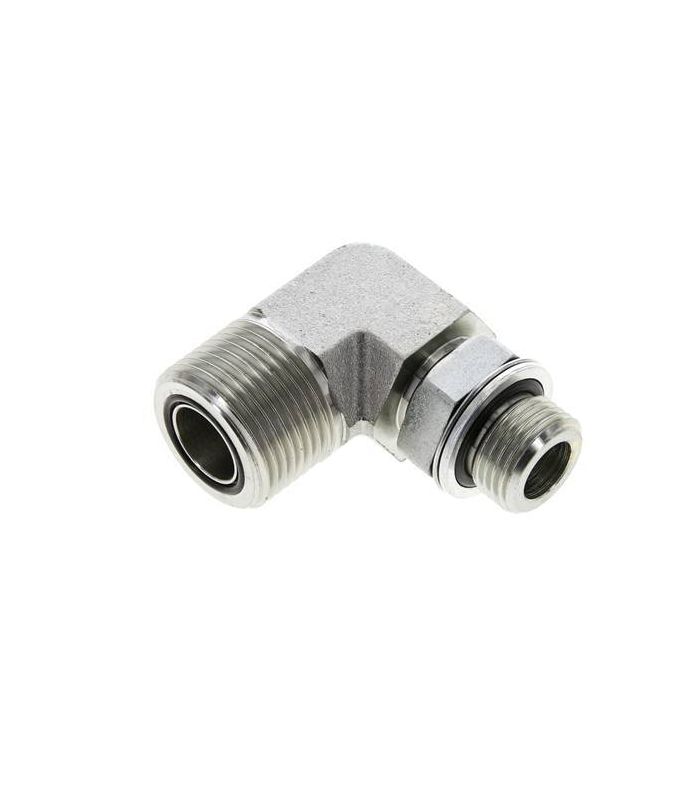

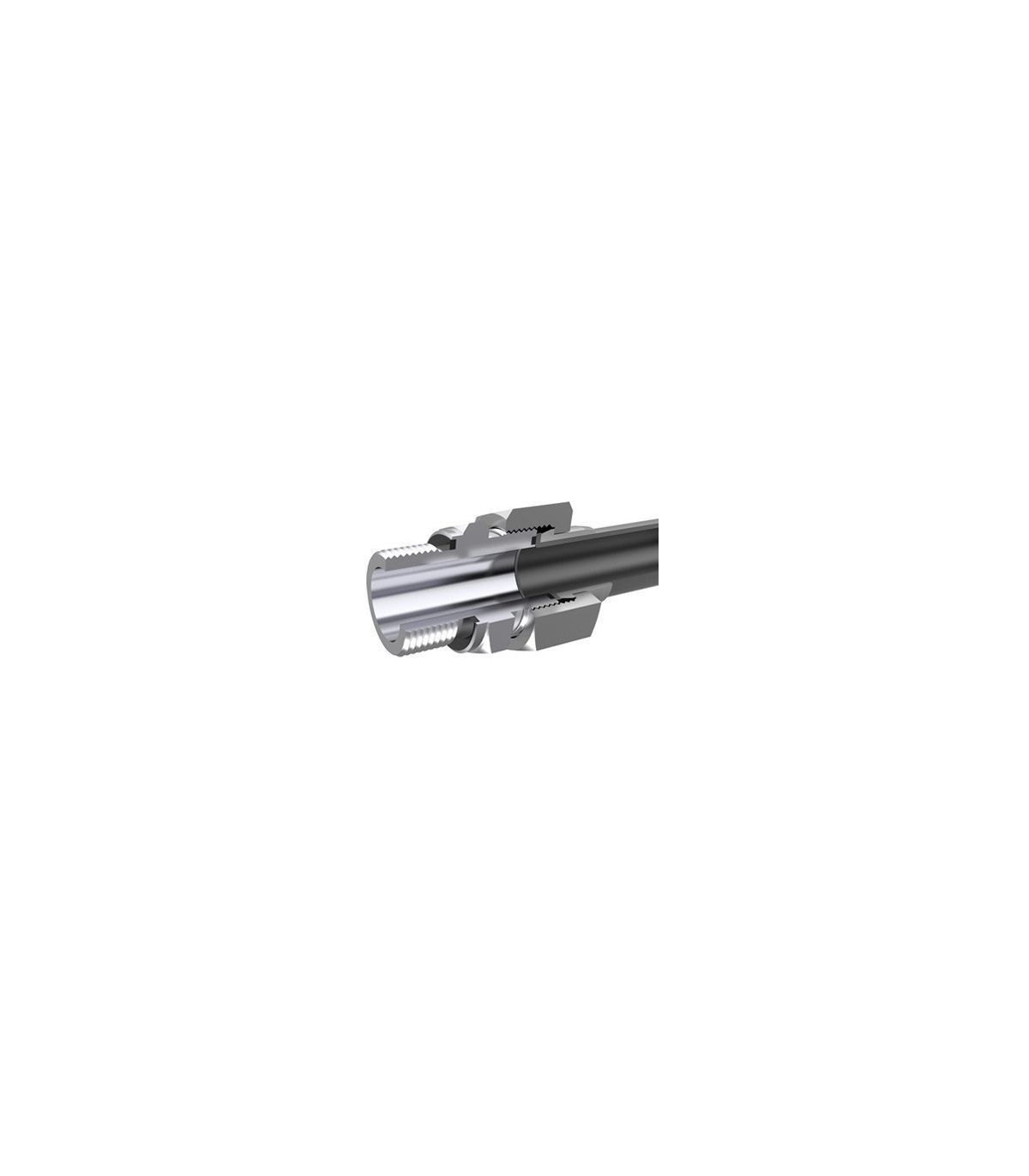

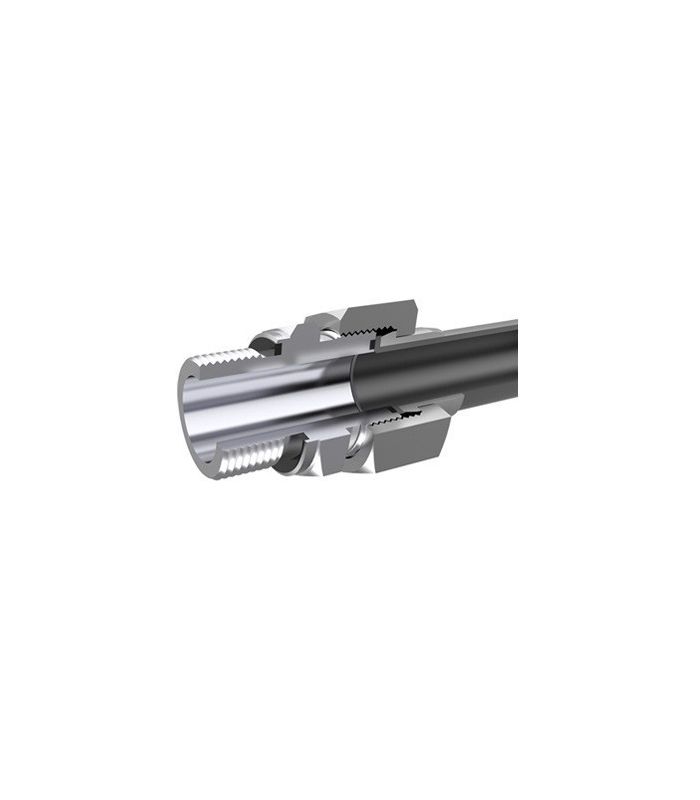

The 90° male ORFS male BSPP swivel elbow is a hydraulic fitting designed to make 90° changes of direction in high-pressure circuits, also allowing the connection to be oriented during assembly to facilitate installation.
Application: Medium and high pressure hydraulic circuits.
Main features:
The swivelable ORFS male to BSPP male 90° elbow is a hydraulic fitting designed for 90° changes of direction in high-pressure circuits. It also allows the connection to be oriented during assembly for easier installation. It combines an ORFS male connection with a swivelable BSPP male thread , providing a secure, leak-proof, and highly reliable joint.
The ORFS sealing system, using an O-ring on a flat face, offers excellent resistance to leaks, vibrations and pressure pulsations, while the swivelable BSPP connection facilitates circuit alignment without straining pipes or hoses.
Technical specifications of a 90° male ORFS male BSPP adjustable elbow:
| mm | in | Pink | Tightening torque +10% -0% Nm |
| 6 | 1/4" | 9/16-18 | 23 |
| 8 | 5/16" | 11/16-16 | 33 |
| 10 | 3/8" | 11/16-16 | 33 |
| 12 | 1/2" | 13/16-16 | 50 |
| 14 | 1-14 | 80 | |
| 15 | 1-14 | 80 | |
| 16 | 5/8" | 1-14 | 80 |
| 18 | 1"3/16-12 | 115 | |
| 20 | 3/4" | 1"3/16-12 | 115 |
| 22 | 1"7/16-12 | 150 | |
| 25 | 1" | 1"7/16-12 | 150 |
| 28 | 1"11/16-12 | 190 | |
| 30 | 1"11/16-12 | 190 | |
| 32 | 1-1/4" | 1"11/16-12 | 190 |
| 35 | 2-12 | 245 | |
| 38 | 1-1/2" | 2-12 | 245 |
