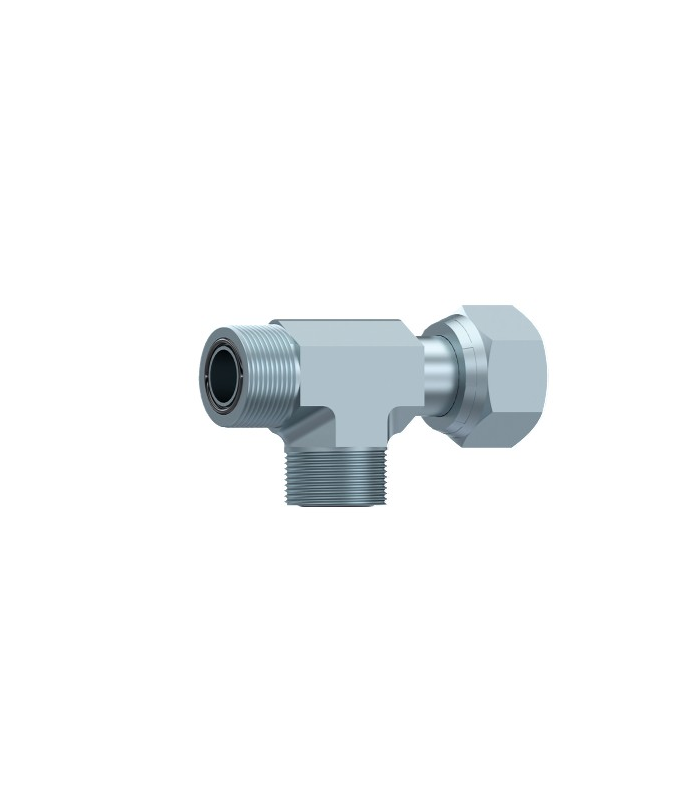

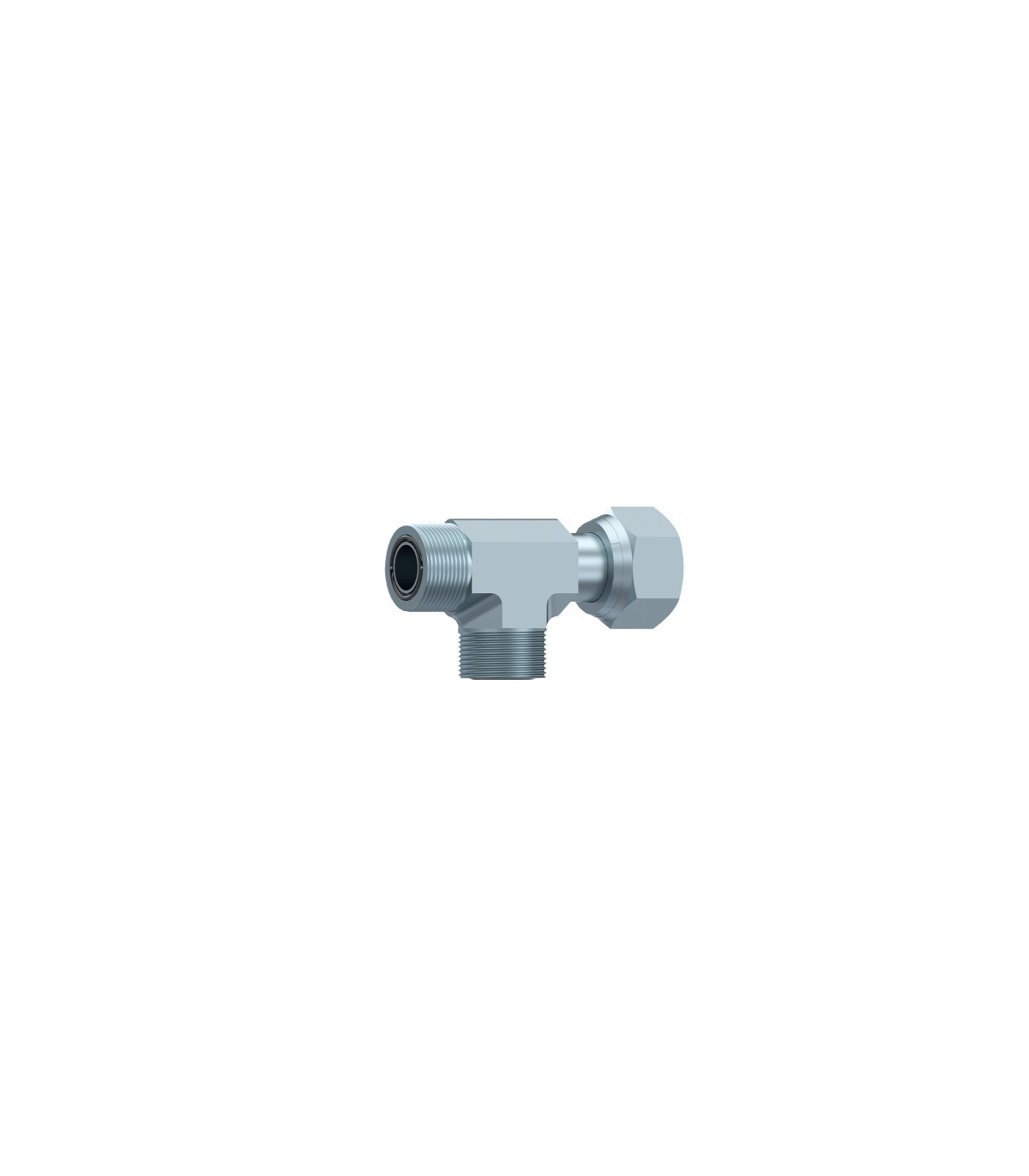

An ORFS side swivel male-female tee is a hydraulic fitting designed to make a 90° branch in high-pressure circuits, allowing a secondary line to be connected without compromising the system's watertightness.
Application: Medium and high pressure hydraulic circuits.
Main features:
The ORFS side-swivel male-female tee allows for the creation of hydraulic branches with complete safety and a high level of sealing. Its swivel design facilitates the installation and alignment of components, while the ORFS system guarantees reliable performance even in the most demanding hydraulic applications.
Technical specifications for an ORFS side-swivel male-female tee:
| Tube diameter (mm) | Tube diameter (in) | Thread (UN/UNF) | Tightening torque +10% -0% Nm |
| 6 | 1/4" | 9/16-18 | 23 |
| 8 | 5/16" | 11/16-16 | 33 |
| 10 | 3/8" | 11/16-16 | 33 |
| 12 | 1/2" | 13/16-16 | 50 |
| 14 | 1-14 | 80 | |
| 15 | 1-14 | 80 | |
| 16 | 5/8" | 1-14 | 80 |
| 18 | 1 3/16-12 | 115 | |
| 20 | 3/4" | 1 3/16-12 | 115 |
| 22 | 1 7/16-12 | 150 | |
| 25 | 1" | 1 7/16-12 | 150 |
| 28 | 1 11/16-12 | 190 | |
| 30 | 1 11/16-12 | 190 | |
| 32 | 1 1/4" | 1 11/16-12 | 190 |
| 35 | 2 -12 | 245 | |
| 38 | 1 1/2" | 2 -12 | 245 |
