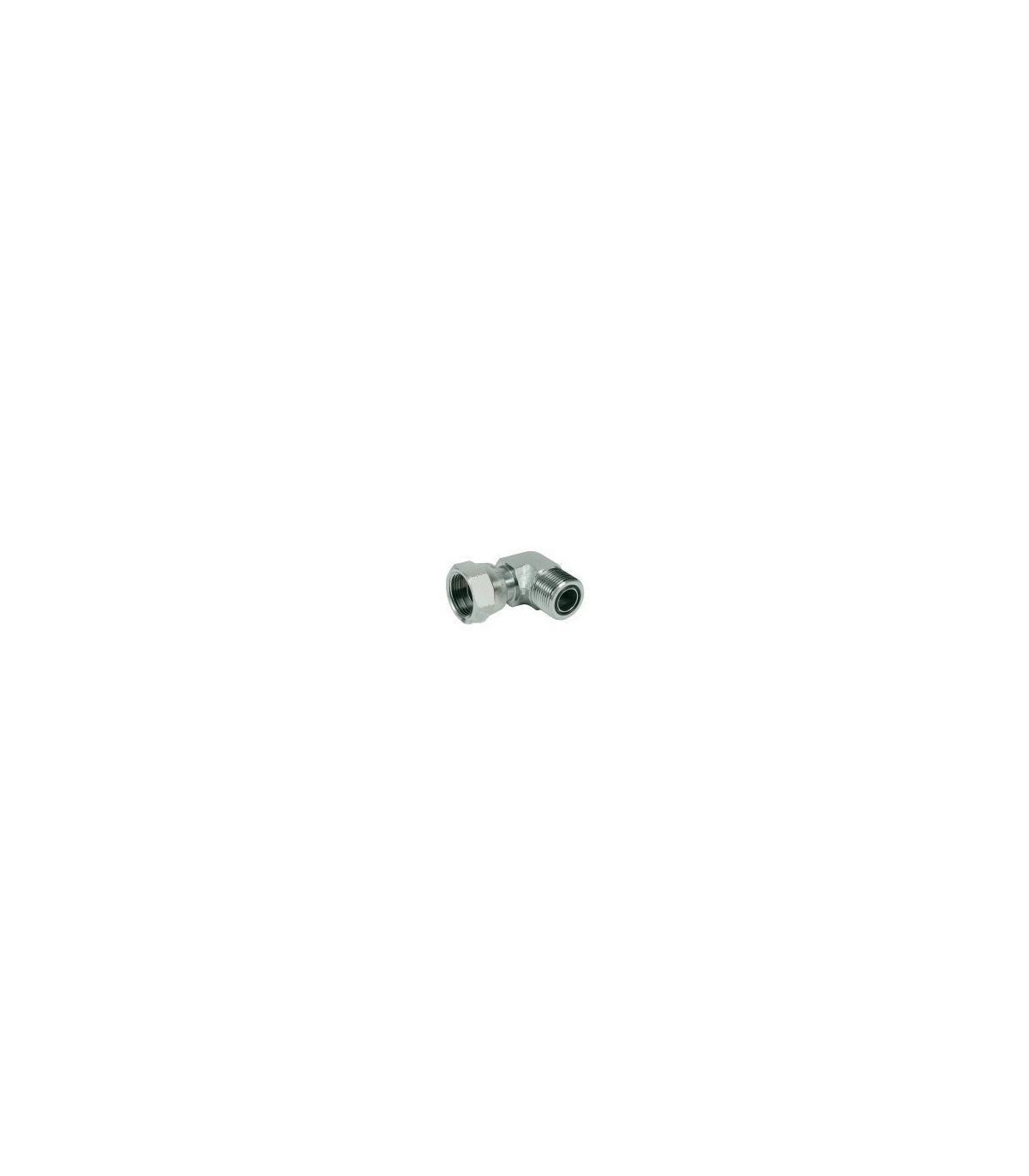

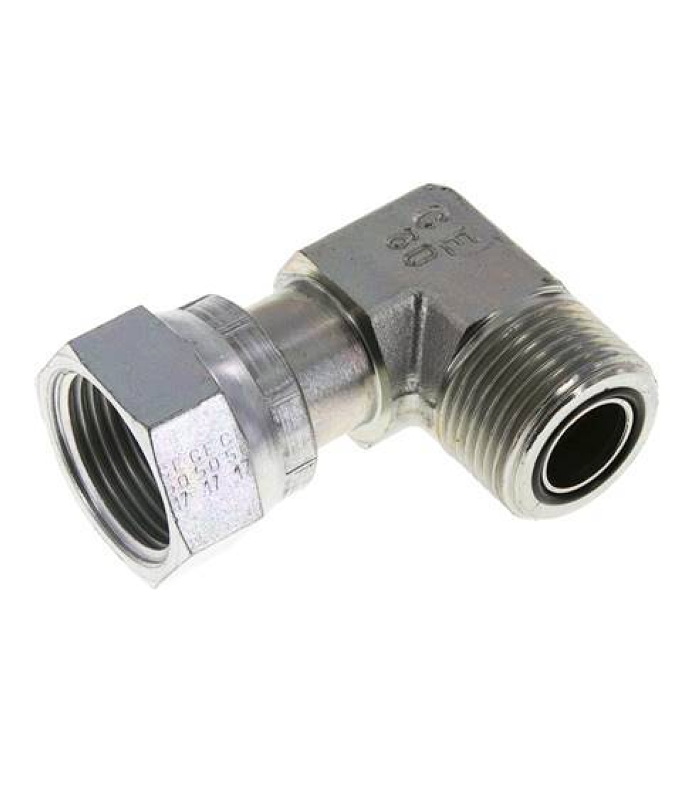

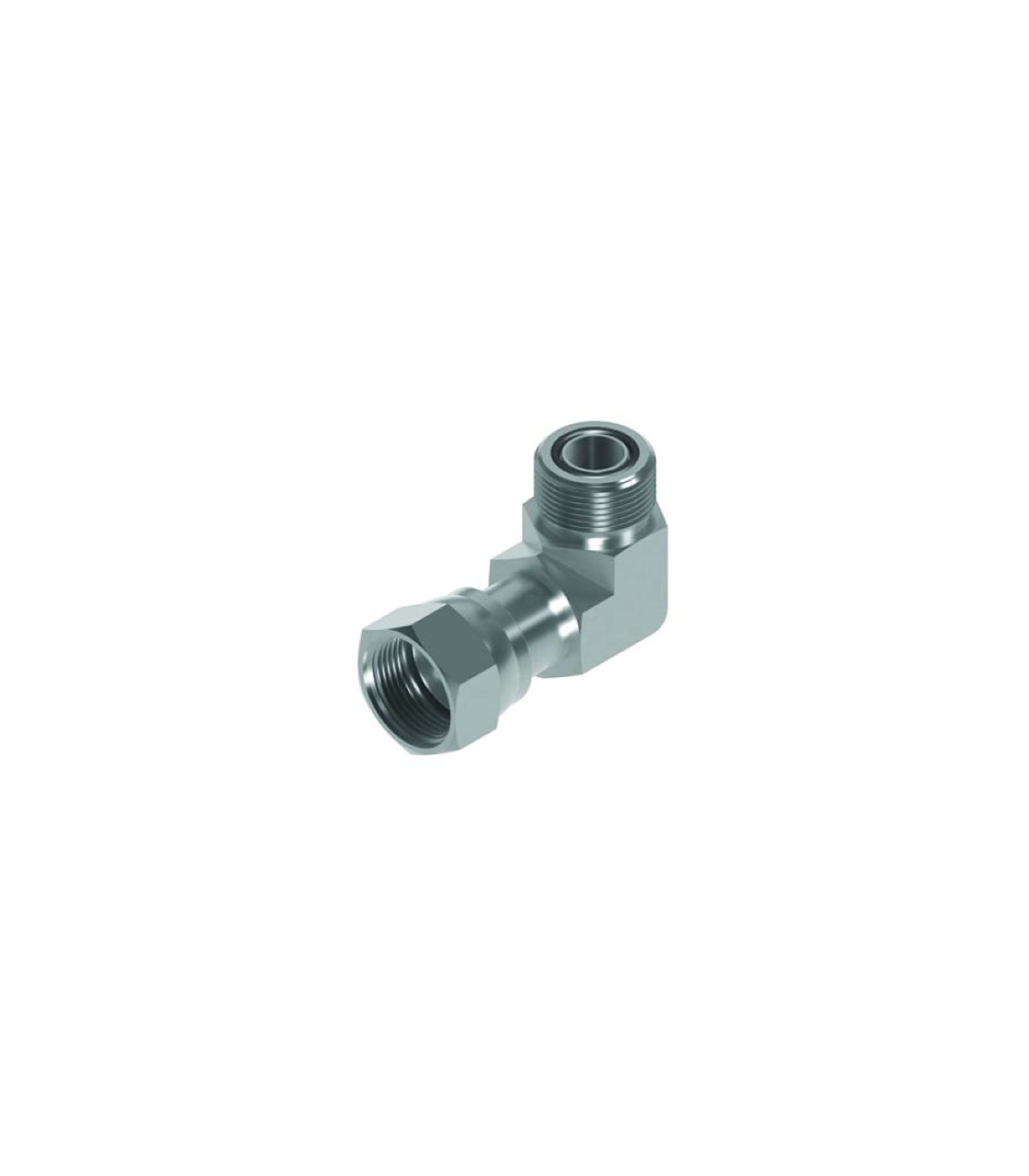

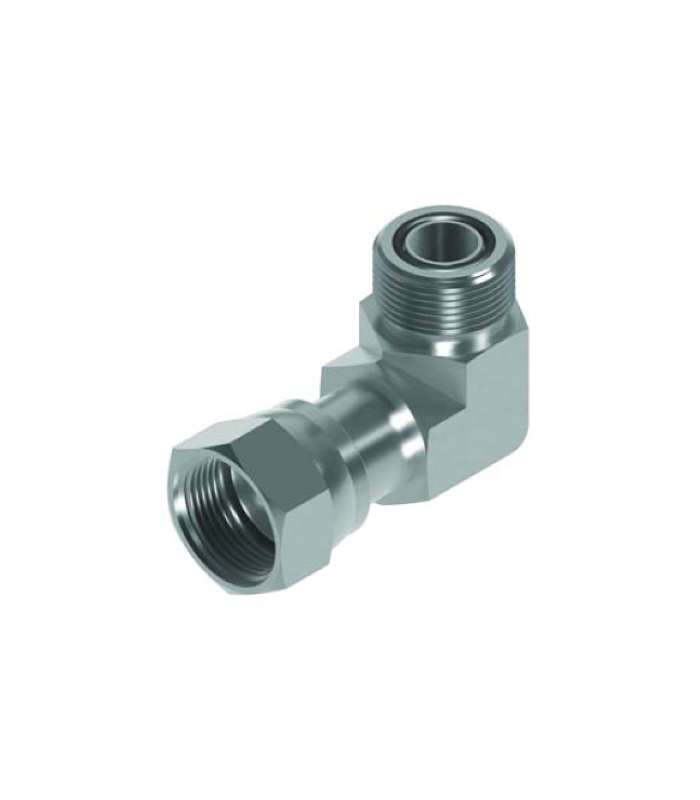

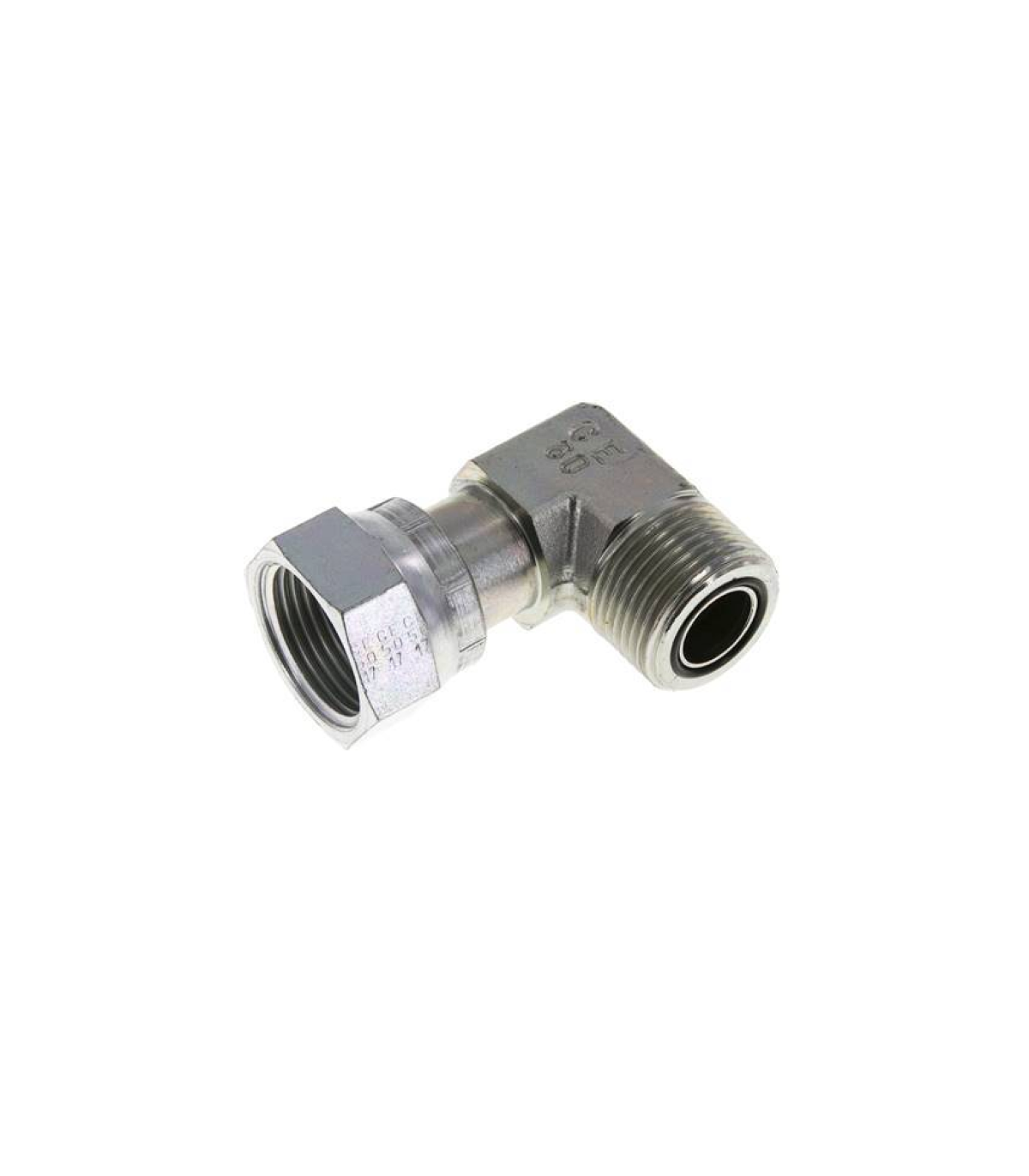

ORFS 90° MALE TO FEMALE SWIVEL ELBOW

The ORFS 90 male female swivel elbow is a hydraulic fitting designed to make 90° changes of direction in high pressure circuits, maintaining a safe and fully leak-proof connection.

Application: Medium and high pressure hydraulic circuits.

Main features:

  • ORFS fitting in carbon steel.
  • SAE Standard J1453
  • Temperature -20 / 120ºC.
  • No leaks.
  • See other settings.
  • Pressures:
    • Up to 8,630 bar
    • Up to 20,420 bar
    • Up to 24,350 bar
    • Up to 32,210 bar
Read moreShow less
€7.95 (tax incl.)
€6.57 (tax excl.)
THREAD TYPE
Reference:
46590050
Description

ORFS 90° Male to Female Swivel Elbow

The ORFS swivel male-female 90° elbow allows for changes in direction in hydraulic circuits without compromising system integrity. Its swivel connection facilitates assembly in confined spaces and reduces strain during installation, while the ORFS seal ensures reliable performance and a long service life, even in high-pressure applications.

Applications

  • High-pressure hydraulic systems.
  • Industrial machinery.
  • Agricultural equipment.
  • Construction and public works machinery.
  • Lifting platforms.
  • Mobile hydraulic equipment.
  • Fluid transport systems.

Technical specifications of an ORFS swivel male-female 90° elbow:

CODO 90 MACHO HEMBRA GIRATORIA ORFS

Read moreShow less
Product Details
46590050
