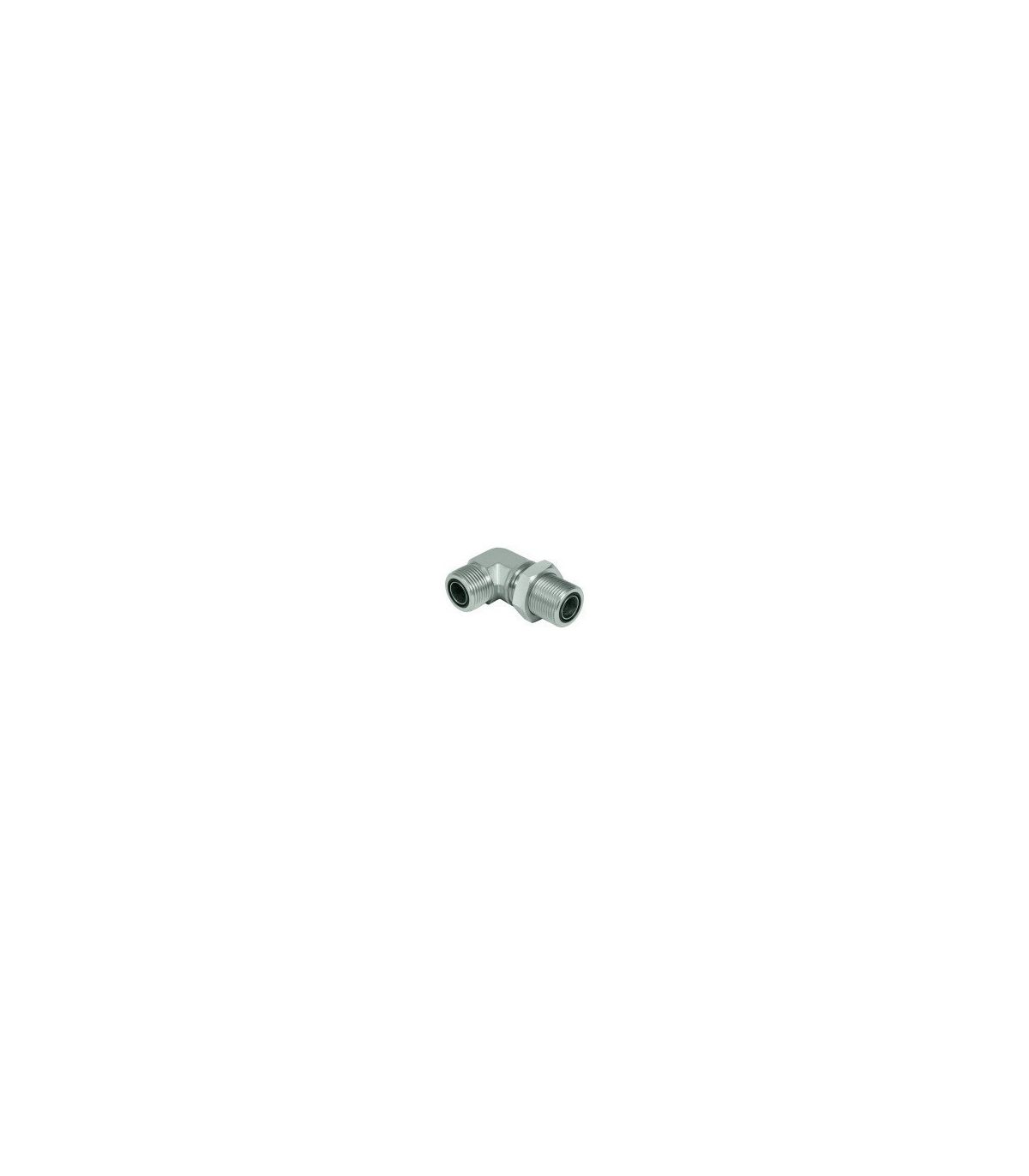

ORFS WALL CROSSING ELBOW

ORFS WALL CROSSING ELBOW

An ORFS bulkhead elbow is a fitting used in hydraulic systems to be mounted through a panel or wall. The ORFS connection ensures a reliable, leak-proof seal.

Technical sheet:

  • Carbon steel ORFS fitting.
  • SAE J1453 standard
  • Temperature -20 / 120ºC.
  • No leaks.
  • See other configurations.
  • Pressures:
    • Up to 8,630 bar
    • Up to 20,420 bar
    • Up to 24,350 bar
    • Up to 32,210 bar
€11.41 (tax included)
€9.43 (tax excl.)
THREAD TYPE
Reference:
46610050
Description

ORFS bulkhead elbow

CODO PASAMUROS ORFS

Product Details
46610050
Comments
12 other products in the same category:
ORFS WELDABLE SEAT

€2.63 (tax excl.)
€3.18 (tax included)
An ORFS weld-on seat is a hydraulic connection component designed to create an ORFS connection port directly onto a carbon steel structure or pipe by welding. Applications: Construction and agricultural machinery,...
ORFS O-RING

€0.70 (tax excl.)
€0.85 (tax included)
An ORFS O-ring is a static sealing element designed for use in ORFS hydraulic connections. It ensures an effective, leak-resistant static seal between the flat faces of the connectors. Technical sheet: O-ring made of...

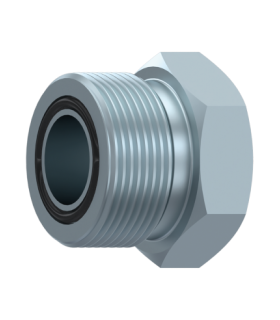

ORFS MALE PLUG

€1.11 (tax excl.)
€1.34 (tax included)
An ORFS male plug is a hydraulic fitting for securely closing or blocking an ORFS female port or connection. Applications: Construction machinery, Agricultural machinery, Oil and gas industry equipment, Mining,...
ORFS 45° MALE TO FEMALE SWIVEL ELBOW

€6.80 (tax excl.)
€8.23 (tax included)
The ORFS 45° male-female swivel elbow is used to make 45° changes of direction in high-pressure circuits, providing a secure and highly leak-proof connection. Application: Medium and high pressure hydraulic circuits....
90º MALE ORFS ELBOW

€4.78 (tax excl.)
€5.78 (tax included)
An ORFS male 90º elbow is a type of hydraulic connection that seals by compressing an O-ring located on the flat face of one connector against the flat face of the other. Technical sheet: ORFS fitting in carbon steel....
TE MACHO HEMBRA ROTATORIA LATERAL ORFS

€10.40 (tax excl.)
€12.58 (tax included)
An ORFS side swivel male-female tee is a hydraulic fitting designed to make a 90° branch in high-pressure circuits, allowing a secondary line to be connected without compromising the system's watertightness....

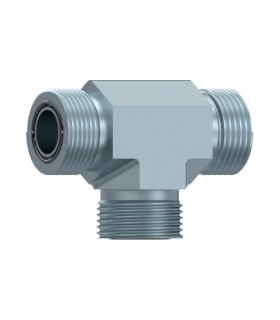

I'M A MACHO ORFS

€7.80 (tax excl.)
€9.44 (tax included)
An ORFS male tee is used to connect three hydraulic pipes or hoses in high-pressure systems. It allows hydraulic fluid flow to branch or merge in three directions. Common applications: Hydraulic systems in heavy...
ORFS MALE UNION

€1.92 (tax excl.)
€2.32 (tax included)
The ORFS male union is used to connect two components of the hydraulic system. Its distinctive feature is the sealing method. The male end of the fitting has a flat face with a groove that houses an O-ring....

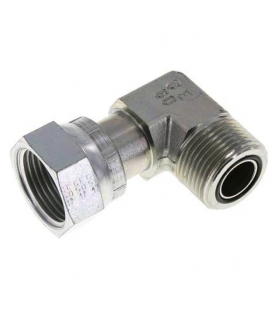

ORFS 90° MALE TO FEMALE SWIVEL ELBOW

€6.57 (tax excl.)
€7.95 (tax included)
The ORFS 90 male female swivel elbow is a hydraulic fitting designed to make 90° changes of direction in high pressure circuits, maintaining a safe and fully leak-proof connection. Application: Medium and high...

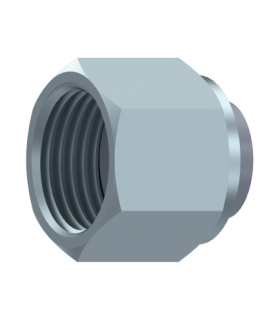

ORFS FEMALE PLUG
