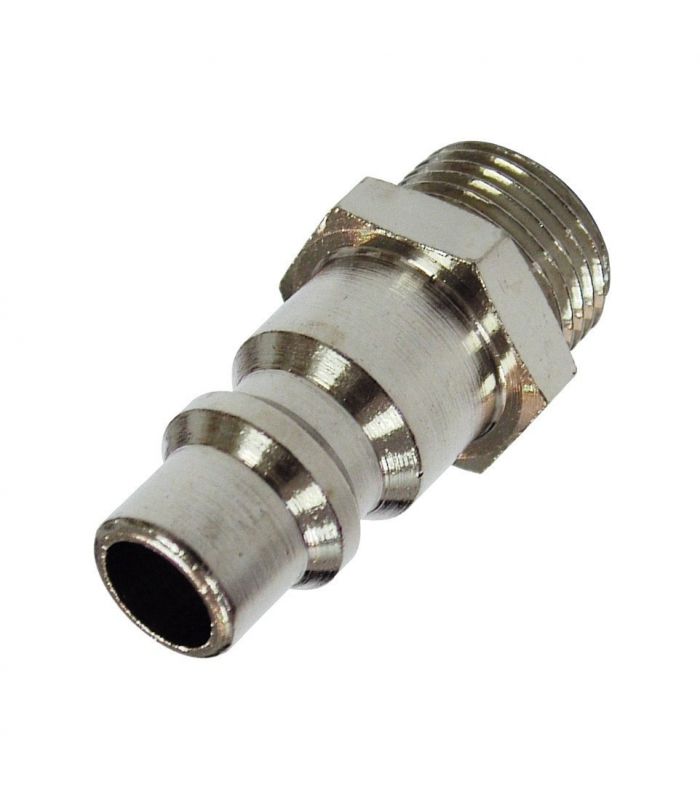

MAXI MALE ADAPTER DN-9 ISO 6150 B-15

MAXI MALE ADAPTER DN-9 ISO 6150 B-15

The ISO 6150 B-15 DN-9 male maxi adapter is used when a hose or pneumatic component with a standard male thread needs to be connected to a quick-connect system of the ISO 6150 B-15 type. The nominal diameter of the connection is 9 mm. The adapter is slightly larger than the standard size.

Applications: Automotive industry, Food and pharmaceutical industry, Plastics industry, Industrial pneumatics.

Technical data sheet:

  • UNI ISO 6150 B-15 regulations
  • Temperatures -20°C to +80°C
  • Nickel-plated brass body.
  • Compatible with Rectus 30, Cejn-430, Legris 30, Irm-08. Parker-30
  • DN step 9 mm.
  • Working pressure 0-16 bar.
€2.90 (tax included)
€2.40 (tax excl.)
SELECT THE THREAD
  • 1/4"
  • 3/8"
  • 1/2"
Reference:
13250011
Description

Maxi male adapter DN-9 ISO 6150 B-15

Product Details
13250011

Data sheet

PLUG TYPE
ISO 6150 B-15
Comments
