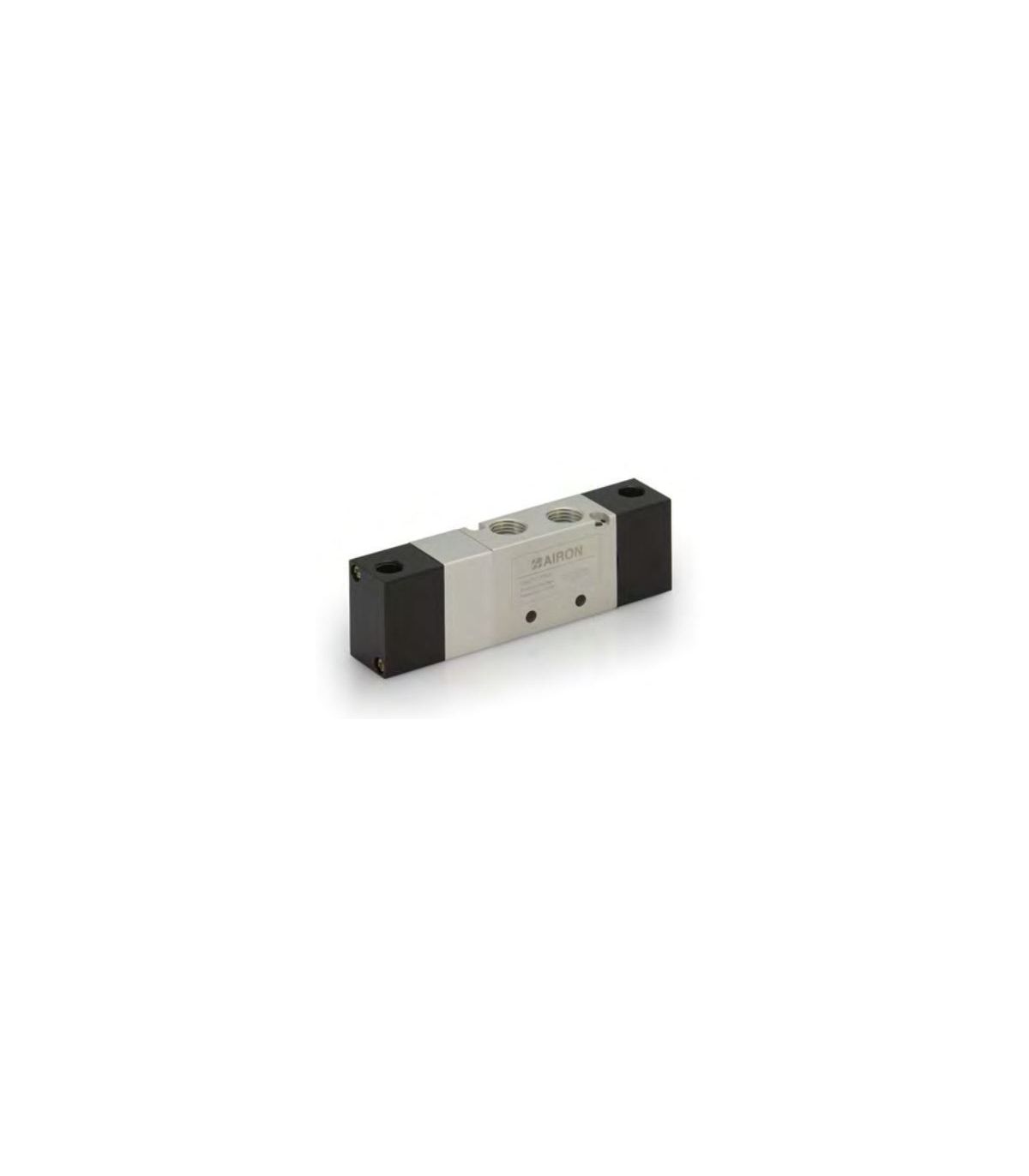

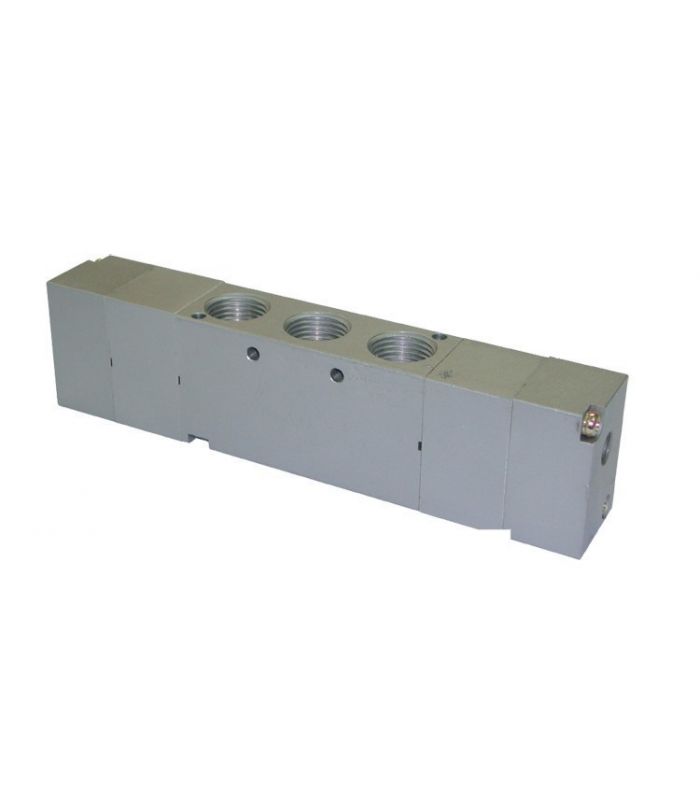

1/2" 5/3 WAY DISTRIBUTOR PNEUMATIC PILOT

A 1/2" 5/3-way pilot operated pneumatic directional valve is an advanced pneumatic directional valve used to precisely control the movement of double-acting actuators.

Applications: Positioning systems, Assembly machinery, Presses and clamps, Pneumatic robotics, Industrial automation, Packaging industry.

Technical sheet:

• Materials: Pilot in brass and stainless steel, operator, base and piston in POM.
• Aluminum alloy body, aluminum slide, stainless steel spring, brass bushings and NBR seals.
• Ø Pitch: 8 mm
• Flow rate: 2700 l/min (6 bar)
• Pressure: 1 ÷ 10 bar
• Temperature: -5º/+50º C
• Threads: 1/2
• Fluids: Filtered air with or without lubrication.
