NPT STAINLESS STEEL MALE-MALE UNION
NPT STAINLESS STEEL MALE-MALE UNION
NPT STAINLESS STEEL MALE-MALE UNION
NPT STAINLESS STEEL MALE-MALE UNION

NPT STAINLESS STEEL MALE-MALE UNION

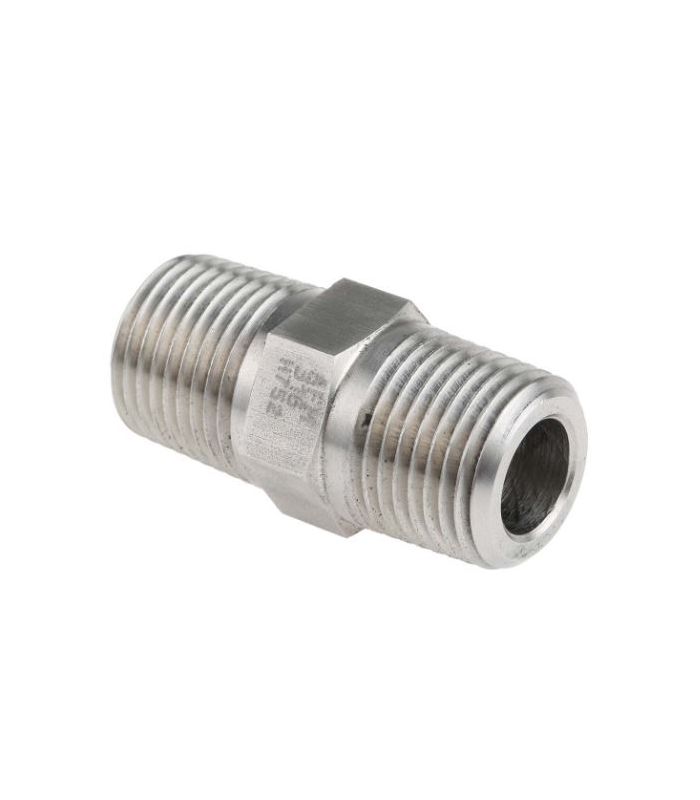

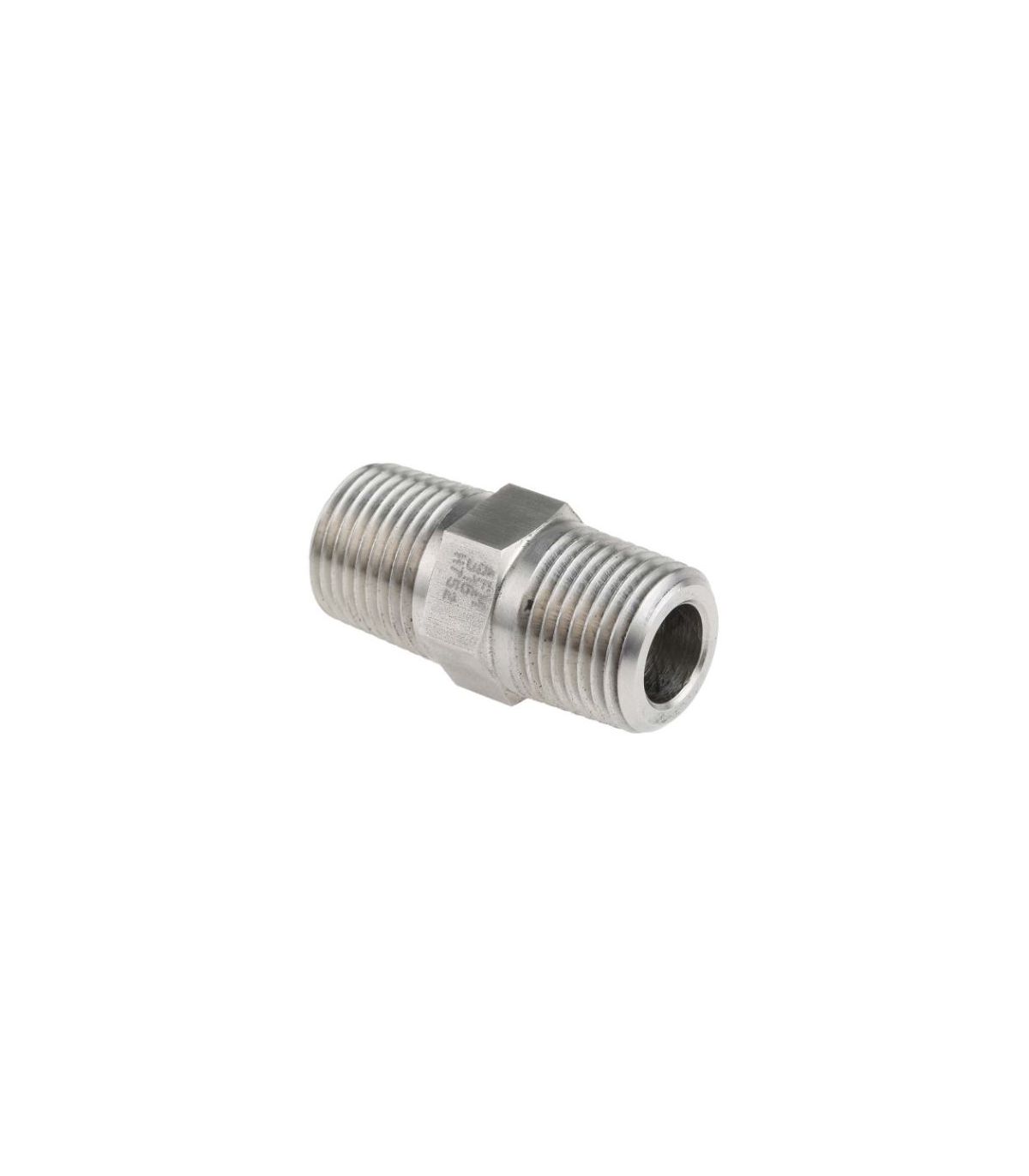

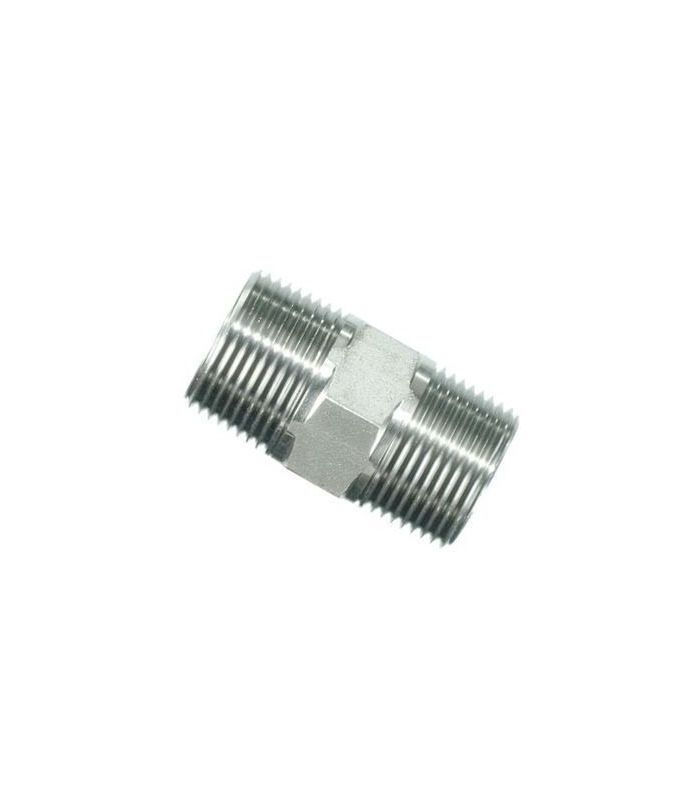

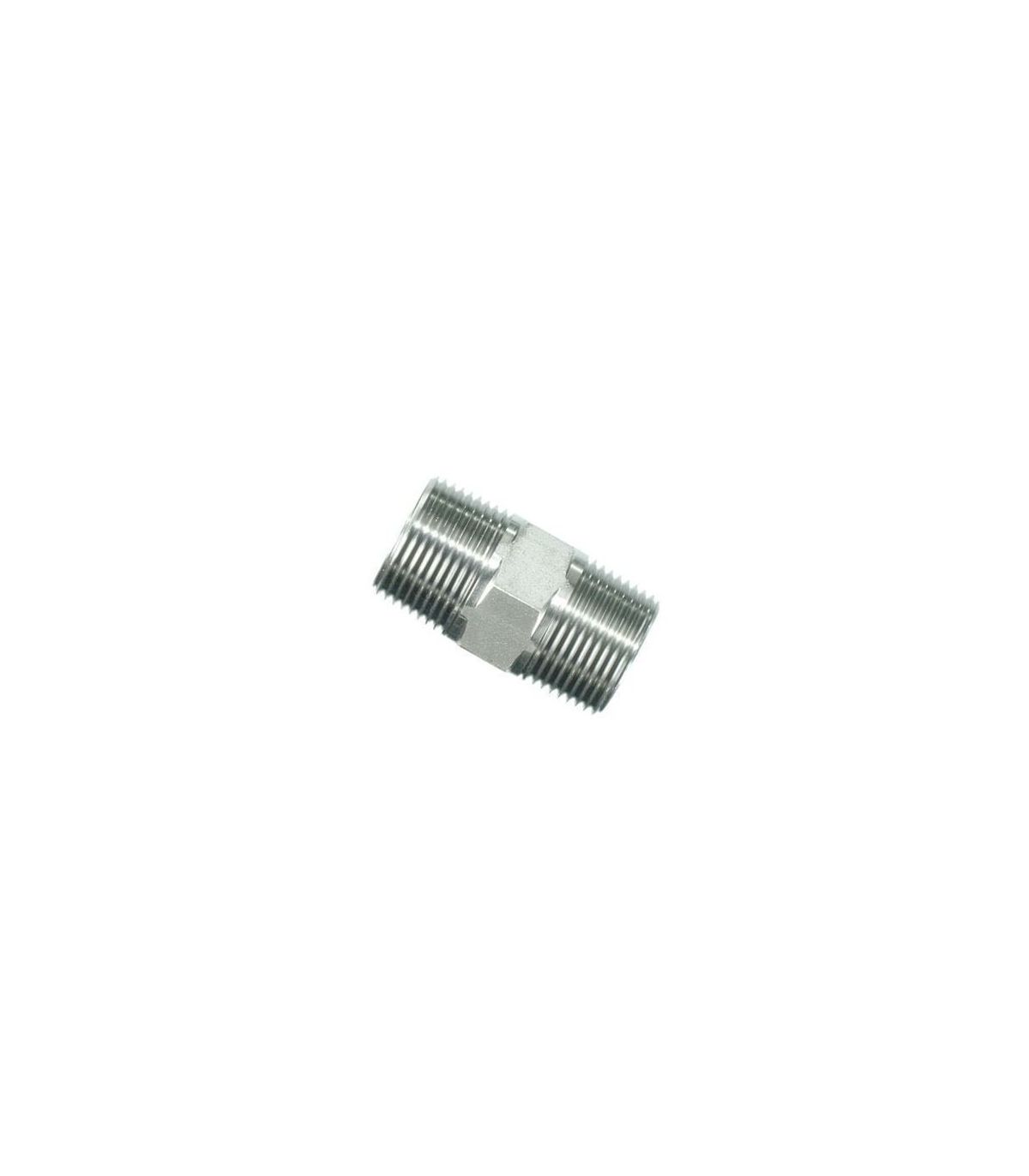

A stainless steel NPT male-to-male union is a one-piece fitting that features two external NPT threads.

Applications: instrumentation, compressed air systems, water installations.

Main features:

  • High pressure fitting, NPT thread
  • Conical closure termination.
  • Made of INOX-316
  • Max. pressure 400 bar.
  • Temperature -40ºC / 200ºC
€8.47 (tax included)
€7.00 (tax excl.)
SELECT THE THREAD
  • 1/8"-1/8"
  • 1/4"-1/8"
  • 1/4"-1/4"
  • 3/8"-3/8"
  • 3/8"-1/4"
  • 3/4"-1/2"
  • 3/4"-3/4"
  • 1/2"-1/4"
  • 1/2"-3/8"
  • 1/2"-1/2"
  • 1"-1/2"
  • 1"-3/4"
  • 1"-1"
  • 1-1/4" - 1-1/4"
  • 1-1/2" - 1-1/2"
Reference:
44510006
Description

NPT male-to-male stainless steel union

The stainless steel NPT male-to-male coupling is designed to connect two female-threaded fittings in piping systems. It uses NPT threads, ensuring a leak-proof connection through interference sealing.

Advantages

  • High resistance to corrosion and aggressive environments
  • Quick and easy installation
  • Secure and watertight connection

Applications

  • Hydraulic and pneumatic systems
  • Conduction of water, air, oil and industrial fluids
  • Chemical, food and pharmaceutical industries
  • Installations in marine environments
  • Industrial and process equipment

Technical data sheet for a stainless steel NPT male-to-male union:

TO B H1 ØR1
27 9.7 11 1/8
37 14.2 16 1/4
37 14.2 19 3/8
48 19 22 1/2
50 19 27 3/4
59 23.9 36 1
63 24.6 46 1.1/4
66 25.4 50 1.1/2
72 26.8 65 2

Product Details
44510006
