45° MALE SWIVEL ELBOW
45° MALE SWIVEL ELBOW
45° MALE SWIVEL ELBOW
45° MALE SWIVEL ELBOW
45° MALE SWIVEL ELBOW
45° MALE SWIVEL ELBOW

45° MALE SWIVEL ELBOW

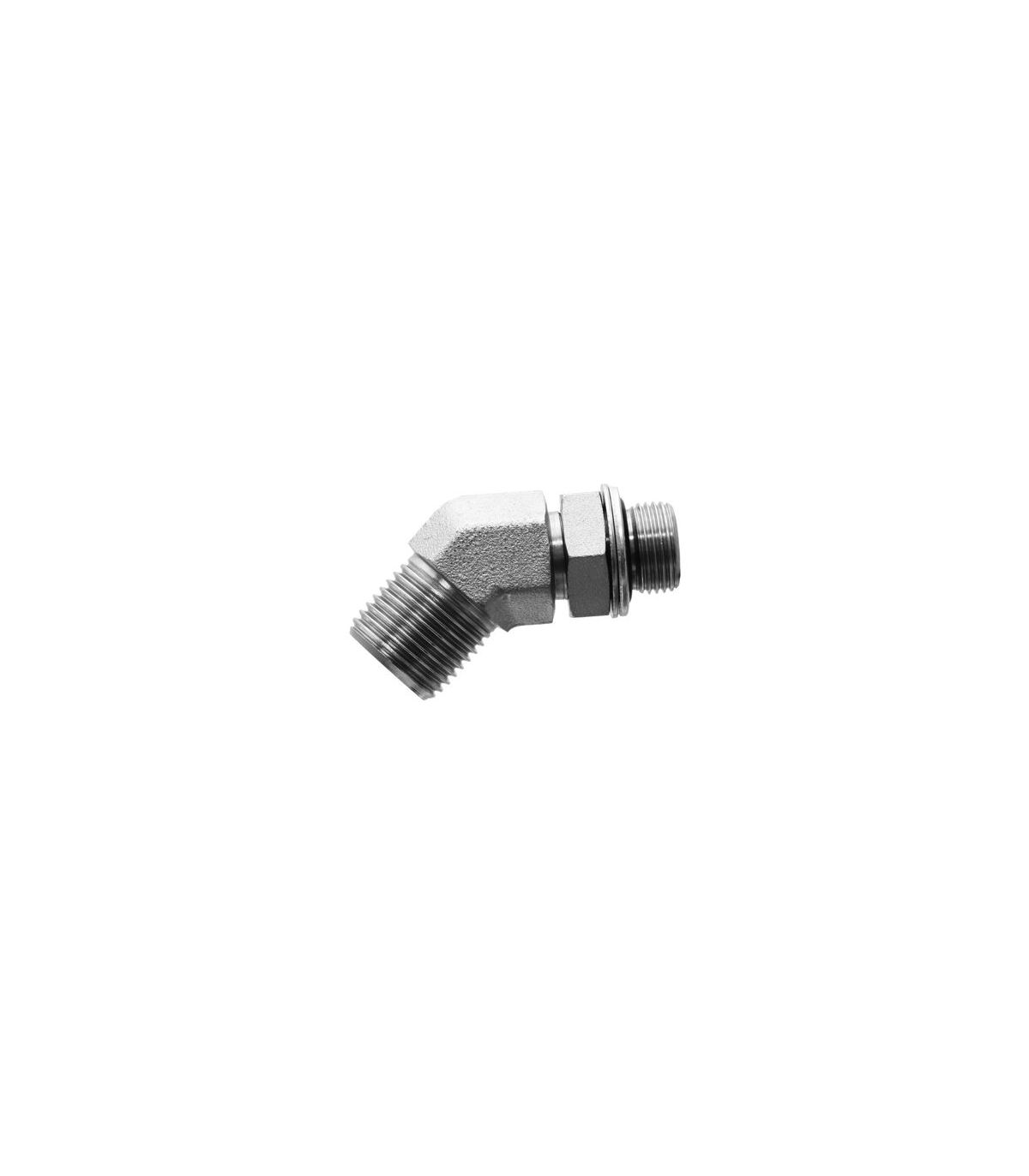

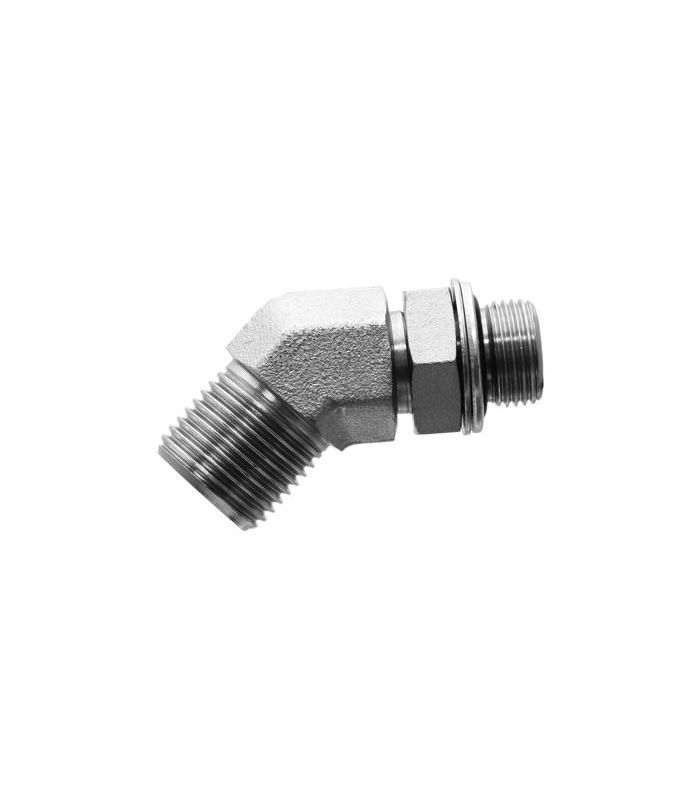

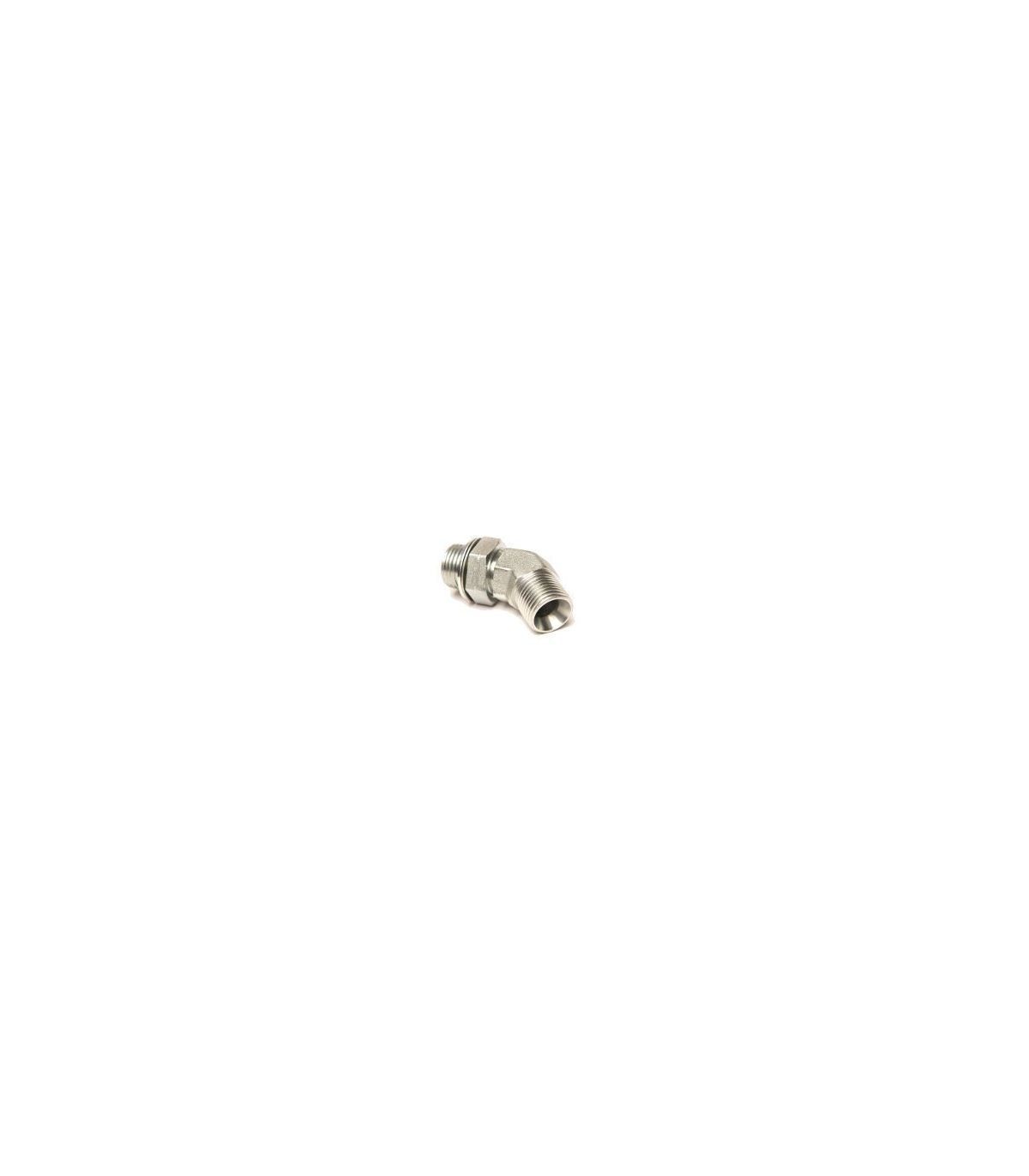

A 45° male swivel elbow is a hydraulic fitting designed to make 45° changes of direction in fluid circuits, facilitating the assembly of pipes and hoses in confined spaces.

Applications: Industrial hydraulic systems, Agricultural machinery, Public works equipment.

Technical specifications:

  • 60° conical closure fitting with BSP thread.
  • Made of carbon steel.
  • White zinc plating.
  • Operating temperature -40 / 150ºC.
  • Working pressure 250 bar.
€9.12 (tax included)
€7.54 (tax excl.)
SELECT THE THREAD
  • 1/4"-1/4"
  • 3/8"-3/8"
  • 3/4"-3/4"
  • 1/2"-1/2"
  • 1"-1"
Reference:
44360010
Description

45° Male Swivel Elbow

The 45° male swivel elbow is a hydraulic fitting designed to make 45° changes in direction in fluid circuits, facilitating the assembly of pipes and hoses in confined spaces. Its swivel design allows the fitting's position to be adjusted during installation without compromising the connection's watertightness, simplifying assembly and improving circuit layout.

Made of carbon steel with anti-corrosion surface treatment, it offers high mechanical strength and excellent performance in high-pressure hydraulic applications.

Applications

  • Industrial hydraulic systems.
  • Agricultural machinery.
  • Public works teams.
  • Construction machinery.
  • Lifting equipment.
  • Industrial maintenance facilities.
  • Hydraulic oil circuits.

Technical specifications of a 45º adjustable elbow:

Product Details
44360010
