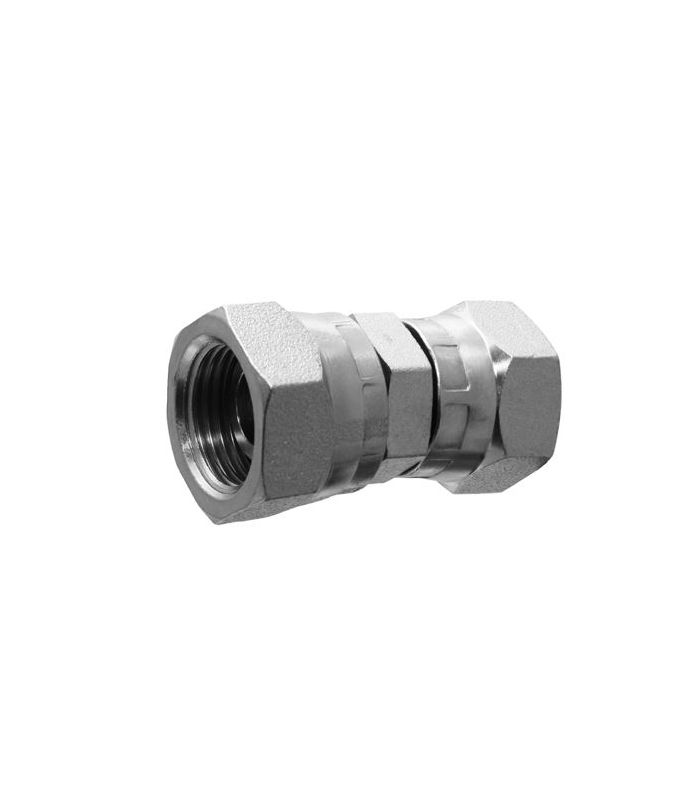

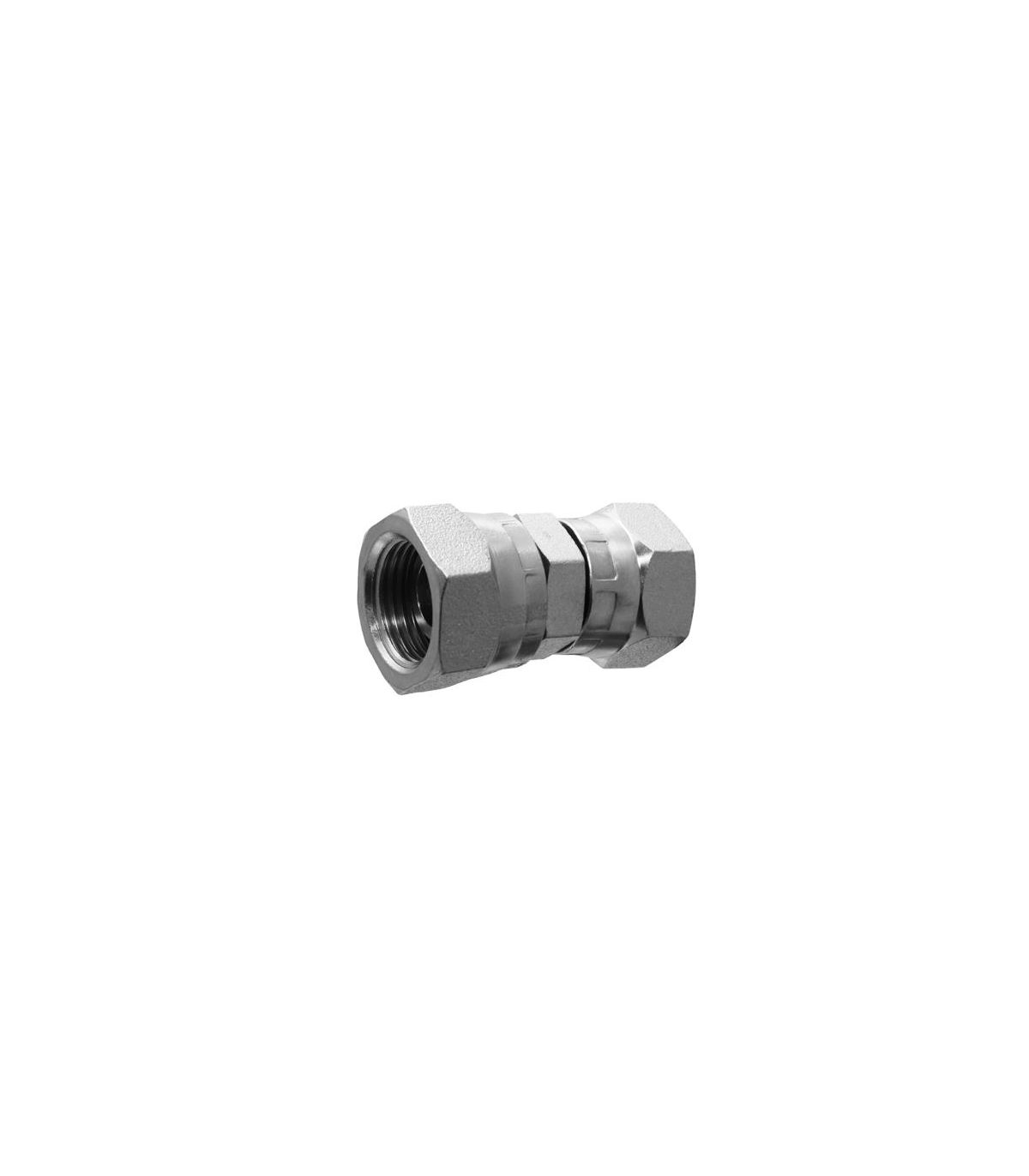

STRAIGHT ADAPTER LOOSE NUT-LOOSE NUT

STRAIGHT ADAPTER LOOSE NUT-LOOSE NUT

The straight swivel nut-to-swivel nut adapter is a hydraulic fitting designed to securely and leak-proofly join two BSP threaded connections. Its configuration with swivel nuts on both ends facilitates assembly and disassembly without the need to rotate the pipes or hoses.

Main features:

  • 60° conical closure fitting with BSP thread.
  • Made of carbon steel.
  • White zinc plating.
  • Operating temperature -40 / 150ºC.
  • Working pressure 250 bar.
€2.71 (tax included)
€2.24 (tax excl.)
SELECT THE THREAD
  • 1/4"-1/4"
  • 3/8"-3/8"
  • 3/4"-3/4"
  • 1/2"-1/2"
  • 1"-1"
Reference:
44330010
Description

Straight adapter swivel nut-swivel nut

The straight swivel nut to swivel nut adapter is a hydraulic fitting designed to securely and leak-proofly join two BSP threaded connections. Its configuration with swivel nuts on both ends facilitates assembly and disassembly without the need to rotate the pipes or hoses, simplifying installation and maintenance tasks.

Made of high-strength carbon steel and equipped with a 60° conical closure system , it guarantees excellent sealing through metal-to-metal contact, offering reliable performance in medium and high pressure hydraulic circuits.

Applications

  • Hydraulic circuits.
  • Industrial machinery.
  • Agricultural equipment.
  • Public works machinery.
  • Lubrication systems.
  • Fluid conveyance installations.
  • Industrial maintenance equipment.

Technical specifications for a straight adapter, swivel nut to swivel nut:

Product Details
44330010
