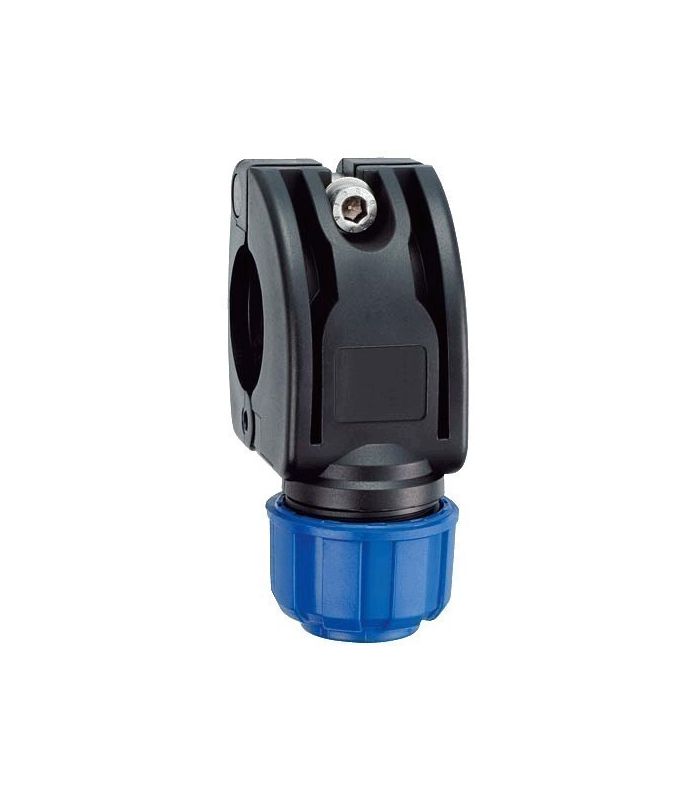

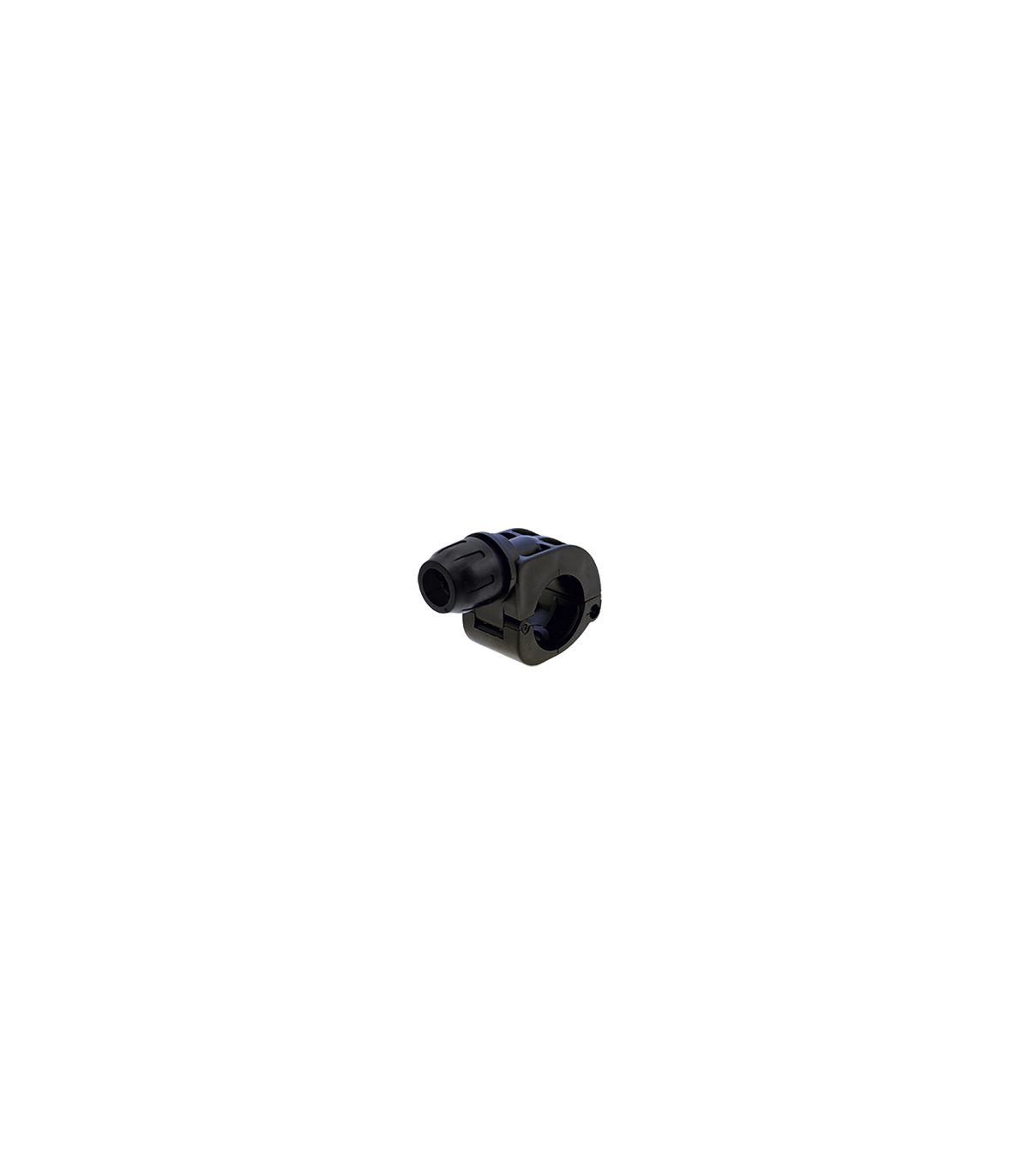

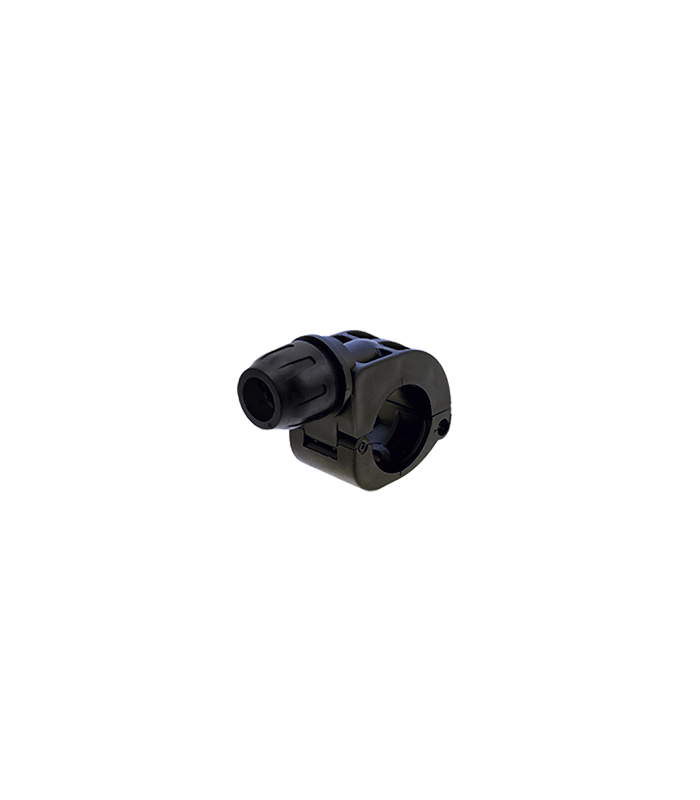

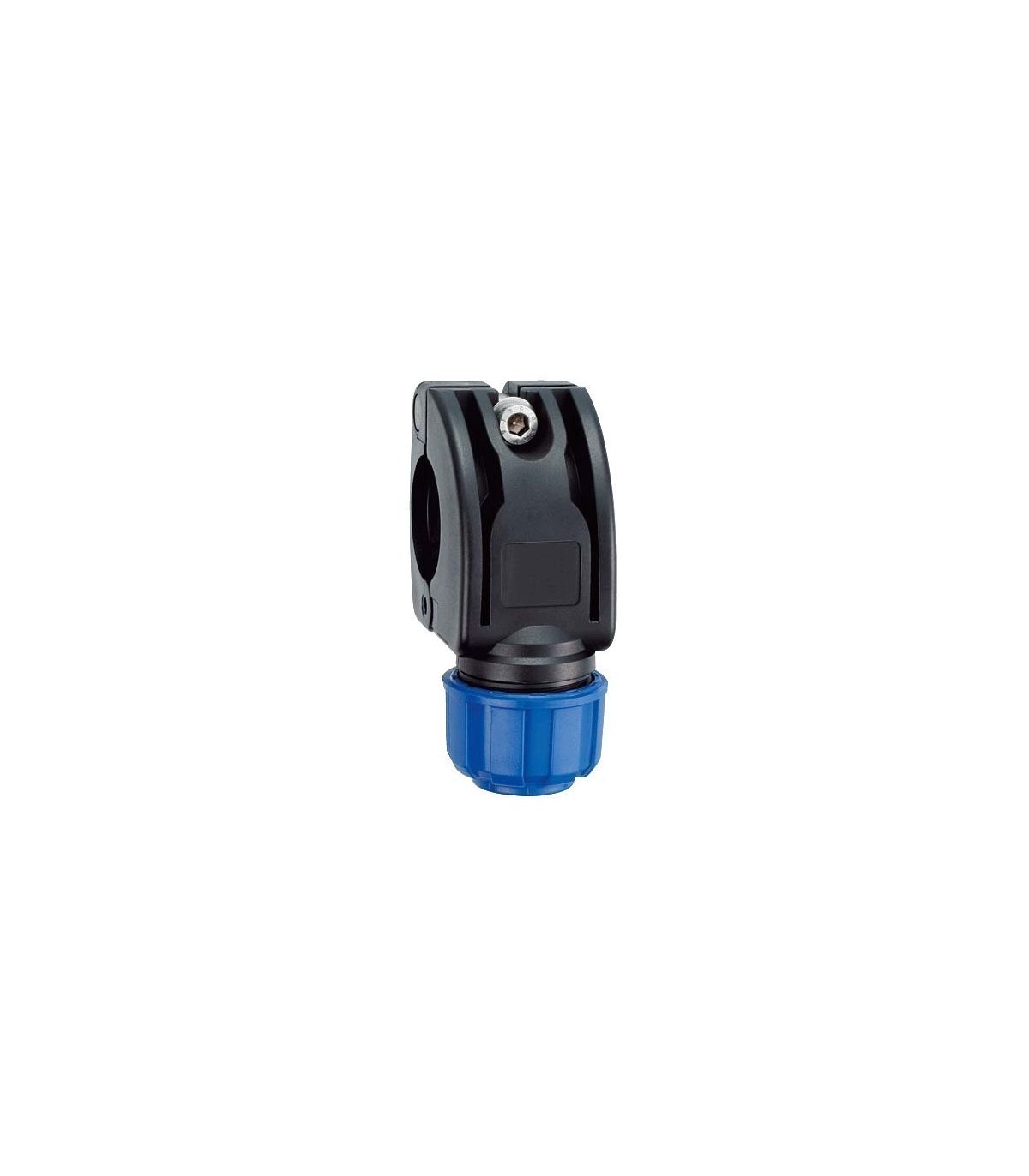

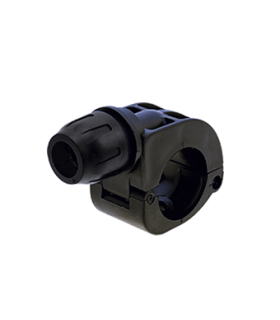

BRANCH FITTING DRILLED INTO PIPE
BRANCH FITTING DRILLED INTO PIPE
BRANCH FITTING DRILLED INTO PIPE
BRANCH FITTING DRILLED INTO PIPE
BRANCH FITTING DRILLED INTO PIPE
BRANCH FITTING DRILLED INTO PIPE

BRANCH FITTING DRILLED INTO PIPE

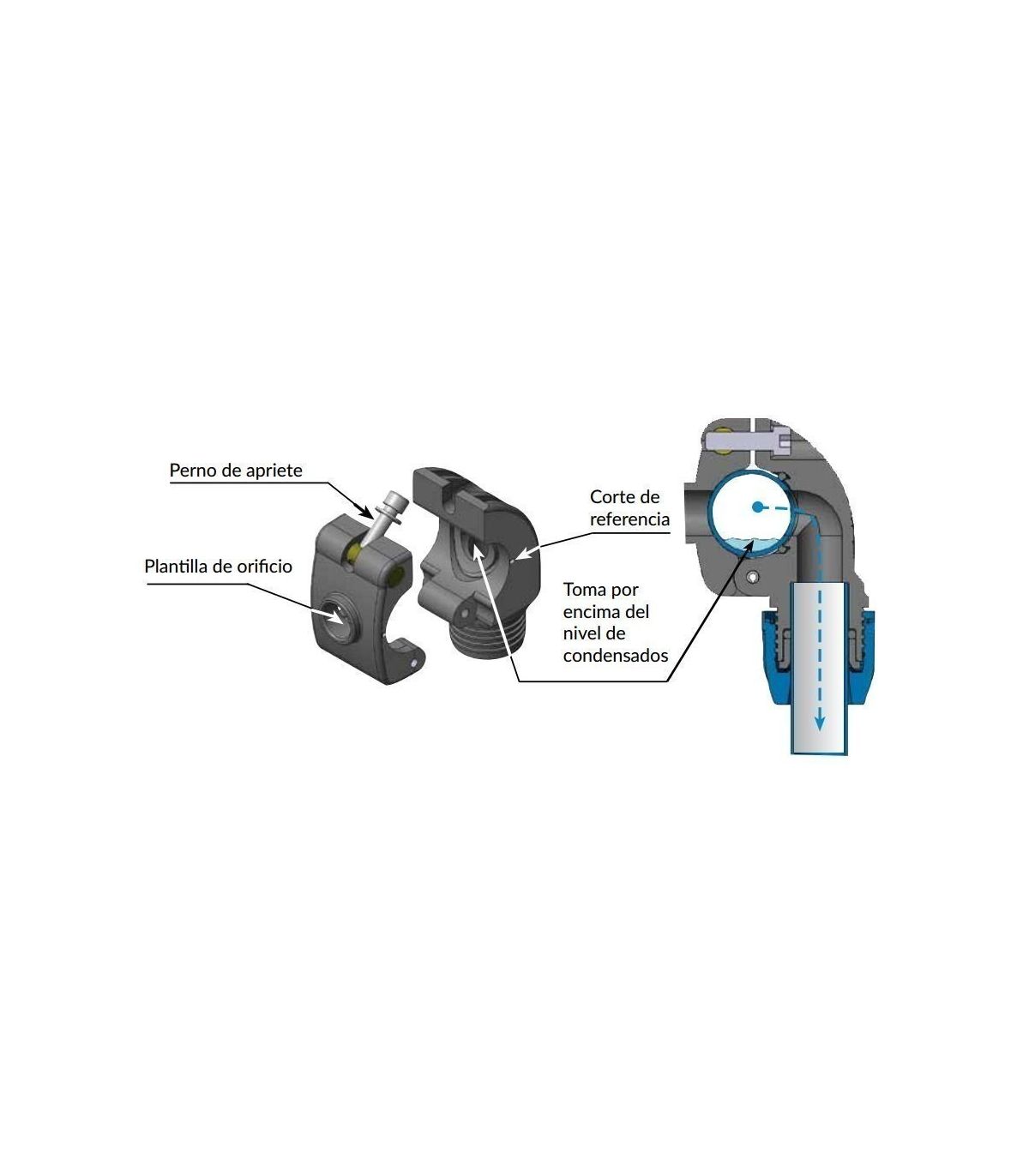

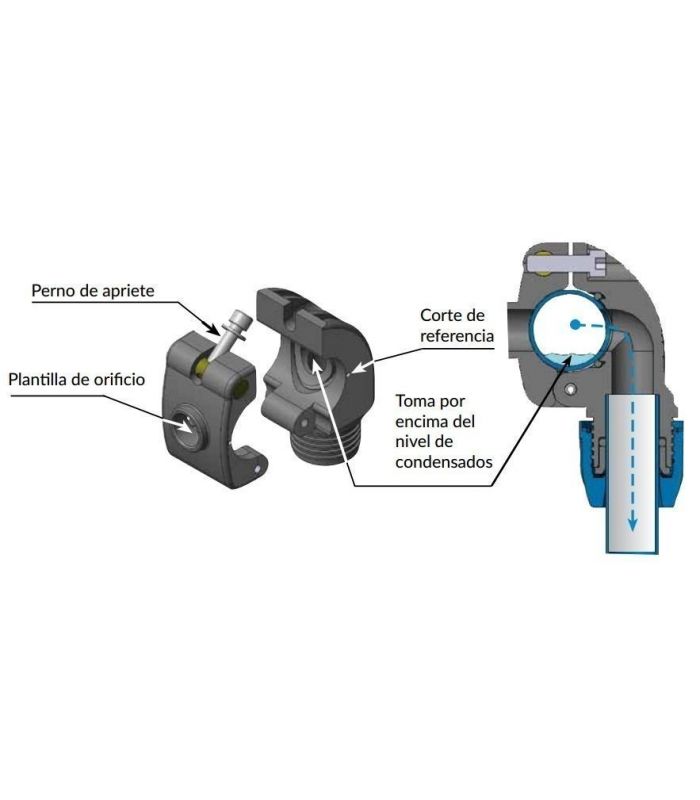

A drill-to-pipe branch fitting is a pneumatic or hydraulic connector that allows an air or fluid intake to be taken directly from a drilled hole made in a main pipe.

Applications: Compressed air networks, Pneumatic automation, Extensions of existing lines.

Main features :

  • Made of technopolymer.
  • Suitable for: Compressed air, inert gases, vacuum.
  • Temperature -30ºC / 80ºC
  • Available diameters 16-20-25-32-40-50-63
  • Reaction to fire: EN 13501-1:2007+A1:2009 EN ISO13823:2010
  • Easy assembly.

DEMO VIDEO

€17.85 (tax included)
€14.75 (tax excl.)
DIAMETERS
  • Ø25-Ø20
  • Ø32-Ø20
  • Ø40-Ø20
  • Ø40-Ø25
  • Ø50-Ø20
  • Ø50-Ø25
Reference:
14110040
Description

Drill to pipe branch fitting

Code D D1 L AND The Dp
14110040 25 20 113 45 52 16
14110041 32 20 113 45 52 16
14110043 40 20 125 45 52 20
14110044 40 25 125 51 52 20
14110046 50 20 145 45 60 20
14110047 50 25 145 51 60 20

Product Details
14110040
Comments
12 other products in the same category:
THREADED INLET WALL LIGHT WITH 2 OUTLETS

€32.00 (tax excl.)
€38.72 (tax included)
Wall light with threaded inlet and 2 outlets. It is a plumbing accessory designed to be mounted on a wall and divide a connection into two independent branches. Technical data sheet: Applicable in compressed air...
REDUCED T UNION

€12.43 (tax excl.)
€15.04 (tax included)
Reduced TE fitting for tube of technopolymer installations. Suitable for: Compressed air, inert gases, vacuum. Temperature -30ºC / 80ºC Available diameters 16-20-25-32-40-50-63 Reaction to fire: EN...
ALUMINUM MANIFOLD 3 OUTLETS 1/2"

€40.10 (tax excl.)
€48.52 (tax included)
A 3-way 1/2" aluminum manifold is an essential component in compressed air systems, designed to distribute a main air supply to multiple branches. It is suitable for medium flow rates and applications where corrosion...
PLUG FOR INSTALLATIONS TUBE

€5.53 (tax excl.)
€6.69 (tax included)
Plug for pipe installations It is designed to hermetically seal the end of a tube, preventing the passage of fluids (liquids or gases) or solids. Applications: Construction, Industry, Plumbing, Heating and air...
STRAIGHT CONNECTION TO TAPERED THREADED PIPE FOR NETWORKS

€4.52 (tax excl.)
€5.47 (tax included)
Straight union for tapered threaded pipe for networks A straight pipe-to-conical thread union for networks is a connection fitting used to join a pipe with a threaded component in fluid networks, ensuring a leak-proof...
PIPE CUTTER

€58.08 (tax excl.)
€70.28 (tax included)
A pipe cutter is a hand tool used to cut round pipes at a right angle. It's the quickest and most convenient way to cut a pipe. Technical specifications: Telescopic blade feeding system. Cut from 4 to 42 mm. Ergonomic...
NUT WITH RING

€2.27 (tax excl.)
€2.75 (tax included)
Technopolymer nut with stainless steel ring Suitable for: Compressed air, inert gases, vacuum. Temperature -30ºC / 80ºC Available diameters 16-20-25-32-40-50-63 Reaction to fire: EN 13501-1:2007+A1:2009 EN...

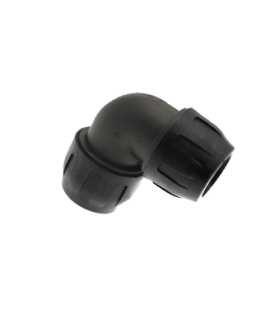

90° ELBOW JOINT
