REDUCED STRAIGHT UNION FOR INSTALLATIONS

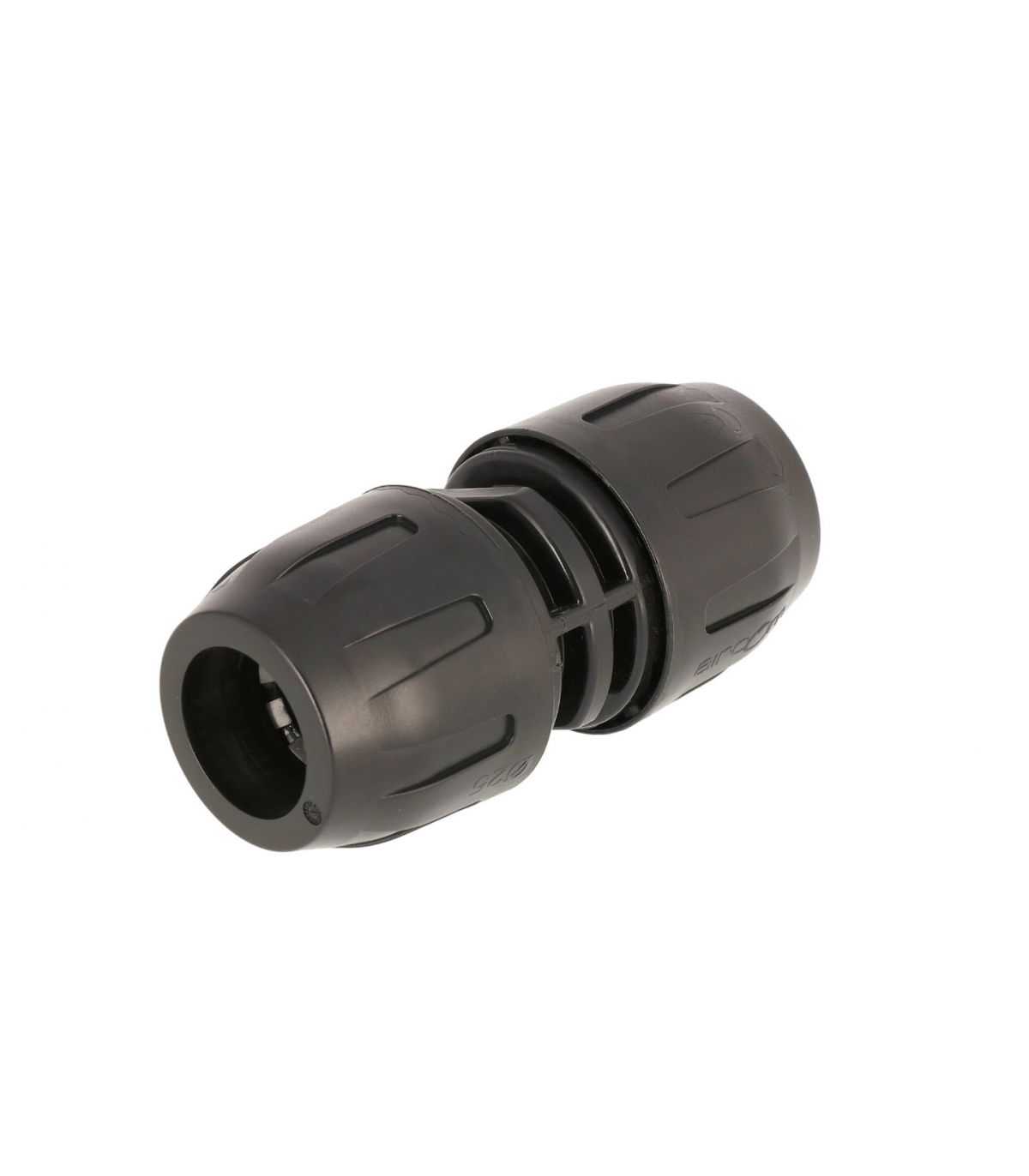

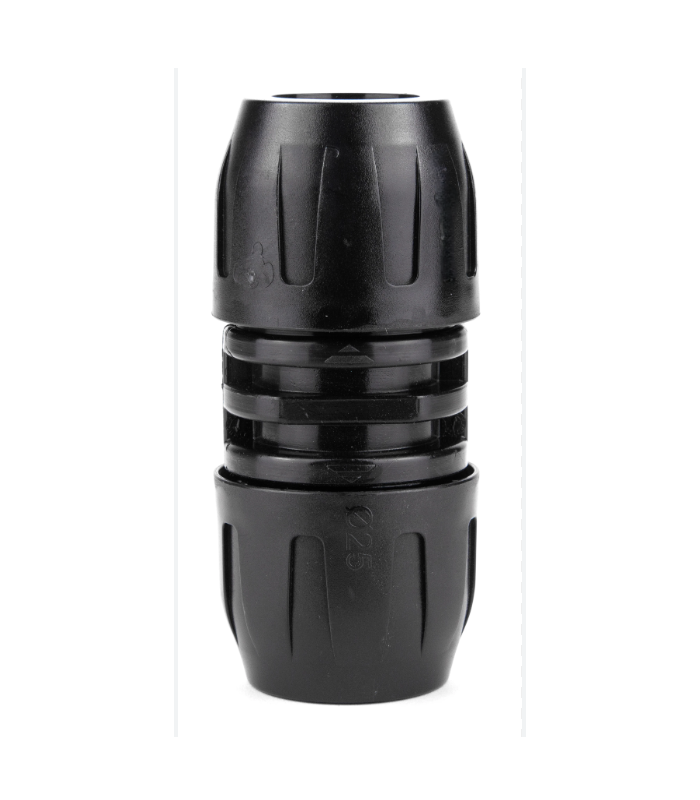

Reduced straight union for installations

This is a plumbing and piping system accessory designed to connect two sections of pipe with different diameters. Its function is to join these two sections in a secure and hermetically sealed manner, allowing the passage of fluid from a larger diameter to a smaller one.

Applications: plumbing, heating systems, industry, pneumatics

Technical data sheet:

Made of technopolymer
Suitable for compressed air, inert gases, vacuum.
Temperature -30ºC / 80ºC
Available diameters 16-20-25-32-40-50-63
Reaction to fire: EN 13501-1:2007+A1:2009 EN ISO13823:2010
Ease of assembly.

DEMO VIDEO

€10.19 (tax included)

€8.42 (tax excl.)

DIAMETERS

Ø25-Ø20
Ø32-Ø25
Ø40-Ø32
Ø50-Ø40

Reference:

14120040

Description
Comments

Description

Reduced straight union for installations

Product Details

Reference 14120040

Comments
