ACCESSORY BEND 90º MALE FEMALE LOOSE
ACCESSORY BEND 90º MALE FEMALE LOOSE
ACCESSORY BEND 90º MALE FEMALE LOOSE
ACCESSORY BEND 90º MALE FEMALE LOOSE
ACCESSORY BEND 90º MALE FEMALE LOOSE
ACCESSORY BEND 90º MALE FEMALE LOOSE

ACCESSORY BEND 90º MALE FEMALE LOOSE

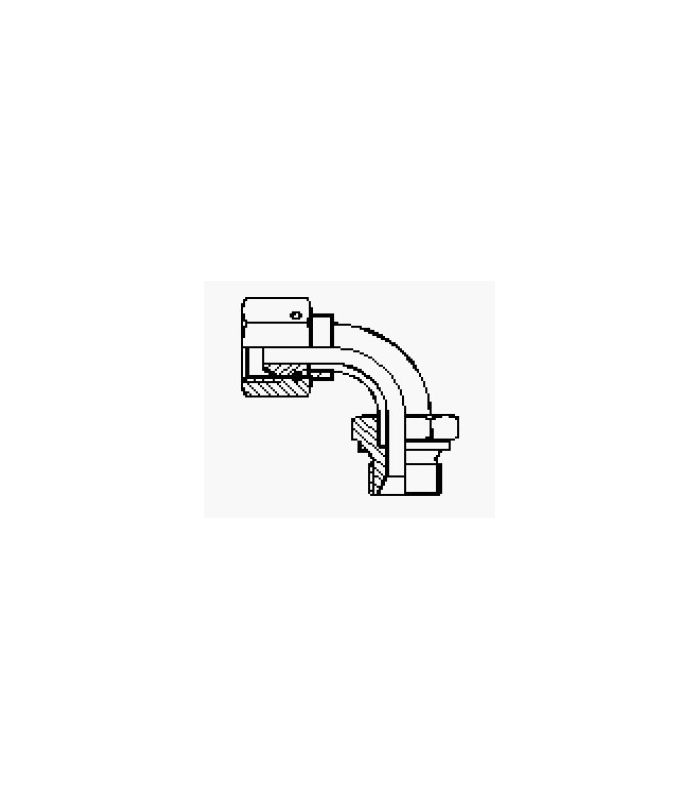

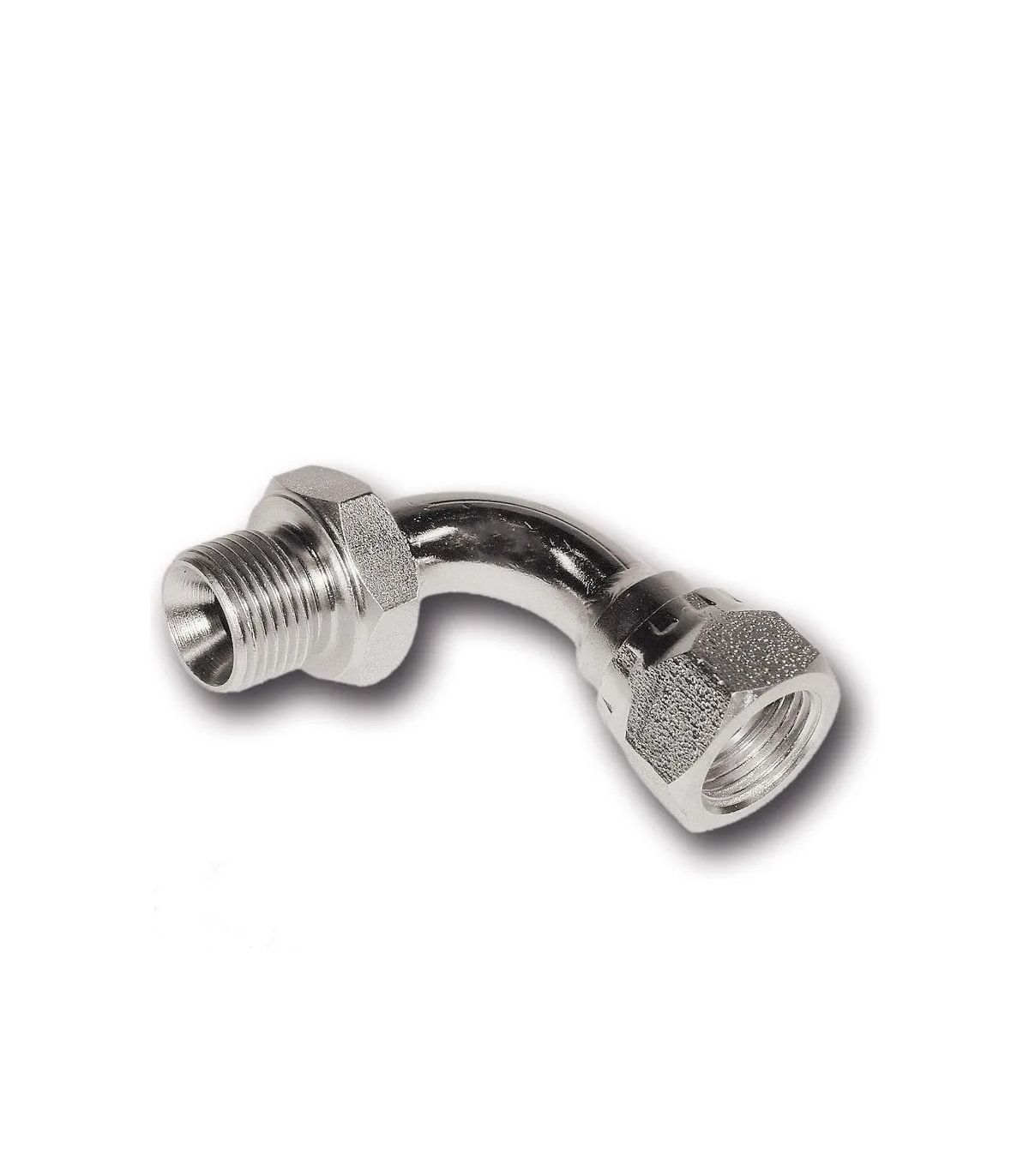

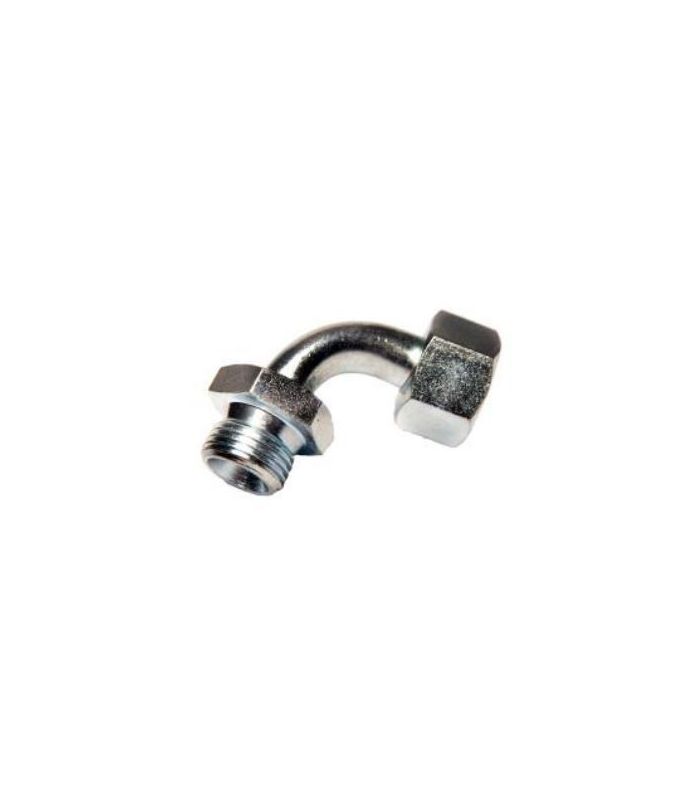

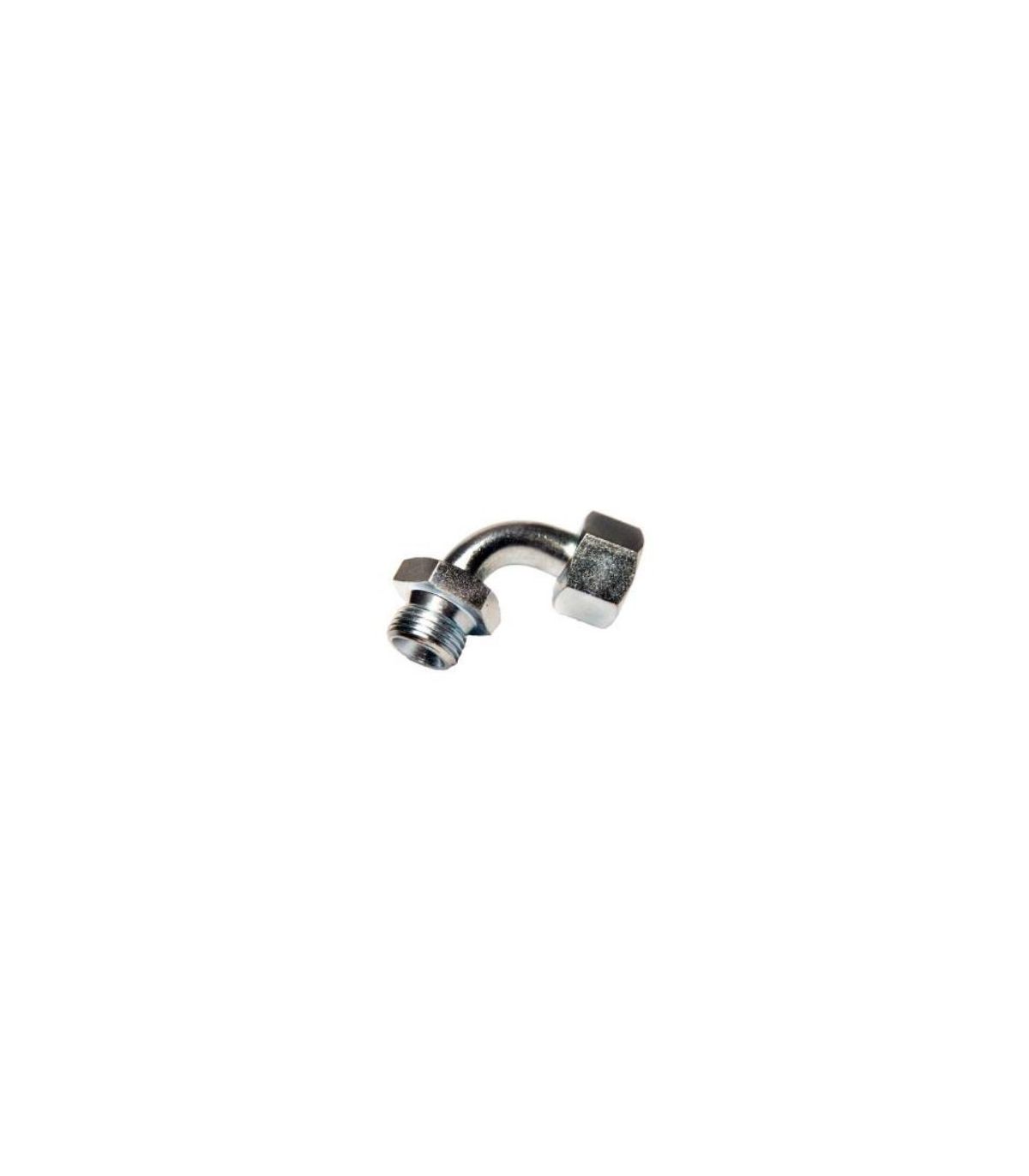

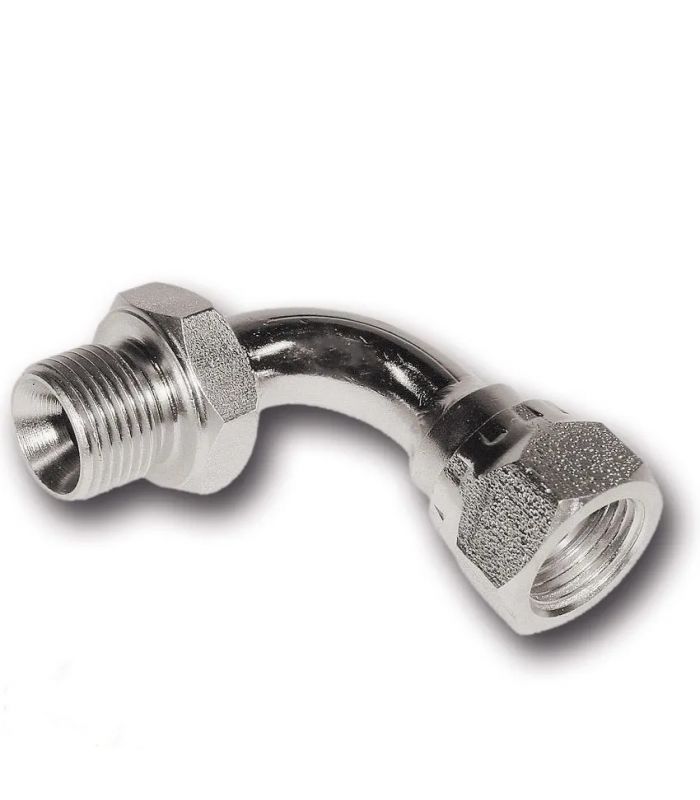

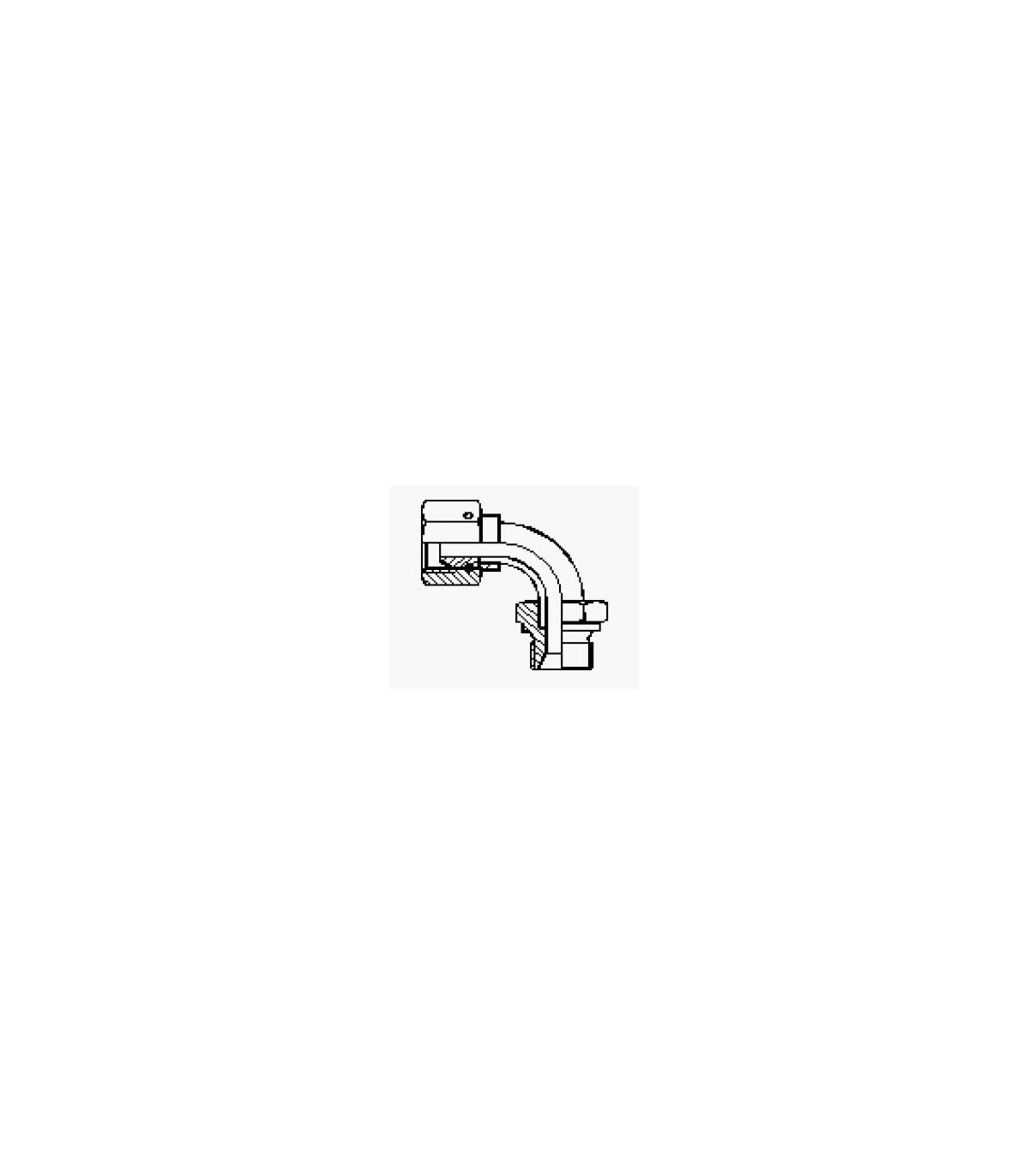

The 90° male female swivel accessory elbow is a hydraulic fitting designed to make 90° changes of direction in hydraulic circuits, allowing a BSP male thread to be connected to a rotating female thread.

Main features:

  • 60° conical closure fitting with BSP thread.
  • Made of carbon steel.
  • White zinc plating.
  • Operating temperature -40 / 150ºC.
  • Working pressure 250 bar.
€4.97 (tax included)
€4.11 (tax excl.)
SELECT THE THREAD
  • 1/8"-1/8"
  • 1/4"-1/4"
  • 3/8"-3/8"
  • 3/4"-3/4"
  • 1/2"-1/2"
  • 1"-1"
  • 1-1/4" - 1-1/4"
  • 1-1/2" - 1-1/2"
  • 2"-2"
Reference:
44160006
Description

Accessory 90º male female crazy bend

The 90° male-female swivel fitting is a hydraulic fitting designed to make 90° changes in direction in hydraulic circuits, allowing the connection of a BSP male thread to a swivel female thread (swivel nut). Its design facilitates installation in confined spaces and reduces effort during assembly, as the swivel nut allows the connection to be made without rotating the hose or pipe.

Made of high-strength carbon steel and equipped with a 60° conical closure , it provides a watertight seal through metal-to-metal contact, offering excellent performance in medium and high pressure applications.

Applications

  • Industrial hydraulic systems.
  • Agricultural machinery.
  • Public works teams.
  • Construction machinery.
  • Hydroelectric power plants.
  • Lubrication systems.
  • Hydraulic oil conveyance installations.

Technical specifications of a 90º male-female accessory bend:

Product Details
44160006
