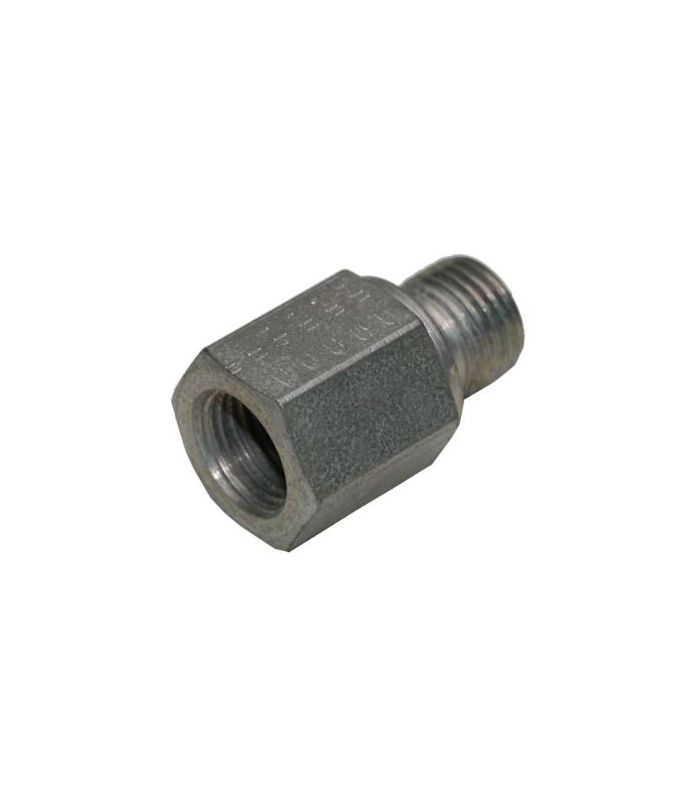

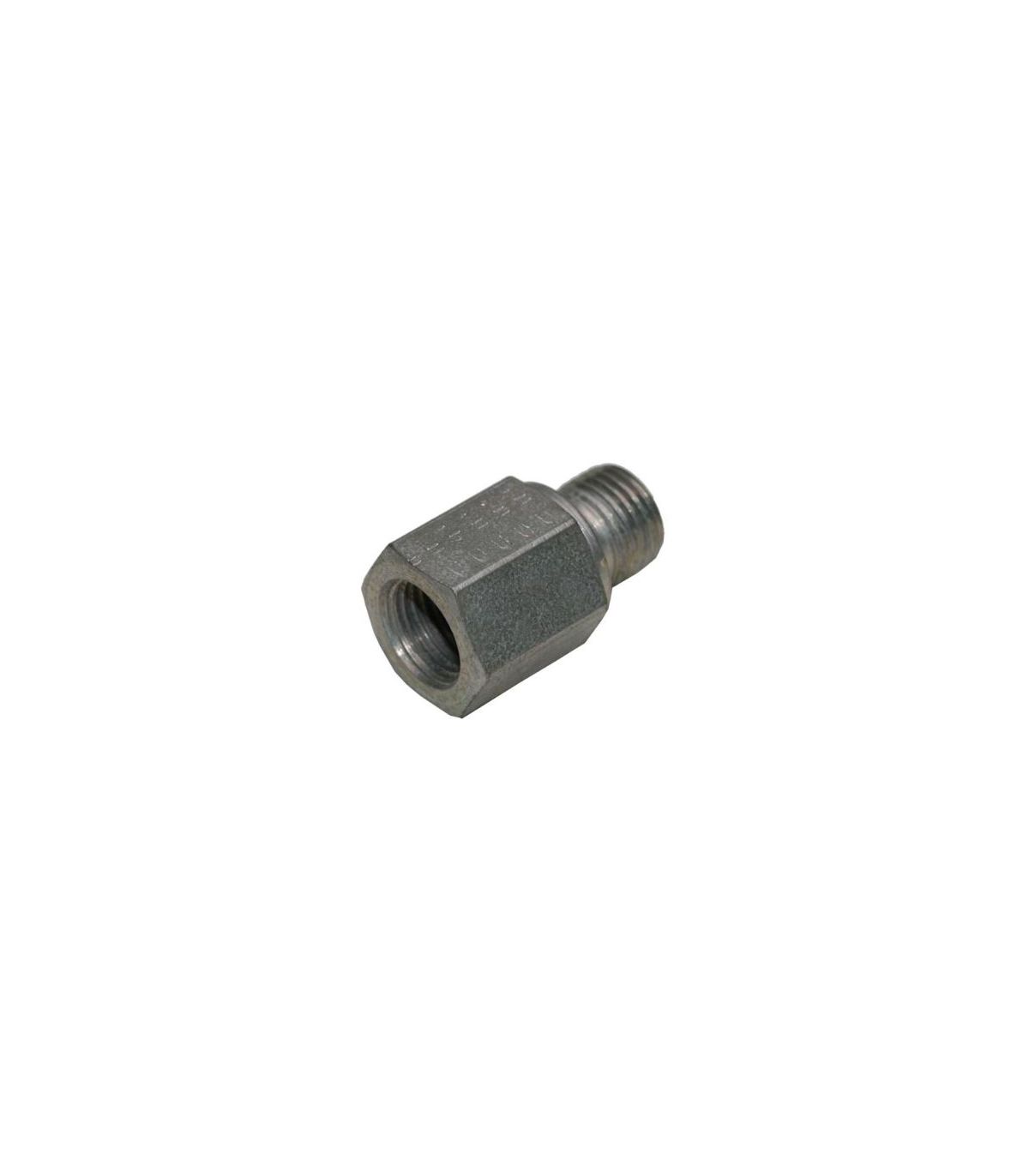

MALE FEMALE HYDRAULIC SUPPLEMENT

MALE FEMALE HYDRAULIC SUPPLEMENT

The male and female hydraulic extension allows for the safe and efficient extension or adaptation of connections, maintaining the watertightness and resistance of the hydraulic circuit.

Applications: medium and high pressure hydraulic circuits.

Main features:

  • 60° conical closure fitting with BSP thread.
  • Made of carbon steel.
  • White zinc plating.
  • Operating temperature -40 / 150ºC.
  • Working pressure 250 bar.

*THE MALE THREAD IS THE SMALLER

€1.42 (tax included)
€1.17 (tax excl.)
SELECT THE THREAD
  • 1/8"-1/8"
  • 1/4"-1/8"
  • 3/8"-1/8"
  • 1/4"-1/4"
  • 3/8"-3/8"
  • 3/8"-1/4"
  • 3/4"-1/2"
  • 3/4"-3/4"
  • 3/4"-3/8"
  • 1/2"-1/4"
  • 1/2"-3/8"
  • 1/2"-1/2"
  • 1"-1/2"
  • 1"-3/4"
  • 1"-1"
  • 1-1/4" - 1-1/4"
  • 1-1/4"-3/4"
  • 1-1/4"-1"
  • 1-1/2"-1"
  • 1-1/2" - 1-1/2"
  • 1-1/2" - 1-1/4"
  • 2" - 1-1/4"
  • 2"-2"
  • 2" - 1-1/2"
Reference:
44010006
Description

male female hydraulic supplement

The male-female hydraulic extension is a fitting designed to extend or adapt threaded connections in hydraulic circuits, allowing for increased connection length without modifying the existing installation. Its configuration with BSP male and BSP female threads facilitates a secure and leak-proof connection of components.

Made of high-strength carbon steel , it incorporates a 60° conical closure system, which guarantees excellent sealing through metal-to-metal contact, offering reliable performance in medium and high pressure applications.

Applications

  • Industrial hydraulic systems.
  • Agricultural machinery.
  • Public works teams.
  • Hydroelectric power plants.
  • Lubrication systems.
  • Fluid conveyance installations.

Technical specifications of a male-female hydraulic adapter:

Product Details
44010006
