Peristaltic hoses for conveying chemical fluids are specifically designed for this type of pump. Unlike other pumps, in peristaltic pumps the hose not only transports the fluid, but is also the active pumping element....

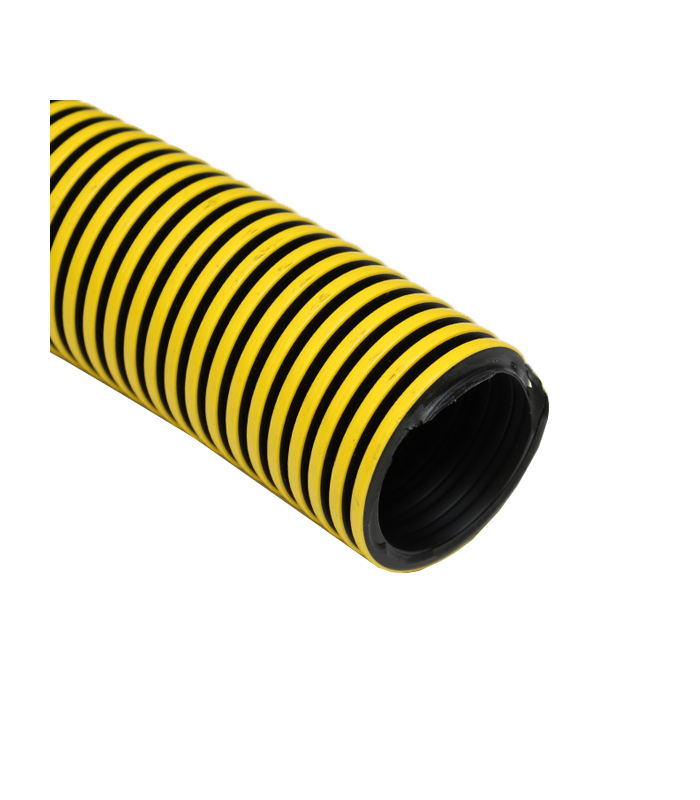

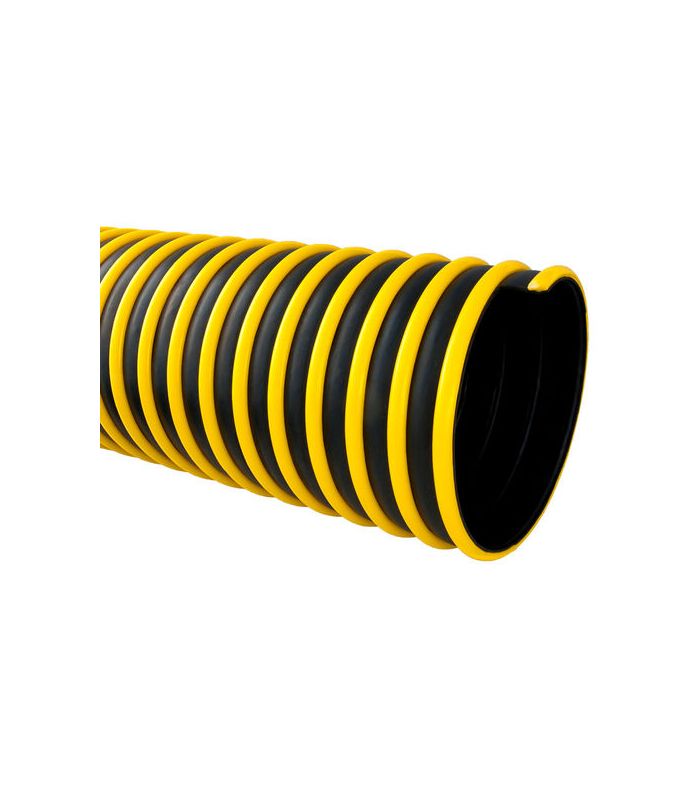

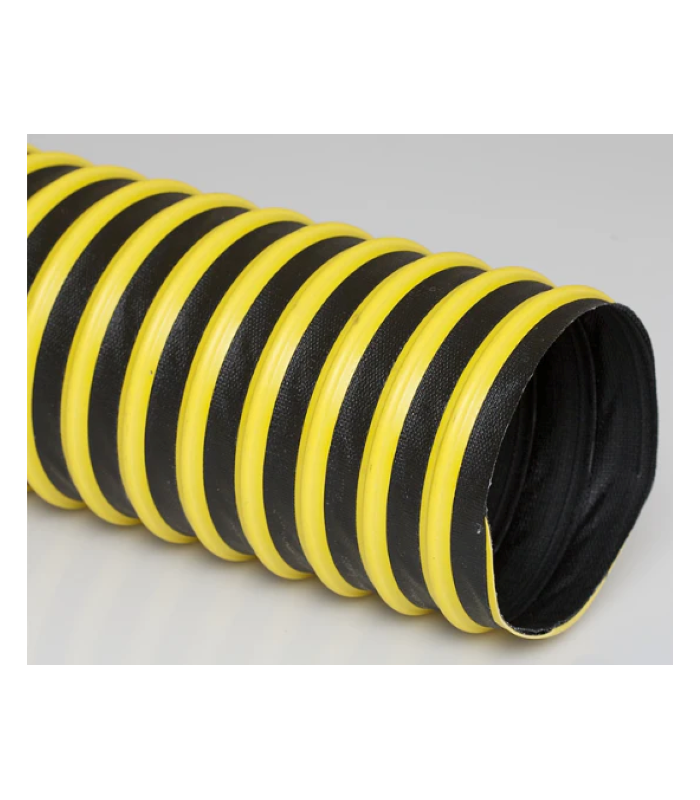

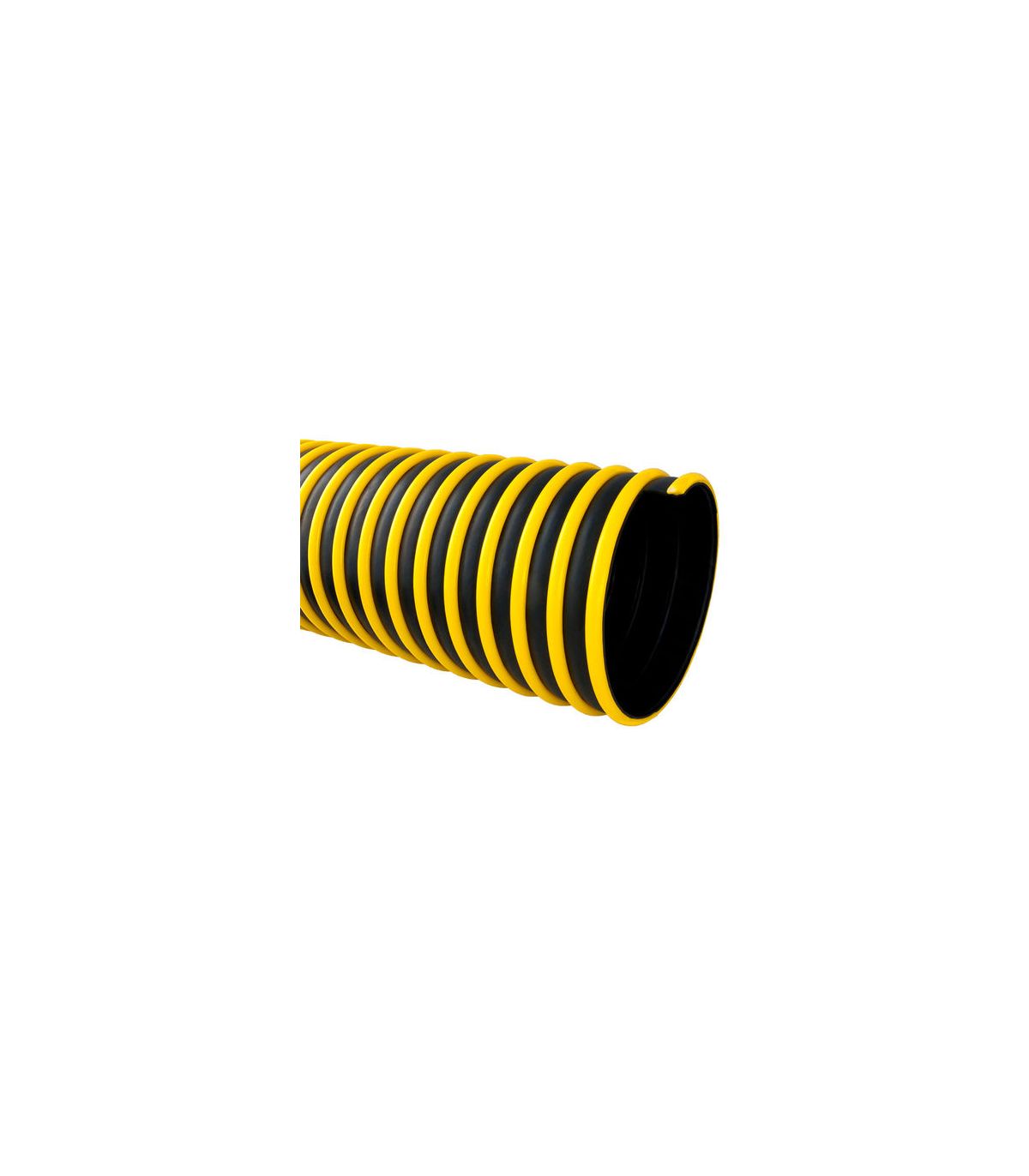

EPDM HOSE FOR SUCTION AND ASPIRATION
The EPDM suction hose , also compatible with Tech Chemical, Tigerflex TY, or S-660, is designed for transferring, suctioning, and discharging liquids and chemicals under demanding conditions. It is made of EPDM rubber , reinforced with an outer polyethylene spiral and textile reinforcement.
It is suitable for use with agricultural liquid fertilizers, irrigation lines, liquid manure transport, vessel bilge discharge, pumps, water, drains, garbage collection, septic water and wastewater, wastewater disposal in fracking processes and general water suction.
Main features:
- Interior: Smooth EPDM surface
- Exterior: Corrugated, polyethylene spiral
- Reinforcement: Polyester mesh
- Temperature: -40ºC to +60ºC
It is supplied in a 40-meter roll for Ø51 and a 20-meter roll for Ø90.
The price reflects the cost of a full roll; it is not supplied cut to size.
€591.84
(tax incl.)
€489.12
(tax excl.)
Reference:
0900501
EPDM hose for suction and vacuuming
The EPDM suction and vacuum hose is designed for conveying, suctioning and discharging sewage, salt water, chemicals, acids, slurry and fertilizers , as well as for applications in construction, mining, plumbing and tanker trucks.
Made with high-quality EPDM rubber and reinforced with a rigid PVC spiral , it offers an excellent combination of strength, flexibility, and durability in industrial and agricultural environments.
Technical data sheet for EPDM hose for suction and vacuuming:
| Code | Inner diameter (mm) | Outer diameter (mm) | Weight (g/m) | Minimum radius of curvature (mm) | Working pressure (bar) | Length (m) |
| 0900501 | 51 | 63.4 | 1189 | 130 | 8 | 40 |
| 0900502 | 90 | 103.4 | 2520 | 300 | 5 | 20 |
Technical advantages
- High chemical resistance to aggressive products.
- Flexible and lightweight, easy to handle and roll up.
- Durable, even under sun exposure, ozone or saline environments.
- Excellent performance under vacuum and negative pressure.
- It does not collapse during suction thanks to its reinforced spiral.
- Minimal maintenance and long service life.
- Visible and safe, thanks to its distinctive yellow warning spiral.
Typical applications
- Black and wastewater.
- Salt and brackish waters.
- Chemicals and diluted acids.
- Industrial and construction applications.
- Mining and suction of sludge or slurry.
- Liquid fertilizers and nutrients.
- Water and sanitation systems and tanker trucks.
